Wide-angle view (example in the 11.9

The cameras are only an aid and may show a dis-
torted view of obstacles, show them incorrectly or
not show them at all. They are not a substitute for your attention to the surroundings. The responsi-
bility for safe maneuvering and parking remains
with you. Make sure that there are no persons,

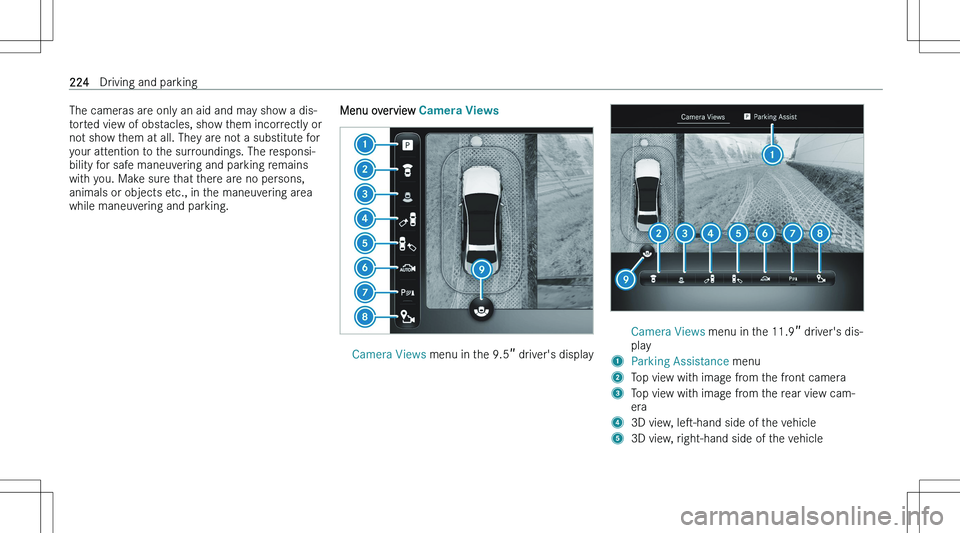

animals or objects etc., in the maneuvering area while maneuvering and parking.Menu overview &DmHrD9LHZsCamera Views menu in the 9.5

63D auto view7Activating/deactivating Parking Assist
PARKTRONIC (  page 231)8To set the GPS activation point (  page 228)9To switch between standard and wide-angle

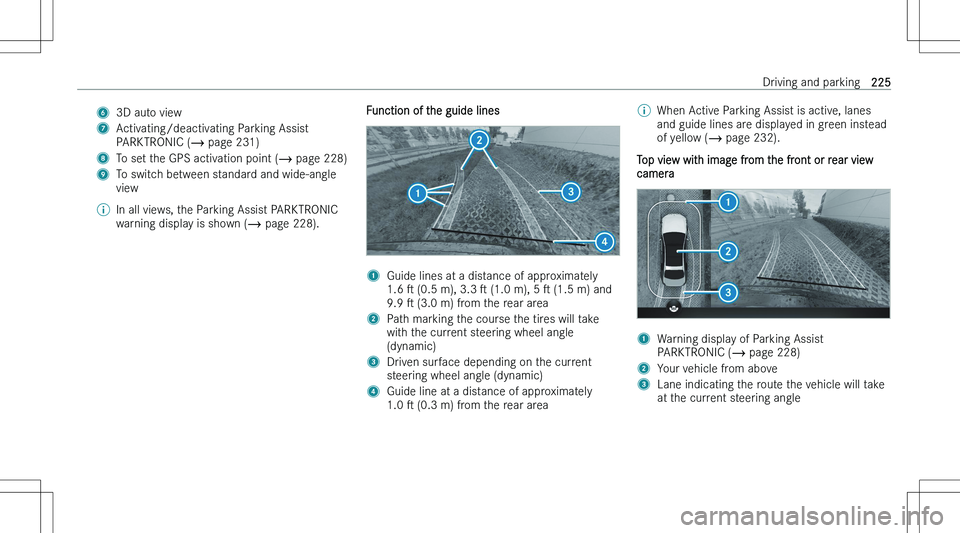

view\bIn all views, the Parking Assist PARKTRONICwarning display is shown (  page 228).Function of the guide lines1Guide lines at a distance of approximately
1.6 s (0.5 m), 3.3 s (1.0 m), 5 s (1.5 m) and
9.9 s (3.0 m) from the rear area2Path marking the course the tires will take
with the current steering wheel angle
(dynamic)3Driven surface depending on the current
steering wheel angle (dynamic)4Guide line at a distance of approximately
1.0 s (0.3 m) from the rear area\bWhen Active Parking Assist is active, lanes
and guide lines are displayed in green instead
of yellow (  page 232).
Top view with image from the front or rear view
camera
1Warning display of Parking Assist
PARKTRONIC (  page 228)2Your vehicle from above3Lane indicating the route the vehicle will take
at the current steering angleDriving and parking225

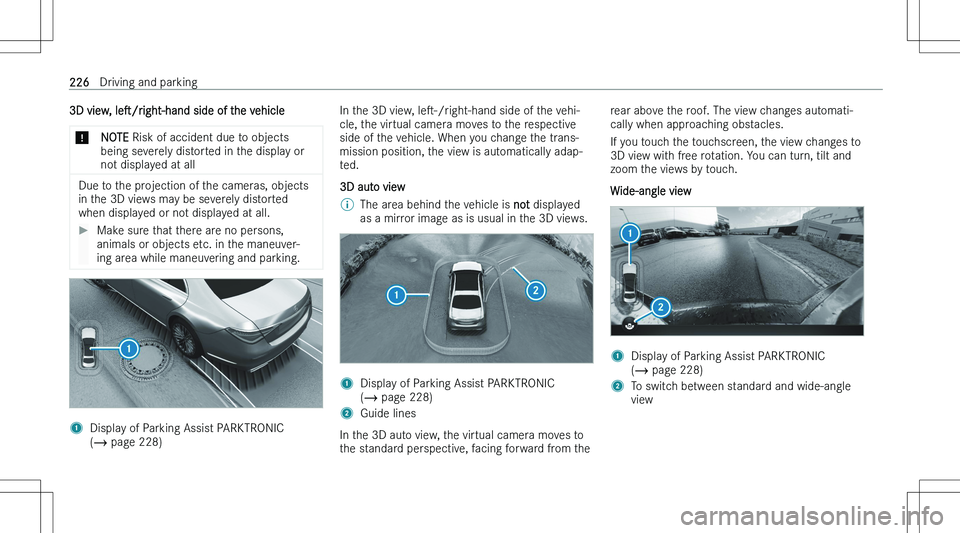

3D view, les/right-hand side of the vehicle*NOTE Risk of accident due to objects
being severely distorted in the display or
not displayed at all
Due to the projection of the cameras, objects
in the 3D views may be severely distorted
when displayed or not displayed at all.
Make sure that there are no persons,
animals or objects etc. in the maneuver-
ing area while maneuvering and parking.1Display of Parking Assist PARKTRONIC
(  page 228)In the 3D view, les-/right-hand side of the vehi-
cle, the virtual camera moves to the respective
side of the vehicle. When you change the trans-
mission position, the view is automatically adap-
ted.
3D auto view\bThe area behind the vehicle is not displayed
as a mirror image as is usual in the 3D views.1Display of Parking Assist PARKTRONIC
(  page 228)2Guide lines
In the 3D auto view, the virtual camera moves to
the standard perspective, facing forward from the
rear above the roof. The view changes automati- cally when approaching obstacles.
If you touch the touchscreen, the view changes to
3D view with free rotation. You can turn, tilt and
zoom the views by touch.
Wide-angle view1Display of Parking Assist PARKTRONIC
(  page 228)2To switch between standard and wide-angle
view226Driving and parking

System limits
If the system is not ready for operation, the Sys-
tem Inoperative message appears in the central
display.
The 360° Camera will not function or will function
only partially in the following situations:
= You are driving forwards at a speed greater
than approximately 10 mph (16 km/h).
= The doors are open.
= An outside mirror is not completely folded out.
= The trunk lid is open.
= The weather conditions are poor, e.g. heavy
rain, snow, fog, storm or spray.
= The ambient light is poor, e.g. at night or if
light is shining into the camera.
= The camera lens is obstructed, dirty or fogged
up.
= If cameras or vehicle components in which the
cameras are installed are damaged. In this
event, have the cameras, their positions and their setting checked at a qualiNed specialist
workshop.\bDo not use the 360° Camera under such cir-
cumstances. You could otherwise injure oth-
ers or collide with objects when parking the vehicle.
For technical reasons, the standard height of thevehicle may be altered if the vehicle is carrying a
heavy load and can result in inaccuracies in the
guide lines and in the display of the generated
images.
The Neld of vision and other functions of the cam-
era system may be restricted due to additional attachments on the vehicle (e.g. license plate
bracket, bicycle rack).
\bThe contrast of the display may be impaired
by abrupt, direct sunlight or by other light
sources, e.g. when driving out of a garage. In
this case, pay particular attention.\bHave the display repaired or replaced if, forexample, pixel errors considerably restrict
its use.
See the notes on cleaning the 360° Camera
(  page 313).

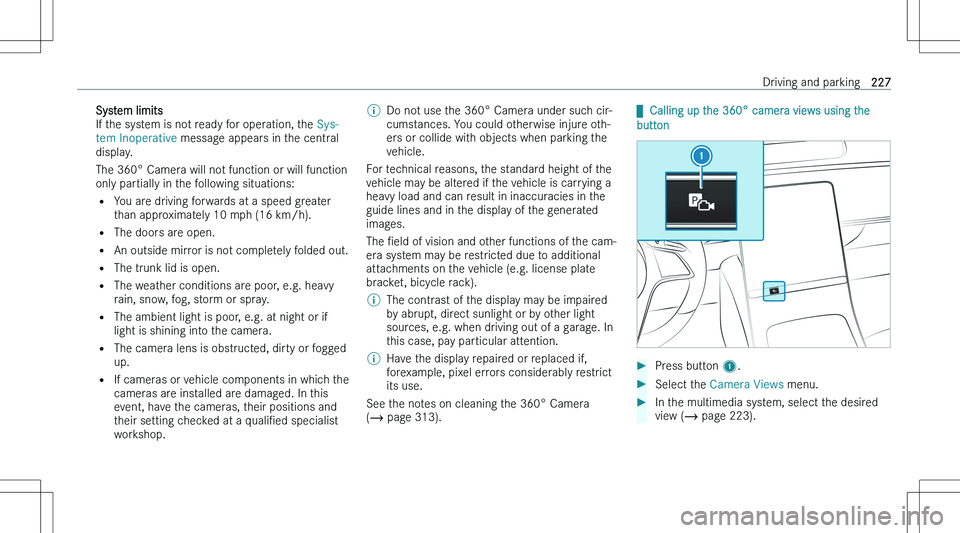

qCalling up the 360° camera views using the
buttonPress button 1.Select the Camera Views menu.In the multimedia system, select the desired
view (  page 223).Driving and parking227

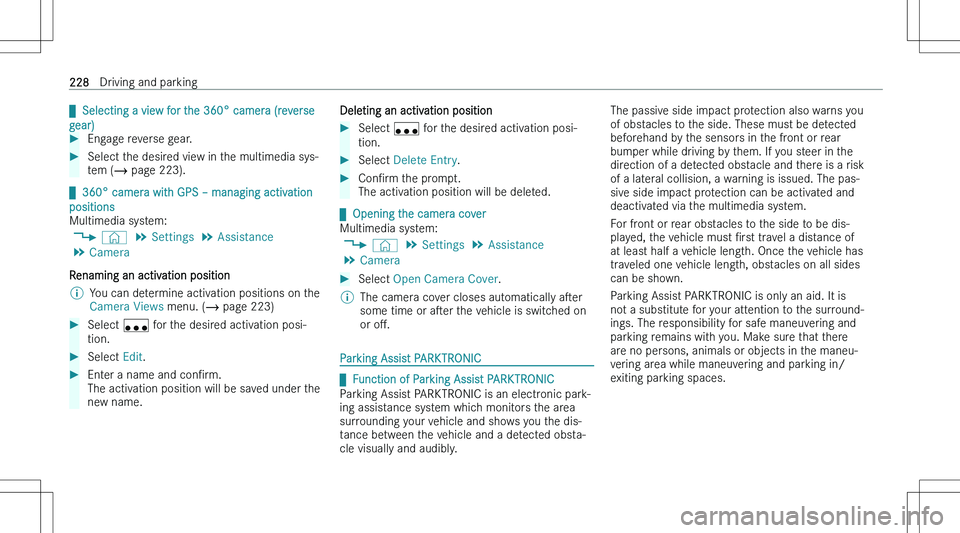

qSelecting a view for the 360° camera (reverse
gear)Engage reverse gear.Select the desired view in the multimedia sys- tem (  page 223).

q360° camera with GPS !

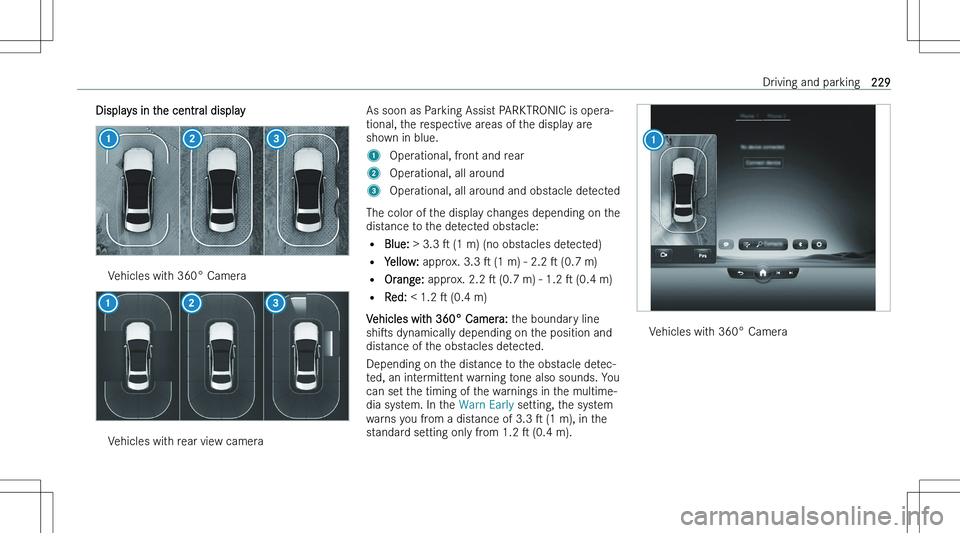

Displays in the central displayVehicles with 360° CameraVehicles with rear view cameraAs soon as Parking Assist PARKTRONIC is opera-
tional, the respective areas of the display are
shown in blue.1Operational, front and rear2Operational, all around3Operational, all around and obstacle detected
The color of the display changes depending on the distance to the detected obstacle:
= Blue: > 3.3 s (1 m) (no obstacles detected)
= Yellow: approx. 3.3 s (1 m) - 2.2 s (0.7 m)
= Orange: approx. 2.2 s (0.7 m) - 1.2 s (0.4 m)
= Red: < 1.2 s (0.4 m)
Vehicles with 360° Camera: the boundary line
shiss dynamically depending on the position and
distance of the obstacles detected.
Depending on the distance to the obstacle detec-
ted, an intermittent warning tone also sounds. You
can set the timing of the warnings in the multime-
dia system. In the Warn Early setting, the system
warns you from a distance of 3.3 s (1 m), in the
standard setting only from 1.2 s (0.4 m).
Vehicles with 360° CameraDriving and parking229

Vehicles with rear view camera

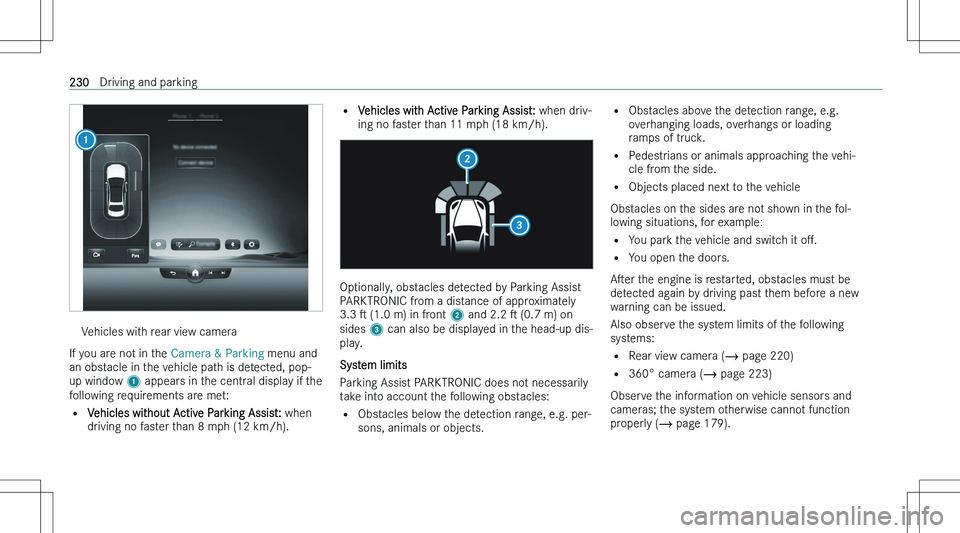

If you are not in the Camera & Parking menu and
an obstacle in the vehicle path is detected, pop- up window 1 appears in the central display if the
following requirements are met:
= Vehicles without Active Parking Assist: when
driving no faster than 8 mph (12 km/h).
= Vehicles with Active Parking Assist: when driv-
ing no faster than 11 mph (18 km/h).
Optionally, obstacles detected by Parking Assist
PARKTRONIC from a distance of approximately 3.3 s (1.0 m) in front 2 and 2.2 s (0.7 m) on
sides 3 can also be displayed in the head-up dis-
play.
System limits
Parking Assist PARKTRONIC does not necessarily
take into account the following obstacles:
= Obstacles below the detection range, e.g. per-
sons, animals or objects.
= Obstacles above the detection range, e.g.
overhanging loads, overhangs or loading
ramps of truck.
= Pedestrians or animals approaching the vehi-
cle from the side.
= Objects placed next to the vehicle
Obstacles on the sides are not shown in the fol-
lowing situations, for example:
= You park the vehicle and switch it oM.
= You open the doors.
Aser the engine is restarted, obstacles must be
detected again by driving past them before a new
warning can be issued.
Also observe the system limits of the following
systems:
= Rear view camera (  page 220)
= 360° camera (  page 223)
Observe the information on vehicle sensors and
