2023 MERCEDES-BENZ C CLASS Owners Manual

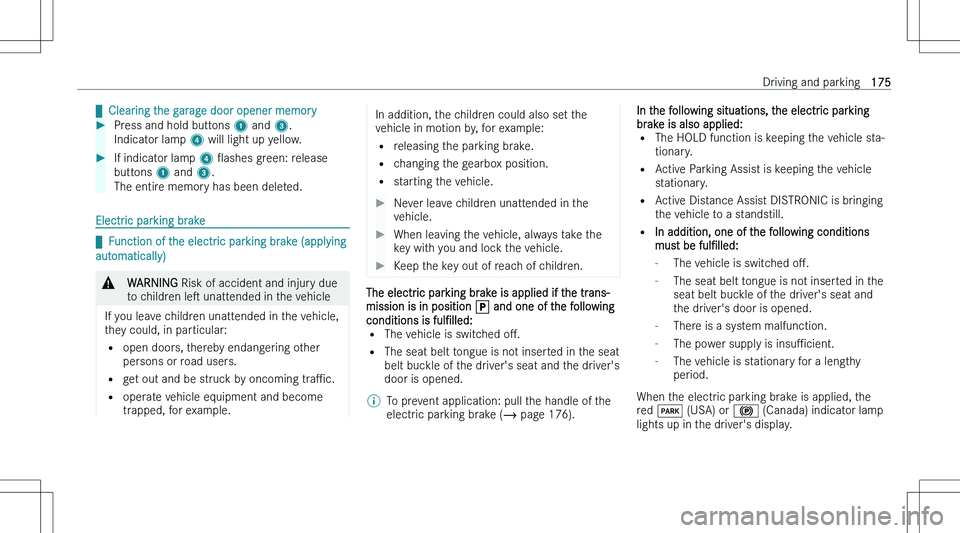

qClearing the garage door opener memoryPress and hold buttons 1 and 3.
Indicator lamp 4 will light up yellow.If indicator lamp 4 Oashes green: release
buttons 1 and 3.
The entire memory has been deleted.
Electric parking brake

q Function of the electric parking brake (applying
automatically)
&WARNING Risk of accident and injury due
to children les unattended in the vehicle
If you leave children unattended in the vehicle,
they could, in particular:
= open doors, thereby endangering other
persons or road users.
= get out and be struck by oncoming traPc.
= operate vehicle equipment and become
trapped, for example.
In addition, the children could also set the
vehicle in motion by, for example:
= releasing the parking brake.
= changing the gearbox position.
= starting the vehicle.Never leave children unattended in the
vehicle.When leaving the vehicle, always take the key with you and lock the vehicle.Keep the key out of reach of children.
The electric parking brake is applied if the trans-mission is in position ] and one of the following
conditions is fulNlled:
= The vehicle is switched oM.
= The seat belt tongue is not inserted in the seat
belt buckle of the driver\bs seat and the driver\bs
door is opened.
\bTo prevent application: pull the handle of the
electric parking brake (  page 176).In the following situations, the electric parking
brake is also applied: = The HOLD function is keeping the vehicle sta-
tionary.
= Active Parking Assist is keeping the vehicle
stationary.
= Active Distance Assist DISTRONIC is bringing
the vehicle to a standstill.
= In addition, one of the following conditions
must be fulNlled:
- The vehicle is switched oM.
- The seat belt tongue is not inserted in the
seat belt buckle of the driver\bs seat and
the driver\bs door is opened.
- There is a system malfunction.
- The power supply is insuPcient.
- The vehicle is stationary for a lengthy
period.
When the electric parking brake is applied, the red M (USA) or

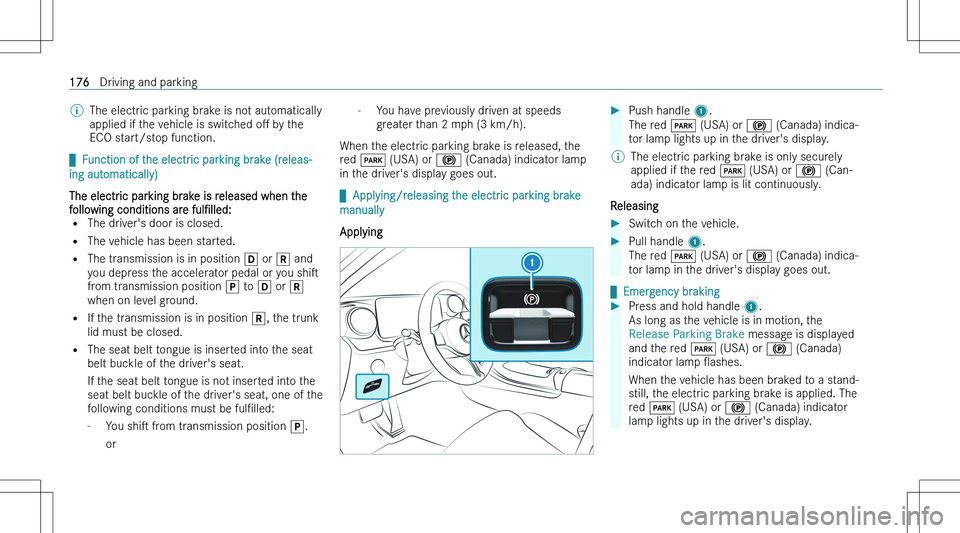

\bThe electric parking brake is not automatically
applied if the vehicle is switched oM by the
ECO start/stop function.

q Function of the electric parking brake (releas-
ing automatically)
The electric parking brake is released when the
following conditions are fulNlled:
= The driver\bs door is closed.
= The vehicle has been started.
= The transmission is in position [ or ^ and
you depress the accelerator pedal or you shis
from transmission position ] to [ or ^
when on level ground.
= If the transmission is in position ^, the trunk
lid must be closed.
= The seat belt tongue is inserted into the seat
belt buckle of the driver\bs seat.
If the seat belt tongue is not inserted into the seat belt buckle of the driver\bs seat, one of thefollowing conditions must be fulNlled:
- You shis from transmission position ].
or
- You have previously driven at speeds
greater than 2 mph (3 km/h).
When the electric parking brake is released, the
red M (USA) or

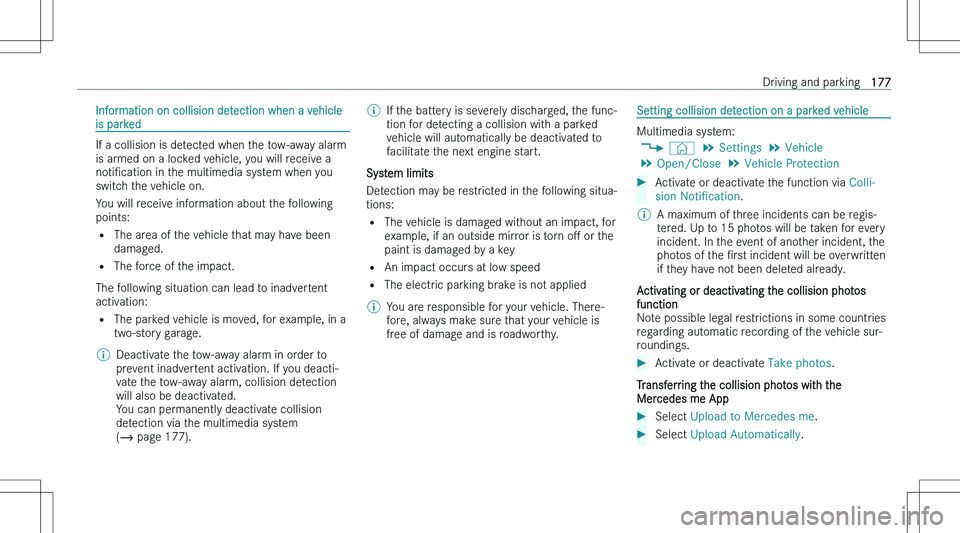

Information on collision detection when a vehicle
is parked
If a collision is detected when the tow-away alarm
is armed on a locked vehicle, you will receive a
notiNcation in the multimedia system when you
switch the vehicle on.
You will receive information about the following points:
= The area of the vehicle that may have been
damaged.
= The force of the impact.
The following situation can lead to inadvertent
activation:
= The parked vehicle is moved, for example, in a
two-story garage.
\bDeactivate the tow-away alarm in order to
prevent inadvertent activation. If you deacti-
vate the tow-away alarm, collision detection
will also be deactivated.
You can permanently deactivate collision
detection via the multimedia system
(  page 177).\bIf the battery is severely discharged, the func-
tion for detecting a collision with a parked vehicle will automatically be deactivated tofacilitate the next engine start.
System limits
Detection may be restricted in the following situa- tions:
= The vehicle is damaged without an impact, for
example, if an outside mirror is torn oM or the
paint is damaged by a key
= An impact occurs at low speed
= The electric parking brake is not applied
\bYou are responsible for your vehicle. There-
fore, always make sure that your vehicle is free of damage and is roadworthy.Setting collision detection on a parked vehicle
Multimedia system:
4 © 5
Settings 5
Vehicle
5 Open/Close 5
Vehicle Protection
Activate or deactivate the function via Colli-
sion Notification .\bA maximum of three incidents can be regis-
tered. Up to 15 photos will be taken for every incident. In the event of another incident, the
photos of the Nrst incident will be overwritten
if they have not been deleted already.
Activating or deactivating the collision photos
function
Note possible legal restrictions in some countries
regarding automatic recording of the vehicle sur- roundings.
Activate or deactivate Take photos.
Transferring the collision photos with the
Mercedes me App
Select Upload to Mercedes me .Select Upload Automatically .Driving and parking177

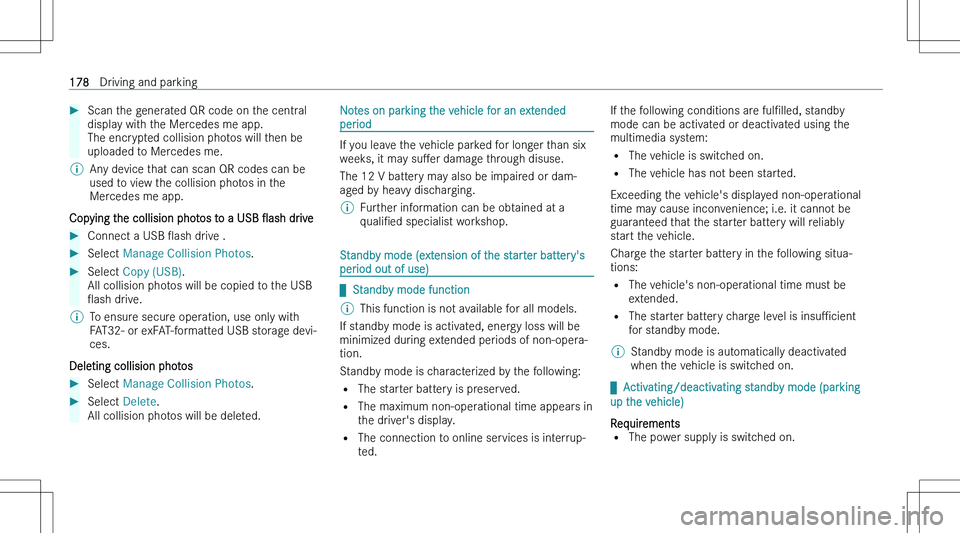

Scan the generated QR code on the central
display with the Mercedes me app.
The encrypted collision photos will then be
uploaded to Mercedes me.\bAny device that can scan QR codes can be
used to view the collision photos in the
Mercedes me app.
Copying the collision photos to a USB Oash drive
Connect a USB Oash drive .Select Manage Collision Photos .Select Copy (USByf .
All collision photos will be copied to the USB
Oash drive.\bTo ensure secure operation, use only with
FAT32- or exFAT-formatted USB storage devi-
ces.
Deleting collision photos
Select Manage Collision Photos .Select Delete.
All collision photos will be deleted.Notes on parking the vehicle for an extended
period
If you leave the vehicle parked for longer than six
weeks, it may suMer damage through disuse.
The 12 V battery may also be impaired or dam-
aged by heavy discharging.
\bFurther information can be obtained at a
qualiNed specialist workshop.
Standby mode (extension of the starter battery\bs
period out of use)

q Standby mode function
\bThis function is not available for all models.
If standby mode is activated, energy loss will be
minimized during extended periods of non-opera-
tion.
Standby mode is characterized by the following:
= The starter battery is preserved.
= The maximum non-operational time appears in
the driver\bs display.
= The connection to online services is interrup-
ted.
If the following conditions are fulNlled, standby
mode can be activated or deactivated using the
multimedia system:
= The vehicle is switched on.
= The vehicle has not been started.
Exceeding the vehicle\bs displayed non-operational
time may cause inconvenience; i.e. it cannot be guaranteed that the starter battery will reliablystart the vehicle.
Charge the starter battery in the following situa- tions:
= The vehicle\bs non-operational time must be
extended.
= The starter battery charge level is insuPcient
for standby mode.\bStandby mode is automatically deactivated when the vehicle is switched on.

q Activating/deactivating standby mode (parking
up the vehicle)
Requirements
= The power supply is switched on.
178Driving and parking

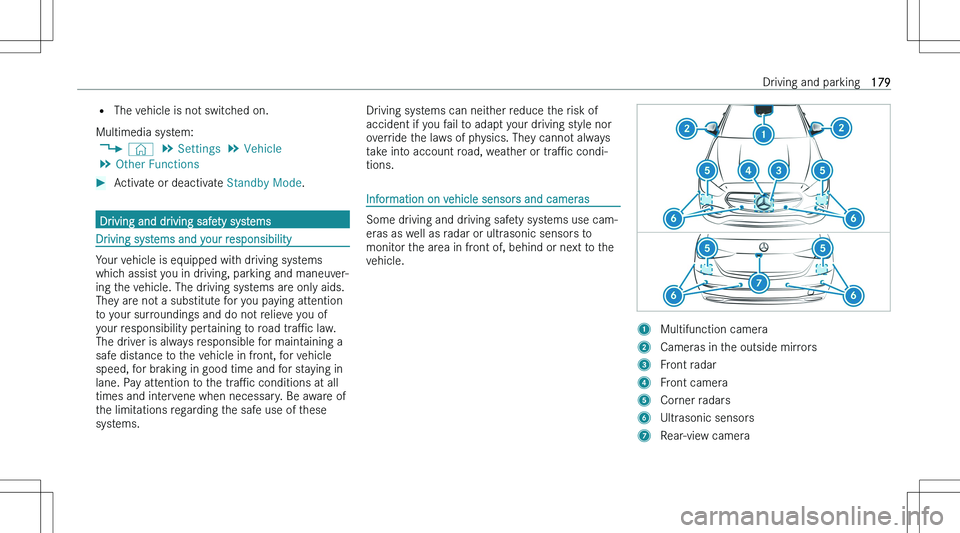

=The vehicle is not switched on.
Multimedia system: 4 © 5
Settings 5
Vehicle
5 Other FunctionsActivate or deactivate Standby Mode.
Driving and driving safety systems
Driving systems and your responsibility
Your vehicle is equipped with driving systems
which assist you in driving, parking and maneuver-ing the vehicle. The driving systems are only aids.
They are not a substitute for you paying attention to your surroundings and do not relieve you of your responsibility pertaining to road traPc law.
The driver is always responsible for maintaining a
safe distance to the vehicle in front, for vehicle
speed, for braking in good time and for staying in
lane. Pay attention to the traPc conditions at all
times and intervene when necessary. Be aware of
the limitations regarding the safe use of these systems.
Driving systems can neither reduce the risk ofaccident if you fail to adapt your driving style nor
override the laws of physics. They cannot always take into account road, weather or traPc condi-
tions.
Information on vehicle sensors and cameras
Some driving and driving safety systems use cam- eras as well as radar or ultrasonic sensors to
monitor the area in front of, behind or next to the vehicle.
1Multifunction camera2Cameras in the outside mirrors3Front radar4Front camera5Corner radars6Ultrasonic sensors7Rear-view cameraDriving and parking179

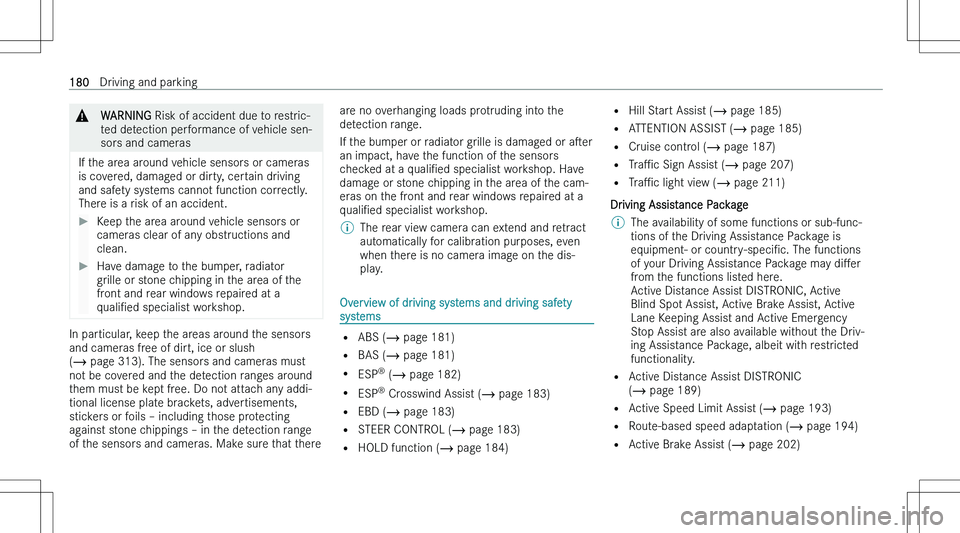

&WARNING Risk of accident due to restric-
ted detection performance of vehicle sen- sors and cameras
If the area around vehicle sensors or cameras
is covered, damaged or dirty, certain driving
and safety systems cannot function correctly.
There is a risk of an accident.
Keep the area around vehicle sensors or
cameras clear of any obstructions and
clean.Have damage to the bumper, radiator
grille or stone chipping in the area of the
front and rear windows repaired at a
qualiNed specialist workshop.
In particular, keep the areas around the sensors
and cameras free of dirt, ice or slush
(  page 313). The sensors and cameras must
not be covered and the detection ranges around them must be kept free. Do not attach any addi-
tional license plate brackets, advertisements,
stickers or foils !

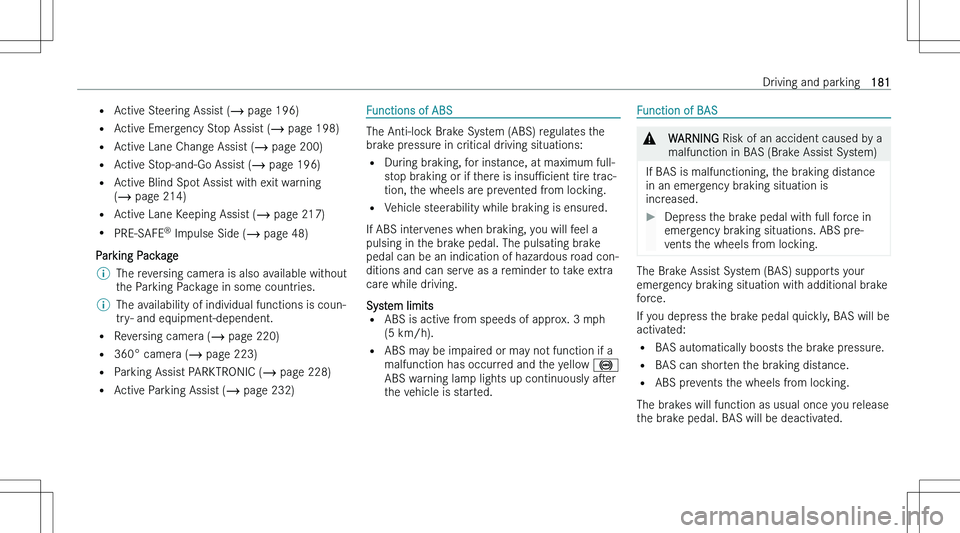

=Active Steering Assist (  page 196)
= Active Emergency Stop Assist (  page 198)
= Active Lane Change Assist (  page 200)
= Active Stop-and-Go Assist (  page 196)
= Active Blind Spot Assist with exit warning
(  page 214)
= Active Lane Keeping Assist (  page 217)
= PRE-SAFE n
Impulse Side (  page 48)
Parking Package\bThe reversing camera is also available without
the Parking Package in some countries.\bThe availability of individual functions is coun-
try- and equipment-dependent.
= Reversing camera (  page 220)
= 360° camera (  page 223)
= Parking Assist PARKTRONIC (  page 228)
= Active Parking Assist (  page 232)
Functions of ABS
The Anti-lock Brake System (ABS) regulates the
brake pressure in critical driving situations:
= During braking, for instance, at maximum full-
stop braking or if there is insuPcient tire trac-
tion, the wheels are prevented from locking.
= Vehicle steerability while braking is ensured.
If ABS intervenes when braking, you will feel a
pulsing in the brake pedal. The pulsating brake
pedal can be an indication of hazardous road con- ditions and can serve as a reminder to take extra
care while driving.
System limits
= ABS is active from speeds of approx. 3 mph
(5 km/h).
= ABS may be impaired or may not function if a
malfunction has occurred and the yellow %
ABS warning lamp lights up continuously aser
the vehicle is started.
Function of BAS&WARNING Risk of an accident caused by a
malfunction in BAS (Brake Assist System)
If BAS is malfunctioning, the braking distance
in an emergency braking situation is
increased.
Depress the brake pedal with full force in
emergency braking situations. ABS pre-
vents the wheels from locking.
The Brake Assist System (BAS) supports your emergency braking situation with additional brake
force.
If you depress the brake pedal quickly, BAS will be
activated:
= BAS automatically boosts the brake pressure.
= BAS can shorten the braking distance.
= ABS prevents the wheels from locking.
The brakes will function as usual once you release the brake pedal. BAS will be deactivated.
Driving and parking181

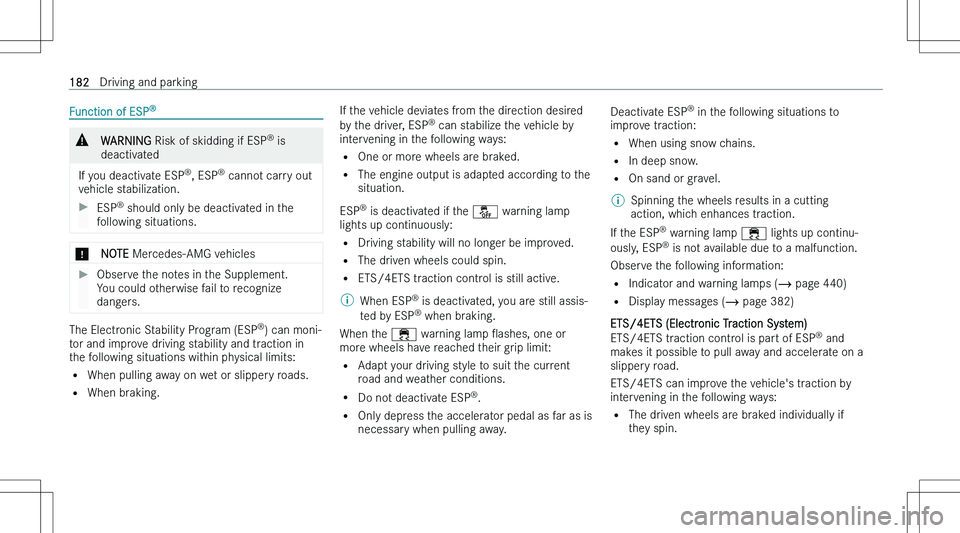

Function of ESPn&WARNING
Risk of skidding if ESP n
is
deactivated
If you deactivate ESP n
, ESP n
cannot carry out
vehicle stabilization.
ESP n
should only be deactivated in the
following situations.*NOTE Mercedes-AMG vehiclesObserve the notes in the Supplement.
You could otherwise fail to recognize
dangers.
The Electronic Stability Program (ESP n
) can moni-
tor and improve driving stability and traction in
the following situations within physical limits:
= When pulling away on wet or slippery roads.
= When braking.
If the vehicle deviates from the direction desired
by the driver, ESP n
can stabilize the vehicle by
intervening in the following ways:
= One or more wheels are braked.
= The engine output is adapted according to the
situation.
ESP n
is deactivated if the
