6.When the nozzle shuts off, wait at least5 seconds, then slightly raise the fuelpump nozzle and slowly remove it.
7.Fully close the fuel filler door.
Do not attempt to start the engine if you havefilled the fuel tank with incorrect fuel.Incorrect fuel use could cause damage notcovered by the vehicle Warranty. Have yourvehicle immediately checked.
REFUELING YOUR VEHICLE - PLUG-INHYBRID ELECTRIC VEHICLE (PHEV)
WARNING: Do not pry open the fueltank filler valve. This could damage the fuelsystem. Failure to follow this instructioncould result in fire, personal injury or death.
WARNING: Do not remove the fuelpump nozzle from its fully inserted positionwhen refueling.
WARNING: Stop refueling when thefuel pump nozzle automatically shuts offfor the first time. Failure to follow this willfill the expansion space in the fuel tank andcould lead to fuel overflowing.
WARNING: Do not overfill the fueltank. The pressure in an overfilled tankmay cause leakage and lead to fuel sprayand fire.
WARNING: Wait at least five secondsbefore removing the fuel pump nozzle toallow any residual fuel to drain into the fueltank.
WARNING: Read and follow all theinstructions on the pump island.
1.When you stop your vehicle, shift intopark (P) and switch the ignition off.
228
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE119081 E293006

2.Press the button on the left side of theinstrument panel next to the headlampswitch to open the fuel filler door. Thefuel filler door can take up to 15 secondsto open before you can insert a fuel fillernozzle.
3.Insert the fuel pump nozzle up to the firstnotch on the nozzle A. Keep it restingon the cover of the fuel tank filler pipeopening.
4.Hold the fuel pump nozzle in position Bwhen refueling. Holding the fuel pumpnozzle in position A can affect the flowof fuel and shut off the fuel pump nozzlebefore the fuel tank is full.
5.Operate the fuel pump nozzle within thearea shown.
6.When the nozzle shuts off, wait at least5 seconds, then slightly raise the fuelpump nozzle and slowly remove it.
7.Fully close the fuel filler door.
Note:Leaving the fuel door open could seta check engine lamp. See Fuel andRefueling – Troubleshooting (page 231).
Complete the refueling process within 20minutes. If 20 minutes elapses, press thebutton on the left side of the instrumentpanel again. Fuel pump nozzle automaticshut off could occur if you do not press thebutton on the left side of the instrumentpanel.
229
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and RefuelingE139202 E139203AB E337454 E119081

FUEL AND REFUELING – INFORMATION MESSAGES - PLUG-IN HYBRID ELECTRIC VEHICLE (PHEV)
ActionMessage
An early reminder of a low fuel condition.Fuel Level Low
The fuel fill inlet may not be properly closed.Check Fuel Fill Inlet
The information message appears while the fuel system is depressurizing with the fuel filler doorclosed. Wait for the fuel system to depressurize and for the fuel filler door to unlatch.Please wait for fuel door to open
The information message appears when the fuel system has depressurized and opened the fuelfiller door. Fully open the fuel filler door to refuel and fully close the fuel filler door when refuelingis complete.
Fuel Door Open
Your vehicle is equipped with a sealed fuel system that requires the fuel filler door to be fullyclosed after refueling. This warning message appears when the fuel filler door is ajar. Pleasefully close the fuel filler door to avoid a "Check Engine" Light.
Fuel door ajar Close fully to avoid Checkengine light
If you see this message and a "Check Engine" lamp illuminates, please fully close the fuel fillerdoor. The "Check Engine" Light should clear within five seconds. If the "Check Engine" lightpersists, please see your dealer.
The information message appears when the fuel system fails to depressurize, or the fuel fillerdoor fails to open. You could have to use the fuel filler door manual override lever when openingthe fuel door.
Refuel Error See Manual
232
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMFuel and Refueling

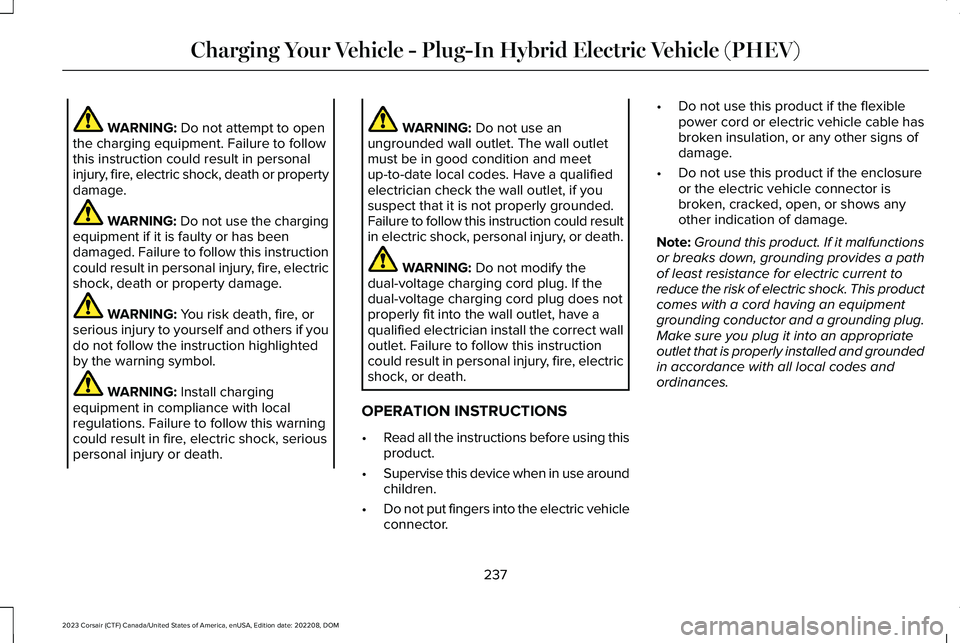

WARNING: Do not attempt to openthe charging equipment. Failure to followthis instruction could result in personalinjury, fire, electric shock, death or propertydamage.
WARNING: Do not use the chargingequipment if it is faulty or has beendamaged. Failure to follow this instructioncould result in personal injury, fire, electricshock, death or property damage.
WARNING: You risk death, fire, orserious injury to yourself and others if youdo not follow the instruction highlightedby the warning symbol.
WARNING: Install chargingequipment in compliance with localregulations. Failure to follow this warningcould result in fire, electric shock, seriouspersonal injury or death.
WARNING: Do not use anungrounded wall outlet. The wall outletmust be in good condition and meetup-to-date local codes. Have a qualifiedelectrician check the wall outlet, if yoususpect that it is not properly grounded.Failure to follow this instruction could resultin electric shock, personal injury, or death.
WARNING: Do not modify thedual-voltage charging cord plug. If thedual-voltage charging cord plug does notproperly fit into the wall outlet, have aqualified electrician install the correct walloutlet. Failure to follow this instructioncould result in personal injury, fire, electricshock, or death.
OPERATION INSTRUCTIONS
•Read all the instructions before using thisproduct.
•Supervise this device when in use aroundchildren.
•Do not put fingers into the electric vehicleconnector.
•Do not use this product if the flexiblepower cord or electric vehicle cable hasbroken insulation, or any other signs ofdamage.
•Do not use this product if the enclosureor the electric vehicle connector isbroken, cracked, open, or shows anyother indication of damage.
Note:Ground this product. If it malfunctionsor breaks down, grounding provides a pathof least resistance for electric current toreduce the risk of electric shock. This productcomes with a cord having an equipmentgrounding conductor and a grounding plug.Make sure you plug it into an appropriateoutlet that is properly installed and groundedin accordance with all local codes andordinances.
237
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)

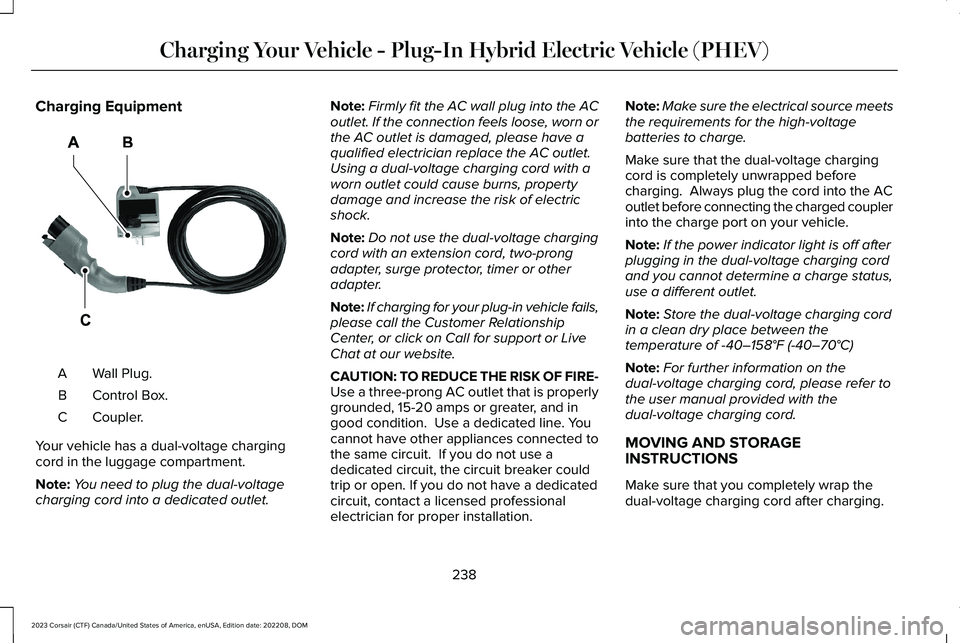

Charging Equipment
Wall Plug.A
Control Box.B
Coupler.C
Your vehicle has a dual-voltage chargingcord in the luggage compartment.
Note:You need to plug the dual-voltagecharging cord into a dedicated outlet.
Note:Firmly fit the AC wall plug into the ACoutlet. If the connection feels loose, worn orthe AC outlet is damaged, please have aqualified electrician replace the AC outlet.Using a dual-voltage charging cord with aworn outlet could cause burns, propertydamage and increase the risk of electricshock.
Note:Do not use the dual-voltage chargingcord with an extension cord, two-prongadapter, surge protector, timer or otheradapter.
Note:If charging for your plug-in vehicle fails,please call the Customer RelationshipCenter, or click on Call for support or LiveChat at our website.
CAUTION: TO REDUCE THE RISK OF FIRE-Use a three-prong AC outlet that is properlygrounded, 15-20 amps or greater, and ingood condition. Use a dedicated line. Youcannot have other appliances connected tothe same circuit. If you do not use adedicated circuit, the circuit breaker couldtrip or open. If you do not have a dedicatedcircuit, contact a licensed professionalelectrician for proper installation.
Note:Make sure the electrical source meetsthe requirements for the high-voltagebatteries to charge.
Make sure that the dual-voltage chargingcord is completely unwrapped beforecharging. Always plug the cord into the ACoutlet before connecting the charged couplerinto the charge port on your vehicle.
Note:If the power indicator light is off afterplugging in the dual-voltage charging cordand you cannot determine a charge status,use a different outlet.
Note:Store the dual-voltage charging cordin a clean dry place between thetemperature of -40–158°F (-40–70°C)
Note:For further information on thedual-voltage charging cord, please refer tothe user manual provided with thedual-voltage charging cord.
MOVING AND STORAGEINSTRUCTIONS
Make sure that you completely wrap thedual-voltage charging cord after charging.
238
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E366554

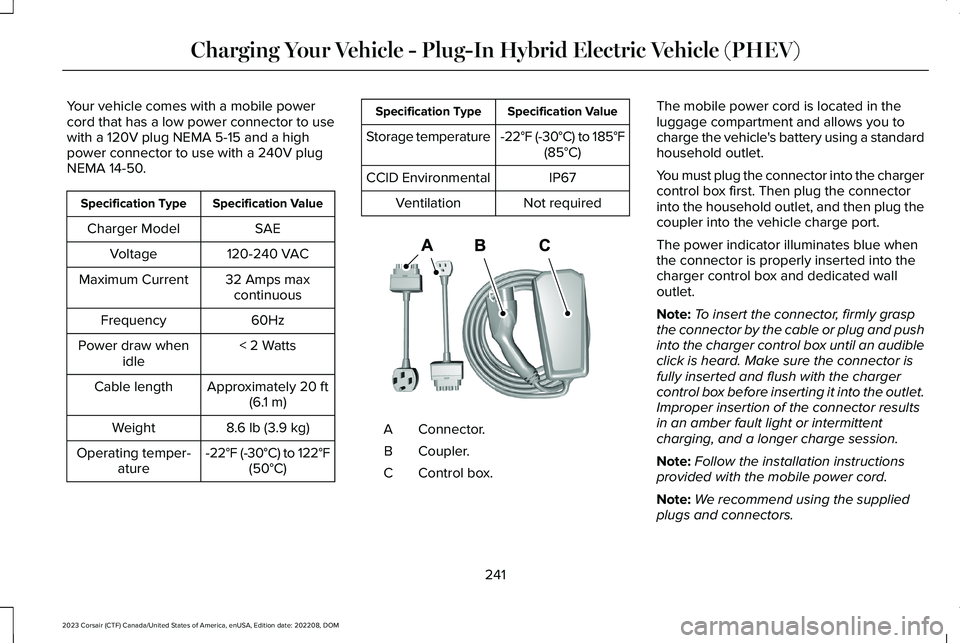

Your vehicle comes with a mobile powercord that has a low power connector to usewith a 120V plug NEMA 5-15 and a highpower connector to use with a 240V plugNEMA 14-50.
Specification ValueSpecification Type
SAECharger Model
120-240 VACVoltage
32 Amps maxcontinuousMaximum Current
60HzFrequency
< 2 WattsPower draw whenidle
Approximately 20 ft(6.1 m)Cable length
8.6 lb (3.9 kg)Weight
-22°F (-30°C) to 122°F(50°C)Operating temper-ature
Specification ValueSpecification Type
-22°F (-30°C) to 185°F(85°C)Storage temperature
IP67CCID Environmental
Not requiredVentilation
Connector.A
Coupler.B
Control box.C
The mobile power cord is located in theluggage compartment and allows you tocharge the vehicle's battery using a standardhousehold outlet.
You must plug the connector into the chargercontrol box first. Then plug the connectorinto the household outlet, and then plug thecoupler into the vehicle charge port.
The power indicator illuminates blue whenthe connector is properly inserted into thecharger control box and dedicated walloutlet.
Note:To insert the connector, firmly graspthe connector by the cable or plug and pushinto the charger control box until an audibleclick is heard. Make sure the connector isfully inserted and flush with the chargercontrol box before inserting it into the outlet.Improper insertion of the connector resultsin an amber fault light or intermittentcharging, and a longer charge session.
Note:Follow the installation instructionsprovided with the mobile power cord.
Note:We recommend using the suppliedplugs and connectors.
241
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E336365

Note:If you do not use a dedicated circuit,the circuit breaker could trip or open. If adedicated circuit is not available, contact alicensed professional electrician regardingthe installation of a dedicated outlet.
Note:The mobile power cord does notcharge and gives a fault indication if groundis not present.
Note:Plug the connector for the mobilepower cord directly into the wall plugreceptacle. Do not plug the mobile powercord into any form of extension cord.
Note:The wall bracket must be used tosupport the charge control box. The chargecontrol box cannot be hung from the outletor wall plug.

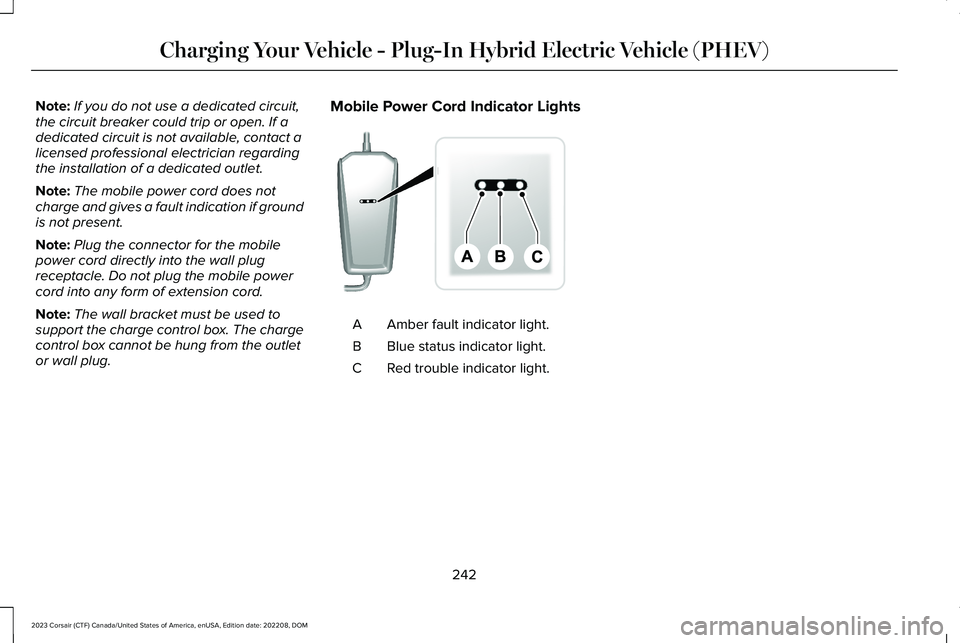

Mobile Power Cord Indicator Lights
Amber fault indicator light.A
Blue status indicator light.B
Red trouble indicator light.C
242
2023 Corsair (CTF) Canada/United States of America, enUSA, Edition date: 202208, DOMCharging Your Vehicle - Plug-In Hybrid Electric Vehicle (PHEV)E336515

Note:When plugging into an unfamiliar walloutlet, let the vehicle charge for severalminutes before leaving it unattended. Thered indicator illuminates if not charging. Theunit turns off if a breaker or infrastructureground fault circuit interrupter (GFCI) istripped. You can view vehicle chargingstatus remotely via the Lincoln Way app.
Mobile Power Cord Auto-Restart
Auto-restart helps make sure that yourvehicle is charged and ready for use whenneeded. A charge could be interrupted iferrors are detected. Charging resumes oncethe error is no longer detected. The redindicator illuminates during an errorcondition.
The exception to the immediate auto-restartis when the interruption is due to a chargerground fault circuit interrupter (GFCI) event.The charger attempts to restart 15 minutesafter a ground fault circuit interrupter (GFCI)event. After the fourth attempt to restart, thecharger shuts down and the red indicatorstays on.
If the fault persists, do not continue to try tocharge your vehicle. Contact your authorizeddealer.
MOVING AND STORAGEINSTRUCTIONS
Make sure you wrap the mobile power cordafter charging. Store the mobile power cordin the storage bag supplied with the mobilepower cord.
When charging is complete, replace themobile power cord in the luggagecompartment.
Note:Do not hold the mobile power cord bythe power cable. Hold the complete unit andcarefully place back in the storage bag.
Note:To remove the connector, firmly graspthe connector by the cable or plug and pullaway from the control box.
CARE INSTRUCTIONS
Do not use cleaners or solvents as this coulddamage your mobile power cord. Do notplace stress on the charger cables. If the unitoverheats, remove the mobile power cordfrom direct sunlight.
SAFETY FEATURES
The charger includes the following safetyfeatures to protect against the risk of electricshock:
•Service ground check: The chargerconstantly checks for the presence of aservice ground connection. If the serviceground ever fails, the charger redindicator turns on and shuts down powerto the vehicle.
•Thermal event sensor: Charger modulesenses out-of-ordinary thermal eventsand decreases the charging current orshuts the unit down if required.
246
