2023 KIA SORENTO PHEV center console

46 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Multimedia USB Ports, Power Outlets, & USB Charger Ports*
Digital Clock - Infotainment SystemAC Inverter*
Press SETUP, then select General, scroll down and select Date/Time from the menu to adjust Then use the onscreen buttons to navigate through setup and return to exit
The AC inverter supplies 115V/150W electric power to operate accessories or devices
To use the AC inverter, open the AC inverter cover and connect a plug to it
The AC inverter is ON when the vehicle is on
Multimedia USB Port*
A Use the Multimedia USB port to connect USB audio devices and smartphones
USB Charger Ports*
B USB charger ports* are located in the Center Panel, inside and on the back of the Center Console
Power Outlets
C Use the power outlets for mobile phones and other devices designed to operate on a 12V (180W max) power outlet
(Located on Center Console below Climate Controls)
REMINDERS:
•
Using the Power Outlet (accessor y plug) and USB charger for prolonged periods of time with the Engine Star t/Stop but ton in the ACC position (Engine OFF) for prolonged period time could cause the bat ter y to discharge
•
Use only the charging cables that your device manufacturer supplied Third par t y cables may cause damage to device
•
The USB data por t (Multimedia USB por t) is located next to the Power Outlets The USB Charger por ts do not suppor t data transfer
Refer to section 5 in the Owner ’s Manual for more information
For illustrative purposes only Your actual display, but tons and/or features may var y
(Located on Back of Center Console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Refer to the Car Infotainment System Quick Reference Guide for more information Refer to section 5 in the Owner ’s Manual for more information
ABB
C
•
When needed, Daylight Savings must be enabled in the Clock Set tings screen
•
To access manual date and time set ting, turn GPS time OFF in the Clock Set tings (Kia Connect with Navigation*)
QUICK TIPS
The power outlets are inactive when the Engine Star t/Stop but ton is OFF
QUICK TIPRefer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Multimedia USB Port, Power Outlets & USB Charger Port Video
QR CODE
CENTER PANEL
CENTERPA N EL

47†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
CENTER PANEL
CENTERPA N EL
REMINDERS:
•
The smar tphone must be a compatible Qi cer tified phone with Qi function available Some smar tphone models are not QI cer tified, which may affect the availabilit y, speed or per formance of the wireless charging
•
If the driver door is opened, charging will be disabled
•
Wireless charging technology allows for a device to be charged using inductive charging See your Owner ’s Manual for more detailed information and the back page for legal disclaimers
•
Inductive charging systems are less ef ficient than conventional charging through a cable As a result, higher device operating temperatures may be experienced during use
•
Charging Per formance – Device position on the wireless charging system can affect charging per formance Other factor that may affect the charging rate includes foreign objects, such as coins or pens, and phone case thickness
•Avoid placing other metal items in the bin while charging as to not impede the charging area
Charge a compatible Qi Certified smartphone wirelessly by placing it on the tray A at the front of the console, near the Multimedia USB ports and the charging indicator, while the ignition is on
1 Enable Wireless Charging in the User Settings in the Instrument Cluster LCD or the Vehicle Settings* in the infotainment system, select Convenience, then Wireless Charging System
2 Slide open cover B Place the smartphone on the center of the charging pad A
3 Indicator light C may change to amber once wireless charging begins
4 Once charging is complete, the amber light may change to green
Wireless Smartphone Charging System†1 9
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
3FGFS
UP
TFDUJPO

JO
UIF
0XOFS sT
.BOVBM
GPS
NPSF
JOGPSNBUJPO
'PS
JMMVTUSBUJWF
QVSQPTFT
POMZ
:PVS
BDUVBM
EJTQMBZ

CVU UPOT
BOEPS
GFBUVSFT
NBZ
WBS Z
3FGFS
UP
UIF
JOTJEF
GSPOU
DPWFS
GPS

NPSF
JOGPSNBUJPO
PO
23
DPEFT XXXZPVUVCF DPN,JB'FBUVSF7JEFPT
Wireless Charging Video
QR CODE
•Wireless charging must be enabled in user set tings
•
If wireless charging does not work, move the smar tphone around the pad until the charging indicator turns amber Avoid placing other metal items in the bin while charging as to not impede the charging area
•
For wireless charging to occur, all doors (excluding the rear hatch) must be closed & the Smar t Key Fob must be detected inside the vehicle
QUICK TIPS
B
A
C

50 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Rotary Dial Shifter Knob – Shift-by-Wire (SWB)
(Center Console)
P: Park – To shift into Park from any gear, press the Park (P) button A on the Rotary Dial Shifter Knob while the vehicle is stationary and the brake pedal is depressed
Rotate the Rotary Dial Shifter Knob for the following:
P: Park - Press to place in Park
R: Reverse
N: Neutral
D: Drive
Paddle Shifters
Paddle Shifters are operable when the shift lever is moved into the Drive (D) position
Paddle Shifting: The system changes from automatic mode to manual mode when you pull the [+] or [-] paddle shifter B once to shift up or down one gear
For illustrative purposes only Your actual steering wheel and/or paddle shifters may var y
Refer to section 6 in the Owner ’s Manual for additional information on Automatic Gear Shift operation or call Kia Consumer Affairs for additional information
Refer to section 6 in the Owner ’s Manual for more information
DRIVE
SPORT
SMART
ECO
MUD
SAND SNOW
COMFORTTERRAIN
P
R
D
N
AUTO
HOLD
A
(Steering Wheel)
BB
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Rotary Dial Shifter Video
QR CODE
See section 6 in the Owner ’s Manual for more information
CENTER PANEL
CENTERPA N EL

51 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
All Wheel Drive System and AWD Lock Video
QR CODE
P
R
N D
SHIFT
LOCK
RELEASE
OFF
•
•
•
•
+
•
–
P
R
N D •
•
•
•
+
•
–
OFF
SPORT
SMART
LOCK
ECO
SNOW
When you select AWD Lock mode by pressing the AWD LOCK button A, the AWD LOCK mode increases the drive power when driving on wet pavement, snow covered roads and/or off-road
•This mode is used for climbing or descending sharp grades, off-road driving, driving on sandy and muddy roads, etc , to improve traction
•This mode automatically shifts back to AWD AUTO mode at speed above 19 mph If the vehicle decelerates to speeds below approximate 25 mph, however, the transfer mode is shifted into AWD LOCK mode again
When the AWD LOCK mode is deactivated, a shock may be felt as the drive power is delivered entirely to the front wheels This shock is not a mechanical failure
AWD (All-Wheel Drive) Lock*
(But ton on center console below gear shift)
See section 6 in the Owner ’s Manual for more information
A
CENTER PANEL
CENTERPA N EL

52 *IF EQUIPPEDSORENTO HYBRID / PLUG-IN HYBRID FEATURES & FUNCTIONS GUIDE
Image is for illustrative purposes only and may not reflect actual feature or operation
The Electronic Parking Brake (EPB) system utilizes an electric motor to engage the parking brake
Applying the Parking Brake
Depress the brake pedal and pull up the EPB switch A Ensure that the indicator light is illuminated on the instrument cluster
Releasing the Parking Brake*
The EPB will automatically release when the brake pedal is engaged and shifter is shifted out of P (Park) to R (Reverse) or shifted out of N (Neutral) to Reverse or D (Drive)
To release EPB manually, depress the brake pedal, then press the EPB switch A, with the ignition switch in the ON position Ensure that the indicator light is OFF
Auto Hold temporarily maintains the vehicle at a standstill even though the brake pedal is not depressed after the driver brings the vehicle to a complete stop by depressing the brake pedal Auto Hold can be turned On/Off using the AUTO HOLD button B on the center panel below the gear shift Before Auto Hold will operate, the driver ’s door, engine hood and liftgate must be closed, and the driver ’s seat belt must be fastened
The Auto Hold indicator on the Instrument Cluster has four states:
White: Standby – When vehicle is in Park and at a standstill, and AUTO HOLD button B is pressed On, the indicator will illuminate white While driving the vehicle (vehicle is not at a standstill), the Auto Hold indicator will remain white
Green: Engaged – When coming to a complete stop by pressing the brake pedal, the Auto Hold indicator changes from white to green
Off (not illuminated) – The indicator will turn Off when the AUTO HOLD button B is manually pressed Off or when the EPB is manually turned On
Yellow: Malfunction – When the indicator is illuminated yellow, there may be a system malfunction Take your vehicle to a local Kia dealer
Electronic Parking Brake (EPB)
REMINDERS:
•
As a bulb check, the EPB malfunction indicator will illuminate for approximately 3 seconds when the ignition switch is turned ON
•
If the warning light does not illuminate temporarily, or continues to remain lit, take your vehicle to an authorized Kia dealer and have the system checked
•The EPB should not be operated while the vehicle is moving
•
A click or electric brake motor sound may be heard while operating or releasing the EPB, but these conditions are normal and indicate that the EPB is functioning properly
Auto Hold
REMINDERS:
•
Auto Hold only operates when vehicle is in Drive, Neutral or Reverse
•
To reduce the risk of an accident, do not activate Auto Hold while driving downhill, backing up or parking your vehicle
•
Do not solely rely on the Auto Hold system to keep the vehicle stopped Always pay at tention to traf fic and road conditions, and be prepared to depress the brakes
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOW
TERRAIN
P
R
D
N
(But ton on center console below gear shift; But ton location may var y by model)
Refer to section 6 in the Owner ’s Manual for more information
Refer to page 4 for location of Instrument Cluster indicators
AB
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Electric Parking Brake / Auto Hold Video
QR CODE
•When leaving your keys with parking lot at tendants or valet, make sure to inform them how to operate the EPB
•If parked on a steep incline/decline, pull up the EPB switch for more than 3 seconds for a firmer EPB application
•Pull up and hold EPB switch a second time to increase brake pressure if parked on a decline or incline
QUICK TIPS
CENTER PANEL
CENTERPA N EL

53†LEGAL DISCL AIMERS ON BACK INSIDE COVER | *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS

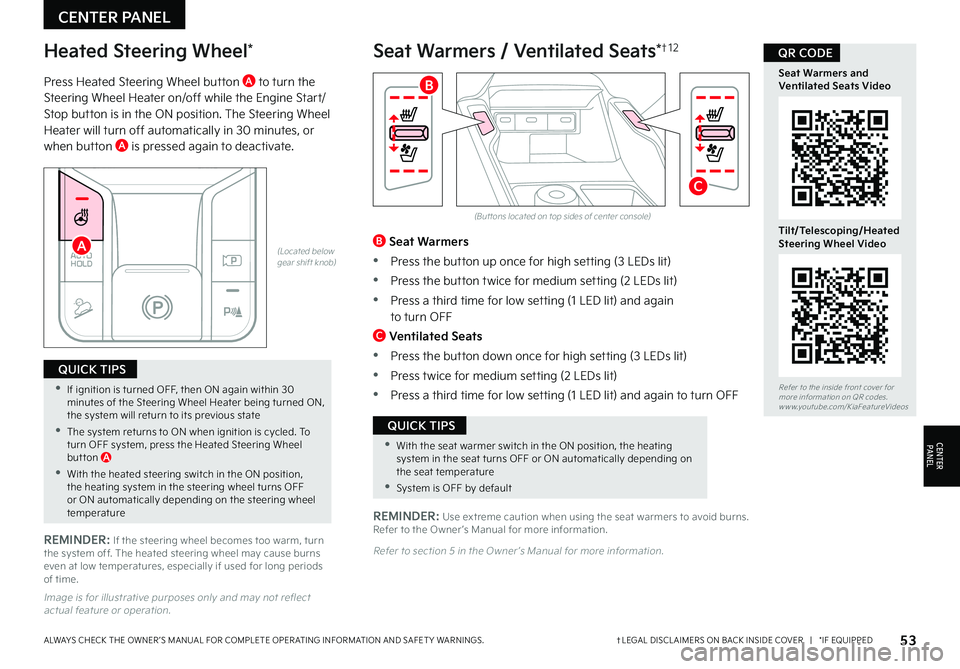

Heated Steering Wheel*
Press Heated Steering Wheel button A to turn the Steering Wheel Heater on/off while the Engine Start/Stop button is in the ON position The Steering Wheel Heater will turn off automatically in 30 minutes, or when button A is pressed again to deactivate
B Seat Warmers
•Press the button up once for high setting (3 LEDs lit)
•Press the button twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
C Ventilated Seats
•Press the button down once for high setting (3 LEDs lit)
•Press twice for medium setting (2 LEDs lit)
•Press a third time for low setting (1 LED lit) and again to turn OFF
Seat Warmers / Ventilated Seats*†1 2
REMINDER: If the steering wheel becomes too warm, turn the system off The heated steering wheel may cause burns even at low temperatures, especially if used for long periods of time
REMINDER: Use extreme caution when using the seat warmers to avoid burns Refer to the Owner ’s Manual for more information
(Located below gear shift knob)
DRIVE
SPORT
SMART
AUTO
HOLD
ECO
MUD
SAND SNOW
TERRAIN
P
R
D
N
Image is for illustrative purposes only and may not reflect actual feature or operation

Refer to section 5 in the Owner ’s Manual for more information
A
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Seat Warmers and Ventilated Seats Video
Tilt/Telescoping/Heated Steering Wheel Video
QR CODE
•If ignition is turned OFF, then ON again within 30 minutes of the Steering Wheel Heater being turned ON, the system will return to its previous state
•The system returns to ON when ignition is cycled To turn OFF system, press the Heated Steering Wheel but ton A
•With the heated steering switch in the ON position, the heating system in the steering wheel turns OFF or ON automatically depending on the steering wheel temperature
QUICK TIPS
•With the seat warmer switch in the ON position, the heating system in the seat turns OFF or ON automatically depending on the seat temperature
•System is OFF by default
QUICK TIPS
(But tons located on top sides of center console)
Seat warmers / ventilation Wireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
Seat warmers / ventilationWireless charge center console, back seat
USB / Multimedia
USB
180W12V
B
C
CENTER PANEL
CENTERPA N EL

63 *IF EQUIPPEDALWAYS CHECK THE OWNER ’S MANUAL FOR COMPLETE OPER ATING INFORMATION AND SAFET Y WARNINGS
See section 5 in the Owner ’s Manual for more information
Map/Room Lamps
Automatic turn off function*
The interior lights automatically turn off approximately 30 seconds after the Engine Start/Stop button is OFF
Map/Room Lamp Operation
•Press lens A to turn the Driver ’s/Passenger ’s Map Lamps ON/OFF This light produces a spot beam for convenient use as a map lamp or as a personal lamp for the driver or the front passenger
•Press button B to turn all the Map/Room Lamps ON/OFF
•
Press button C to turn the Map/Room Lamp ON, for 30 seconds, when a door is opened, unlocked from Smart Key or the ignition is turned OFF When pressed and a door is opened, or doors are unlocked from the Smart Key, the Map and Room Lamps turn ON for approximately 30 seconds
•Press button D to turn the Room Lamp ON/OFF
Panoramic Sunroof with Power Sunshade*
The Sunroof and Sunshade operation is controlled through a multidirectional switch E The ignition needs to be ON to operate the sunroof / power sunshade
To slide the power sunshade and sunroof:
•Auto Open – Push the switch E backward to the second detent position and release
•Auto Close – Push the switch E forward to the second detent position and release
To slide the power sunshade only:
•Auto Open – Push the switch E backward to the first detent position and release
•Auto Close – Push the switch E forward to the first detent position and release
Slide the sunroof (with sunshade open):
•Auto Open – Push the switch E backward to the first detent position and release
•Auto Close – Push the switch E forward to the first detent position and release to close sunroof glass only Push the switch E forward to the second detent position and release to close sunroof glass and power sunshade
To tilt the sunroof:
•Raise: Push and release switch E upward
•Lower: Push and release switch E upward
•Auto-close sunroof and power sunshade: Push the switch E forward to the second detent position
PASSENGER
AIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF
PASSENGERAIR BAGOFFPASSENGERAIR BAGOFF
PASSENGERAIR BAGOFF(Front overhead console. Buttons may vary)
(Center of cabin)
REMINDERS:
•
The Sunshade needs to remain OPEN while sunroof is open
•
Do not adjust the sunroof or sunshade while driving This could result in loss of control of the vehicle
•When closing, be mindful of any objects or persons
•
If the ignition/vehicle is turned off, and the driver ’s door is opened, with the sunroof not fully closed, the Instrument Cluster LCD will display a warning message and a chime will sound for a few seconds
See section 5 in the Owner ’s Manual for more information
AA
C
D
E
B
Refer to the inside front cover for more information on QR codes www youtube com/KiaFeatureVideos
Sunroof Operation Video
QR CODE
•When doors are unlocked by the Smar t Key*, the lamp turns ON for approximately 30 seconds
•If your vehicle is equipped with the theft alarm system, the interior lights automatically turn off approximately 5 seconds after the system is in the armed stage
•Using interior lights for an extended period of time may cause bat ter y discharge
QUICK TIPS
To stop the Sunroof/Sunshade at any position, push or pull the Sunroof control switch in any direction
QUICK TIP
OTHER KEY FEATURES
OTHER KEY F E AT U R E S
REMINDER: The sunroof can be operated for approximately 30 seconds after the ignition is turned off If the front doors are opened, the sunroof cannot be operated even within the 30-second period
