2023 JEEP WRANGLER Owners Manual

GETTING TO KNOW YOUR VEHICLE103
CAUTION!
To avoid damage to the roof rack and vehicle, do not
exceed the maximum roof rack load capacity. Always
distribute heavy loads as evenly as possible and
appropriately secure the load and any protective
layer placed between the load and the roof surface.
 Long loads, which extend over the windshield, should
be secured to both the front and rear of the vehicle.
 Place a blanket or other protection between the
surface of the roof and the load.
 Travel at reduced speeds and turn corners carefully
when carrying large or heavy loads on the roof rack.
Wind forces, due to natural causes or nearby truck
traffic, can add sudden upward lift. It is recom -
mended to not carry large flat loads, such as wood
panels or surfboards, which may result in damage to
the cargo or your vehicle.
 Load should always be secured to crossbars first,
with tie down loops used as additional securing
points if needed. Tie loops are intended as supple -
mentary tie down points only. Do not use ratcheting
mechanisms with the tie loops. Check the straps
frequently to be sure that the load remains securely
attached.
2

23_JL_OM_EN_USC_t.book Page 103

104
GETTING TO KNOW YOUR INSTRUMENT PANEL
INSTRUMENT CLUSTER

23_JL_OM_EN_USC_t.book Page 104

GETTING TO KNOW YOUR INSTRUMENT PANEL105
3

23_JL_OM_EN_USC_t.book Page 105

106GETTING TO KNOW YOUR INSTRUMENT PANEL

23_JL_OM_EN_USC_t.book Page 106

GETTING TO KNOW YOUR INSTRUMENT PANEL107
3

23_JL_OM_EN_USC_t.book Page 107

108GETTING TO KNOW YOUR INSTRUMENT PANEL
Use this QR code to access your digital
experience.

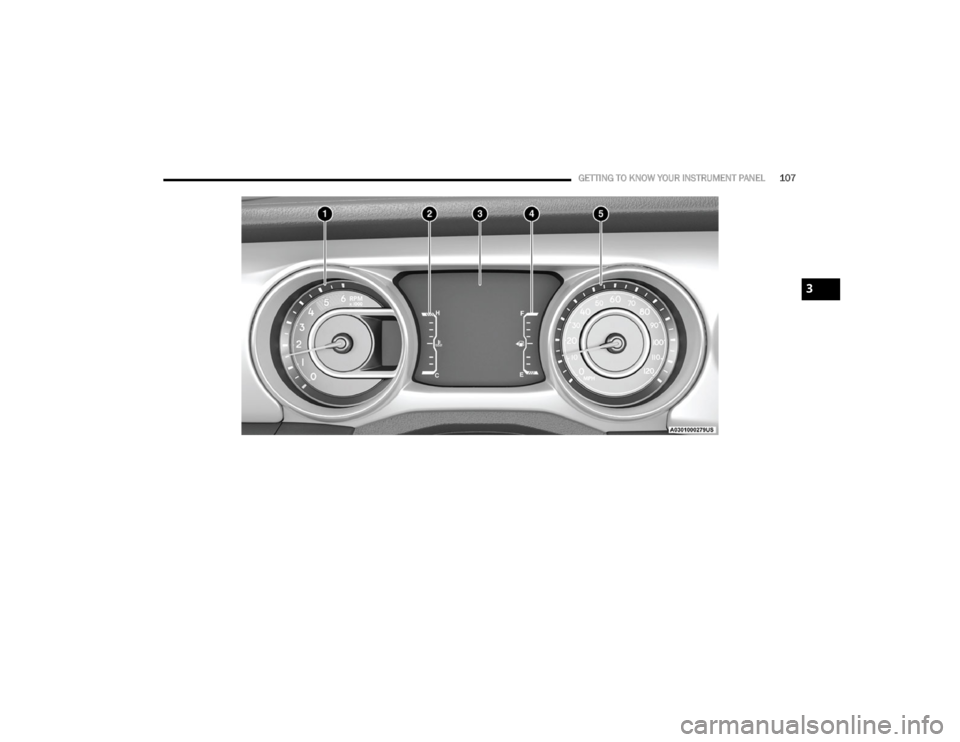

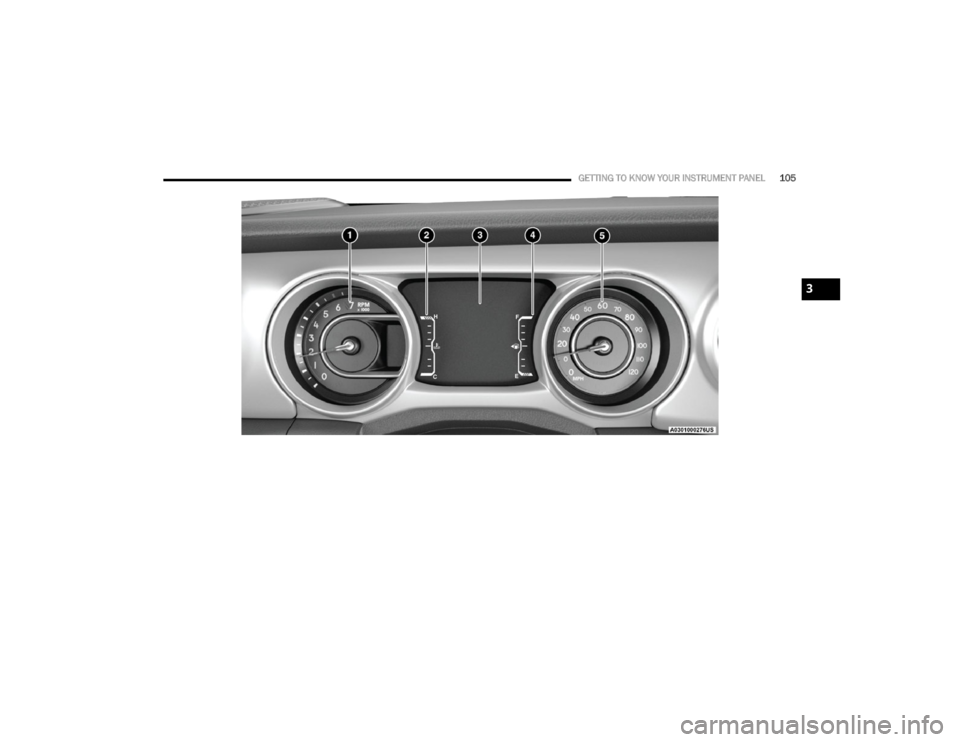

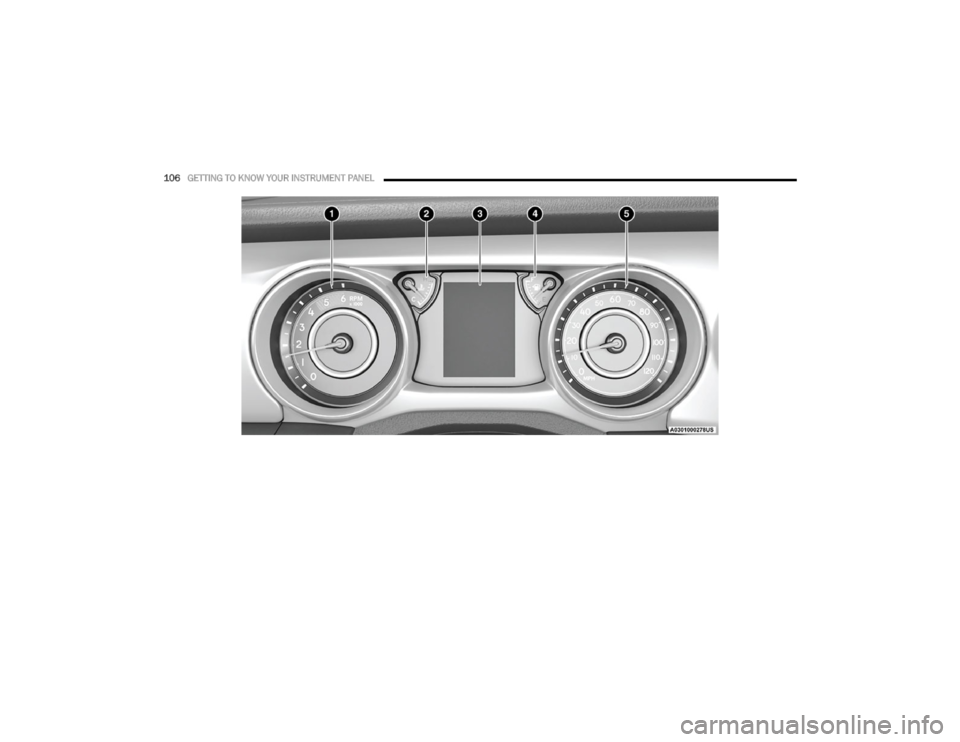

INSTRUMENT CLUSTER DESCRIPTIONS

1.
Tachometer
 Indicates the engine speed in revolutions per
minute (RPM x 1000).
2. Temperature Gauge
 The temperature gauge shows engine coolant
temperature. Any reading within the normal range
indicates that the engine cooling system is oper -
ating satisfactorily.
 The pointer will likely indicate a higher tempera -
ture when driving in hot weather, up mountain
grades, or when towing a trailer. It should not be
allowed to exceed the upper limits of the normal
operating range. 3.
Instrument Cluster Display
 The instrument cluster display features a driver
interactive display
Úpage 108. 4.
Fuel Gauge
 The pointer shows the level of fuel in the fuel tank
when the ignition switch is in the ON/RUN posi -
tion.
 The fuel pump symbol points to the side
of the vehicle where the fuel filler door is
located.
5. Speedometer
 Indicates vehicle speed.
INSTRUMENT CLUSTER DISPLAY
Your vehicle will be equipped with an instrument cluster
display, which offers useful information to the driver. With
the ignition in the OFF mode, opening/closing of a door will
activate the display for viewing, and display the total miles,
or kilometers, in the odometer. Your instrument cluster
display is designed to display important information about
your vehicle’s systems and features. Using a driver
interactive display located on the instrument panel, your
instrument cluster display can show you how systems are
working and give you warnings when they aren’t. The
steering wheel mounted controls allow you to scroll
through and enter the main menus and submenus. You
can access the specific information you want and make
selections and adjustments.CAUTION!
Do not operate the engine with the tachometer pointer
in the red area. Engine damage will occur.
WARNING!
A hot engine cooling system is dangerous. You or others
could be badly burned by steam or boiling coolant. It is
recommended to call an authorized dealer for service if
your vehicle overheats.
CAUTION!
Driving with a hot engine cooling system could damage
your vehicle. If the temperature gauge reads “H” pull
over and stop the vehicle. Idle the vehicle with the air
conditioner turned off until the pointer drops back into
the normal range. If the pointer remains on the “H”,
turn the engine off immediately and call an authorized
dealer for service.

23_JL_OM_EN_USC_t.book Page 108

GETTING TO KNOW YOUR INSTRUMENT PANEL109
INSTRUMENT CLUSTER DISPLAY
L
OCATION AND CONTROLS
The instrument cluster display is located in the center of
the instrument cluster.

Instrument Cluster Display Location

The system allows the driver to select information by
pushing the following buttons mounted on the steering
wheel:

Instrument Cluster Display Control Buttons

 Left Arrow Button
Push and release the left arrow button to access
the information screens or submenu screens of a main
menu item.
 Up Arrow Button
Push and release the up arrow button to scroll
upward through the Main Menu items.
 Right Arrow Button
Push and release the right arrow button to access
the information screens or submenu screens of a main
menu item.
 Down Arrow Button
Push and release the down arrow button to scroll
downward through the Main Menu items.
 OK Button
Push the OK button to access/select the information
screens or submenu screens of a Main Menu item.
Push and hold the OK arrow button for two seconds to
reset displayed/selected features that can be reset.
1 — Instrument Cluster Display Screen
2 — Instrument Cluster Display Controls
1 — Left Arrow Button
2 — Up Arrow Button
3 — Right Arrow Button
4 — Down Arrow Button
5 — OK Button
3

23_JL_OM_EN_USC_t.book Page 109

110GETTING TO KNOW YOUR INSTRUMENT PANEL
OIL CHANGE RESET — IF EQUIPPED
Use this QR code to access your digital
experience.
Your vehicle may be equipped with an
engine oil change indicator system.
The “Oil Change Required” message
will display in the instrument cluster
display for five seconds after a single
chime has sounded to indicate the next
scheduled oil change interval. The engine oil change
indicator system is duty cycle based, which means the
engine oil change interval may fluctuate, dependent upon
your personal driving style.
Unless reset, this message will continue to display each
time you place the ignition in the ON/RUN position. To turn
off the message temporarily, push and release the OK
button. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the
following procedure.
Oil Life Reset

1. Without pushing the brake pedal, place the ignition in the ON/RUN mode (do not start the engine).

2. Navigate to "Oil Life" submenu in "Vehicle Info" in the instrument cluster display.
3. Push and hold the OK button until the gauge resets to
100%. Secondary Method For Oil Change Reset Procedure

1. Without pushing the brake pedal, place the ignition
in the ON/RUN position (do not start the engine).

2. Fully press the accelerator pedal, slowly, three times within ten seconds.
3. Without pushing the brake pedal, place the ignition in the OFF position.
NOTE:If the indicator message illuminates when you start the
vehicle, the oil change indicator system did not reset. If
necessary, repeat this procedure.
DISPLAY AND MESSAGES
The instrument cluster display is located in the center
portion of the cluster and consist of multiple sections:
Main Screen — The inner ring of the display will illumi -
nate in black under normal conditions, yellow for non
critical warnings and red for critical warnings
 Submenu Dots — Whenever there are submenus avail -
able, the position within the submenus is shown here
 Reconfigurable Telltales/Information
 Gear Selector Status (PRND)
 Driver Interactive Display (Compass, Temp, Range to
Empty, Trip A, Trip B, Average Fuel Economy, Current
Fuel Economy and Time)
 Four Wheel Drive (4WD) Status — If Equipped The instrument cluster display will normally display the
main menu or the screens of a selected feature of the
main menu. The main display area also displays pop-up
messages and warning or information messages. These
pop-up messages fall into several categories:

Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most
of the messages of this type are then stored (as long as
the condition that activated it remains active) and can
be reviewed from the “Messages” main menu item.
Examples of this message type are “Right Front Turn
Signal Lamp Out” and “Low Tire Pressure”.
 Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Exam -
ples of this message type are “Turn Signal On” (if a turn
signal is left on) and “Lights On” (if driver leaves the
vehicle with the lights on).
 Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the igni -
tion is in the RUN state. Examples of this message type
are “Remote Start Canceled - Door Ajar” and “Press
Brake Pedal and Push Button to Start”.
 Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. An
example of this message type is “Automatic High
Beams On”.
