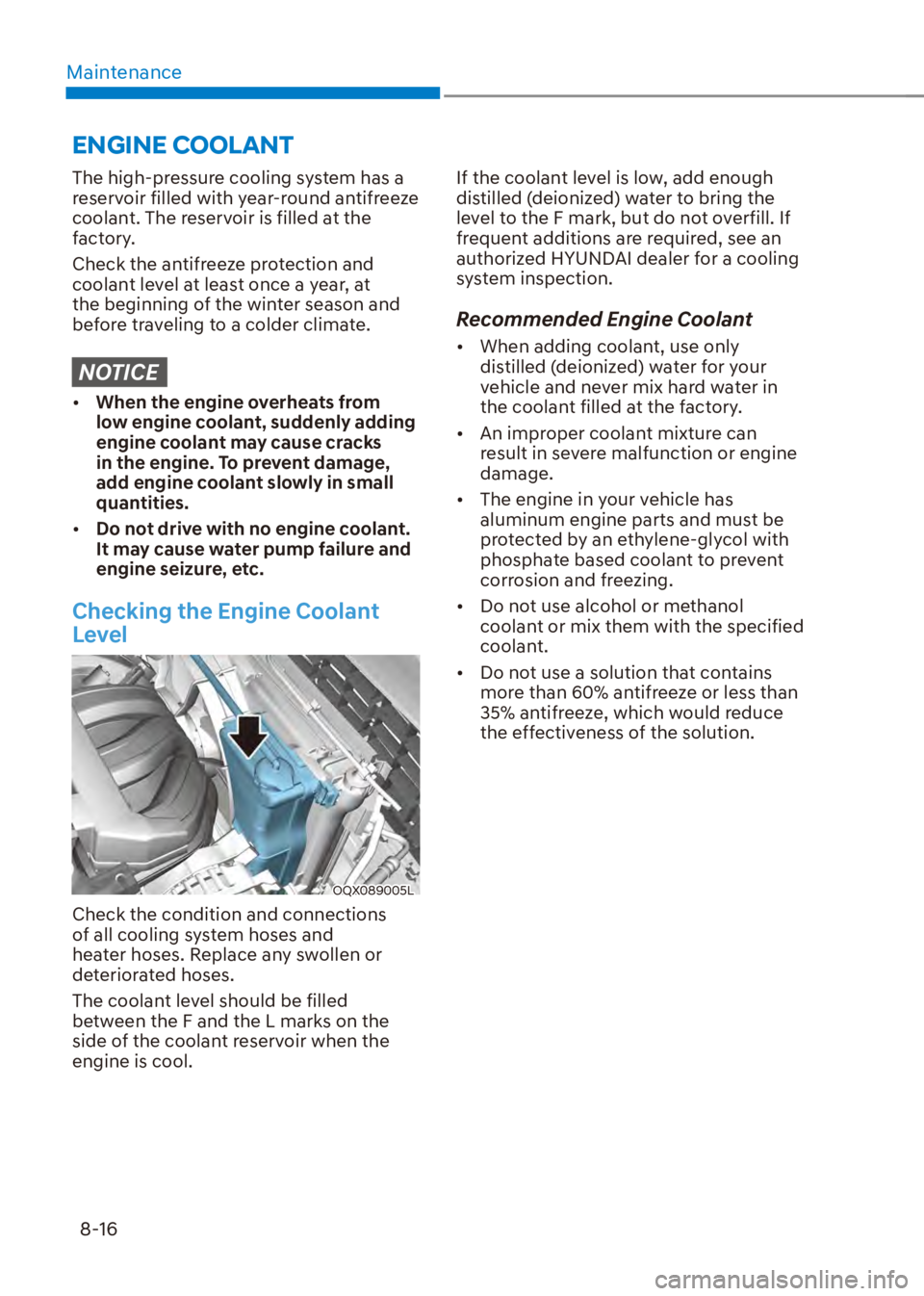

Maintenance8-16
The high-pressure cooling system has a
reservoir filled with year-round antifreeze
coolant. The reservoir is filled at the
factory.
Check the antifreeze protection and
coolant level at least once a year, at
the beginning of the winter season and
before traveling to a colder climate.
NOTICE

[ When the engine overheats from
low engine coolant, suddenly adding
engine coolant may cause cracks
in the engine. To prevent damage,
add engine coolant slowly in small
quantities.

[ Do not drive with no engine coolant.
It may cause water pump failure and
engine seizure, etc.
Checking the Engine Coolant
Level
OQX089005L
Check the condition and connections
of all cooling system hoses and
heater hoses. Replace any swollen or
deteriorated hoses.
The coolant level should be filled
between the F and the L marks on the
side of the coolant reservoir when the
engine is cool. If the coolant level is low, add enough
distilled (deionized) water to bring the
level to the F mark, but do not overfill. If
frequent additions are required, see an
authorized HYUNDAI dealer for a cooling
system inspection.
Recommended Engine Coolant

[
When adding coolant, use only
distilled (deionized) water for your
vehicle and never mix hard water in
the coolant filled at the factory.

[ An improper coolant mixture can
result in severe malfunction or engine
damage.

[ The engine in your vehicle has
aluminum engine parts and must be
protected by an ethylene-glycol with
phosphate based coolant to prevent
corrosion and freezing.

[ Do not use alcohol or methanol
coolant or mix them with the specified
coolant.

[ Do not use a solution that contains
more than 60% antifreeze or less than
35% antifreeze, which would reduce
the effectiveness of the solution.
ENGINE COOLANT

08
8-45
Driver’s side fuse panel
Fuse Name (A)Circuit Protected
S/HEATER 20A Front Seat Warmer Control Module
MODULE 1
7.5A Stop Lamp Switch, ATM Shift Lever
MEMORY 2 7.5A SRS Control Module AIR BAG 10A Passenger Occupant Detection Sensor, SRS Control Module
DOOR LOCK 20A Tail Gate Relay, T/Turn Unlock Realy, Door Lock/Unlock Realy ECU 6 10A ECM, PCMDRL 10A DRL Relay
MODULE 6 10A Data Link Connector, Key Interlock Solenoid
T/SIGNAL LAMP 15A IBU
MODULE 2 10A Crash Pad Switch, Multifunction Camera Unit, Blind Spot
Collision Warning Unit LH/RH
SUNROOF 15A Sunroof Motor
MODULE 3 7.5A Console Switch, ATM Shift Lever Indicator, A/C Control Module,
Audio, Front Seat Warmer Control Module

Maintenance8-48
Engine compartment fuse panel
Fuse Name (A) Circuit Protected
MULTI FUSE AL

T 125A
Alternator, Multi Fuse - MDPS 1, Fuse - Rear Heated,
Blower, ABS 1, ABS 2
MDPS 1 80A MDPS Unit
FUSE REAR
HEATED 40A ICU Junction Block (Rear Heated Relay)
ABS 1 40A Multipurpose Check Connector, ESC Module
ABS 2 40A ESC Module
BLOWER 40A Blower Relay WIPER 10A Wiper FRT LO Realy, IBUECU2 15A ECM/PCM
ECU4 15A ECM/PCM ECU5 15A ECM/PCM
IGN COIL 20A Ignition Coil #1~#4
INJECTOR 15A ECM/PCM, Injector #1~#4, Fuel Pump Relay
PTC HEATER 50A PTC Heater Relay
B+3 50A ICU Junction Block (Fuse - DOOR LOCK, S/HEATER,
SAFETY P/WINDOW, SUNROOF, Power Window Relay)
IG2 40A Start Relay, PDM Relay Box (IG2 Relay), Ignition Switch
