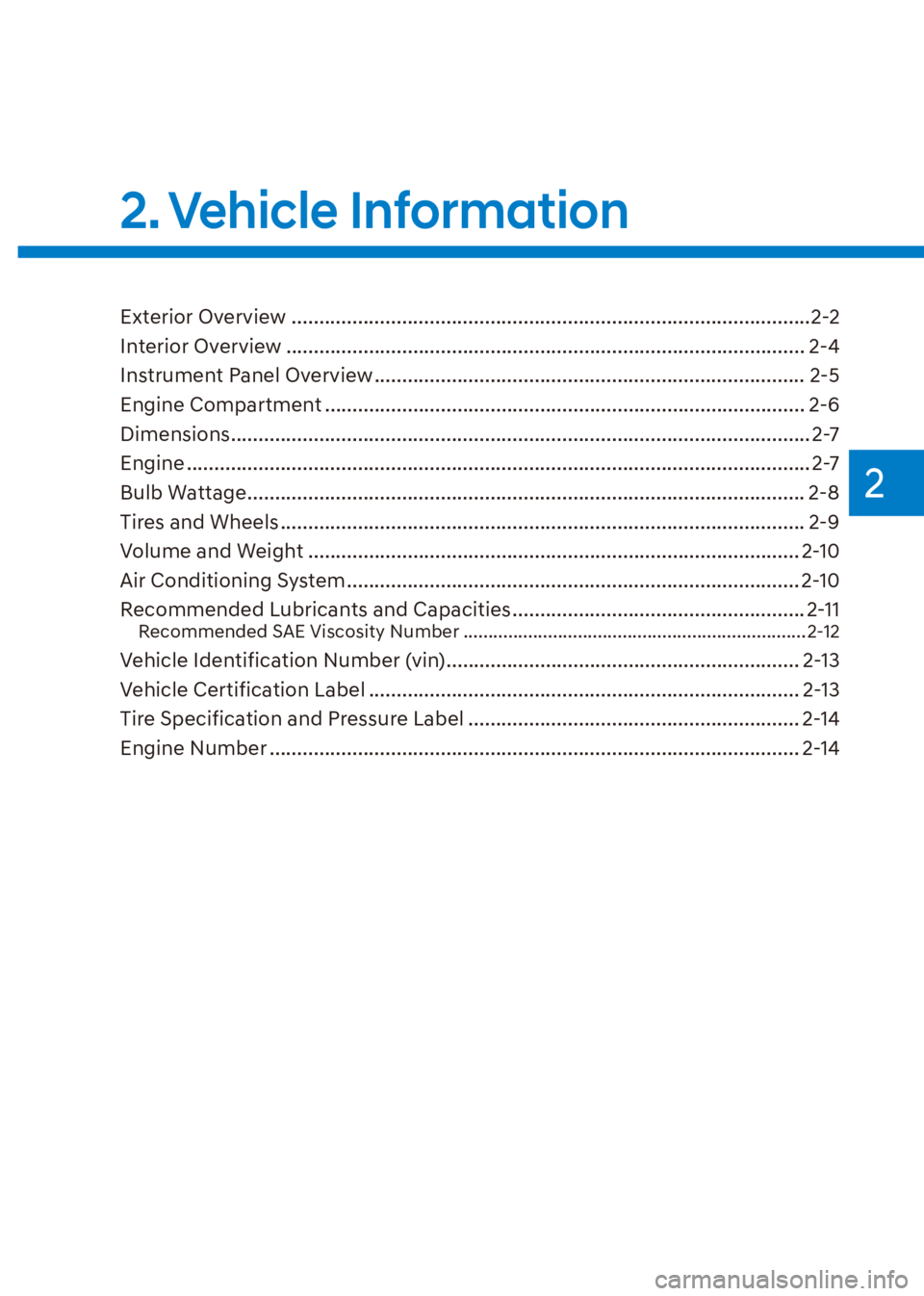

2. Vehicle Information
Exterior Overview ........................................................................\
......................2-2
Interior Overview ........................................................................\
...................... 2-4
Instrument Panel Overview ........................................................................\
...... 2-5
Engine Compartment ........................................................................\
............... 2-6
Dimensions .............................................................\
............................................ 2-7
Engine ..................................................................\
............................................... 2-7
Bulb Wattage ........................................................................\
............................. 2-8
Tires and Wheels ........................................................................\
....................... 2-9
Volume and Weight ........................................................................\
................. 2-10
Air Conditioning System ........................................................................\
.......... 2-10
Recommended Lubricants and Capacities ..................................................... 2-11
Recommended SAE Viscosity Number ..................................................................... 2-12
Vehicle Identification Number (vin) ................................................................ 2-13
Vehicle Certification Label ........................................................................\
...... 2-13
Tire Specification and Pressure Label ............................................................ 2-14
Engine Number ........................................................................\
........................ 2-14

2-4
Vehicle Information
The actual shape may differ from the illustration.OQX019003N

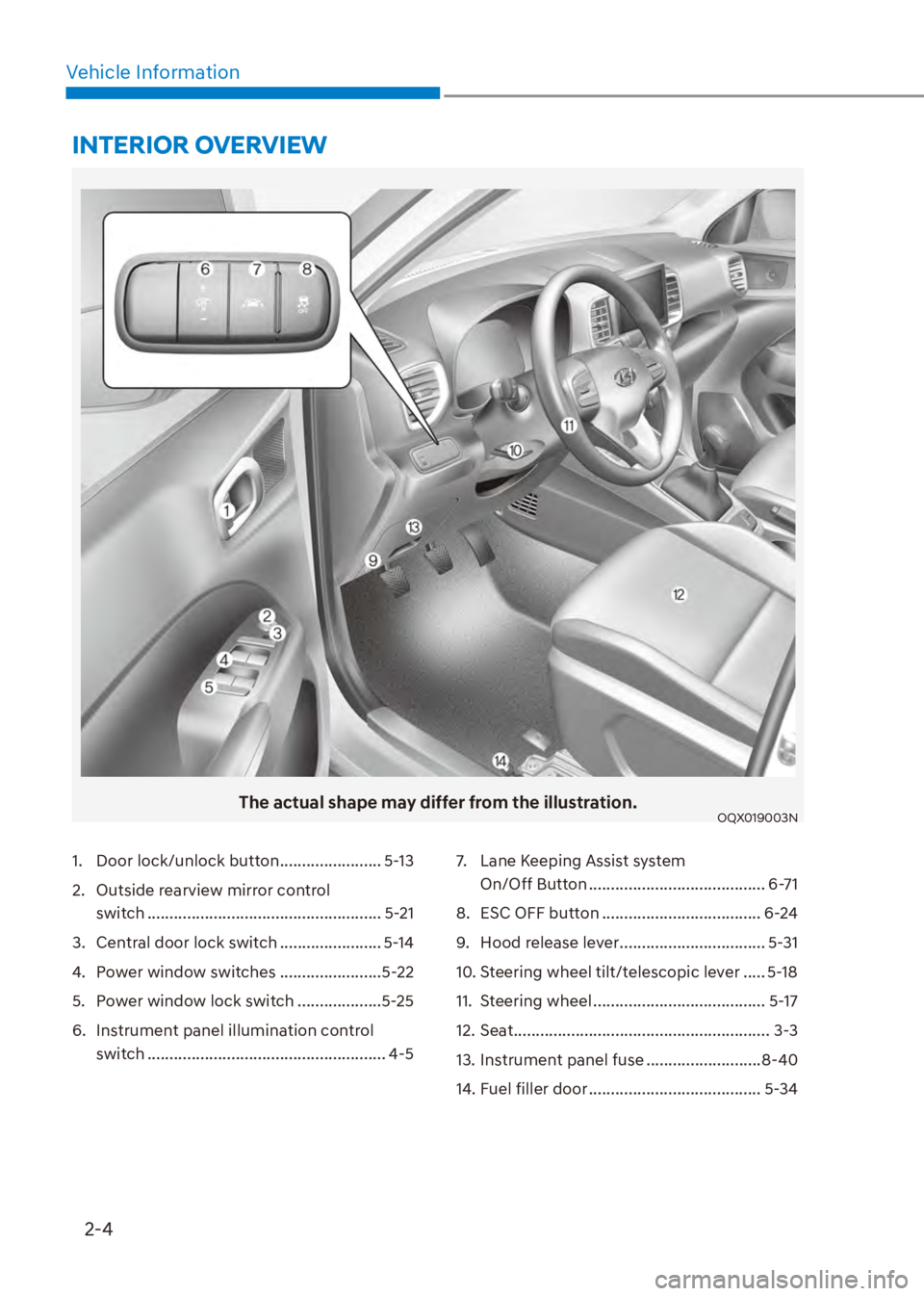

1. Door lock/unlock button ....................... 5-13
2. Outside rearview mirror control
switch ..................................................... 5-21
3. Central door lock switch ....................... 5-14
4. Power window switches .......................5-22
5. Power window lock switch ...................5-25
6. Instrument panel illumination control switch ...................................................... 4-5 7. Lane Keeping Assist system
On/Off Button ........................................ 6-71
8. ESC OFF button .................................... 6-24
9. Hood release lever ................................. 5-31
10. Steering wheel tilt/telescopic lever ..... 5-18
11. Steering wheel ....................................... 5-17
12. Seat .......................................................... 3-3
13. Instrument panel fuse ..........................8-40
14. Fuel filler door ....................................... 5-34
INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.OQX010011N
1. Instrument cluster .................................. 4-4
2. Horn ........................................................ 5-19
3. Key ignition switch ................................. 6-6Engine Start/Stop button ....................... 6-9
4. Infotainment system .............................5-76
5. Hazard warning flasher switch ............... 7-2
6. Manual climate control system ........... 5-48 Automatic climate control system ...... 5-56
7. Passenger’s front air bag ..................... 3-33
8. Glove box .............................................. 5-69 9. Manual transmission shift lever ............ 6-12
Intelligent variable transmission
shift lever................................................ 6-15
10. Seat warmer ........................................... 3-12
11. Drive mode selection knob .................. 6-28
12. Power outlet .......................................... 5-70
13. USB charger ........................................... 5-71
14. Driver’s front air bag ............................. 3-33
15. Light control .......................................... 5-36 Turn signals ............................................ 5-41
16. Wiper/Washer ....................................... 5-45
INSTRUMENT PANEL OVERVIEW

03
3-5
Front Seats
WARNING
Take the following precautions when
adjusting your seat:

[NEVER attempt to adjust the seat
while the vehicle is moving. The seat
could respond with unexpected
movement and may cause loss
of vehicle control resulting in an
accident.

[ Do not place anything under the
front seats. Loose objects in the
driver’s foot area could interfere
with the operation of the foot pedals,
causing an accident.

[ Do not allow anything to interfere
with the normal position and proper
locking of the seatback.

[ Do not place a cigarette lighter on
the floor or seat. When you operate
the seat, gas may exit out of the
lighter causing a fire.

[ Use extreme caution when picking
up small objects trapped under the
seats or between the seat and the
center console. Your hands might be
cut or injured by the sharp edges of
the seat mechanism.

[ If there are occupants in the rear
seats, be careful while adjusting the
front seat position.

[ Make sure that the seat is locked in
place after the adjustment. If not,
the seat might move unexpectedly
resulting in an accident.
CAUTION
To prevent injury:

[Do not adjust your seat while
wearing your seat belt. Moving the
seat cushion forward may cause
strong pressure on your abdomen.

[ Do not allow your hands or fingers to
get caught in the seat mechanisms
while the seat is moving.
Manual Adjustment
The front seat can be adjusted by using
the levers located on the outside of
the seat cushion. Before driving, adjust
the seat to the proper position so that
you can easily control the steering
wheel, foot pedals and controls on the
instrument panel.
OQX039002L
Forward and rearward adjustment
To move the seat forward or rearward:
1.

Pull up the seat slide adjustment lever
and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever.
If the seat moves, it is not locked
properly.

03
3-19
WARNING

[Always wear your seat belt and sit
properly in your seat.

[ Do not use the seat belt if it is loose
or twisted. A loose or twisted seat
belt will not protect you properly in
an accident.

[ Do not place anything near the
buckle. This may adversely affect
the buckle and cause it to function
improperly.

[ Always replace your pre-tensioners
after activation or an accident.

[ NEVER inspect, service, repair or
replace the pre-tensioners yourself.
This must be done by an authorized
HYUNDAI dealer.

[ Do not hit the seat belt assemblies.
WARNING
Do not touch the pre-tensioner seat
belt assemblies for several minutes
after they have been activated. When
the pre-tensioner seat belt mechanism
deploys during a collision, the pre-
tensioners become hot and can burn
you.
OLMB033040
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown
in the illustration above:
1. SRS air bag warning light
2. Retractor pre-tensioner
3. SRS control module
NOTICE
The sensor that activates the SRS air
bag is connected with the pre-tensioner
seat belts. The SRS air bag warning light
on the instrument panel will illuminate
for approximately 6 seconds after the
ignition switch is in the ON position,
and then it should turn off.
If the pre-tensioner is not working
properly, the warning light will
illuminate even if the SRS air bag is not
malfunctioning. If the warning light
does not illuminate, stays illuminated
or illuminates when the vehicle is being
driven, have an authorized HYUNDAI
dealer inspect the pre-tensioner seat
belts and SRS air bags as soon as
possible.

03
3-33
Where Are the Air Bags?
Driver’s And Passenger’s Front Air
Bags
Your vehicle is equipped with an
Advanced Supplemental Restraint
System (SRS) and lap/shoulder belts at
both the driver and passenger seating
positions.
The SRS consists of air bags which are
located in the center of the steering
wheel, in the driver’s side lower crash
pad below the steering wheel column
and the passenger’s side front panel pad
above the glove box.
The air bags are labeled with the letters
“AIR BAG” embossed on the pad covers.
„Driver’s front air bag
OQX039024L
„Passenger’s front air bag
OQX039035L
The purpose of the SRS is to provide the
vehicle’s driver and front passengers
with additional protection than that
offered by the seat belt system alone.
The advanced SRS offers the ability to
control the air bag inflation within two
levels. A first stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity, the
SRS Control Module (SRSCM) controls
the air bag inflation. Failure to properly
wear seat belts can increase the risk or
severity of injury in an accident.
WARNING
To reduce the risk of serious injury or
death from inflating front air bags, take
the following precautions:

[Seat belts must be worn at all times
to help keep occupants positioned
properly.

[ Move your seat as far back as
possible from front air bags, while
still maintaining control of the
vehicle.

[ Never lean against the door or center
console.

[ Do not allow the front passenger
to place their feet or legs on the
dashboard.

[ No objects (such as crash pad
cover, cellular phone holder, cup
holder, perfume or stickers) should
be placed over or near the air bag
modules on the steering wheel,
instrument panel, windshield glass,
and the front passenger’s panel
above the glove box. Such objects
could cause harm if the vehicle is in a
crash severe enough to cause the air
bags to deploy.

Safety System3-36
How Does the Air Bag System
Operate?
OQX039027
The SRS consists of the following
components:
1. Driver’s front air bag module
2. Passenger’s front air bag module
3. Side air bag modules
4. Curtain air bag modules
5. Retractor pre-tensioner
6. Air bag warning light
7. SRS control module (SRSCM)/Rollover sensor
8. Front impact sensors
9. Side impact sensors
10. Side pressure sensors
11. Occupant classification system
The SRSCM (Supplemental Restraint
System Control Module) continually
monitors all SRS components while the
ignition switch is in the ON position to
determine if a crash impact is severe
enough to require air bag deployment or
pre-tensioner seat belt deployment.
SRS warning light
The SRS (Supplement Restraint System)
air bag w
arning light on the instrument
panel displays the air bag symbol
depicted in the illustration. The system
checks the air bag electrical system for
malfunctions. The light indicates that
there is a potential malfunction with your
air bag system, which could include your
side and curtain air bags used for rollover
protection.
WARNING
If your SRS malfunctions, the air bag
may not inflate properly during an
accident increasing the risk of serious
injury or death.
If any of the following conditions occur,
your SRS is malfunctioning:

[ The light does not turn on for
approximately six seconds when the
Engine Start/Stop button is in the ON
position.

[ The light stays on after illuminating
for approximately six seconds.

[ The light comes on while the vehicle
is in motion.

[ The light blinks when the engine is
running.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible if
any of these conditions occur.

03
3-39
„Driver’s front air bag (3)
ODN8039079L
„Passenger’s front air bag
ODN8039080L
After complete inflation, the air bag
immediately starts deflating, enabling
the driver to maintain forward visibility
and the ability to steer or operate other
controls.
WARNING
To prevent objects from becoming
dangerous projectiles when the
passenger’s air bag inflates:

[Do not install or place any objects
(drink holder, CD holder, stickers,
etc.) on the front passenger’s panel
above the glove box where the
passenger’s air bag is located.

[ Do not install a container of liquid
air freshener near the instrument
cluster or on the instrument panel
surface.
What to Expect After an Air Bag
Inflates
After a frontal or side air bag inflates, it
will deflate very quickly. Air bag inflation
will not prevent the driver from seeing
out of the windshield or being able
to steer. Curtain air bags may remain
partially inflated for some time after they
deploy.
WARNING
After an air bag inflates, take the
following precautions:

[Open your windows and doors as
soon as possible after impact to
reduce prolonged exposure to the
smoke and powder released by the
inflating air bag.

[ Do not touch the air bag storage
area’s internal components
immediately after an air bag has
inflated. The parts that come into
contact with an inflating air bag may
be very hot.

[ Always wash exposed skin areas
thoroughly with cold and mild soap.

[ Always have an authorized
HYUNDAI dealer replace the air bag
immediately after deployment. Air
bags are designed to be used only
once.
