2023 HYUNDAI TUCSON HYBRID ECO mode

01
1-41
ClassificationDetailsOperation of charging
indicator lamp
Mode Status Charging
inlet Charging
button
A READY N
on-charging
state 0 ~ 65 % On (Yellow) Off
65 ~ 100 % On (Green) Off
B Aux. Battery
Saver / High
voltage warning Charging the 12V auxiliary
battery / High voltage warning
state On (Red) Off
C Charging Charging 0 ~ 65 %
Blinking
(Yellow) Off
65 ~ 100 % Blinking
(Green) Off
D Charging
complete Charging
completed (turns
off in 5 seconds) 100 %
On (Green)
Ÿ
OFF Off
E Charging failed Error while charging Blinking
(Red) Off
F Scheduled
charging standby Reserved charging is operating
(turns OFF after 3 minutes) Off
ON
G Error CAN communication error
status On (Green)
Ÿ
On (Orange)

Ÿ On (Red) Off

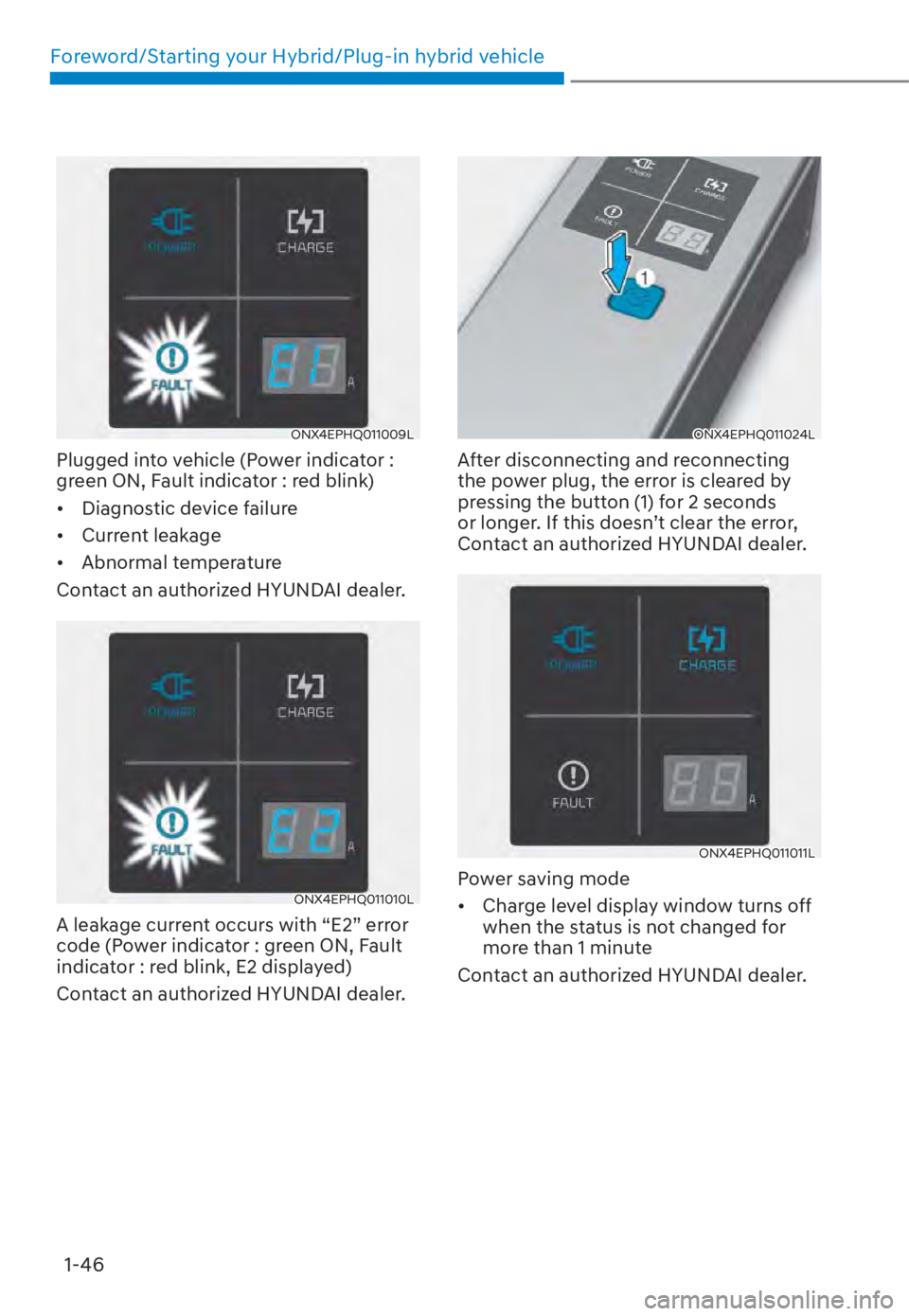

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-46
ONX4EPHQ011009LONX4EPHQ011009L
Plugged into vehicle (Power indicator :
green ON, Fault indicator : red blink)
• Diagnostic device failure
• Current leakage
• Abnormal temperature
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011010LONX4EPHQ011010L
A leakage current occurs with “E2” error
code (Power indicator : green ON, Fault
indicator : red blink, E2 displayed)
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011024LONX4EPHQ011024L
After disconnecting and reconnecting
the power plug, the error is cleared by
pressing the button (1) for 2 seconds
or longer. If this doesn’t clear the error,
Contact an authorized HYUNDAI dealer.
ONX4EPHQ011011LONX4EPHQ011011L
Power saving mode
• Charge level display window turns off when the status is not changed for
more than 1 minute
Contact an authorized HYUNDAI dealer.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-50
Starting the Vehicle
Vehicles with smart key system
1. Carry the smart key or leave it inside the vehicle.
2. Make sure the parking brake is firmly applied.
3. Make sure the shift button is in P (Park). With the shift button in N
(Neutral), you cannot start the vehicle.
4. Depress the brake pedal.
5. Press the Engine Start/Stop button. If the hybrid system starts, the “
”
indicator will come on.
Whether the engine is cold or warm, it
should be started without depressing
the accelerator.
After following the start procedures,
“
” indicator on the instrument
cluster will turn on. For more details,
please check chapter 6.
ECONOMICAL and SAFE OPERATION of
Hybrid system
• Drive smoothly. Accelerate at a moderate rate and maintain a steady
cruising speed. Do not make “jack-
rabbit” starts. Do not race between
stoplights.
Avoid heavy traffic whenever possible.
Always maintain a safe distance
from other vehicles so you can
avoid unnecessary braking. This also
reduces brake wear out.
• The regenerative brake generates energy when the vehicle decelerates.
• When the hybrid battery power is low, the hybrid system automatically
recharges the hybrid battery.
• When the engine is running with the shift button in N (Neutral), the hybrid
system cannot generate electricity.
The hybrid battery cannot recharge
with the shift button in N (Neutral).
Information
In the hybrid system, the engine
automatically runs and stops. When
the hybrid system operates, the “
”
indicator is illuminated.
In the following situation, the engine may
operate automatically.
- When the engine is ready to run
- When the hybrid battery is being
charged
- Depending on the temperature
condition of the hybrid battery
Special Features
Hybrid vehicles sound different than
gasoline engine vehicles. When the
hybrid system operates, you may
hear a sound from the hybrid battery
system under the floor. If you apply
the accelerator pedal rapidly, you may
hear an unconventional sound. When
you apply the brake pedal, you may
hear a sound from the regenerative
brake system. When the hybrid system
is turned off or on, you may hear a
sound in the engine compartment. If
you depress the brake pedal repeatedly
when the hybrid system is turned on,
you may hear a sound in the engine
compartment. None of these sounds
indicate a problem. These are normal
characteristics of hybrid vehicles.
If any of following occur, it’s a normal
condition if you hear a motor sound in
the engine compartment:
- After turning off the hybrid system, the brake pedal is released.
- When the hybrid system is turned off, the brake pedal is applied.
- When the driver door is opened.
DRIVING THE HYBRID VEHICLE

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-54
Infotainment system Screen (Plug-in
hybrid vehicle) (if equipped)
OTMPHQ010018LOTMPHQ010018L
Press [PHEV] on the [Home] screen or
the [All menus] screen and the menus
related to plug-in hybrid ([ECO driving],
[Energy information], [EV range], [Set
charging times], [Charging stations],
[Petrol stations]) are displayed.
For more information, please refer to
the Infotainment System Manual that
was separately supplied with your
vehicle.
Aux. Battery Saver+ (Plug-in
hybrid vehicle)
The Aux. Battery Saver+ is a function that
monitors the charging status of the 12 V
auxiliary battery. If the auxiliary battery
level is low, the main high voltage battery
charges the auxiliary battery.
Information
The Aux. Battery Saver+ function will
be ON when the vehicle is delivered. If
the function is not needed, you may turn
it off in the Users Settings mode on the
cluster. For more information, refer to the
following page.
Mode
• Cycle Mode:
When the vehicle is OFF with all doors,
hood and liftgate closed, the Aux. Battery
Saver+ periodically activates according
to the auxiliary battery status.
• Automatic Mode:
When the ignition switch is in the ON
position with the charging connector
plugged in, the function activates
according to the auxiliary battery status
to prevent overdischarge of the auxiliary
battery.

Foreword/Starting your Hybrid/Plug-in hybrid vehicle1-56
Warning and Indicator Lights
Ready indicator
This indicator illuminates:
When the vehicle is ready to be driven. -
ON : Normal driving is possible.
- OFF : Normal driving is not possible, or a problem has occurred.
When the ready indicator goes OFF,
there is a problem with the system. If this
occurs, have your vehicle inspected by
an authorized HYUNDAI dealer.
EV mode indicator
This indicator illuminates:
When the vehicle is driven by the electric
mo
tor.
Charging Cable Connection
Indicator (Plug-in hybrid
vehicle)
This indicator illuminates in red when the
charging cable is connected.
Service warning light
This warning light illuminates:
• When you set the ignition switch or the E
ngine Start/Stop button to the
ON position.

- The service warning light illuminates
for approximately 3 seconds and
then turns off when all checks have
been performed.
• When there is a problem with the hybrid vehicle control system or
hardware.
When the warning light illuminates while
driving, or does not go OFF after starting
the vehicle, have the vehicle inspected
by an authorized HYUNDAI dealer.
Regenerative brake warning
light
(yellow)
This warning light illuminates:
When the regenerative brake does not
oper
ate and the brake does not perform
well. This causes the Brake Warning
light (red) and Regenerative Brake
Warning Light (yellow) to illuminate
simultaneously.
If this occurs, drive safely and have
your vehicle inspected by an authorized
HYUNDAI dealer. The operation of the
brake pedal may be more difficult than
normal and the braking distance may
increase.

02
2-21
7,5(63(&,),&$7,21$1'
35(6685(/$%(/
ONX4E010022
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.
(1*,1(180%(5
ONX4H010021
The engine number is stamped on the
engine block as shown in the drawing.
$,5&21',7,21(5
&2035(6625/$%(/
ONX4EH010023
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part
number, production number, refrigerant
(1) and refrigerant oil (2).
&+$5*,1*/$%(/

ã,)(48,33('
ä
ONX4PHQ011027N
Charging label is located on the charging
inlet cover’s inside. For more details,
refer to “Charging the plug-in hybrid
vehicle” in the chapter 1.

03
3-41

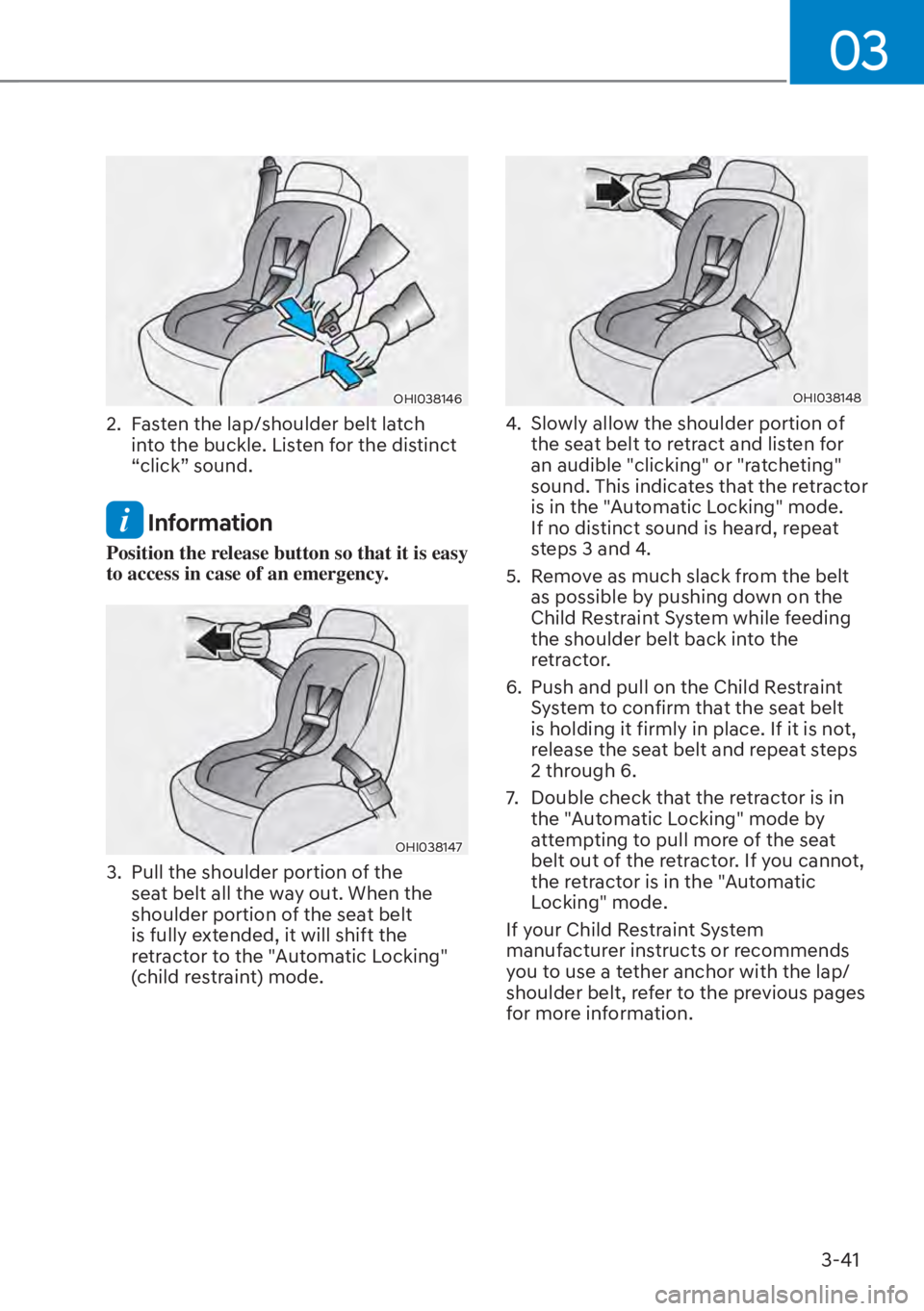

OHI038146
2. Fasten the lap/shoulder belt latch into the buckle. Listen for the distinct
“click” sound.
Information
Position the release button so that it is easy
to access in case of an emergency.
OHI038147
3. Pull the shoulder portion of the seat belt all the way out. When the
shoulder portion of the seat belt
is fully extended, it will shift the
retractor to the "Automatic Locking"
(child restraint) mode.
OHI038148
4. Slowly allow the shoulder portion of the seat belt to retract and listen for
an audible "clicking" or "ratcheting"
sound. This indicates that the retractor
is in the "Automatic Locking" mode.
If no distinct sound is heard, repeat
steps 3 and 4.
5. Remove as much slack from the belt as possible by pushing down on the
Child Restraint System while feeding
the shoulder belt back into the
retractor.
6. Push and pull on the Child Restraint System to confirm that the seat belt
is holding it firmly in place. If it is not,
release the seat belt and repeat steps
2 through 6.
7. Double check that the retractor is in the "Automatic Locking" mode by
attempting to pull more of the seat
belt out of the retractor. If you cannot,
the retractor is in the "Automatic
Locking" mode.
If your Child Restraint System
manufacturer instructs or recommends
you to use a tether anchor with the lap/
shoulder belt, refer to the previous pages
for more information.

Seats & Safety System3-42

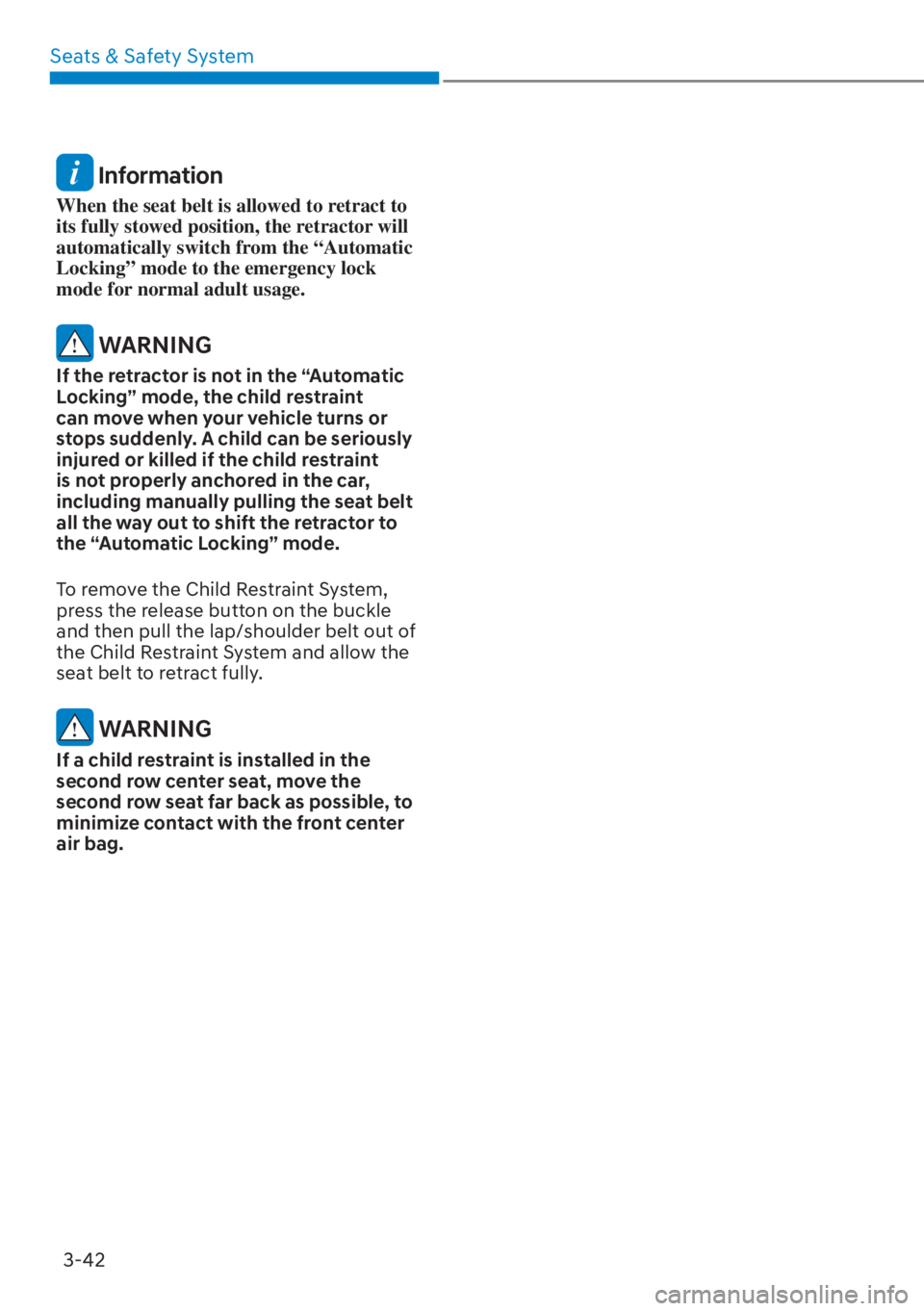

Information
When the seat belt is allowed to retract to
its fully stowed position, the retractor will
automatically switch from the “Automatic
Locking” mode to the emergency lock
mode for normal adult usage.
WARNING
If the retractor is not in the “Automatic
Locking” mode, the child restraint
can move when your vehicle turns or
stops suddenly. A child can be seriously
injured or killed if the child restraint
is not properly anchored in the car,
including manually pulling the seat belt
all the way out to shift the retractor to
the “Automatic Locking” mode.
To remove the Child Restraint System,
press the release button on the buckle
and then pull the lap/shoulder belt out of
the Child Restraint System and allow the
seat belt to retract fully.
WARNING
If a child restraint is installed in the
second row center seat, move the
second row seat far back as possible, to
minimize contact with the front center
air bag.
