2023 HYUNDAI TUCSON HYBRID ECO mode

Instrument Cluster4-54
OTMA040009

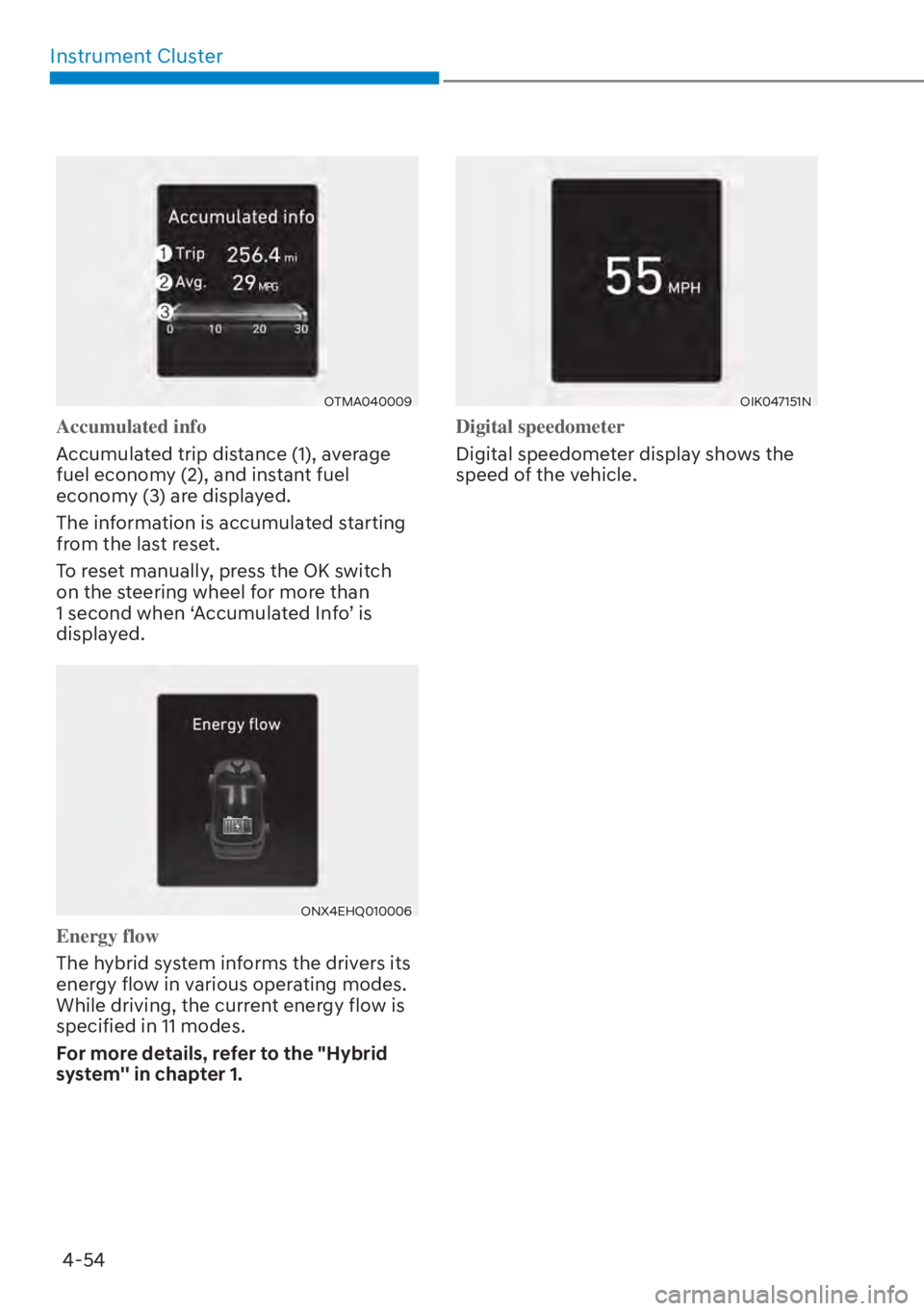

Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

04
4-55
Trip Computer (10.25-inch) -
Plug-in Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
Electric/Gasoline
Range
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

04
4-57
OTMA040016
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

5
Climate Control Additional Features .............................................................5-116A/C Automatic Drying ........................................................................\
....................... 5-116
Auto Defogging System on Models with Automatic Temperature Control ........... 5-116
Auto Dehumidify ........................................................................\
............................... 5-117
Recirculating Air when Washer Fluid is Used .......................................................... 5-118
Sunroof Inside Air Recirculation ........................................................................\
....... 5-118
Automatic Controls for the Driver Based on Climate Control System Settings .... 5-118
Storage Compartment ........................................................................\
............5-119Center Console Storage ........................................................................\
.................... 5-119
Glove Box ........................................................................\
........................................... 5-119
Luggage Tray ........................................................................\
..................................... 5-119
Interior Features ........................................................................\
..................... 5-120Cup Holder ........................................................................\
........................................ 5-120
Sunvisor ..................................................................\
................................................... 5-121
Power Outlet ........................................................................\
...................................... 5-121
USB Charger ........................................................................\
......................................5-122
Wireless Smart Phone Charging System .................................................................5-123
Clock ..................................................................\
....................................................... 5-126
Coat Hook ........................................................................\
......................................... 5-126
Floor Mat Anchor(s) ........................................................................\
........................... 5-127
Luggage Net Holder ........................................................................\
.......................... 5-127
Cargo Security Screen ........................................................................\
..................... 5-128
Exterior Features ........................................................................\
....................5-130Roof Side Rails ........................................................................\
.................................. 5-130
Infotainment System ........................................................................\
..............5-131USB Port ........................................................................\
............................................. 5-131
Antenna ...................................................................\
...................................................5 -132
Steering Wheel Remote Controls ........................................................................\
.....5-132
Infotainment System ........................................................................\
........................ 5-133
Voice Recognition ........................................................................\
............................ 5-133
Bluetooth® Wireless Technology ........................................................................\
..... 5-134
5. Convenience Features

Convenience Features5-6

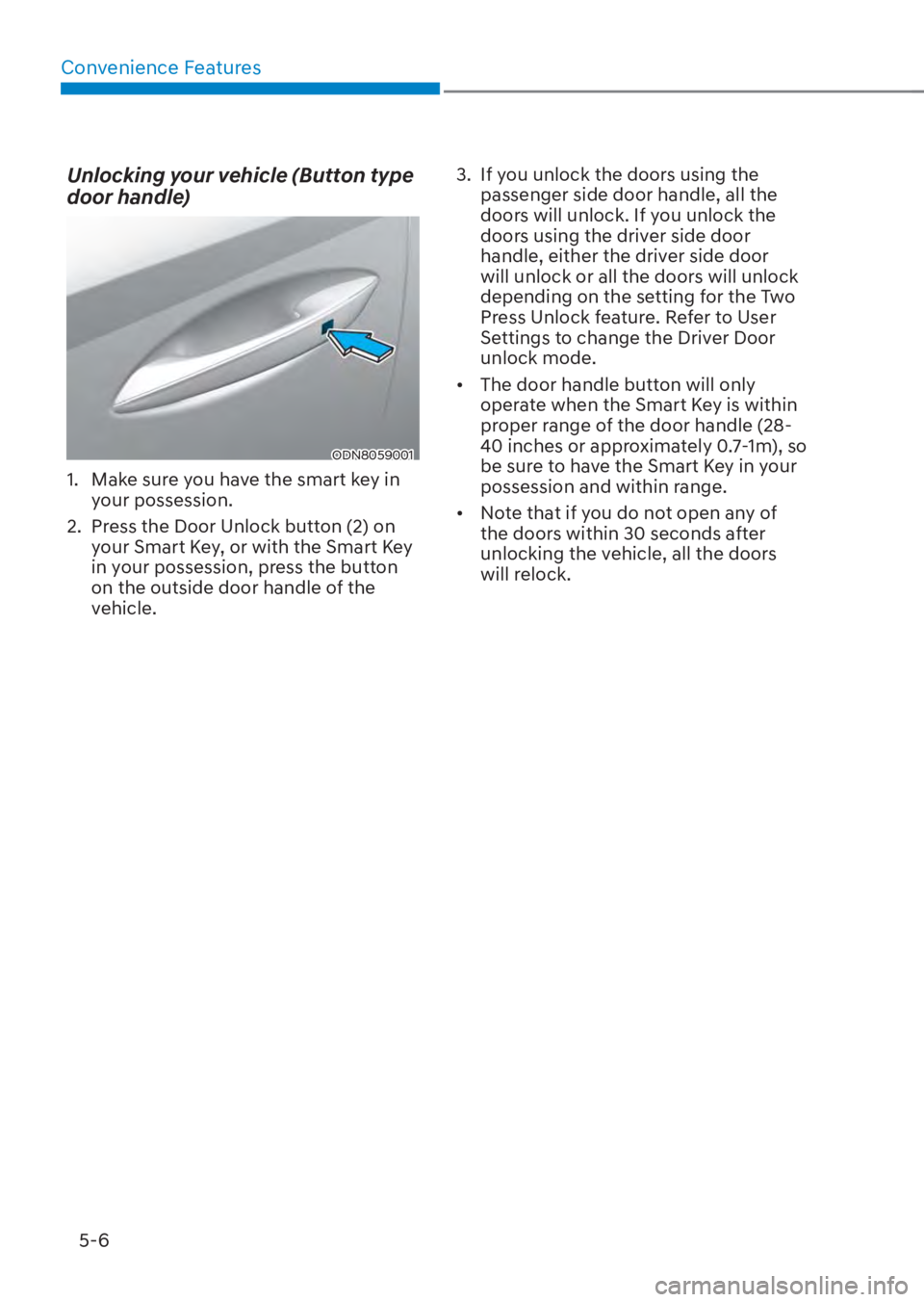

Unlocking your vehicle (Button type
door handle)
ODN8059001ODN8059001
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on your Smart Key, or with the Smart Key
in your possession, press the button
on the outside door handle of the
vehicle. 3. If you unlock the doors using the
passenger side door handle, all the
doors will unlock. If you unlock the
doors using the driver side door
handle, either the driver side door
will unlock or all the doors will unlock
depending on the setting for the Two
Press Unlock feature. Refer to User
Settings to change the Driver Door
unlock mode.
• The door handle button will only operate when the Smart Key is within
proper range of the door handle (28-
40 inches or approximately 0.7-1m), so
be sure to have the Smart Key in your
possession and within range.
• Note that if you do not open any of the doors within 30 seconds after
unlocking the vehicle, all the doors
will relock.

05
5-7
Unlocking your vehicle
(Touch sensor type door handle)
1. Make sure you have the smart key in your possession.
2. Press the Door Unlock button (2) on the Smart Key, or simply grab the door
handle inside portion to activate the
unlock door touch sensor to unlock
the door.
3. If you unlock the doors using the passenger side door handle, all
the doors will unlock. If you unlock
the doors using the driver side
doorhandle, either the driver side door
will unlock or all the doors will unlock
depending on the setting for the Two
Press Unlock feature. Refer to User
Settings to change the Driver Door
unlock mode.
4. When the doors unlock, the hazard warning lights will blink two times and
the chime will sound.
• The door handle button will only operate when the Smart Key is within
proper range of the door handle (28-
40 inches or approximately 0.7-1m), so
be sure to have the Smart Key in your
possession and within range.
• Note that if you do not open any of the doors within 30 seconds after
unlocking the vehicle, all the doors
will relock.
• If you unlocked the door with the touch sensor door handle, note that
the doors cannot be relocked with the
touch sensor on the outside handle
for about 2 seconds. Two Press Unlock Feature
The option for unlocking the driver door
only, or unlocking all the doors with
one press may be adjusted in the User
Settings mode in the cluster LCD display.
The Two Press Unlock feature, when
enabled, will require the user to press
the door unlock button once for driver
door only and twice for unlocking all the
doors.
Select or Deselect the Two Press Unlock
feature in the User Settings mode in the
cluster LCD display. The option can be
found under the following menu:
User Settings
Ÿ Door
Ÿ Two Press Unlock
The Two Press Unlock feature can also be
enabled or disabled by pressing the door
lock and unlock buttons simultaneously
on the Key FOB:
Press and hold both the Door Lock
button and the Door Unlock button
simultaneously until the hazard warning
lights blink.
This will enable or disable the Two Press
Unlock feature. Repeat this procedure to
enable/disable the mode again.
Information
If you press the front passenger outside
door handle with the smart key in your
possession, all the doors will unlock.

05
5-9
Remote Smart Parking Assist
Feature (if equipped)
Some models are equipped with Remote
Smart Parking Assist Feature. With the
Smart Key, the vehicle can be moved
forward or backward remotely to enter or
exit a tight parking space.
For more details, refer to “Remote
Smart Parking Assist (RSPA)” section in
chapter 7.
Panic alarm
A panic alarm feature is available on the
remote key. When this button is pressed
for about 1 second, the horn will sound
and the hazard lights will blink for about
30 seconds. To stop the horn and lights,
press any button on the remote key.
Push Button Start/Stop (if equipped)
Some models are equipped with a push
button start instead of a key cylinder.
You can leave your Smart Key in your
pocket or purse when you start your
vehicle.
For more details, refer to the “Engine
Start/Stop Button” section in chapter 6.
Information
If the smart key is not moved for some
time, the detection function for smart key
operation will pause. Lift the smart key to
activate the detection again.
NOTICE
To prevent damaging the smart key:
• Keep the smart key in a cool,
dry place to avoid damage or
malfunction. Exposure to moisture
or high temperature may cause
the internal circuit of the smart key
to malfunction which may not be
covered under warranty.
• Avoid dropping or throwing the
smart key.
• Protect the smart key from extreme
temperatures.
Mechanical key
If the Smart Key does not operate
normally, you can lock or unlock the
driver’s door by using the mechanical
key.
To remove the mechanical key from the
smart key:
OFE048007OFE048007
Press and hold the release button (1) and
remove the mechanical key (2). Insert the
mechanical key into the key hole on the
door.
Key Cylinder (Driver Door)
A key cylinder is located on the driver
side door handle hidden behind a plastic
cover. Using the mechanical key, push
and hold the key cylinder cover release
button located on the underside of the
door handle.
Use the mechanical key inserted into
the release button slot to pry the cover
outward. Once the cover is off, the
mechanical key can be inserted into the
key cylinder to lock or unlock the vehicle.
To reinstall the mechanical key into the
key FOB, put the key into the key FOB
hole and push inward until a click sound
is heard.

05
5-15
3. Once the digital key delete is complete, a message will be shown
on the infotainment screen or cluster.
4. Go to [Initialize Digital Key] menu on the digital key application and select
the vehicle to delete the digital key
information.
• Open the Hyundai Digital Key app
Ÿ Menu
Ÿ Initialize Digital Key

à If the saved digital key information
in your car is deleted due to vehicle
maintenance, the digital key in your
smartphone should be deleted as well.

à For more information, please refer to
the ‘Tutorial’ on your Digital key app.
CAUTION
• If the smartphone is removed
from the interior authentication
pad during enrollment, the saving
process will be cancelled.
• If the infotainment or instrument
cluster screen is changed during
enrollment, the saving process will
be cancelled.
• If the vehicle is turned off during
enrollment, the saving process will
be cancelled.
• If the gear is shifted, the saving
process will be cancelled.
• If you try to save the smartphone
which is not logged in with the
vehicle owner’s ID or if you try to
save the Card key, the saving process
will not begin.
• If the NFC setting on your
smartphone is off, the saving process
will not begin.
• If the smartphone screen is changed
to off or locked status, the saving
process will be cancelled.
• If there is no Smart key during the
save process, the saving process will
not begin. Set up main vehicle
You can manage multiple digital keys
fr

om the Digital key app. From the list of
digital keys you own, select the vehicle
you want to make your priority vehicle.
For more information, please refer to
the ‘Tutorial’ on your Digital key app.
ONX4050001ONX4050001
[1] : Door handle authentication pad
NFC door lock/unlock
To unlock your vehicle using the
smartphone Digital K
ey, position your
phone near the door handle NFC touch
sensor of either the driver side or
passenger side door. Hold your phone
near the touch sensor area for about 2
seconds. You will hear the doors lock or
unlock.
If you unlock your vehicle from the
passenger side door handle, then all the
doors will unlock. If you unlock your
vehicle from the driver side door handle,
then either the driver door only or all
the doors will unlock depending on the
setting of the Two Press Unlock feature.
Refer to User Settings to change the
Driver Door unlock mode.
To lock your vehicle using the
smartphone Digital Key, position your
phone near the door handle NFC touch
sensor of either the driver side or
passenger side door.
