2023 HYUNDAI TUCSON HYBRID ECO mode

4-36
Instrument Cluster
Trip computer mode
OTMA060011
The trip computer mode displays
information related to vehicle driving
parameters including fuel economy,
tripmeter information and vehicle speed.
For more details, refer to “Trip
Computer” section in this chapter.
Turn By Turn (TBT) mode
OIK047147N
This mode displays the state of the
navigation.
Driving Assist mode
OTMA040003
LKA/SCC/LFA/HDA
This mode displays the state of Lane
K

eeping Assist, Smart Cruise Control,
Lane Following Assist and Highway
Driving Assist
For more details, refer to each function
information in chapter 7.
ONX4E071174L
Driver Attention Warning
This mode displays the state of Driver
A
ttention Warning.
For more details, refer to “Driver
Attention Warning (DAW)” in chapter 7.

04
4-39
User settings mode
ONX4E040026
In this mode, you can change the
settings of the instrument cluster, doors,
lamps, etc.
1. Driver Assistance
2. ECO vehicle
3. Cluster
4. Lights
5. Door
6. Convenience
7. ECO vehicle
8. Units
9. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.Shift to P to edit settings
This warning message appears if you try
t

o adjust the User Settings while driving.
For your safety, change the User Settings
after parking the vehicle, applying the
parking brake and pressing the P (Park)
button.
Quick guide help
This mode provides quick guides for the
s
ystems in the User Settings mode.
Select an item, press and hold the OK
button.
For more details, about each system,
refer to this Owner’s Manual.
Information
When the infotainment system is applied,
only the User’s Setting mode on the
infotainment system is supported but the
User’s Setting mode on the instrument
cluster is not supported.

04
4-41
2. ECO vehicle
ItemsExplanation
Utility Mode T
o activate or deactivate the Utility Mode.
* Utility Mode: This is a mode for using electricity from high voltage battery. (not possible to drive) It's useful while
camping, etc.
Green Zone EV Drive To activate or deactivate the Green Zone EV Drive.
* Green Zone EV Drive : When user select "Green Zone Drive",
vehicle drives with EV mode as much as possible for protect
atmospheric environment. (based on map info - School
zone, park, indoor parking lots, etc.)
Coasting Guide
[
Enable Coasting Guide : On/Off
To inform driver when taking foot off from accelerator pedal
by getting information from Navigation system.

[ Sound
To adjust the sound of coasting guide.
Start Coasting
[
Early/Normal/Late
To select options when Coasting Pop-up is displayed.
Eco Coasting To activate or deactivate the Eco Coasting.
Lock Charging Cable To set the charging cable locking mode.

[:KLOHFKDUJLQJ$OZD\V'RQRWORFN
AUX. BATTERY SAVER+ To activate or deactivate the Aux. Battery Saver+ function.
When activated, the high voltage battery is used to keep the
12V battery charged.

Instrument Cluster4-42
3. Cluster
Items Explanation
Reset fuel
economy

[ At vehicle start

[ After refueling

[ Manually
To reset the fuel economy displayed.
Wiper/Lights DisplayTo activate or deactivate the Wiper/ Light mode.
When activated, the LCD display shows the selected Wiper/Light mode
whenever you changed the mode.
Traffic Signs To set the traffic signs displayed.
Cluster Voice Guidance Volume To adjust the cluster voice guidance volume.
Icy Road Warning To activate or deactivate the icy road warning.
Theme
Selection You can select the theme of the cluster.

[
Type A Cluster : Theme A / Theme B / Theme C

[ Type B Cluster : Link to Drive Mode /CLASSIC A/CLASSIC B/CLASSIC C/
CUBE
4. Lights
Items Explanation
Illumination T
o adjust the illumination level.

[ Level 1~20
One Touch
Turn Signal
[
Off : The one touch turn signal function will be deactivated.

[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7 times when
the turn signal lever is moved slightly.
For more details, refer to “Lighting” in chapter 5.
Ambient Light
Brightness
(if equipped)
[
Off

[ Level 1/2/3/4
Ambient
Light Color
(if equipped)
[
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/Orchid Green/
Freesia Yellow/ Sunrise Red/Aurora Purple/Lightening Violet
Headlight Delay To activate or deactivate the headlight delay function.
For more details, refer to "Lighting" in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist function.
For more details, refer to "High Beam Assist (HBA)" in chapter 5.

à The information provided may differ depending on which functions are applicable
to your vehicle.

Instrument Cluster4-46
Trip Computer (4.2-inch) - Hybrid
Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery
connector is disconnected.
Trip modes
Since refueling

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Drive Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Accumulated Info

[7ULSGLVWDQFH

[$YHUDJH)XHO(FRQRP\

[,QVWDQW)XHO(FRQRP\
Energy flow
Digital Speedometer
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

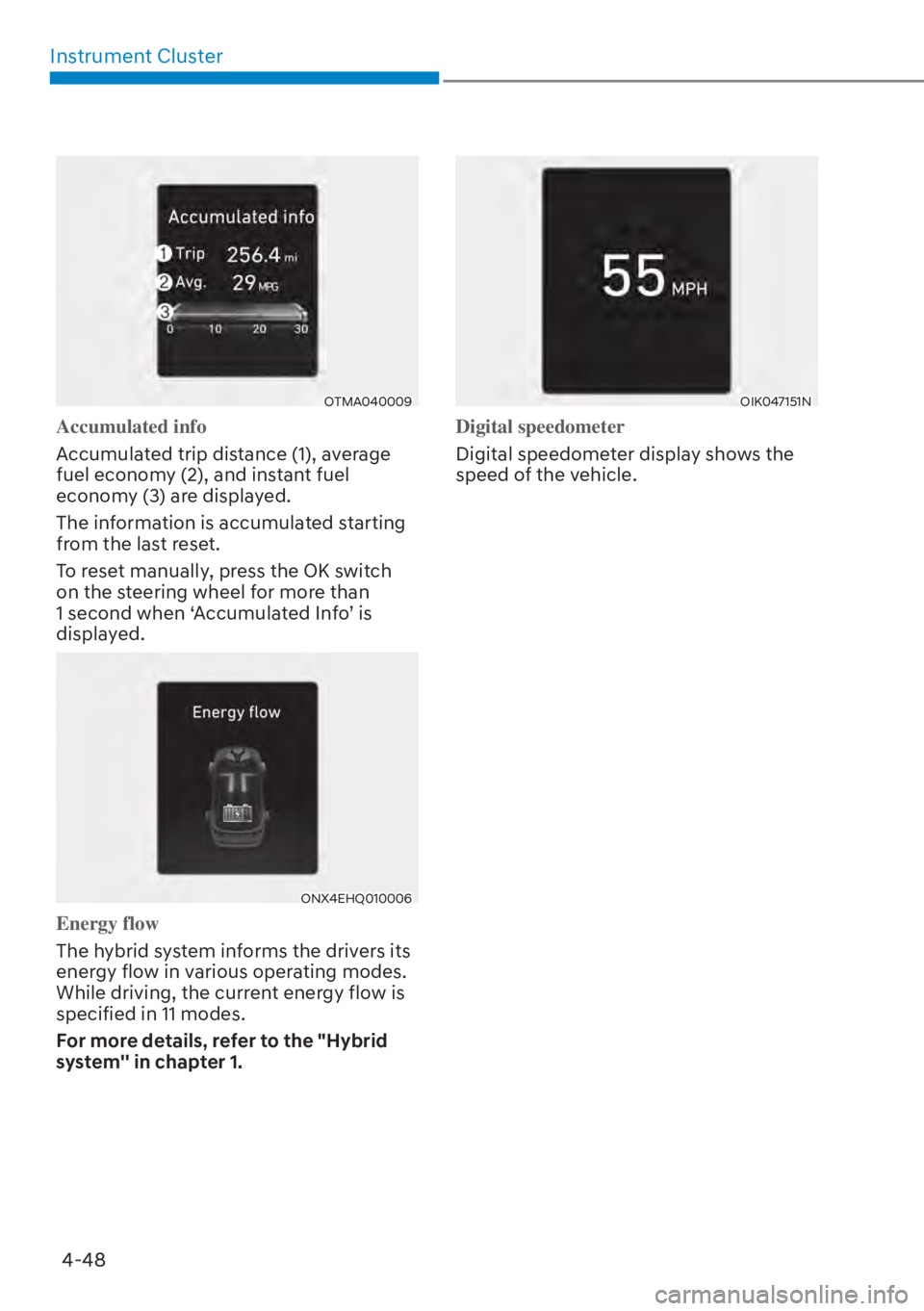

Instrument Cluster4-48
OTMA040009
Accumulated info
Accumulated trip distance (1), average
fuel econom
y (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
ONX4EHQ010006
Energy flow
The hybrid system informs the drivers its
ener
gy flow in various operating modes.
While driving, the current energy flow is
specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OIK047151N
Digital speedometer
Digital speedometer display shows the
speed o
f the vehicle.

04
4-49
Trip Computer (10.25-inch) -
Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example, Average
Vehicle Speed) resets if the battery
connector is disconnected.
Trip modes

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 1.6 gallons (6 liters) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).

à For 10.25-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.

Instrument Cluster4-52
Trip Computer (4.2-inch) - Plug-
in Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is
disconnected.
Trip modes

[ Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Accumulated Info

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Since refuelling
Energy flow
Digital speedometer

[Trip distance

[ Average Fuel Economy

[ Instant Fuel Economy
Drive Info
Electric/Gasoline
Range
OCN7050079
To change the trip mode, toggle the
", " switch on the steering wheel

[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.

[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.

- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
