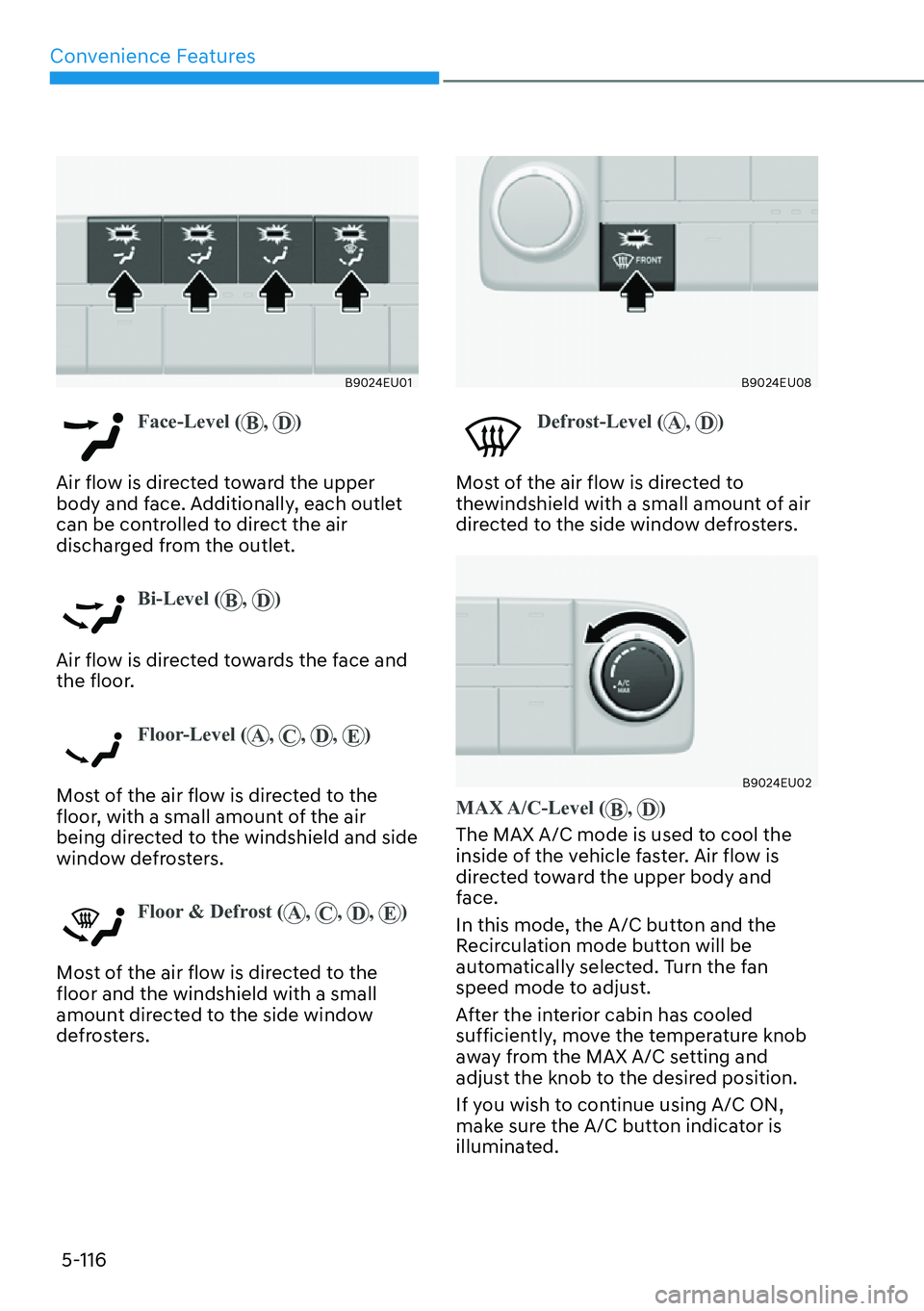

Face-Level ( B, D)
Air flow is directed toward the upper
body and f
ace. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level ( B, D)
Air flow is directed towards the face and
the floor
.
Floor-Level ( A,
C, D,
E)
Most of the air flow is directed to the
floor
, with a small amount of the air
being directed to the windshield and side
window defrosters.
Floor & Defrost ( A,
C, D,
E)
Most of the air flow is directed to the
floor and the windshield with a small
amount dir
ected to the side window
defrosters.
B9024EU08
Defrost-Level ( A,
D)
Most of the air flow is directed to
the
windshield with a small amount of air
directed to the side window defrosters.
B9024EU02
MAX A/C-Level ( B, D)
The MAX A/C mode is used to cool the
inside o
f the vehicle faster. Air flow is
directed toward the upper body and
face.
In this mode, the A/C button and the
Recirculation mode button will be
automatically selected. Turn the fan
speed mode to adjust.
After the interior cabin has cooled
sufficiently, move the temperature knob
away from the MAX A/C setting and
adjust the knob to the desired position.
If you wish to continue using A/C ON,
make sure the A/C button indicator is
illuminated.

Convenience Features5-118
Recirculation mode
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin and may promote formation of
musty vent odor due to stagnant air.
WARNING

[ Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.

[ Continued use of the climate control
system operation in Recirculation
PRGHZLWKWKH$&2))PD\DOORZ
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.

[ Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.

05
5-125
Air conditioning
Your HYUNDAI vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Start the engine.
2. Press the air conditioning button.
3. Select the Face Level
mode.
4. Set the air intake control to Recirculation mode temporarily to
allow the cabin to cool quickly. When
the desired temperature in the cabin
is reached, change the air intake
control back to Fresh mode.
5. Adjust the fan speed control and temperature control to maintain
maximum comfort.
When maximum cooling is desired, set
the temperature control to the MAX A/C
position, then set the fan speed control
to the highest setting.
NOTICE
When using the air conditioning system,
monitor the engine temperature gauge
closely while driving up hills or in heavy
traffic when outside temperatures are
high. Air conditioning system operation
when climbing a steep grade or in high
outside ambient temperatures can
cause engine overheating.
Continue to use the fan, but turn the air
conditioning system off if the engine
temperature gauge indicates engine
overheating. Air conditioning system operation tips

[
If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.

Convenience Features5-128
AUTOMATIC CLIMATE CONTROL SYSTEM
A0202EU01/A0202EU02
)URQW
M Driver’s temperature control knob
N Passenger’s temperature control knob
O AUTO (automatic control) button
P SYNC button
Q Front windshield defroster button
R Air conditioning button
S OFF button T Fan speed control button
U Mode selection button
V Rear climate control button
11 Air intake control button
12 Rear window defroster button
13 Climate control information screen

Convenience Features5-132
B0204EC01
B0204KO02

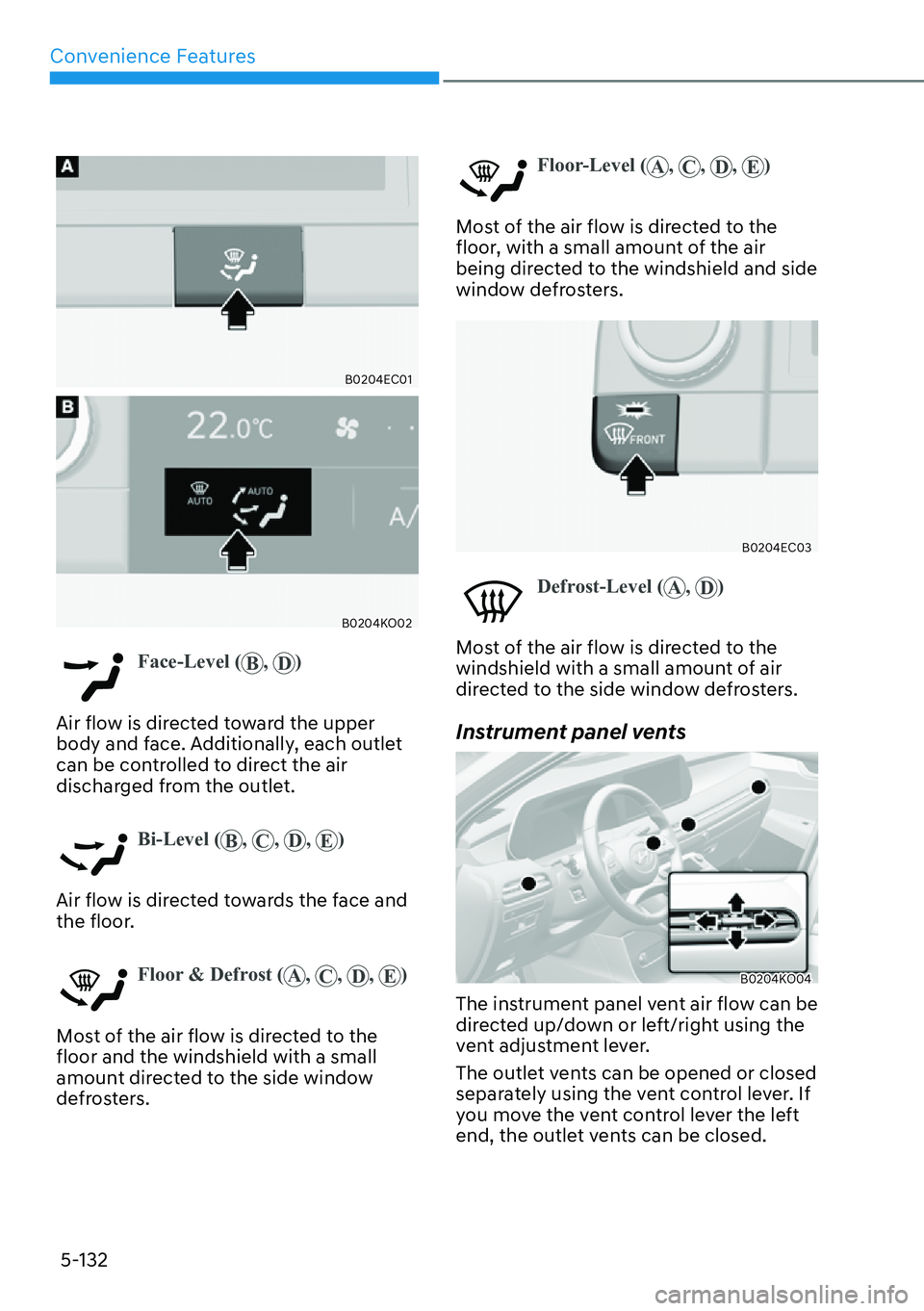

Face-Level ( B, D)
Air flow is directed toward the upper
body and f
ace. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
Bi-Level ( B,
C, D,
E)
Air flow is directed towards the face and
the floor
.
Floor & Defrost ( A,
C, D,
E)
Most of the air flow is directed to the
floor and the windshield with a small
amount dir
ected to the side window
defrosters.
Floor-Level ( A,
C, D,
E)
Most of the air flow is directed to the
floor
, with a small amount of the air
being directed to the windshield and side
window defrosters.
B0204EC03
Defrost-Level ( A,
D)
Most of the air flow is directed to the
windshield with a small amoun
t of air
directed to the side window defrosters.
Instrument panel vents
B0204KO04
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The outlet vents can be opened or closed
separately using the vent control lever. If
you move the vent control lever the left
end, the outlet vents can be closed.

Convenience Features5-134
Air intake control
The air intake control button is used to
select either Fresh mode (outside air) or
Recirculation mode (cabin air).
Recirculation mode
When Recirculation mode
is selected, air from the
passenger compartment will
be recirculated through the
system and heated or cooled
according to the function
selected.
Fresh mode
When Fresh mode is selected,
air enters the vehicle from
outside and is heated or
cooled according to the
function selected.
Information
Operating the system primarily in Fresh
mode is recommended. Use Recirculation
mode temporarily only when needed.
Prolonged operation of the heater in
Recirculation mode and without the A/C
ON can cause fogging of the windshield.
In addition, prolonged use of the A/C
ON in Recirculation mode may result in
excessively dry, dehumidified air in the
cabin and may promote formation of
musty vent odor due to stagnant air.
WARNING

[ Continued use of the climate control
system operation in Recirculation
mode for a prolonged period of
time may cause drowsiness to the
occupants in the cabin. This may lead
to loss of vehicle control which may
lead to an accident.

[ Continued use of the climate control
system operation in Recirculation
PRGHZLWKWKH$&2))PD\DOORZ
humidity to increase inside the
cabin. This may cause condensation
to accumulate on the windshield and
obscure visibility.

[ Do not sleep in your vehicle or
remain parked in your vehicle with
the windows up and either the
heater or the air conditioning ON for
prolonged periods of time. Doing so
may increase the levels of carbon
dioxide in the cabin which may lead
to serious injury or death.

Convenience Features5-142
Air conditioning system operation tips

[ If the v
ehicle has been parked in
direct sunlight during hot weather,
open the windows for a short time
to let the hot air inside the vehicle
escape.

[ After sufficient cooling has been
achieved, switch back from
recirculation mode to fresh mode.

[ To help reduce moisture inside of
the windows on rainy or humid
days, decrease the humidity inside
the vehicle by operating the air
conditioning system with the windows
and sunroof closed.

[ Use the air conditioning system
every month only for a few minutes
to ensure maximum system
performance.

[ If you operate air conditioner
excessively, the difference between
the temperature of the outside air and
that of the windshield could cause
the outer surface of the windshield
to fog up, causing loss of visibility. In
this case, set the mode selection knob
or button to the
position and fan
speed control to the lower speed.
System Maintenance
Cabin air filter
OIK047401L
A: Outside air, B: Recirculated air
C: Climate control air filter, D: Blower
E: Evaporator core, F: Heater core
The cabin air filter is installed behind
the glove box. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions
such as dusty or rough roads and/or if
transporting pets or occupants smoke
inside the vehicle, then more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
the system should be checked at an
authorized HYUNDAI dealer.

05
5-145
WARNING
Windshield heating
Do not use the
or position during
cooling operation in extremely humid
weather. The difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility could cause
an accident resulting in serious injury
or death. In this case, set the mode
selection knob or button to the

position and fan speed control knob or
button to a lower speed.

[ For maximum defrost performance,
set the temperature control knob
to the highest temperature setting
(rotated all the way to the right) and
the fan speed control to the highest
setting.

[ If warm air to the floor is desired while
defrosting or defogging, set the mode
to the floor-defrost position.

[ Before driving, clear all snow and ice
from the windshield, rear window,
side view mirrors, and all side
windows.

[ Clear all snow and ice from the
hood and air inlet in the cowl grill
to improve heater and defroster
efficiency and to reduce the
probability of fogging up the inside of
the windshield.
NOTICE
If the engine temperature is still cold
after starting, then a brief engine warm
up period may be required for the
vented air flow to become warm or hot.
Manual Climate Control System
B9031EU01
To defog inside windshield
1. Select any fan speed except “0”
position.
2.

Select the desired temperature.
3. Select the
or position.
4. Fresh mode will be selected automatically. Additionally, the
air conditioning will automatically
operate if the mode is selected to the
position.
Check to make sure the A/C is ON. If
the A/C ON indicator is not illuminated,
press the A/C button once to turn the air
conditioner ON.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator is illuminated, press the button
once to enable Fresh mode (indicator
OFF).
:,1'6+,(/''()5267,1*$1''()2**,1*
