2023 HYUNDAI PALISADE window

Convenience Features5-66
A0141EU01

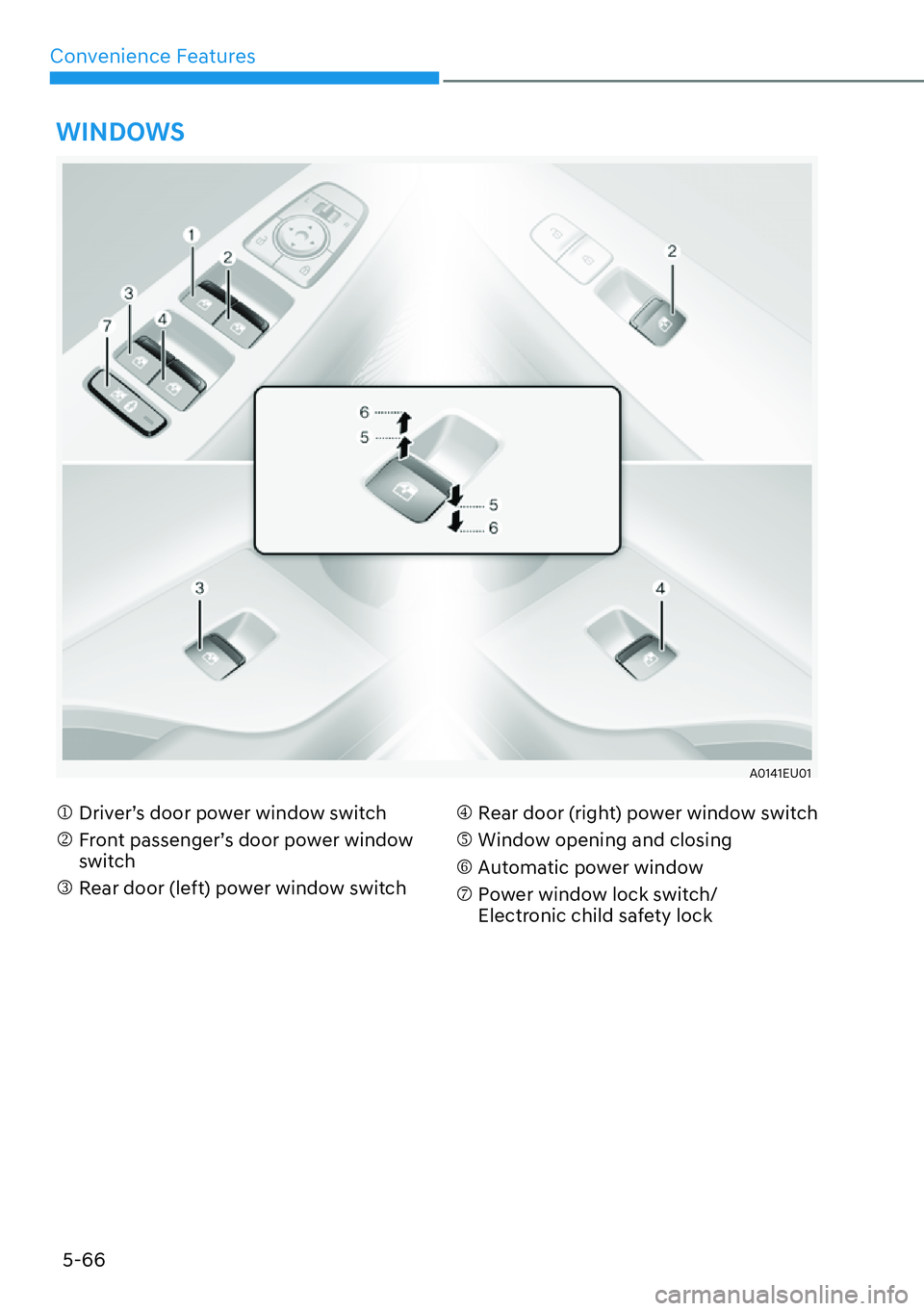

WINDOWS
M Driver’s door power window switch
N Front passenger’s door power window switch
O Rear door (left) power window switch P Rear door (right) power window switch
Q Window opening and closing
R Automatic power window
S Power window lock switch/
Electronic child safety lock

05
5-67
Power Windows
The ignition switch or Engine Start/Stop
button must be in the ON position to
be able to raise or lower the windows.
Each door has a Power Window switch
to control that door’s window. The
driver has a Power Window Lock button
which can block the operation of rear
passenger windows. The power windows
will operate for approximately 3 minutes
after the ignition switch or Engine Start/
Stop button is in the ACC or LOCK/
OFF position, as long as the front doors
remain closed.
If the front doors are opened, battery
power is turned OFF and the Power
Windows will not operate.
Information

[In cold and wet climates, power
window may not work properly due to
freezing conditions.

[ While driving with the rear windows
down or with the sunroof (if equipped)
opened (or partially opened), your
vehicle may demonstrate a wind
buffeting or pulsation noise. This
noise is normal and can be reduced
or eliminated by taking the following
actions. If the noise occurs with one
or both of the rear windows down,
partially lower both front windows
approximately 1 inch (2.5 cm). If you
experience the noise with the sunroof
open, slightly close the sunroof.
Window opening and closing
B0142KO01
To open:
Press the window switch down to the
first detent position Q. Release the
switch when you want the window to
stop.
To close:
Pull the window switch up to the first
detent position Q. Release the window
switch when you want the window to
stop.

Convenience Features5-68
Auto up/down window
Pressing or pulling up the power window
switch momentarily to the second
detent position R completely lowers or
lifts the window even when the switch
is released. To stop the window at the
desired position while the window is in
operation, pull up or press down and
release the switch.
WARNING

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the window,
which could result in serious injury.

[ Do not extend your head, arms or any
other body parts or objects outside
the window while driving to avoid
serious injury.
Resetting the power windows
If the power windows do not operate
normally, the automatic power window
system must be reset as follows:
1. Place the ignition switch or Engine
Start/Stop button to the ON position.
2. Close the window and continue pulling up on the power window
switch for at least one second.
If the power windows do not operate
properly after resetting, have the system
be inspected by an authorized HYUNDAI
dealer.
WARNING
The automatic reverse feature doesn’t
activate while resetting the power
window system.
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Automatic reverse
B0142KO02
If a window senses any obstacle while it
is closing automatically, it will stop and
lower approximately 12 in. (30 cm) to
allow the object to be cleared.
If the window detects the resistance
while the power window switch is
pulled up continuously, the window
will stop upward movement then lower
approximately 1 in. (2.5 cm).
If the power window switch is pulled
up continuously again within 5 seconds
after the window is lowered by the
automatic window reverse feature,
the automatic window reverse will not
operate.

05
5-69
Information
The automatic reverse feature is only
active when the “Auto Up” feature is used
by fully pulling up the switch to the second
detent.
WARNING
Make sure body parts or other objects
are safely out of the way before closing
the windows to avoid injuries or vehicle
damage.
Objects less than 0.16 in. (4 mm) in
diameter caught between the window
glass and the upper window channel
may not be detected by the automatic
reverse window and the window will
not stop and reverse direction.
NOTICE
Do not install any accessories on the
windows. The automatic reverse
feature may not operate.
Power window lock button
B0142KO03
The driver can disable the power window
switches on the rear passenger doors by
pressing the power window lock button.
When the power window lock button is
pressed:

[The rear passenger control will not
be able to operate the rear passenger
power window.

[ Note that the front passenger control
is still able to operate the front
passenger window, and that the driver
master control can still operate all the
power windows.
WARNING
Do not allow children to play with the
power windows. Keep the driver’s
door power window lock button in the
LOCK position. Serious injury or death
can result from unintentional window
operation by a child.
NOTICE

[To prevent possible damage to the
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.

[ Never try to operate the main
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.

Convenience Features5-70
Remote window opening function (if
equipped)
B0143EU02
B0143EU03
B0143EU04
You can still control the window
movement with the engine turned off.
Press the Door Unlock button M for more
than 3 seconds. The window moves
down after the doors are unlocked, as
long as you press the door unlock button.
The window movement stops, when you
release the door unlock button.
WARNING
If you stay on the function after
operating the Remote window opening
function, it is likely to cause a theft.
In addition, please use caution there
might be a malfunction due to the
inflow of water while raining.
Information

[ The remote window opening function
may abruptly stop, when you move
away from your vehicle during
operation. Stay in close proximity from
your vehicle, while monitoring the
window movement.

[ One of the windows may stop
operating, when the window is
interrupted by certain force. However,
the other windows will keep operating.
Thus, you should make sure that all
windows are opened.

[ Please be aware that the doors unlock
when the windows are opened using the
remote window opening function.

Convenience Features5-76
If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
B0903EU02
A: Front, B: Rear
The sunroof can only be operated when
the ignition switch or Engine Start/Stop
button is in the ON or START position.
The sunroof can be operated for
approximately 30 seconds after the
ignition switch or Engine Start/Stop
button is in the ACC or LOCK/OFF
position.
However, if the front door is open, the
sunroof cannot be operated even within
the 3 minute period.
WARNING

[Adjust the sunroof or sunshade when
your vehicle stops. This could result
in loss of control and an accident
that may cause injury, or property
damage.

[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.

[ Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when roof
bars are installed on the vehicle or
when there is luggage on the roof.
Information
When the rear power window switches
are disabled using the power window lock
button, the rear sunroof operation switch
is also disabled. If you need to operate the
rear seat sunroof, operate the rear seat
sunroof with the front sunroof operation
switch.
'8$/681522)

Convenience Features5-98
Lighting Control
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
B0177KO01
M OFF
N AUTO headlight
O Position lamp
P Headlight
Daytime Running Light (DRL)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset. The
Daytime Running Lights (DRL) should
be illuminated whenever you are driving
during daylight hours. The DRL system
will be ON when the headlight switch is
in the OFF or the AUTO position (when
daylight is detected) and the Electronic
Parking Brake (EPB) is released.
The DRL system will turn off when:

[ The headlights are ON.

[ The parking brake is applied.

[ The vehicle is turned off.

[ The parking brake is engaged.
AUTO headlight
B0177KO02
The position lamp and headlight will
be turned ON or OFF automatically
depending on the amount of daylight as
measured by the ambient light sensor M
at the upper end of the windshield glass.
Even with the AUTO headlight feature
in operation, it is recommended to
manually turn ON the headlights when
driving at night or in a fog, driving in the
rain, or when you enter dark areas, such
as tunnels and parking facilities.
NOTICE

[ Do not cover or spill anything on the
sensor M located at the upper end of
the windshield glass.

[ Do not clean the sensor using
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.

[ If your vehicle window tint or other
types of metallic coating on the front
windshield, the AUTO headlight
system may not work properly.
EXTERIOR LIGHTS

05
5-113
Rear Window Wiper and Washer
B0200KO03
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever. Turn the switch
to the desired position to operate the
rear wiper and washer.
HI: High wiper speed
LO: Low wiper speed
OFF: Off
B0201KO02
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever.
Auto rear wiper
The rear wiper will operate while the
vehicle is in reverse with the front wiper
ON by selecting the function from the
Settings menu in the infotainment
system screen. Select:
- 6HWXS
