Convenience Features5-10
Note that if you press the outside door
handle to lock the doors using the touch
sensor, the doors will not lock under the
following circumstances:

[ The Smart Key is in the vehicle

[ The Engine Start/Stop button is in the
ACC or ON position

[ Any of the doors are open (except for
the liftgate)
If this occurs, then a chime will sound
for about 3 seconds. Check the vehicle
before attempting to lock the car again.
CAUTION
Before you leave your vehicle with the
Smart Key, verify that your vehicle is
locked. When using the touch sensor
on the front door handle, listen to hear
that the lock has actuated, and then
pull the handle within 3 seconds to
confirm the doors are locked.
(If it has been longer than 3 seconds,
verify the doors are locked by pressing
the lock button on the Smart Key. You
will hear a single beep.)
WARNING
Do not leave the Smart Key in
your vehicle with children that are
unattended or unsupervised.
Children could inadvertently press
the Engine Start/Stop button or could
operate the power windows or other
vehicle controls or even cause the
vehicle to move. This could result in
serious injury or death.
Unlocking your vehicle (Button type)
B0097KO01
1. Have the smart key with you.
2. Press the door handle button or press the Door Lock button N on the smart
key to unlock the doors. The chime
sounds and hazard warning lights
blink two times.
If you unlock the doors using the
passenger side door handle, all the
doors are unlocked. If you unlock
the doors using the driver side door
handle, either the driver's side door is
unlocked or all the doors are unlocked
depending on the setting for the Two
Press Unlock feature.
Information

[ Change the Driver Door unlock mode
by referring to "Setting the Two Press
Unlock feature".

[ The door handle button or touch sensor
only operates when the smart key is
within 28-40 inches (0.7-1 m) from the
outside door handle.

[ If you do not open the door after
unlocking within 30 seconds, it returns
to the lock mode.

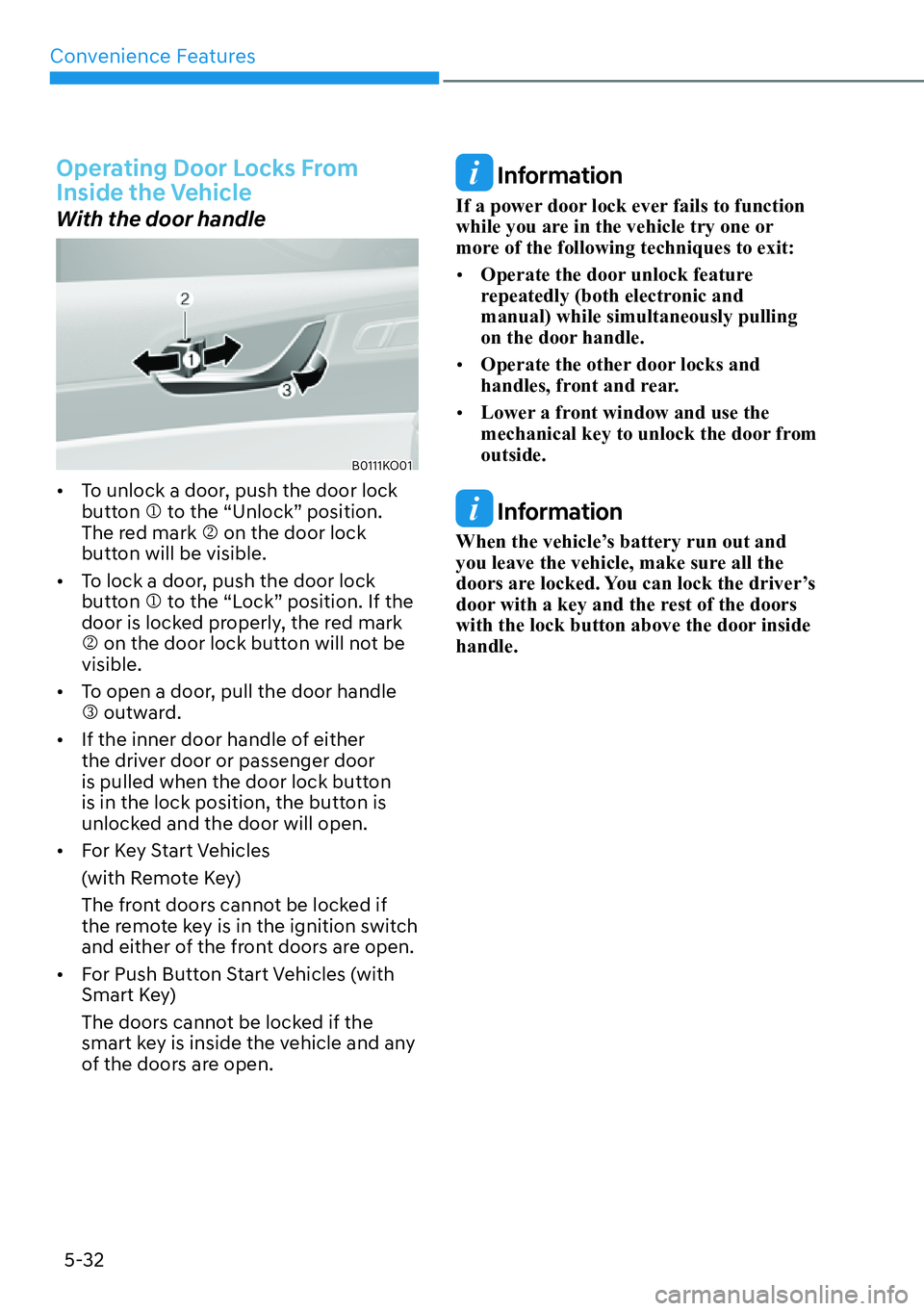

Convenience Features5-32
2SHUDWLQJ'RRU/RFNV)URP
Inside the Vehicle
With the door handle
B0111KO01

[ To unlock a door, push the door lock
button M to the “Unlock” position.
The red mark N on the door lock
button will be visible.

[ To lock a door, push the door lock
button M to the “Lock” position. If the
door is locked properly, the red mark
N on the door lock button will not be
visible.

[ To open a door, pull the door handle
O outward.

[ If the inner door handle of either
the driver door or passenger door
is pulled when the door lock button
is in the lock position, the button is
unlocked and the door will open.

[ For Key Start Vehicles
(with Remote Key)
The front doors cannot be locked if
the remote key is in the ignition switch
and either of the front doors are open.

[ For Push Button Start Vehicles (with
Smart Key)
The doors cannot be locked if the
smart key is inside the vehicle and any
of the doors are open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[ Operate the other door locks and
handles, front and rear.

[ Lower a front window and use the
mechanical key to unlock the door from
outside.
Information
When the vehicle’s battery run out and
you leave the vehicle, make sure all the
doors are locked. You can lock the driver’s
door with a key and the rest of the doors
with the lock button above the door inside
handle.

Convenience Features5-34
WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
6WDUW6WRSEXWWRQWRWKH2))SRVLWLRQ
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHVLIHTXLSSHG
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system.
Auto LOCK Enable on speed
When this feature is set, all the doors will
be locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set, all the doors will
be locked automatically when the vehicle
is shifted out of P (Park) while the engine
is running.
Auto UNLOCK On Shift to P
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.

Convenience Features5-36
Electronic Child Safety Lock (if
equipped)
B0115KO01
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[ The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[ Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.
[
If 3 minutes passes after the ignition
switch or Engine Start/Stop button is
pressed to the LOCK/OFF or ACC, the
indicator on the button turns off, and
the driver cannot turn off electronic
child safety lock by pressing the
button. To turn off the function, press
the Engine Start/Stop button to the
ON position, and then press the
electronic child safety lock button.

[ If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[ If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[ Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.

Convenience Features5-40
System Precautions

[ Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example, wind or bugs).

[
B0116EU01
A: Cluster,
B: Steering wheel
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.

[ An alert can occur if the there is an
impact on the roof.

[ If boxes or objects are stacked in the
vehicle, the system may not detect
the boxes or objects. Or, the alert may
operate if the boxes or objects fall off.

[ The sensor may not operate normally
if the senor is obscured by foreign
substances.

[ The alert may operate if movement
in the driver or passenger seat is
detected.

[ The alert may operate with the doors
locked due to car wash or surrounding
vibration or noise.

[ If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
WARNING
Even if your vehicle is equipped with
Rear Occupant Alert, always make sure
to check the rear seat before you leave
the vehicle.
Rear Occupant Alert may not operate
when:

[Movement does not continue for
a certain period of time or the
movement is small.

[ The rear passenger is covered with
an object such as a blanket.

[ Always be cautious of the
passenger’s safety as the detection
function and second alert may
not operate depending on the
surrounding environment and
certain conditions.

05
5-47
MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
B0135EU02
A: Day, B: Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.

Convenience Features5-60
The Digital Center Mirror is a system
that uses the camera on the rear of the
vehicle and displays its image on the
screen of the Digital Center Mirror. The
Digital Center Mirror allows the driver to
see the rear view despite obstructions,
such as the headrest or luggage,
ensuring rear visibility.
WARNING

[ )DLOXUHWRIROORZWKHZDUQLQJVDQG
instructions for proper use of the
Digital Center Mirror could result in
serious accident.

- The Digital Center Mirror is a
convenience feature but it is not
a substitute for proper vehicle
operation. The system has areas
where objects cannot be viewed.
Check the blind spot of the Digital
Center Mirror before vehicle
operation. The driver is always
responsible for safe driving.

- Do not operate the Digital Center
Mirror while driving. Doing so
cannot be a distraction and it could
lose control of your vehicle and
cause an accident or serious injury.

- Do not disassemble or modify the
Digitaal Center Mirror, the camera
unit or wirings. If you do, it may
result in accidents or fire. In case
you notice smoke or smell coming
from the Digital Center Mirror, stop
using the system immediately.
Have you see an authorized
HYUNDAI dealer for servicing.
[
Be sure to adjust the Digital Center
Mirror before driving.

- Switch the system to the
conventional rearview mirror
mode and be properly seated on
the driver’s seat. Then adjust the
mirror so as to see the rear window
properly.

- Push the lever all the way to change
to digital mirror mode and adjust
the display settings. Driving without
adjusting the mirror may cause
difficulty in watching the display
at the Digital Mirror mode (camera
view mode) due to the reflection
from the surface of the mirror.

- As the range of the image display
by the Digital Center Mirror is
different from that of the optical
mirror, make sure to check this
difference before driving.

[ If the Digital Center Mirror
malfunction, immediately switch the
system to the conventional rearview
mirror mode.

[ When strong light (for example,
sunlight or high beams from
following vehicles) enters the
camera, a light beam or a glaring
light may appear on the monitor
screen of the Digital Center Mirror.
In that case, switch the system to the
conventional rearview mirror mode
appropriately.

[
B0362KO01
If the camera lens M is dirty, the
displayed image may not be clear.
In this case, clean it with a soft cloth
dampened with water or a swab.
',*,7$/&(17(50,5525

Convenience Features5-64
When the system malfunctions
B0913EU02
If the symbol shown in the illustration is
displayed when using the Digital Center
Mirror in digital mirror mode, the system
may be malfunctioning. The symbol will
disappear in a few seconds. Operate the
lever, change to optical mirror mode
and have the vehicle inspected by an
authorized HYUNDAI dealer.
CAUTION

[ To prevent the Digital Center Mirror
from malfunctioning

[ Do not use detergents, such as
thinner, benzene, and alcohol to
clean the mirror. They may dis color,
deteriorate or damage the mirror
surface.

[ Do not remove, disassemble or
modify the mirror and camera.

[ Do not allow an organic solvent,
vehicle wax, window cleaner or glass
coating to adhere to the camera. If
this happens, wipe it off as soon as
possible.

[ When cleaning the camera lens, wipe
the camera lens with a damp soft
cloth.

[ Do not strongly rub the camera lens,
as it may be scratched and will not be
able to transmit a clear image.
[
Do not subject the camera to a
strong impact as this could cause
a malfunction. If this happens,
we recommend that you have the
vehicle inspected by an authorized
HYUNDAI dealer as soon as possible.

[ Operating the system at the ON
position while the engine is not
running would cause discharging of
the battery.

[ Do not attach an antenna of wireless
device near the Digital Center Mirror.
Electric wave from wireless device
may cause disturbed image in Digital
Center Mirror.

[ Do not push buttons excessively
or operating the lever roughly may
cause a system failure or the Digital
Center Mirror itself to drop.

[ Never rotate the body of Digital
Center Mirror by 90° or more. It may
damage the Digital Center Mirror. Do
not apply strong shocks to the body
of Digital Center Mirror. It may cause
a system failure.

[ If it is difficult to see the Digital
Center Mirror display screen because
of a strong external light, switch the
mode to the conventional rearview
mirror mode for better use.
