2023 HYUNDAI PALISADE tire pressure

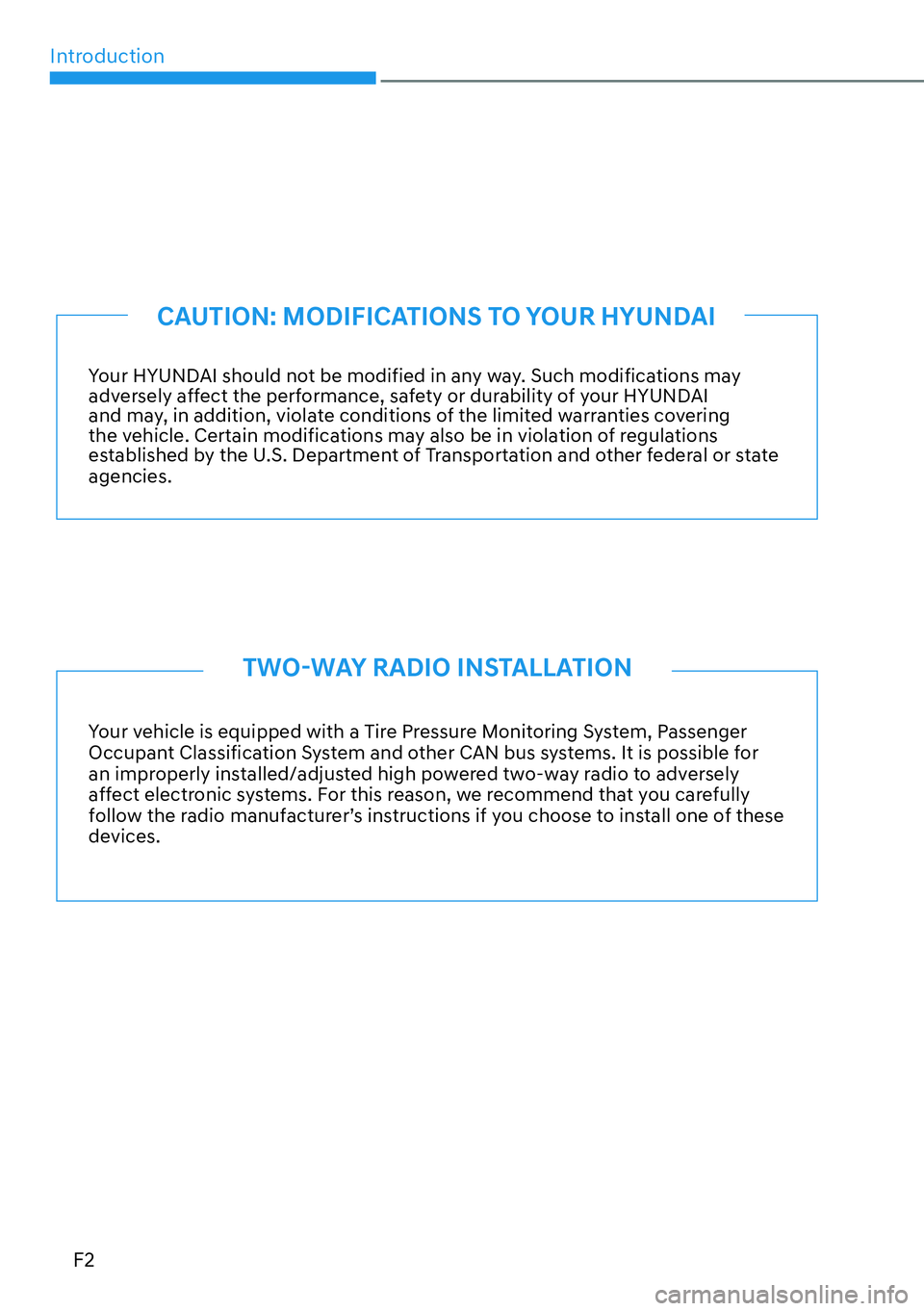

IntroductionF2
Your HYUNDAI should not be modified in any way. Such modifications may
adversely affect the performance, safety or durability of your HYUNDAI
and may, in addition, violate conditions of the limited warranties covering
the vehicle. Certain modifications may also be in violation of regulations
established by the U.S. Department of Transportation and other federal or state
agencies.
Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger
Occupant Classification System and other CAN bus systems. It is possible for
an improperly installed/adjusted high powered two-way radio to adversely
affect electronic systems. For this reason, we recommend that you carefully
follow the radio manufacturer’s instructions if you choose to install one of these
devices.
CAUTION: MODIFICATIONS TO YOUR HYUNDAI
7:2

2
2. Vehicle Information, Consumer Information and
Reporting Safety Defects
Exterior Overview (I) ........................................................................\
..................2-2
Exterior Overview (II) ........................................................................\
.................2-3
Interior Overview ........................................................................\
...................... 2-4
Instrument Panel Overview (I) ........................................................................\
. 2-5
Instrument Panel Overview (II) ........................................................................\
2-6
Engine Compartment ........................................................................\
................ 2-7
Dimensions .............................................................\
........................................... 2-8
Engine ..................................................................\
.............................................. 2-8
Bulb Wattage ........................................................................\
............................. 2-9
Tires and Wheels ........................................................................\
...................... 2-10
Air Conditioning System ........................................................................\
........... 2-11
Vehicle Weight and Luggage Volume ............................................................. 2-11
Recommended Lubricants and Capacities .................................................... 2-12
Recommended SAE Viscosity Number .....................................................................2-13
Vehicle Identification Number (VIN) .............................................................. 2-14
Vehicle Certification Label ........................................................................\
...... 2-14
Tire Specification and Pressure Label ............................................................ 2-14
Engine Number ........................................................................\
........................ 2-15
Air Conditioner Compressor Label ................................................................. 2-15
Consumer Information ........................................................................\
............ 2-16
Reporting Safety Defects ........................................................................\
........ 2-17

Vehicle Information, Consumer Information and Reporting Safety Defects2-10

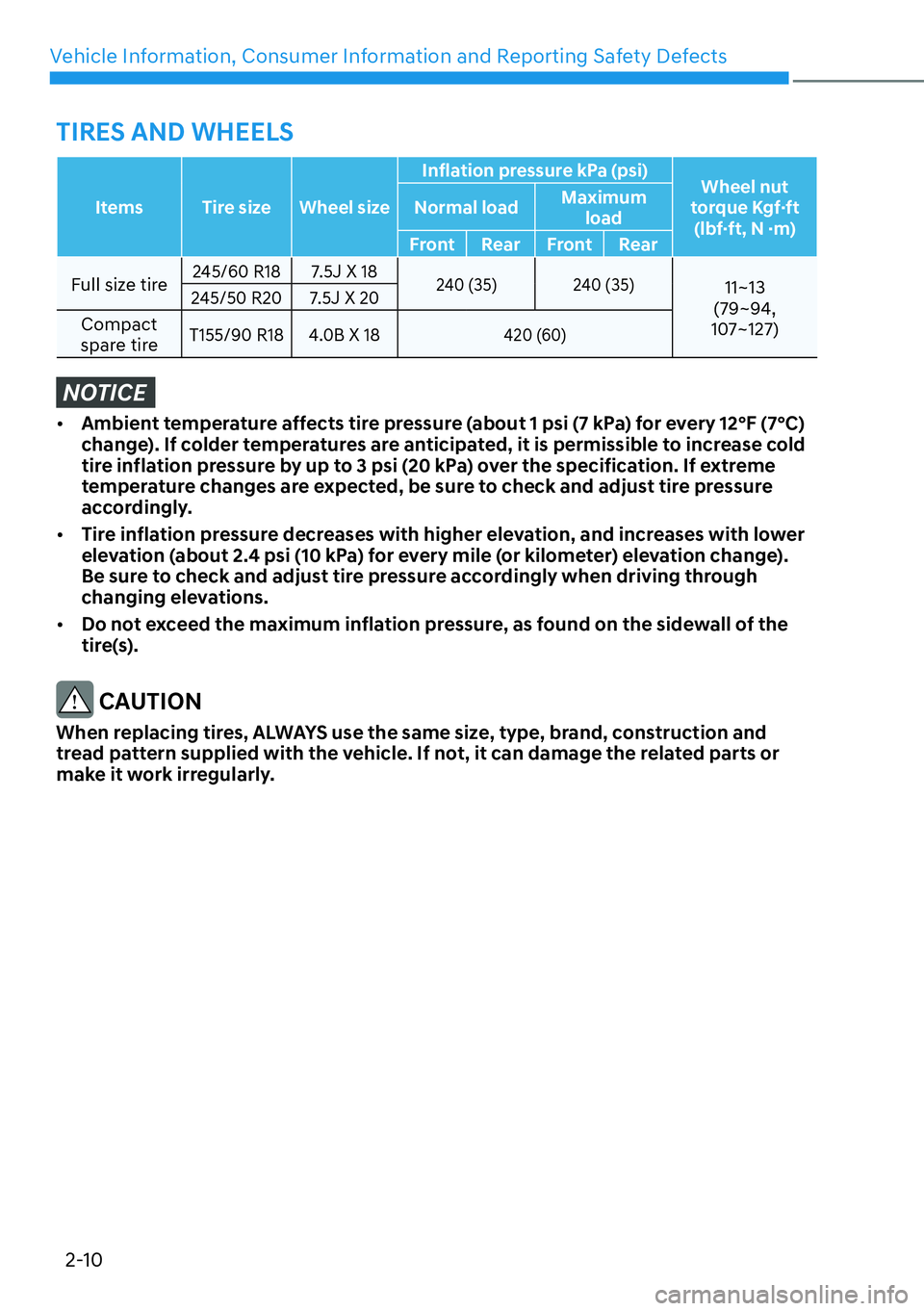

Items Tire size Wheel size Inflation pressure kPa (psi)
Wheel nut
torque Kgf·ft (lbf·ft, N ·m)
Normal load
Maximum
load
Front Rear Front Rear
Full size tire
245/60 R18 7.5J X 18240 (35) 240 (35)11~13
(79~94,
107~127)245/50 R20 7.5J X 20
Compact
spare tireT155/90 R18 4.0B X 18420 (60)
NOTICE

[ Ambient temperature affects tire pressure (about 1 psi (7 kPa) for every 12°F (7°C)
change). If colder temperatures are anticipated, it is permissible to increase cold
tire inflation pressure by up to 3 psi (20 kPa) over the specification. If extreme
temperature changes are expected, be sure to check and adjust tire pressure
accordingly.

[ Tire inflation pressure decreases with higher elevation, and increases with lower
elevation (about 2.4 psi (10 kPa) for every mile (or kilometer) elevation change).
Be sure to check and adjust tire pressure accordingly when driving through
changing elevations.

[ Do not exceed the maximum inflation pressure, as found on the sidewall of the
tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction and
tread pattern supplied with the vehicle. If not, it can damage the related parts or
make it work irregularly.
TIRES AND WHEELS

Vehicle Information, Consumer Information and Reporting Safety Defects2-14

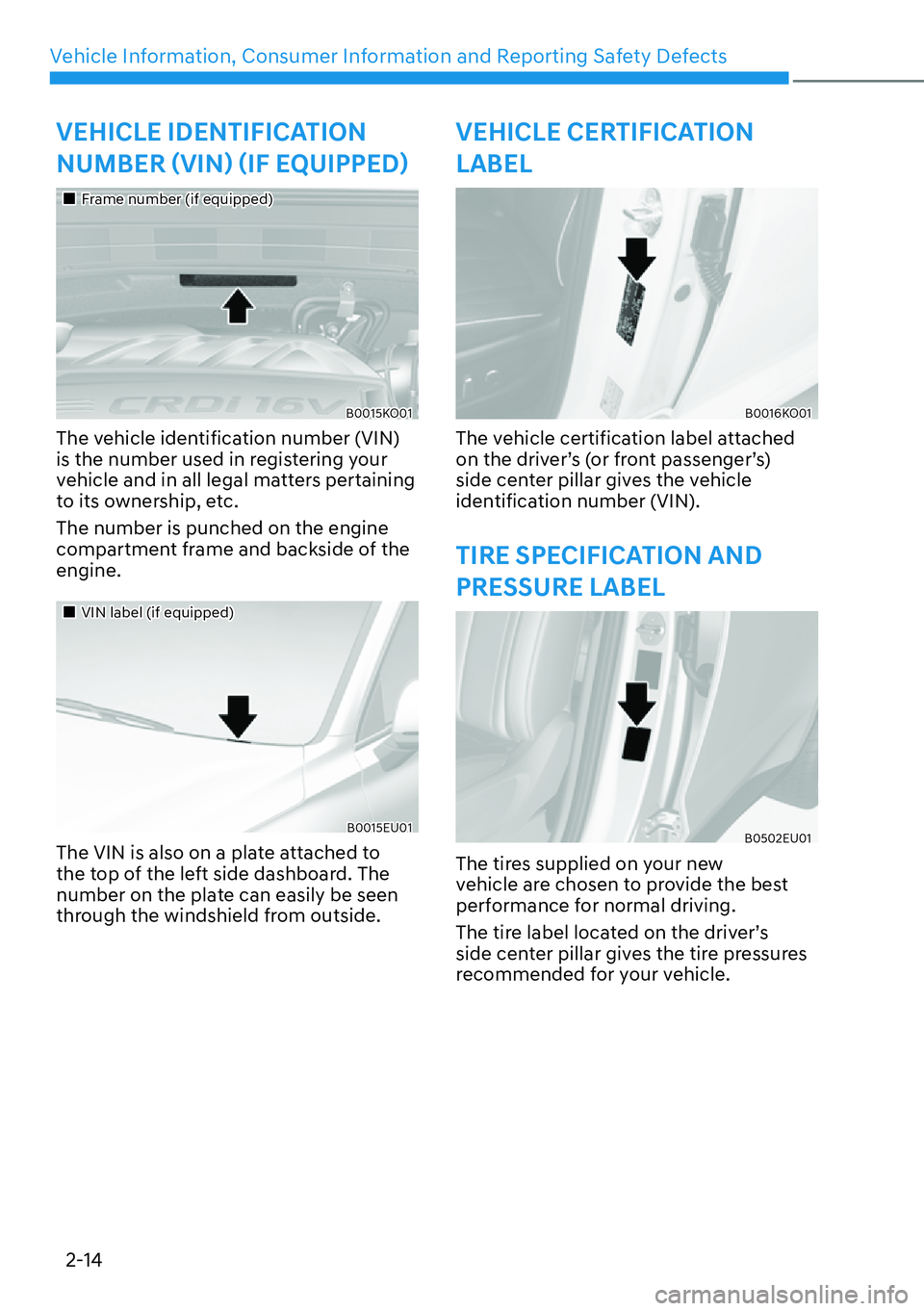

VEHICLE IDENTIFICATION
180%(5
í9,1
î
í,)(48,33('
î
„Frame number (if equipped)
B0015KO01
The vehicle identification number (VIN)
is the number used in registering your
vehicle and in all legal matters pertaining
to its ownership, etc.
The number is punched on the engine
compartment frame and backside of the
engine.
„VIN label (if equipped)
B0015EU01
The VIN is also on a plate attached to
the top of the left side dashboard. The
number on the plate can easily be seen
through the windshield from outside.
VEHICLE CERTIFICATION
LABEL
B0016KO01
The vehicle certification label attached
on the driver’s (or front passenger’s)
side center pillar gives the vehicle
identification number (VIN).
TIRE SPECIFICATION AND
PRESSURE LABEL
B0502EU01
The tires supplied on your new
vehicle are chosen to provide the best
performance for normal driving.
The tire label located on the driver’s
side center pillar gives the tire pressures
recommended for your vehicle.

Seats & Safety System3-2
You will find many safety precautions
and recommendations throughout this
section, and throughout this manual.
The safety precautions in this section are
among the most important.
Always Wear Your Seat Belt
A seat belt is your best protection in all
types of accidents. Air bags are designed
to supplement seat belts, not to replace
them. So even though your vehicle is
equipped with air bags, ALWAYS make
sure you and your passengers wear your
seat belts, and wear them properly.
Restrain All Children
All children under age 13 should ride
in your vehicle properly restrained in a
rear seat, not the front seat. Infants and
small children should be restrained in
an appropriate Child Restraint System.
Larger children should use a booster
seat with the lap/shoulder belt until they
can use the seat belt properly without a
booster seat.
Air Bag Hazards
While air bags can save lives, they can
also cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at
the greatest risk of being injured by an
inflating air bag. Follow all instructions
and warnings in this manual.
Driver Distraction
Driver distraction presents a serious and
potentially deadly danger, especially for
inexperienced drivers. Safety should be
the first concern when behind the wheel
and drivers need to be aware of the wide
array of potential distractions, such as
drowsiness, reaching for objects, eating,
personal grooming, other passengers,
and using mobile phones. Drivers can become distracted when
they take their eyes and attention off
the road or their hands off the wheel to
focus on activities other than driving.
To reduce your risk of distraction and an
accident:

[
Set up your mobile devices (for
example, MP3 players, phones,
navigation units, etc.) ONLY when
your vehicle is parked or safely
stopped.

[ ONLY use your mobile device when
allowed by laws and conditions permit
safe use. NEVER text or email while
driving. Most countries have laws
prohibiting drivers from texting. Some
countries and cities also prohibit
drivers from using handheld phones.

[ NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel
as well as your eyes and attention on
the road.
Control Your Speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but
serious injuries can also occur at lower
speeds. Never drive faster than is safe
for current conditions, regardless of the
maximum speed posted.
Keep Your Vehicle in Safe
Condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
IMPORTANT SAFETY PRECAUTIONS

4
Instrument cluster .....................................................................\
....................... 4-4Instrument Cluster Control ........................................................................\
..................4-5Instrument panel illumination ........................................................................\
...........4-5
Gauges and Meters ........................................................................\
............................. 4-6 Speedometer .....................................................................\
....................................... 4-6
Tachometer .....................................................................\
.......................................... 4-6
Engine coolant temperature gauge ........................................................................\
.. 4-7
Fuel gauge ........................................................................\
.......................................... 4-7
Outside temperature gauge ........................................................................\
............. 4-8
Odometer .....................................................................\
............................................. 4-9
Distance to empty ........................................................................\
............................ 4-9
Fuel economy (for 12.3-inch cluster) ..................................................................... 4-10
Transmission Shift Indicator ........................................................................\
.............. 4-10 Automatic transmission shift indicator .................................................................. 4-10
Warning and Indicator Lights ........................................................................\
............. 4-11 Seat belt warning light ........................................................................\
..................... 4-11
Air bag warning light ........................................................................\
........................ 4-11
Parking brake & Brake fluid warning light ............................................................... 4-11
Anti-lock Brake System (ABS) warning light .......................................................... 4-12
Electronic Brake Force Distribution (EBD) System Warning Light ....................... 4-12
Motor Sriven Power Steering (MDPS) warning light ............................................. 4-13
Charging system warning light ........................................................................\
....... 4-13
Engine Oil Pressure Warning Light ........................................................................\
. 4-14
Engine coolant temperature warning light ............................................................ 4-14
Low fuel level warning light ........................................................................\
............ 4-14
Malfunction Indicator Lamp (MIL) ........................................................................\
.. 4-15
Master warning light ........................................................................\
........................ 4-15
Electronic Parking Brake (EPB) warning light ........................................................ 4-16
Low tire pressure warning light ......................................................................\
........ 4-16
Forward Safety warning light ........................................................................\
..........4-17
Emergency Steering warning light ........................................................................\
..4-17
Lane Safety indicator light .....................................................................\
................ 4-18
All Wheel Drive (AWD) warning light ...................................................................... 4-18
LED headlight warning light ........................................................................\
............ 4-18
Icy road warning light ........................................................................\
...................... 4-19
Electronic Stability Control (ESC) indicator light ................................................... 4-19
Electronic Stability Control (ESC) OFF indicator light ........................................... 4-19
Immobilizer indicator light ........................................................................\
..............4-20
4. Instrument Cluster

4
Downhill Brake Control (DBC) indicator light ........................................................4-20
AUTO STOP indicator light ........................................................................\
...............4-21
Turn signal indicator light ........................................................................\
.................4-21
High beam indicator light ........................................................................\
................4-21
Low beam indicator light ........................................................................\
.................4-21
Light ON indicator light ........................................................................\
....................4-21
High Beam Assist indicator light ........................................................................\
..... 4-22
AUTO HOLD indicator light ........................................................................\
............. 4-22
LCD Display Messages ........................................................................\
....................... 4-22 Vehicle is on ........................................................................\
..................................... 4-22
Shift to P ........................................................................\
........................................... 4-22
Vehicle is in N. Press START button and shift to P ................................................. 4-22
Low key battery (for smart key system) ................................................................. 4-22
Press brake pedal to start engine ........................................................................\
.. 4-23
Key not in vehicle (for smart key system) .............................................................. 4-23
Key not detected (for smart key system) ............................................................... 4-23
Press START button again (for smart key system) ................................................. 4-23
Press START button with digital key ...................................................................... 4-23
Check BRAKE SWITCH fuse ........................................................................\
........... 4-23
Shift to P or N to start engine ........................................................................\
.......... 4-23
Battery discharging due to external electrical devices ......................................... 4-24
Press START button with key (for smart key system) ............................................ 4-24
Place digital key on the wireless charger to keep the vehicle running ................ 4-24
Vehicle is On (started by digital key)....................................................................... 4-24
Place saved digital key on wireless charger, then press the START button ......... 4-24
Scan an authorized fingerprint, then press the START button ............................. 4-24
Digital key(s) active ........................................................................\
.......................... 4-24
Door, Hood, Liftgate open indicator ....................................................................... 4-25
Sunroof open indicator ........................................................................\
.................... 4-25
Low tire pressure ........................................................................\
............................. 4-25
Lights .................................................................\
....................................................... 4-26
Wiper ..................................................................\
......................................................4 -26
Low washer fluid ........................................................................\
.............................. 4-27
Low fuel ........................................................................\
............................................ 4-27
Low engine oil ........................................................................\
.................................. 4-27
Engine overheated ........................................................................\
........................... 4-27
Check haptic steering wheel system ..................................................................... 4-27
Check headlight ........................................................................\
............................... 4-27
Check turn signal ........................................................................\
............................. 4-27
Check headlight LED ........................................................................\
....................... 4-27

04

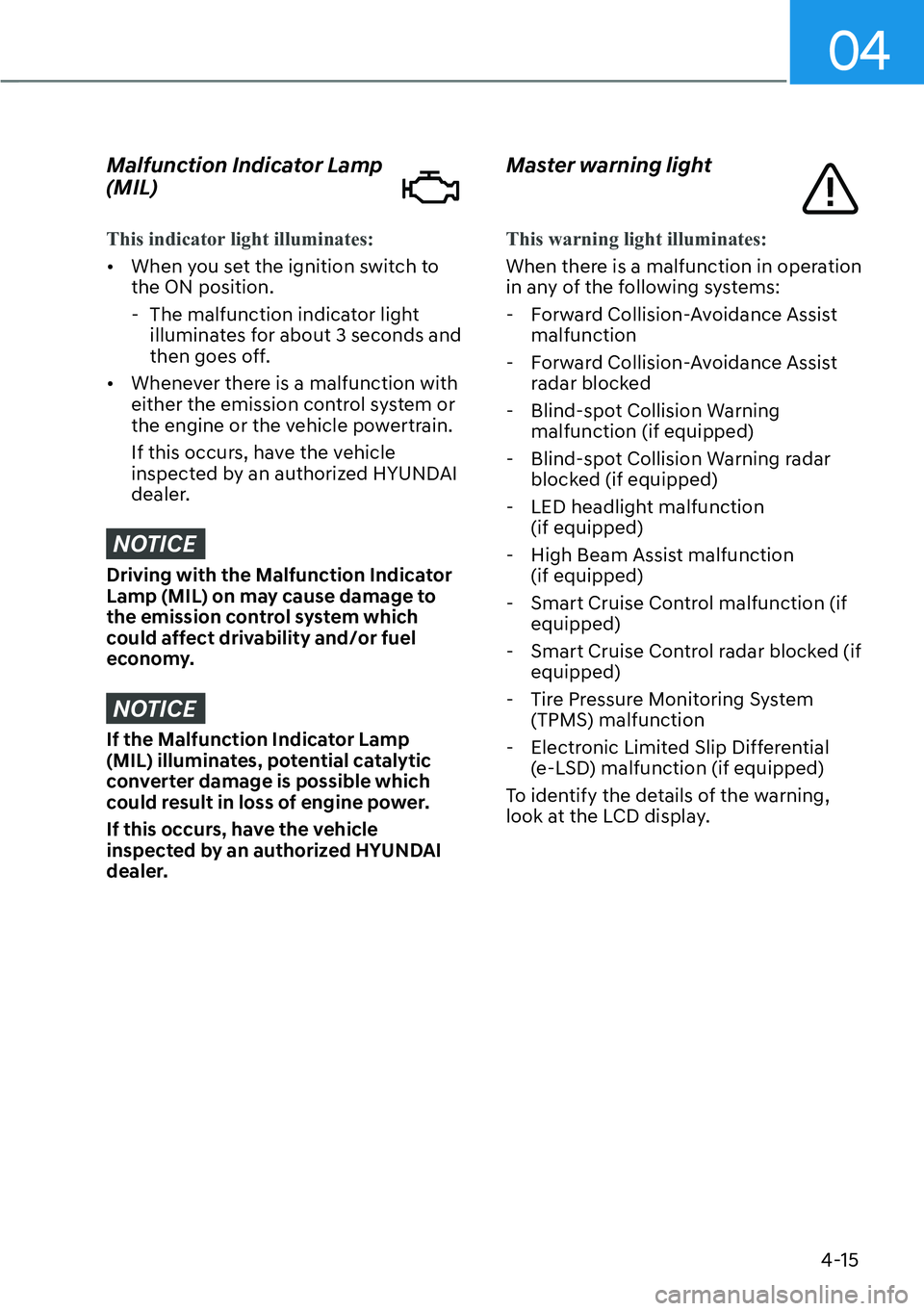

4-15
Malfunction Indicator Lamp
(MIL)
This indicator light illuminates:

[When y
ou set the ignition switch to
the ON position.

- The malfunction indicator light
illuminates for about 3 seconds and
then goes off.

[ Whenever there is a malfunction with
either the emission control system or
the engine or the vehicle powertrain.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
NOTICE
Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system which
could affect drivability and/or fuel
economy.
NOTICE
If the Malfunction Indicator Lamp
(MIL) illuminates, potential catalytic
converter damage is possible which
could result in loss of engine power.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Master warning light
This warning light illuminates:
When there is a malfunction in operation
in an

y of the following systems:
- Forward Collision-Avoidance Assist malfunction
- Forward Collision-Avoidance Assist radar blocked
- Blind-spot Collision Warning malfunction (if equipped)
- Blind-spot Collision Warning radar blocked (if equipped)
- LED headlight malfunction (if equipped)
- High Beam Assist malfunction (if equipped)
- Smart Cruise Control malfunction (if equipped)
- Smart Cruise Control radar blocked (if equipped)
- Tire Pressure Monitoring System (TPMS) malfunction

- Electronic Limited Slip Differential
(e-LSD) malfunction (if equipped)
To identify the details of the warning,
look at the LCD display.
