2023 HYUNDAI PALISADE tire pressure

Instrument Cluster4-16
Electronic Parking Brake
(EPB) warning light
This warning light illuminates:

[ When y
ou set the ignition switch to
the ON position.
- The EPB warning light illuminates for about 3 seconds and then goes
off.

[ Whenever there is a malfunction with
EPB.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Information
The Electronic Parking Brake (EPB)
warning light may illuminate when
the Electronic Stability Control (ESC)
indicator light comes on to indicate that
ESC is not working properly. This does
not indicate malfunction of EPB.
Low tire pressure warning
light
This warning light illuminates:

[When y
ou set the ignition switch to
the ON position.
- The low tire pressure warning light illuminates for approximately 3
seconds and then goes off.

[ When one or more of your tires are
significantly underinflated. (The
location of the underinflated tires are
displayed on the LCD display.)
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
This warning light remains ON after
blinking for
approximately 60 seconds, or
repeatedly blinks ON and OFF in 3 second
intervals:
When there is a malfunction with the
TPMS.
If this occur

s, have the vehicle inspected
by an authorized HYUNDAI dealer as
soon as possible.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.
WARNING
Safe Stopping

[ The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors.

[ If you notice any vehicle instability,
immediately take your foot off the
accelerator pedal, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

04
4-25
Door, Hood, Liftgate open indicator
B0088KO01
This warning is displayed if any door or
hood or liftgate is left open. The warning
will indicate which door is open in the
display.
CAUTION
Before driving the vehicle, you should
confirm that the door/hood/liftgate are
fully closed.
Sunroof open indicator (if equipped)
B0088KO02
This warning is displayed if you turn off
the engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
Low tire pressure
B0088EU07
This warning message is displayed if the
tire pressure is low. The corresponding
tire on the vehicle will be illuminated.
For more details, refer to “Tire Pressure
Monitoring System (TPMS)” section in
chapter 8.

04
4-29
View Modes
View modes Symbol Explanation
Driving Assist
This mode displays the state of : - Lane Keeping Assist
- Smart Cruise Control

- Highway Driving Assist
For more information, refer to "Lane Keeping Assist (LKA)",
"Smart Cruise Control (SCC)", "Highway Driving Assist
(HDA)" in chapter 7.
Trip
ComputerThis mode displays driving information such as the tripmeter,
fuel economy, etc.
For more details, refer to "Trip Computer" in this chapter.
Turn By Turn
(TBT)
This mode displays the state of the navigation.
User Settings
In this mode, you can change settings of the doors, lamps, etc.
Warning/
Vehicle
Information
This mode displays warning messages related to the lamp
malfunction, etc.
This mode displays information related to the tire pressure
monitoring system (TPMS), the state of driving force
distribution (AWD) and the amount of remaining urea solution.
Tire Pressure
Setting
In this mode, you can reset the tire pressure monitoring system
(TPMS).
If warning occurs, the symbol changes to the warning mode
symbol.
The information provided may differ depending on which functions are applicable
to your vehicle.

04
4-31

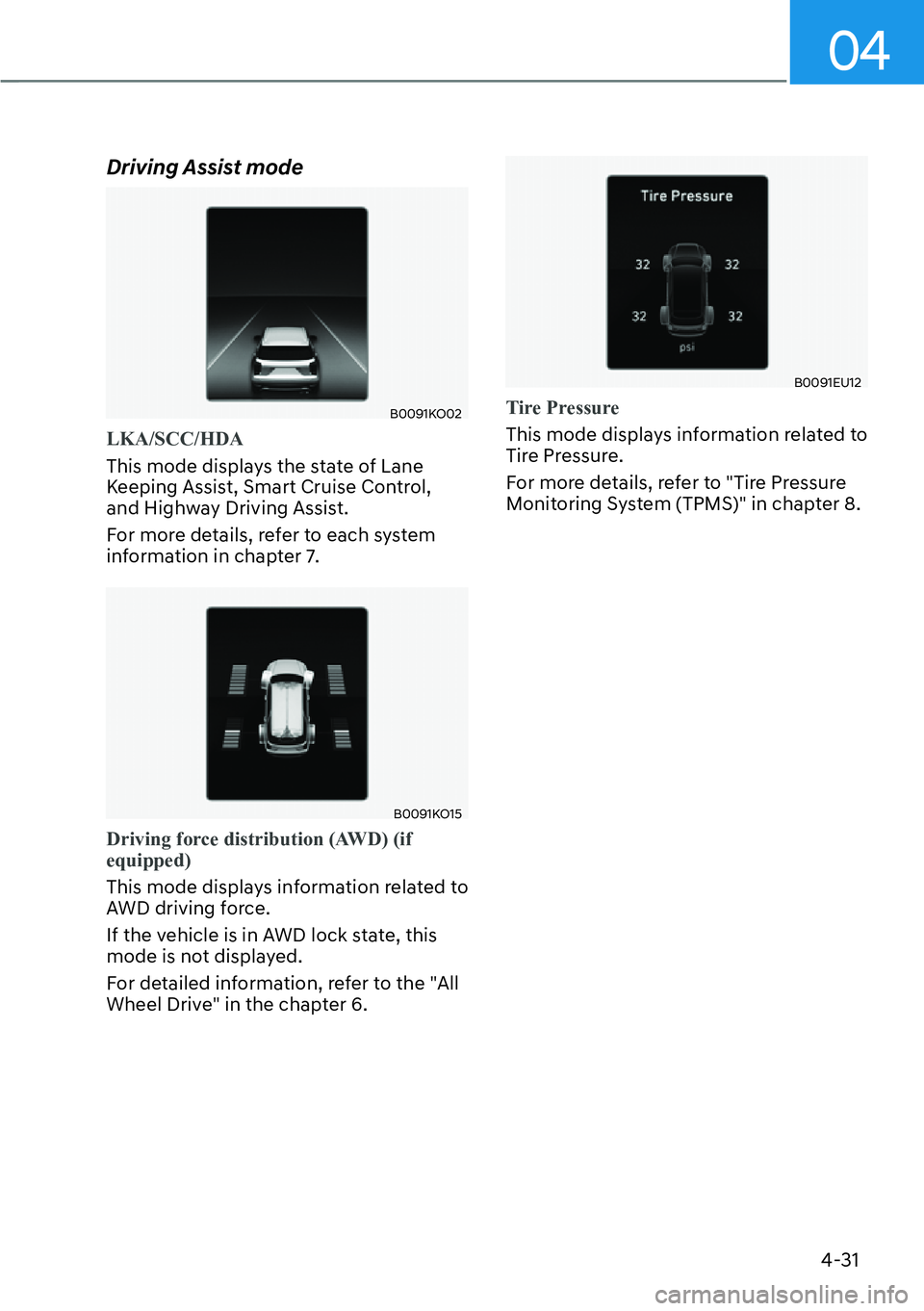

Driving Assist mode
B0091KO02
LKA/SCC/HDA
This mode displays the state of Lane
K
eeping Assist, Smart Cruise Control,
and Highway Driving Assist.
For more details, refer to each system
information in chapter 7.
B0091KO15
Driving force distribution (AWD) (if
equipped)
This mode displays information related to
A
WD driving force.
If the vehicle is in AWD lock state, this
mode is not displayed.
For detailed information, refer to the "All
Wheel Drive" in the chapter 6.
B0091EU12
Tire Pressure
This mode displays information related to
Tir
e Pressure.
For more details, refer to "Tire Pressure
Monitoring System (TPMS)" in chapter 8.

Convenience Features5-86

[ Do not modify or repair any part
of the power liftgate by yourself.
This must be done by an authorized
HYUNDAI dealer.

[ Do not operate the power liftgate
under the following conditions.
The power liftgate may not operate
properly.

- One side of the vehicle is lifted to
inspect the vehicle or change a tire

- Parking on an uneven road such as
a slope, etc.

[ Close the liftgate completely and
lock all doors and liftgate using the
central door lock button before using
an automatic car wash.

[ Do not spray high pressure water
directly on the power liftgate outside
open/close button. The liftgate may
open unintentionally. Information

[If the liftgate is not fully closed and
vehicle speed is at or above 3 km/h (1.8
mph), a warning will sound 10 times.
Immediately park the vehicle at a safe
place, close the liftgate, and check
that the liftgate open warning on the
instrument cluster is turned off.

[ In cold and wet climates, the outside
power liftgate open/close button may
not work properly due to freezing
conditions. If this occurs, remove the
ice before using the outside power
liftgate open/close button or use the
power liftgate open/close button on the
smart key or the instrument panel.

[ Operating the power liftgate more
than 5 times continuously could cause
damage to the operating motor. If
this occurs, the power liftgate will not
operate to prevent the motor from
overheating. If any of the power liftgate
buttons are pressed to try to open the
liftgate, the chime will sound 3 times,
but the liftgate will remain closed.
Allow the power liftgate system to cool
for about 1 minute before operating the
system again.

Driving Your Vehicle6-46
Good Braking Practices
WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the gear to the P (Park)
position, then apply the parking brake,
and place the ignition switch or press
the Engine Start/Stop button to the
LOCK/OFF position.
Vehicles parked with the parking brake
not applied or not fully engaged may
roll inadvertently and may cause injury
to the driver and others. ALWAYS apply
the parking brake before exiting the
vehicle. Wet brakes can be dangerous! The
brakes may get wet if the vehicle is
driven through standing water or if it
is washed. Your vehicle will not stop as
quickly if the brakes are wet. Wet brakes
may cause the vehicle to pull to one side.
To dry the brakes, apply the brakes
lightly until the braking action returns to
normal. If the braking action does not
return to normal, stop as soon as it is safe
to do so and call an authorized HYUNDAI
dealer for assistance.
DO NOT drive with your foot resting on
the brake pedal. Even light, but constant
pedal pressure can result in the brakes
overheating, brake wear, and possibly
even brake failure.
If a tire goes flat while you are driving,
apply the brakes gently and keep the
vehicle pointed straight ahead while you
slow down. When you are moving slowly
enough for it to be safe to do so, pull off
the road and stop in a safe location.
Keep your foot firmly on the brake pedal
when the vehicle is stopped to prevent
the vehicle from rolling forward.

06
6-51
WARNING
B0271EU01
Never start or run the engine while
an AWD vehicle is raised on a jack.
The vehicle can slip or roll off of a jack
causing serious injury or death to you or
those nearby.
Towing
AWD vehicles must be towed with
a wheel lift and dollies or flatbed
equipment with all the wheels off
the ground. For more details, refer to
"Towing" section in chapter 8.
Vehicle inspection

[If the vehicle needs to be operated on
a vehicle lift do not attempt to stop
any of the four wheels from turning.
This could damage the AWD system.

[ Never engage the parking brake while
running the engine on vehicle lift. This
may damage the AWD system.
Dynamometer testing
An AWD vehicle must be tested on a
special four wheel chassis dynamometer.
B0274EU01
A: Roll tester (Speedometer),
B: Temporary free roller
An AWD vehicle should not be tested
on a 2WD roll tester. If a 2WD roll tester
must be used, perform the following
procedure:
1. Check the tire pressures recommended for your vehicle.
2. Place the rear wheels on the roll tester for a speedometer test as shown in
the illustration.
3. Release the parking brake.
4. Place the front wheels on the temporary free roller as shown in the
illustration.
WARNING
Keep away from the front of the vehicle
while the vehicle is in gear on the
dynamometer. The vehicle can jump
forward and cause serious injury or
death.
AWD malfunction
If the AWD () warning light stays on
the instrument cluster, your vehicle
may have a malfunction with the AWD
system. When the AWD warning light
(
) illuminates, have the vehicle be
checked by an authorized HYUNDAI
dealer as soon as possible.

06
6-63
Driving in the Rain
Rain and wet roads can make driving
dangerous. Here are a few things to
consider when driving in the rain or on
slick pavement:

[Slow down and allow extra following
distance. A heavy rainfall makes
it harder to see and increases the
distance needed to stop your vehicle.

[ Turn OFF your Cruise Control. (if
equipped)

[ Replace your windshield wiper blades
when they show signs of streaking or
missing areas on the windshield.

[ Be sure your tires have enough tread.
If your tires do not have enough tread,
making a quick stop on wet pavement
can cause a skid and possibly lead to
an accident. See “Tire Tread” section
in chapter 9.

[ Turn on your headlights to make it
easier for others to see you.

[ Driving too fast through large puddles
can affect your brakes. If you must go
through puddles, try to drive through
them slowly.

[ If you believe your brakes may be wet,
apply them lightly while driving until
normal braking operation returns.
Hydroplaning
If the road is wet enough and you are
going fast enough, your vehicle may
have little or no contact with the road
surface and actually ride on the water.
The best advice is SLOW DOWN when
the road is wet.
The risk of hydroplaning increases as the
depth of tire tread decreases, refer to
“Tire Tread” section in chapter 9.
Driving in Flooded Areas
Avoid driving through flooded areas
unless you are sure the water is no
higher than the bottom of the wheel hub.
Drive through any water slowly. Allow
adequate stopping distance because
brake performance may be reduced.
After driving through water, dry the
brakes by gently applying them several
times while the vehicle is moving slowly.
Highway Driving
Tires
Adjust the tire inflation, as specified.
Under-inflation may overheat or damage
the tires.
Do not install worn-out or damaged tires,
which may reduce traction or fail the
braking operation.
Information
Never over-inflate your tires above the
maximum inflation pressure, as specified
on your tires.
Fuel, engine coolant and engine oil
Driving at higher speeds on the highway
consumes more fuel and is less efficient
than driving at a slower, more moderate
speed. Maintain a moderate speed in
order to conserve fuel when driving on
the highway.
Be sure to check both the engine coolant
level and the engine oil before driving.
Drive belt
A loose or damaged drive belt may
overheat the engine.
