2023 HYUNDAI PALISADE tire pressure

07
7-155
Limitations of Remote Smart Parking
Assist
In the following circumstances, Remote
Smart Parking Assist performance to
park or exit the vehicle may be limited,
there may be a risk of collision, or
Remote Smart Parking Assist may turn
off. Park or exit the vehicle manually if
necessary.

[An object is attached to the steering
wheel

[ The vehicle is installed with a snow
chain, spare tire or different size
wheel

[ Tire pressure is lower or higher than
the standard tire pressure

[ Your vehicle is loaded with cargo
longer or wider than your vehicle or a
trailer is connected to your vehicle

[ There is a problem with the wheel
alignment

[ Your vehicle is leaned severely to one
side

[ Your vehicle is equipped with a trailer
hitch

[ The license plate is installed
differently from the original location

[ There is a person, animal or object
above or below the ultrasonic sensor
when Remote Smart Parking Assist is
activated

[ The parking space is curved or
diagonal

[ There is an obstacle such as a person,
animal or object (trash can, bicycle,
motorcycle, shopping cart, narrow
pillar, etc.) near the parking space
[
There is a circular pillar or narrow
pillar, or a pillar surrounded by objects
such as fire extinguisher, etc., near the
parking space

[ The road surface is bumpy (curbstone,
speed bump, etc.)

[ The road is slippery

[ The parking space is near a vehicle
with higher ground clearance or big,
such as a truck, etc.

[ The parking space is Inclined

[ There is heavy wind

[ Operating Remote Smart Parking
Assist on uneven roads, gravel roads,
bushes, etc.

[ The performance of the ultrasonic
sensor is affected by extremely hot or
cold weather

[ The ultrasonic sensor is covered with
snow or water

[ An object that generates ultrasonic
waves is nearby

[ A wireless device with a transmission
function operates near the ultrasonic
sensors

[ Your vehicle is affected by another
vehicle’s Parking Distance Warning

[ The sensor is mounted or positioned
incorrectly by an impact to the
bumper

[ When the ultrasonic sensor cannot
detect the following objects:

- Sharp or slim objects, such as ropes,
chains or small poles
- Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14
cm) in diameter
- Objects which tend to absorb sensor frequency, such as clothes,
spongy material or snow
- A narrow object such as a corner of a square pillar
- Person, animal or object near the ultrasonic sensor

8
Hazard Warning Flasher ........................................................................\
........... 8-2
In Case of an Emergency While Driving .......................................................... 8-2
If the Engine Stalls While Driving ........................................................................\
....... 8-2
If the Engine Stalls at a Crossroad or Crossing .......................................................... 8-2
If You Have a Flat Tire While Driving ........................................................................\
...8-3
If the Engine Will Not Start ........................................................................\
....... 8-3
Jump Starting ........................................................................\
........................... 8-4
If the Engine Overheats ........................................................................\
.............8-7
Tire Pressure Monitoring System (TPMS) ........................................................ 8-8
Check Tire Pressure ........................................................................\
............................. 8-9
Tire Pressure Monitoring System ........................................................................\
...... 8-9
Low Tire Pressure Indicator ........................................................................\
............... 8-10
TPMS (Tire Pressure Monitoring System) malfunction indicator ............................. 8-11
Changing a Tire with TPMS ........................................................................\
............... 8-12
If You Have a Flat Tire (With Spare Tire) ......................................................... 8-13Jack and Tools ........................................................................\
.................................... 8-14
Removing and Storing the Spare Tire ....................................................................... 8-14
Changing Tires ........................................................................\
.................................... 8-15
Jack Label ........................................................................\
.......................................... 8-20
Towing ...................................................................\
........................................... 8-21Towing Service ........................................................................\
................................... 8-21
Removable Towing Hook ........................................................................\
................... 8-23
Emergency Towing ........................................................................\
.............................8-24
8. Emergency Situations

Emergency Situations8-8
TIRE PRESSURE MONITORING
6<67(0

08
8-9

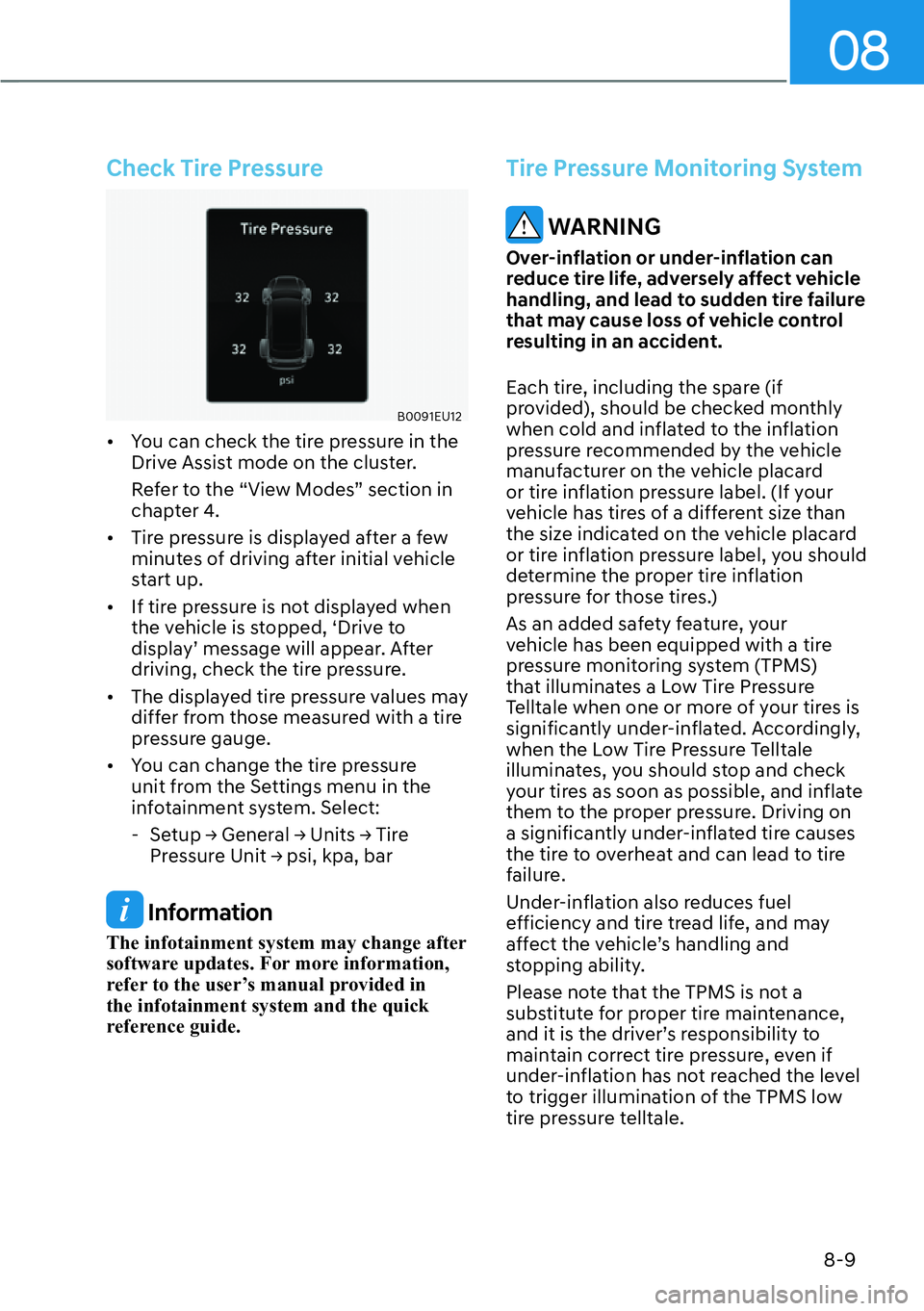

Check Tire Pressure
B0091EU12

[You can check the tire pressure in the
Drive Assist mode on the cluster.
Refer to the “View Modes” section in
chapter 4.

[ Tire pressure is displayed after a few
minutes of driving after initial vehicle
start up.

[ If tire pressure is not displayed when
the vehicle is stopped, ‘Drive to
display’ message will appear. After
driving, check the tire pressure.

[ The displayed tire pressure values may
differ from those measured with a tire
pressure gauge.

[ You can change the tire pressure
unit from the Settings menu in the
infotainment system. Select:

- 6HWXS

Emergency Situations8-10
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating
properly. The TPMS malfunction
indicator is combined with the Low
Tire Pressure Telltale. When the system
detects a malfunction, the telltale will
flash for approximately one minute and
then remain continuously illuminated.
This sequence will continue upon
subsequent vehicle start-ups as long as
the malfunction exists.
When the malfunction indicator is
illuminated, the system may not be able
to detect or signal low tire pressure as
intended. TPMS malfunctions may occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that
prevent the TPMS from functioning
properly.
Always check the TPMS malfunction
telltale after replacing one or more tires
or wheels on your vehicle to ensure that
the replacement or alternate tires and
wheels allow the TPMS to continue to
function properly.
NOTICE
If any of the below happens, have
the system checked by an authorized
HYUNDAI dealer.
1. The Low Tire Pressure Telltale/ TPMS Malfunction Indicator does not
illuminate for 3 seconds when the
ignition switch or Engine Start/Stop
button is placed to the ON position
or when the engine is running.
2. The TPMS Malfunction Indicator remains illuminated after blinking for
approximately 1 minute.
3. The Low Tire Pressure Position Telltale remains illuminated.
Low Tire Pressure Indicator
B0406KO01
B0404EU03
A: Low Tire Pressure Warning Light,
B: Low Tire Pressure Position and Tire Pressure Telltale
When the tire pressure monitoring
system warning indicators are
illuminated and a warning message
displayed on the cluster LCD display,
one or more of your tires is significantly
under-inflated. The Low Tire Pressure
Position Telltale will indicate which
tire is significantly underinflated by
illuminating the corresponding position
light.
If either telltale illuminates, immediately
reduce your speed, avoid hard cornering
and anticipate increased stopping
distances. You should stop and check
your tires as soon as possible. Inflate the
tires to the proper pressure as indicated
on the vehicle’s placard or tire inflation
pressure label located on the driver’s
side center pillar outer panel.

08
8-11

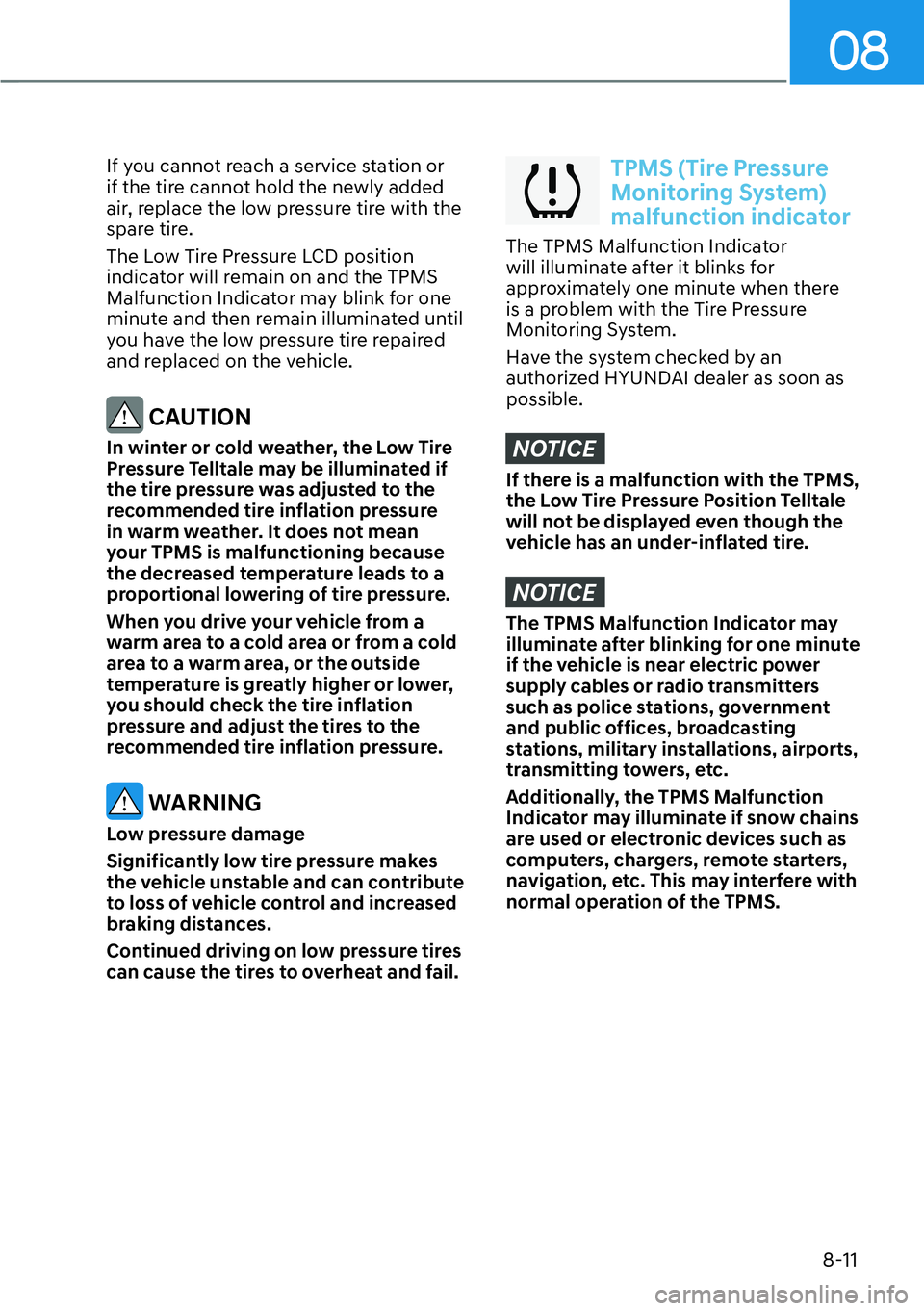

If you cannot reach a service station or
if the tire cannot hold the newly added
air, replace the low pressure tire with the
spare tire.
The Low Tire Pressure LCD position
indicator will remain on and the TPMS
Malfunction Indicator may blink for one
minute and then remain illuminated until
you have the low pressure tire repaired
and replaced on the vehicle.
CAUTION
In winter or cold weather, the Low Tire
Pressure Telltale may be illuminated if
the tire pressure was adjusted to the
recommended tire inflation pressure
in warm weather. It does not mean
your TPMS is malfunctioning because
the decreased temperature leads to a
proportional lowering of tire pressure.
When you drive your vehicle from a
warm area to a cold area or from a cold
area to a warm area, or the outside
temperature is greatly higher or lower,
you should check the tire inflation
pressure and adjust the tires to the
recommended tire inflation pressure.
WARNING
Low pressure damage
Significantly low tire pressure makes
the vehicle unstable and can contribute
to loss of vehicle control and increased
braking distances.
Continued driving on low pressure tires
can cause the tires to overheat and fail.
TPMS (Tire Pressure
Monitoring System)
malfunction indicator
The TPMS Malfunction Indicator
will illuminate after it blinks for
approximately one minute when there
is a problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
If there is a malfunction with the TPMS,
the Low Tire Pressure Position Telltale
will not be displayed even though the
vehicle has an under-inflated tire.
NOTICE
The TPMS Malfunction Indicator may
illuminate after blinking for one minute
if the vehicle is near electric power
supply cables or radio transmitters
such as police stations, government
and public offices, broadcasting
stations, military installations, airports,
transmitting towers, etc.
Additionally, the TPMS Malfunction
Indicator may illuminate if snow chains
are used or electronic devices such as
computers, chargers, remote starters,
navigation, etc. This may interfere with
normal operation of the TPMS.

Emergency Situations8-12
Changing a Tire with TPMS
If you have a flat tire, the Low Tire
Pressure and Position telltales will come
on. Have the flat tire repaired by an
authorized HYUNDAI dealer as soon as
possible or replace the flat tire with the
spare tire.
NOTICE
It is recommended that you do not
use a puncture-repairing agent not
approved by HYUNDAI dealer or the
equivalent specified for your vehicle to
repair and/or inflate a low pressure tire.
Tire sealant not approved by HYUNDAI
dealer or the equivalent specified for
your vehicle may damage the tire
pressure sensor.
The spare tire (if equipped) does not
come with a tire pressure monitoring
sensor. When the low pressure tire or
the flat tire is replaced with the spare
tire, the Low Tire Pressure Telltale will
remain on. Also, the TPMS Malfunction
Indicator will illuminate after blinking
for one minute if the vehicle is driven
at speed above 15.5 mph (25 km/h) for
approximately 10 minutes.
Once the original wheel equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pressure
and reinstalled on the vehicle, the
Low Tire Pressure Telltale and TPMS
Malfunction Indicator will go off within a
few minutes of driving. If the indicators do not extinguish after a
few minutes, please visit an authorized
HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the tire
behind the valve stem (except for the
spare tire). You must use TPMS specific
wheels. It is recommended that you
always have your tires serviced by an
authorized HYUNDAI dealer.
You may not be able to identify a tire
with low pressure by simply looking at it.
Always use a good quality tire pressure
gauge to measure. Please note that a tire
that is hot (from being driven) will have a
higher pressure measurement than a tire
that is cold.
A cold tire means the vehicle has been
sitting for 3 hours and driven for less
than 1 mile (1.6 km) in that 3 hour period.
Allow the tire to cool before measuring
the inflation pressure. Always be sure
the tire is cold before inflating to the
recommended pressure.
WARNING

[
The TPMS cannot alert you to severe
and sudden tire damage caused by
external factors such as nails or road
debris.

[ If you feel any vehicle instability,
immediately take your foot off
the accelerator, apply the brakes
gradually with light force, and slowly
move to a safe position off the road.

08

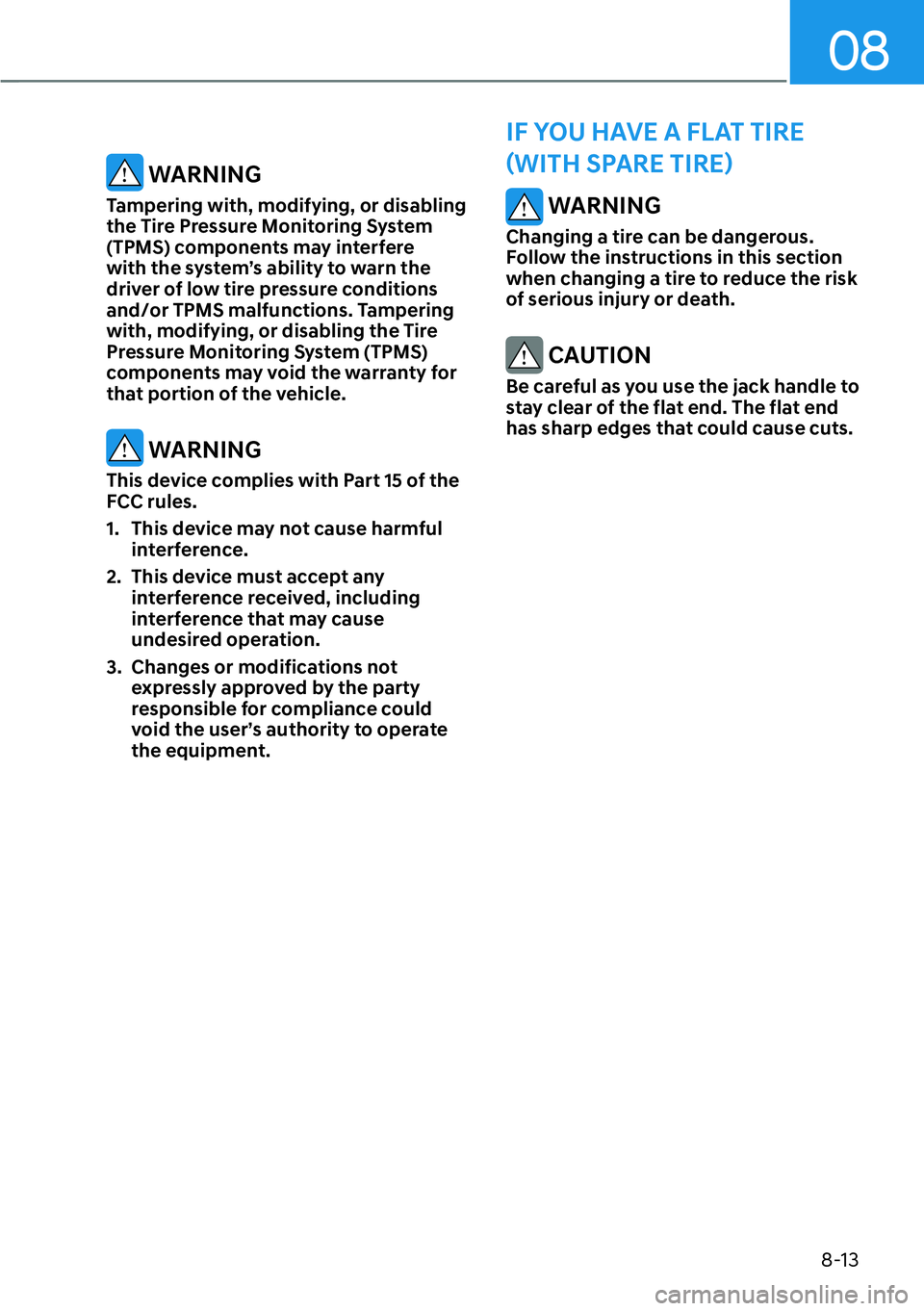

8-13
WARNING
Changing a tire can be dangerous.
Follow the instructions in this section
when changing a tire to reduce the risk
of serious injury or death.
CAUTION
Be careful as you use the jack handle to
stay clear of the flat end. The flat end
has sharp edges that could cause cuts.
IF YOU HAVE A FLAT TIRE

í:,7+63$5(7,5(
î
WARNING
Tampering with, modifying, or disabling
the Tire Pressure Monitoring System
(TPMS) components may interfere
with the system’s ability to warn the
driver of low tire pressure conditions
and/or TPMS malfunctions. Tampering
with, modifying, or disabling the Tire
Pressure Monitoring System (TPMS)
components may void the warranty for
that portion of the vehicle.
WARNING
This device complies with Part 15 of the
FCC rules.
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause
undesired operation.
3. Changes or modifications not expressly approved by the party
responsible for compliance could
void the user’s authority to operate
the equipment.
