Maintenance9-42

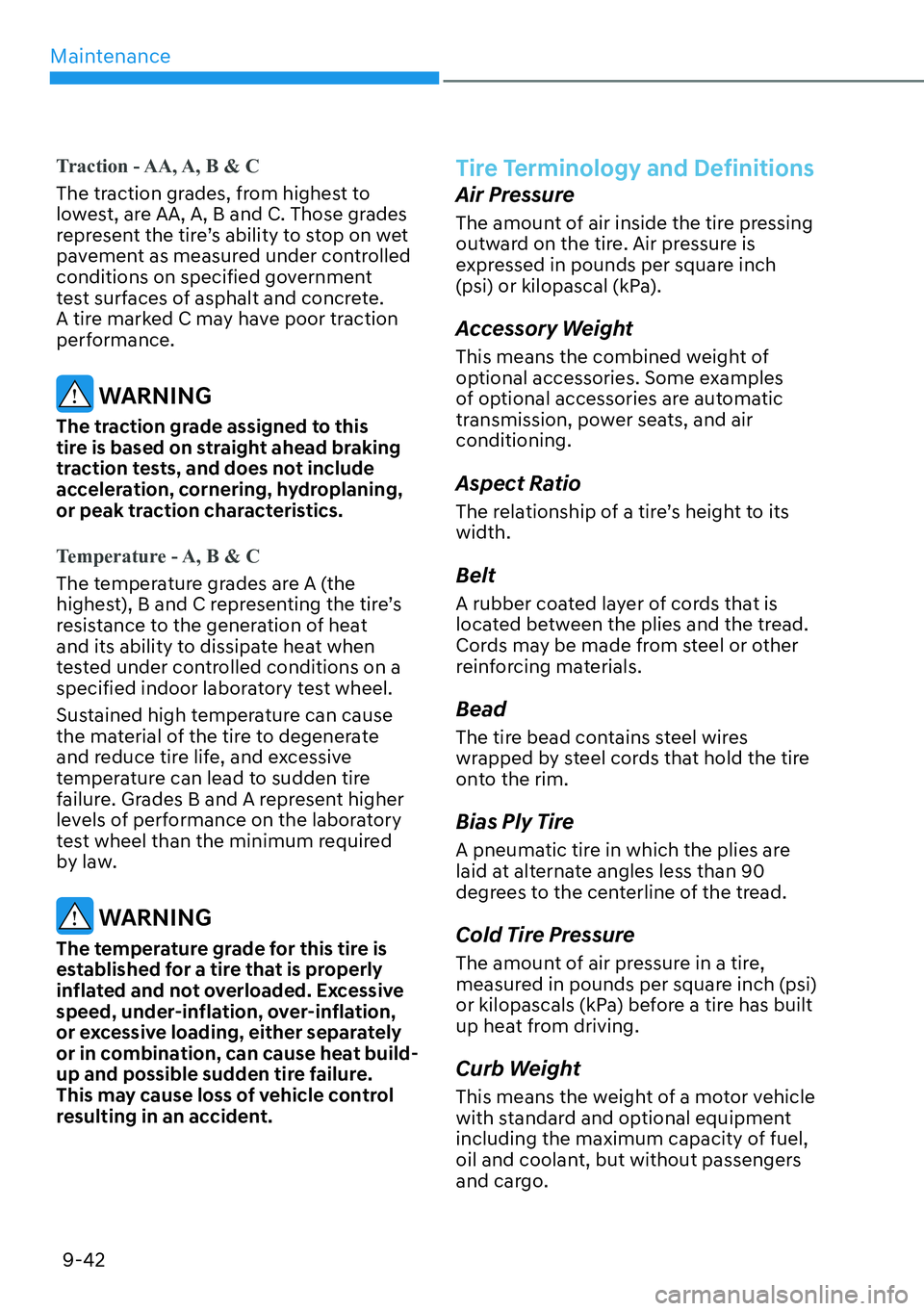

Traction - AA, A, B & C
The traction grades, from highest to
lo
west, are AA, A, B and C. Those grades
represent the tire’s ability to stop on wet
pavement as measured under controlled
conditions on specified government
test surfaces of asphalt and concrete.
A tire marked C may have poor traction
performance.
WARNING
The traction grade assigned to this
tire is based on straight ahead braking
traction tests, and does not include
acceleration, cornering, hydroplaning,
or peak traction characteristics.
Temperature - A, B & C
The temperature grades are A (the
highes
t), B and C representing the tire’s
resistance to the generation of heat
and its ability to dissipate heat when
tested under controlled conditions on a
specified indoor laboratory test wheel.
Sustained high temperature can cause
the material of the tire to degenerate
and reduce tire life, and excessive
temperature can lead to sudden tire
failure. Grades B and A represent higher
levels of performance on the laboratory
test wheel than the minimum required
by law.
WARNING
The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive
speed, under-inflation, over-inflation,
or excessive loading, either separately
or in combination, can cause heat build-
up and possible sudden tire failure.
This may cause loss of vehicle control
resulting in an accident.
Tire Terminology and Definitions
Air Pressure
The amount of air inside the tire pressing
outward on the tire. Air pressure is
expressed in pounds per square inch
(psi) or kilopascal (kPa).
Accessory Weight
This means the combined weight of
optional accessories. Some examples
of optional accessories are automatic
transmission, power seats, and air
conditioning.
Aspect Ratio
The relationship of a tire’s height to its
width.
Belt
A rubber coated layer of cords that is
located between the plies and the tread.
Cords may be made from steel or other
reinforcing materials.
Bead
The tire bead contains steel wires
wrapped by steel cords that hold the tire
onto the rim.
Bias Ply Tire
A pneumatic tire in which the plies are
laid at alternate angles less than 90
degrees to the centerline of the tread.
Cold Tire Pressure
The amount of air pressure in a tire,
measured in pounds per square inch (psi)
or kilopascals (kPa) before a tire has built
up heat from driving.
Curb Weight
This means the weight of a motor vehicle
with standard and optional equipment
including the maximum capacity of fuel,
oil and coolant, but without passengers
and cargo.

09
9-45

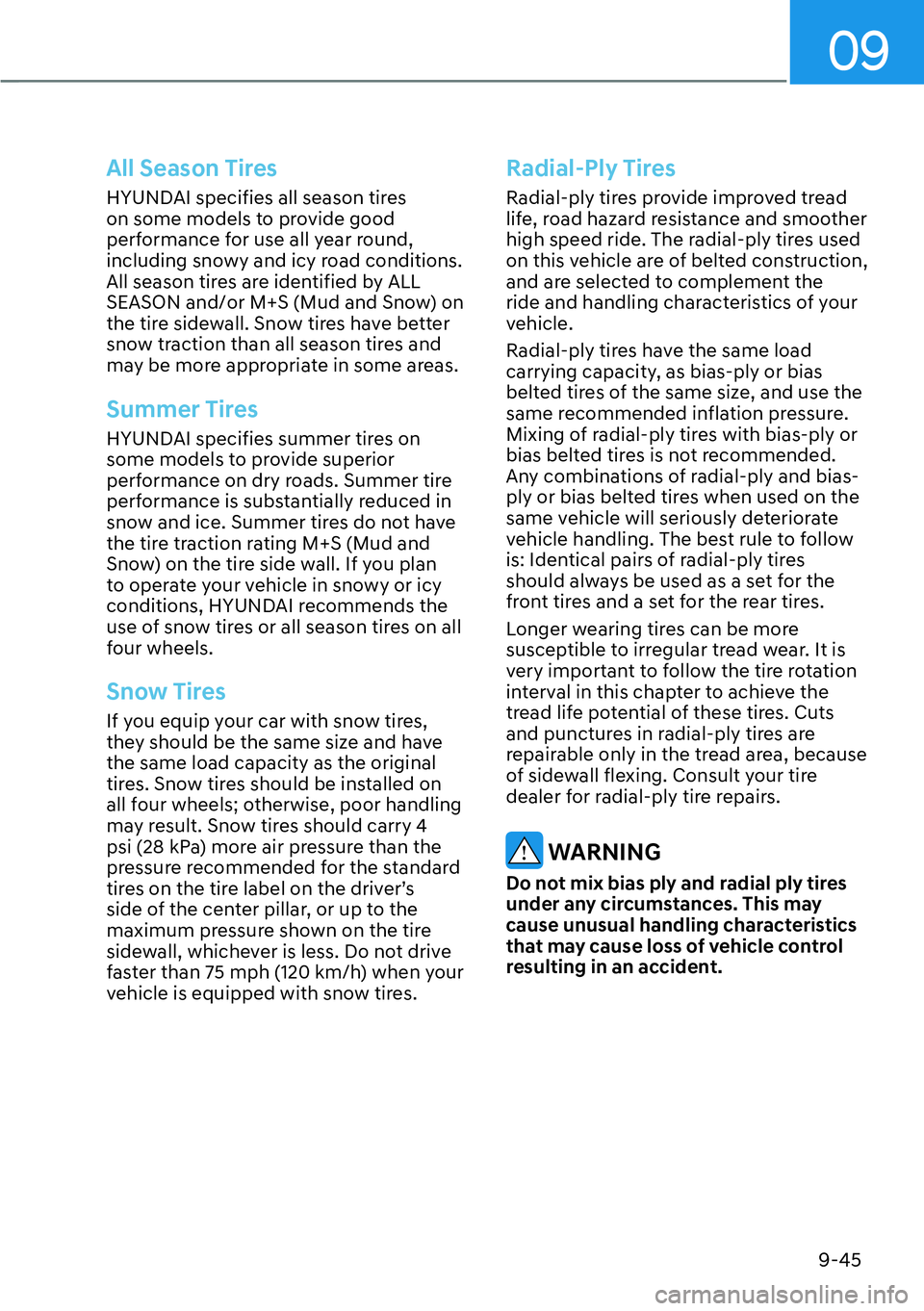

All Season Tires
HYUNDAI specifies all season tires
on some models to provide good
performance for use all year round,
including snowy and icy road conditions.
All season tires are identified by ALL
SEASON and/or M+S (Mud and Snow) on
the tire sidewall. Snow tires have better
snow traction than all season tires and
may be more appropriate in some areas.
Summer Tires
HYUNDAI specifies summer tires on
some models to provide superior
performance on dry roads. Summer tire
performance is substantially reduced in
snow and ice. Summer tires do not have
the tire traction rating M+S (Mud and
Snow) on the tire side wall. If you plan
to operate your vehicle in snowy or icy
conditions, HYUNDAI recommends the
use of snow tires or all season tires on all
four wheels.
Snow Tires
If you equip your car with snow tires,
they should be the same size and have
the same load capacity as the original
tires. Snow tires should be installed on
all four wheels; otherwise, poor handling
may result. Snow tires should carry 4
psi (28 kPa) more air pressure than the
pressure recommended for the standard
tires on the tire label on the driver’s
side of the center pillar, or up to the
maximum pressure shown on the tire
sidewall, whichever is less. Do not drive
faster than 75 mph (120 km/h) when your
vehicle is equipped with snow tires.
Radial-Ply Tires
Radial-ply tires provide improved tread
life, road hazard resistance and smoother
high speed ride. The radial-ply tires used
on this vehicle are of belted construction,
and are selected to complement the
ride and handling characteristics of your
vehicle.
Radial-ply tires have the same load
carrying capacity, as bias-ply or bias
belted tires of the same size, and use the
same recommended inflation pressure.
Mixing of radial-ply tires with bias-ply or
bias belted tires is not recommended.
Any combinations of radial-ply and bias-
ply or bias belted tires when used on the
same vehicle will seriously deteriorate
vehicle handling. The best rule to follow
is: Identical pairs of radial-ply tires
should always be used as a set for the
front tires and a set for the rear tires.
Longer wearing tires can be more
susceptible to irregular tread wear. It is
very important to follow the tire rotation
interval in this chapter to achieve the
tread life potential of these tires. Cuts
and punctures in radial-ply tires are
repairable only in the tread area, because
of sidewall flexing. Consult your tire
dealer for radial-ply tire repairs.
WARNING
Do not mix bias ply and radial ply tires
under any circumstances. This may
cause unusual handling characteristics
that may cause loss of vehicle control
resulting in an accident.

09
9-73

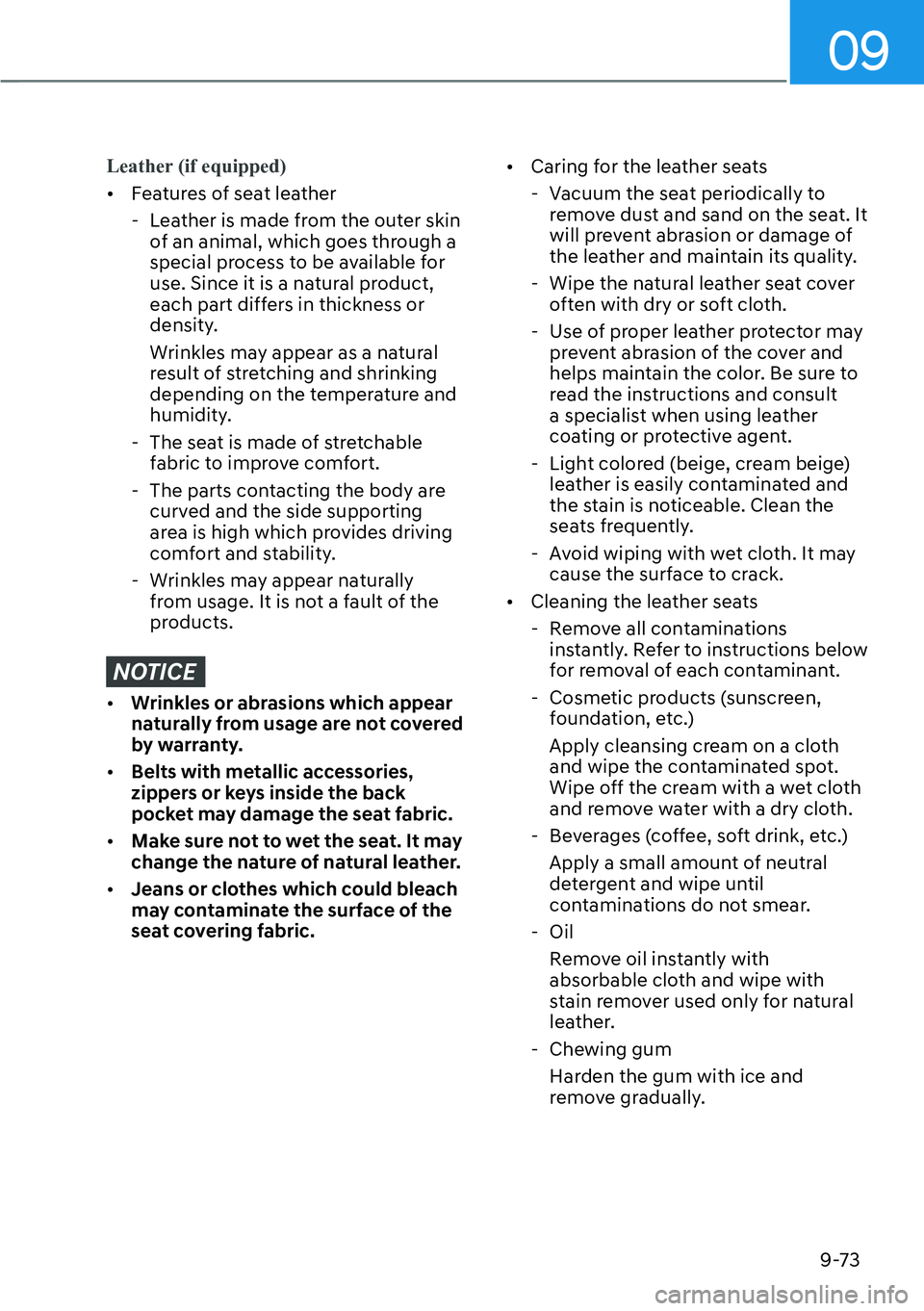

Leather (if equipped)

[F
eatures of seat leather
- Leather is made from the outer skin of an animal, which goes through a
special process to be available for
use. Since it is a natural product,
each part differs in thickness or
density.
Wrinkles may appear as a natural
result of stretching and shrinking
depending on the temperature and
humidity.
- The seat is made of stretchable fabric to improve comfort.
- The parts contacting the body are curved and the side supporting
area is high which provides driving
comfort and stability.
- Wrinkles may appear naturally from usage. It is not a fault of the
products.
NOTICE

[ Wrinkles or abrasions which appear
naturally from usage are not covered
by warranty.

[ Belts with metallic accessories,
zippers or keys inside the back
pocket may damage the seat fabric.

[ Make sure not to wet the seat. It may
change the nature of natural leather.

[ Jeans or clothes which could bleach
may contaminate the surface of the
seat covering fabric.
[
Caring for the leather seats
- Vacuum the seat periodically to remove dust and sand on the seat. It
will prevent abrasion or damage of
the leather and maintain its quality.
- Wipe the natural leather seat cover often with dry or soft cloth.
- Use of proper leather protector may prevent abrasion of the cover and
helps maintain the color. Be sure to
read the instructions and consult
a specialist when using leather
coating or protective agent.

- Light colored (beige, cream beige)
leather is easily contaminated and
the stain is noticeable. Clean the
seats frequently.
- Avoid wiping with wet cloth. It may cause the surface to crack.

[ Cleaning the leather seats
- Remove all contaminations instantly. Refer to instructions below
for removal of each contaminant.
- Cosmetic products (sunscreen, foundation, etc.)
Apply cleansing cream on a cloth
and wipe the contaminated spot.
Wipe off the cream with a wet cloth
and remove water with a dry cloth.
- Beverages (coffee, soft drink, etc.) Apply a small amount of neutral
detergent and wipe until
contaminations do not smear.
- Oil
Remove oil instantly with
absorbable cloth and wipe with
stain remover used only for natural
leather.
- Chewing gum Harden the gum with ice and
remove gradually.

Maintenance9-74

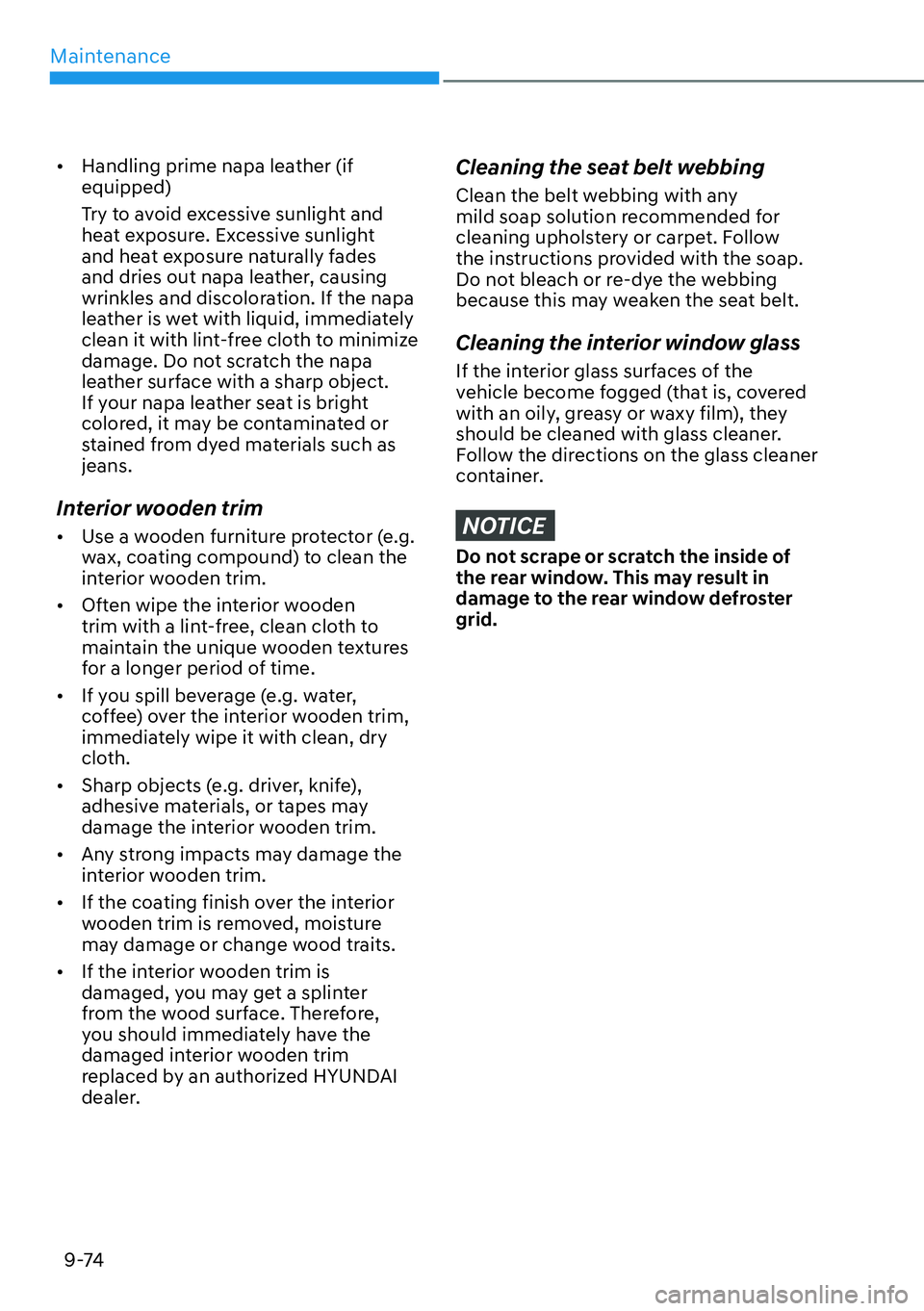

[ Handling prime napa leather (if
equipped)
Try to avoid excessive sunlight and
heat exposure. Excessive sunlight
and heat exposure naturally fades
and dries out napa leather, causing
wrinkles and discoloration. If the napa
leather is wet with liquid, immediately
clean it with lint-free cloth to minimize
damage. Do not scratch the napa
leather surface with a sharp object.
If your napa leather seat is bright
colored, it may be contaminated or
stained from dyed materials such as
jeans.
Interior wooden trim

[Use a wooden furniture protector (e.g.
wax, coating compound) to clean the
interior wooden trim.

[ Often wipe the interior wooden
trim with a lint-free, clean cloth to
maintain the unique wooden textures
for a longer period of time.

[ If you spill beverage (e.g. water,
coffee) over the interior wooden trim,
immediately wipe it with clean, dry
cloth.

[ Sharp objects (e.g. driver, knife),
adhesive materials, or tapes may
damage the interior wooden trim.

[ Any strong impacts may damage the
interior wooden trim.

[ If the coating finish over the interior
wooden trim is removed, moisture
may damage or change wood traits.

[ If the interior wooden trim is
damaged, you may get a splinter
from the wood surface. Therefore,
you should immediately have the
damaged interior wooden trim
replaced by an authorized HYUNDAI
dealer.
Cleaning the seat belt webbing
Clean the belt webbing with any
mild soap solution recommended for
cleaning upholstery or carpet. Follow
the instructions provided with the soap.
Do not bleach or re-dye the webbing
because this may weaken the seat belt.
Cleaning the interior window glass
If the interior glass surfaces of the
vehicle become fogged (that is, covered
with an oily, greasy or waxy film), they
should be cleaned with glass cleaner.
Follow the directions on the glass cleaner
container.
NOTICE
Do not scrape or scratch the inside of
the rear window. This may result in
damage to the rear window defroster
grid.

Maintenance9-78

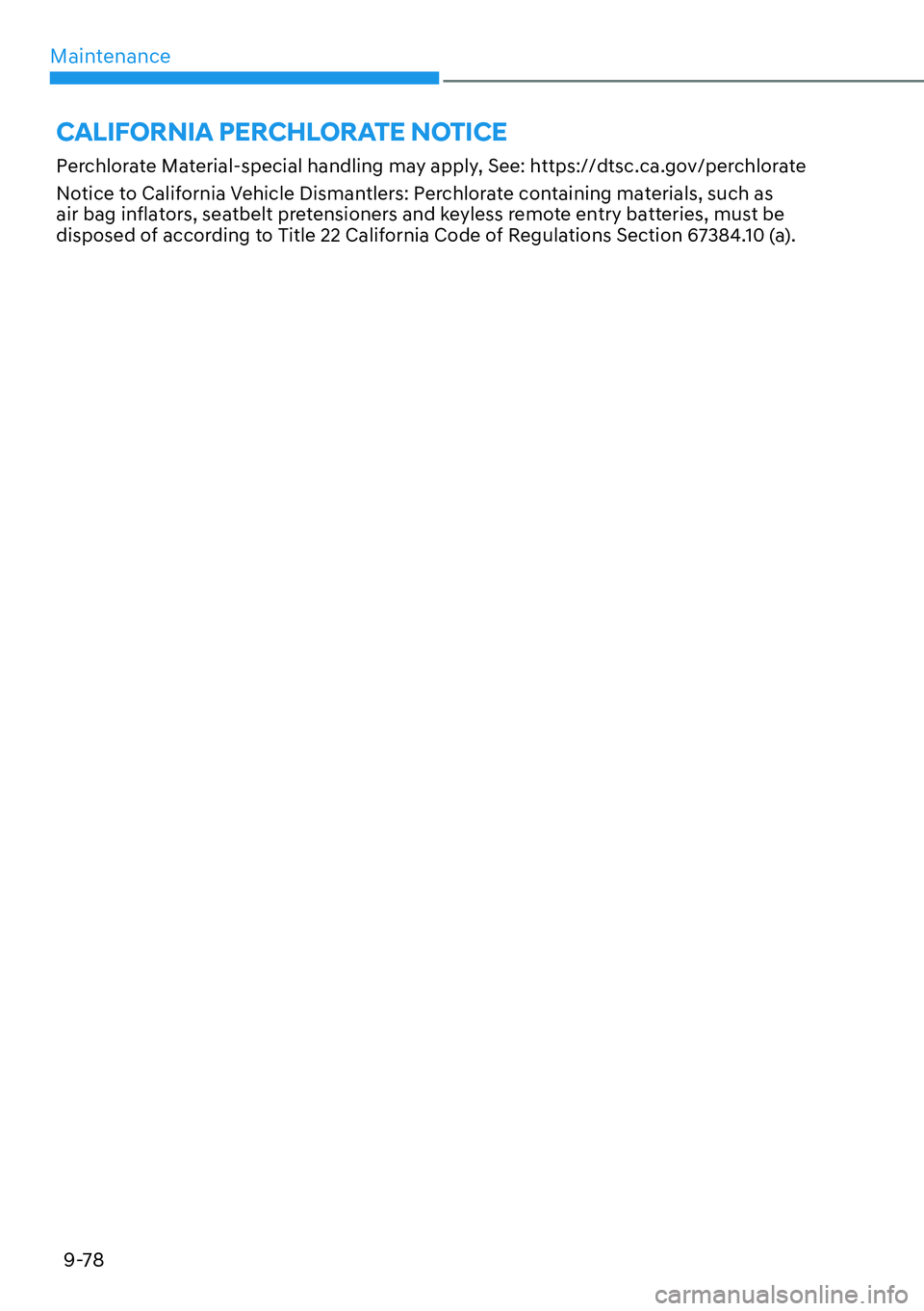

CALIFORNIA PERCHLORATE NOTICE
Perchlorate Material-special handling may apply, See: https://dtsc.ca.gov/perchlorate
Notice to California Vehicle Dismantlers: Perchlorate containing materials, such as
air bag inflators, seatbelt pretensioners and keyless remote entry batteries, must be
disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).

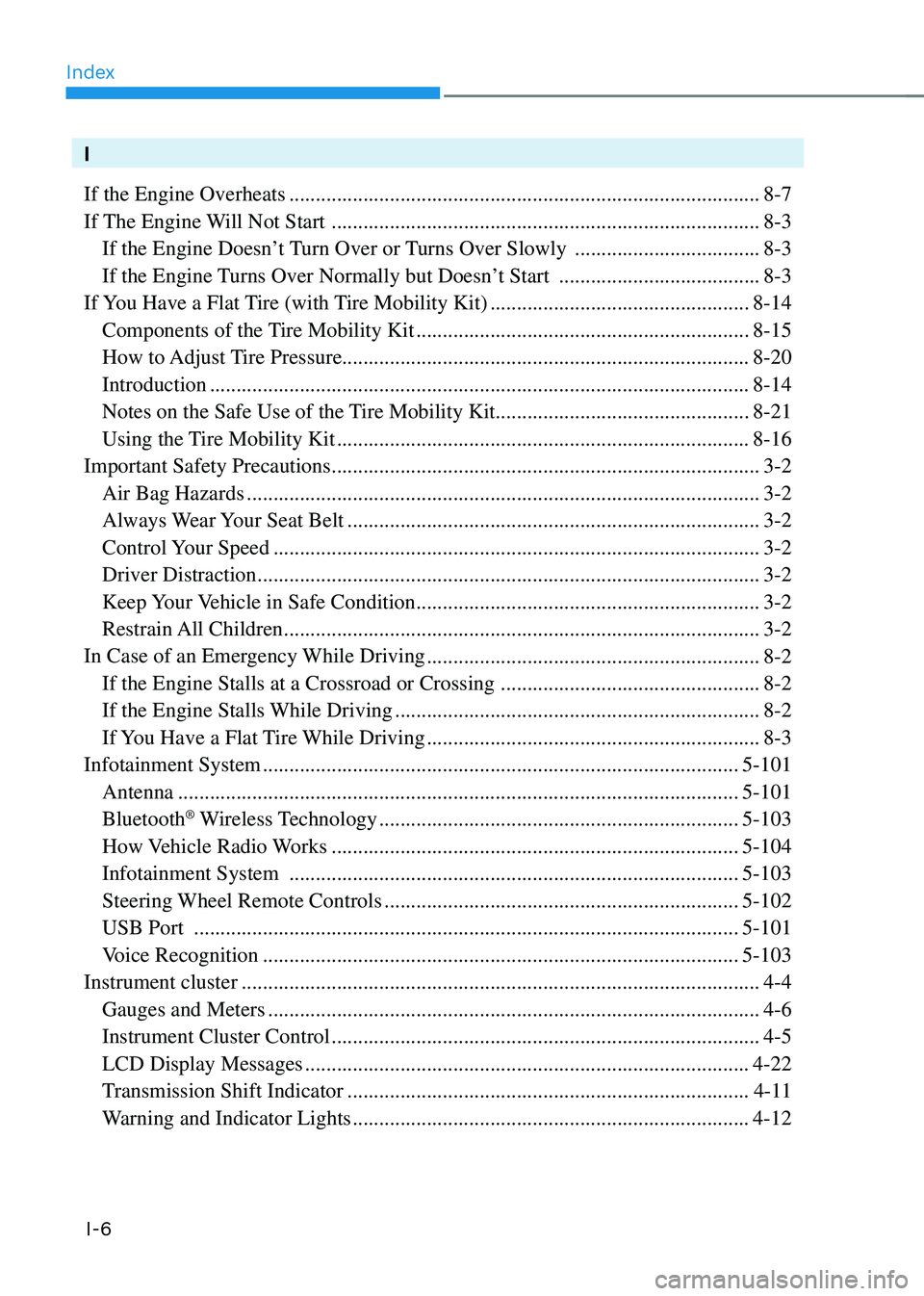

Index
I-6
I
If the Engine Overheats
........................................................................\
.................8-7
If The Engine Will Not Start
........................................................................\
.........8-3
If the Engine Doesn’ t Turn Over or Turns Over Slowly ...................................8-3
If the Engine Turns Over Normally but Doesn’t Start ......................................8-3
If You Have a Flat Tire (with Tire Mobility Kit)
.................................................8-14
Components of the Tire Mobility Kit ...............................................................8-15
How to Adjust Tire Pressure........................................................................\
..... 8-20
Introduction ........................................................................\
..............................8-14
Notes on the Safe Use of the Tire Mobility Kit ................................................8-21
Using the Tire Mobility Kit ........................................................................\
......8-16
Important Safety Precautions
........................................................................\
.........3-2
Air Bag Hazards ........................................................................\
.........................3-2
Always Wear Your Seat Belt ........................................................................\
......3-2
Control Your Speed ........................................................................\
....................3-2
Driver Distraction ........................................................................\
.......................3-2
Keep Your Vehicle in Safe Condition .................................................................3-2
Restrain All Children ........................................................................\
..................3-2
In Case of an Emergency While Driving
...............................................................8-2
If the Engine Stalls at a Crossroad or Crossing .................................................8-2
If the Engine Stalls While Driving .....................................................................8-2
If You Have a Flat Tire While Driving ...............................................................8-3
Infotainment System
........................................................................\
..................5-101
Antenna ........................................................................\
..................................5-101
Bluetooth® Wireless Technology ....................................................................5-103
How Vehicle Radio Works ........................................................................\
.....5-104
Infotainment System ........................................................................\
.............5-103
Steering Wheel Remote Controls ...................................................................5-102
USB Port ........................................................................\
...............................5-101
Voice Recognition ........................................................................\
..................5-103
Instrument cluster
........................................................................\
..........................4-4
Gauges and Meters ........................................................................\
.....................4-6
Instrument Cluster Control ........................................................................\
.........4-5
LCD Display Messages ........................................................................\
............4-22
Transmission Shift Indicator ........................................................................\
....4-11
Warning and Indicator Lights ........................................................................\
...4-12

I

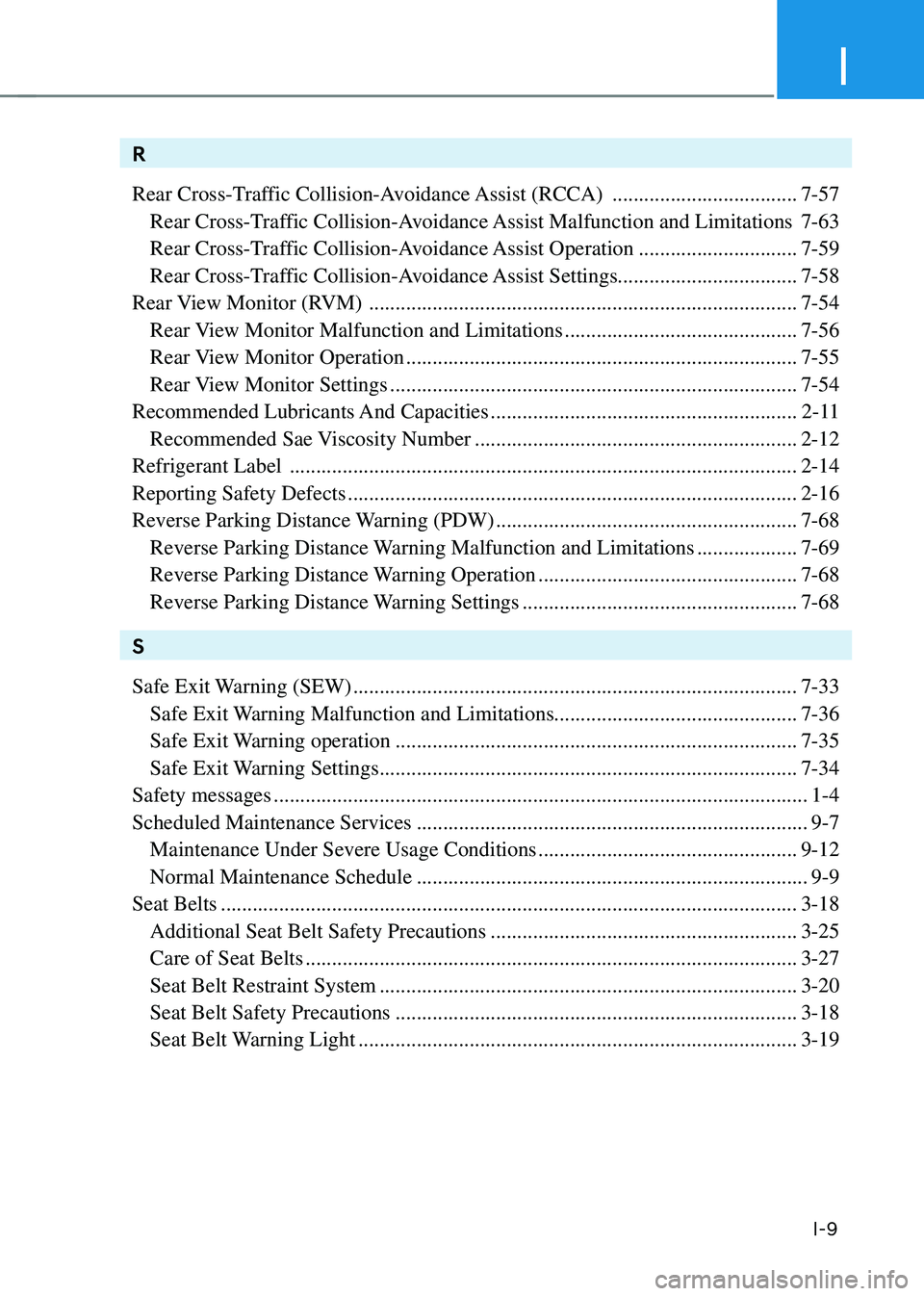

I-9
R
Rear Cross-Traffic Collision-Avoidance Assist (RCCA)
...................................7-57
Rear Cross-Traffic Collision-Avoidance Assist Malfunction and Limitations 7-63
Rear Cross-Traffic Collision-Avoidance Assist Operation ..............................7-59
Rear Cross-Traffic Collision-Avoidance Assist Settings.................................. 7-58
Rear View Monitor (RVM)
........................................................................\
.........7-54
Rear View Monitor Malfunction and Limitations ............................................7-56
Rear View Monitor Operation ........................................................................\
..7-55
Rear View Monitor Settings ........................................................................\
.....7-54
Recommended Lubricants And Capacities
..........................................................2-11
Recommended Sae Viscosity Number .............................................................2-12
Refrigerant Label
........................................................................\
........................2-14
Reporting Safety Defects
........................................................................\
.............2-16
Reverse Parking Distance Warning (PDW)
.........................................................7-68
Reverse Parking Distance Warning Malfunction and Limitations ...................7-69
Reverse Parking Distance Warning Operation .................................................7-68
Reverse Parking Distance Warning Settings ....................................................7-68
S
Safe Exit Warning (SEW)
........................................................................\
............7-33
Safe Exit Warning Malfunction and Limitations.............................................. 7-36
Safe Exit Warning operation ........................................................................\
....7-35
Safe Exit Warning Settings ........................................................................\
.......7-34
Safety messages
........................................................................\
.............................1-4
Scheduled Maintenance Services
........................................................................\
..9-7
Maintenance Under Severe Usage Conditions .................................................9-12
Normal Maintenance Schedule ........................................................................\
..9-9
Seat Belts
........................................................................\
.....................................3-18
Additional Seat Belt Safety Precautions ..........................................................3-25
Care of Seat Belts ........................................................................\
.....................3-27
Seat Belt Restraint System ........................................................................\
.......3-20
Seat Belt Safety Precautions ........................................................................\
....3-18
Seat Belt Warning Light ........................................................................\
...........3-19
