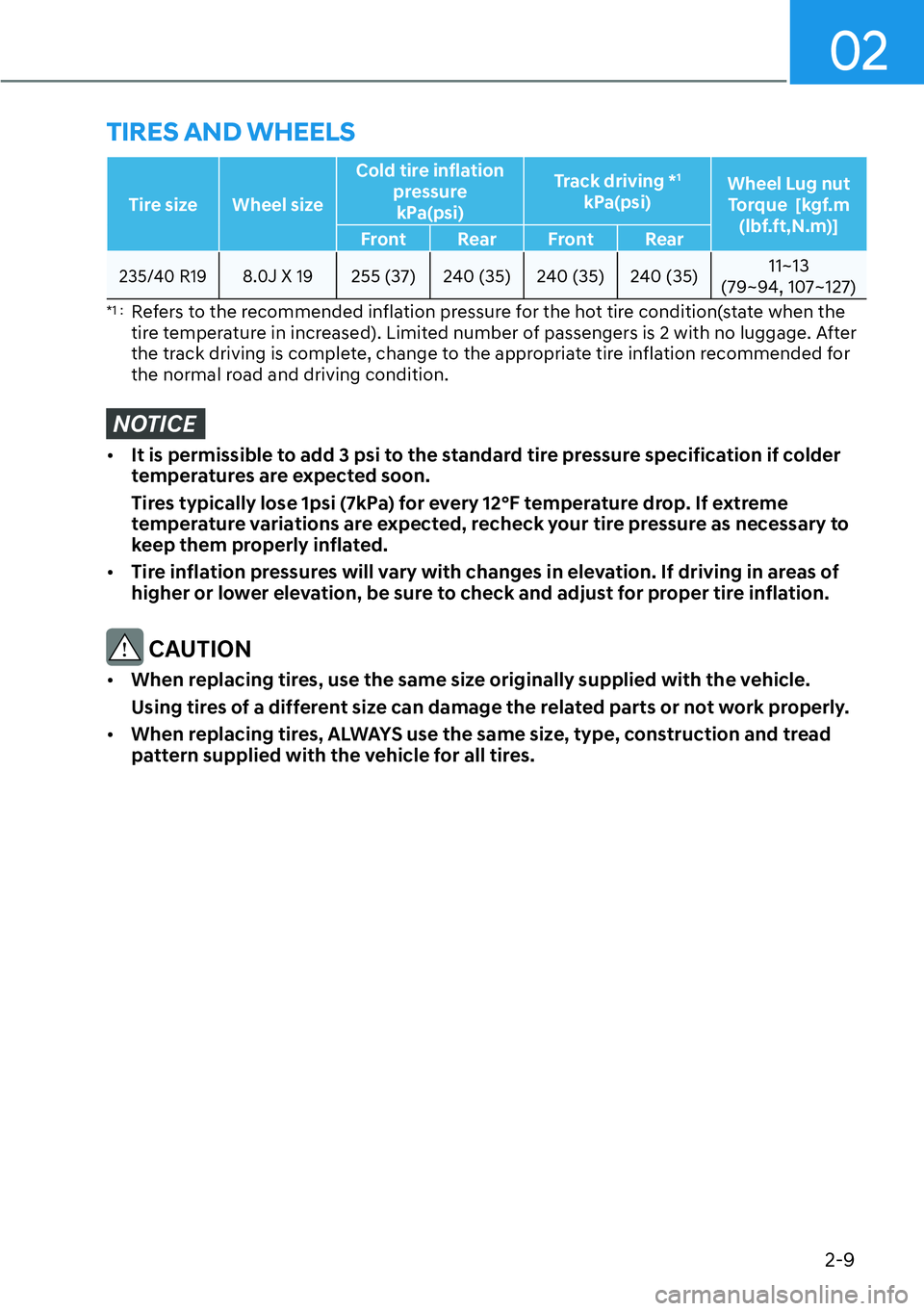

2023 HYUNDAI KONA tire size

02
2-9
Tire size Wheel sizeCold tire inflation
pressure kPa(psi) Track driving *
1
kPa(psi) Wheel Lug nut
Torque [kgf.m (lbf.ft,N.m)]
Front Rear Front Rear
235/40 R19 8.0J X 19255 (37) 240 (35) 240 (35) 240 (35) 11~13
(79~94, 107~127)
*1 : Refers to the recommended inflation pressure for the hot tire condition(state when the
tire temperature in increased). Limited number of passengers is 2 with no luggage. After
the track driving is complete, change to the appropriate tire inflation recommended for
the normal road and driving condition.
NOTICE

[ It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.

[ Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION

[When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.

[ When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.
TIRES AND WHEELS

Driving your vehicle6-26
OCN7N061247N

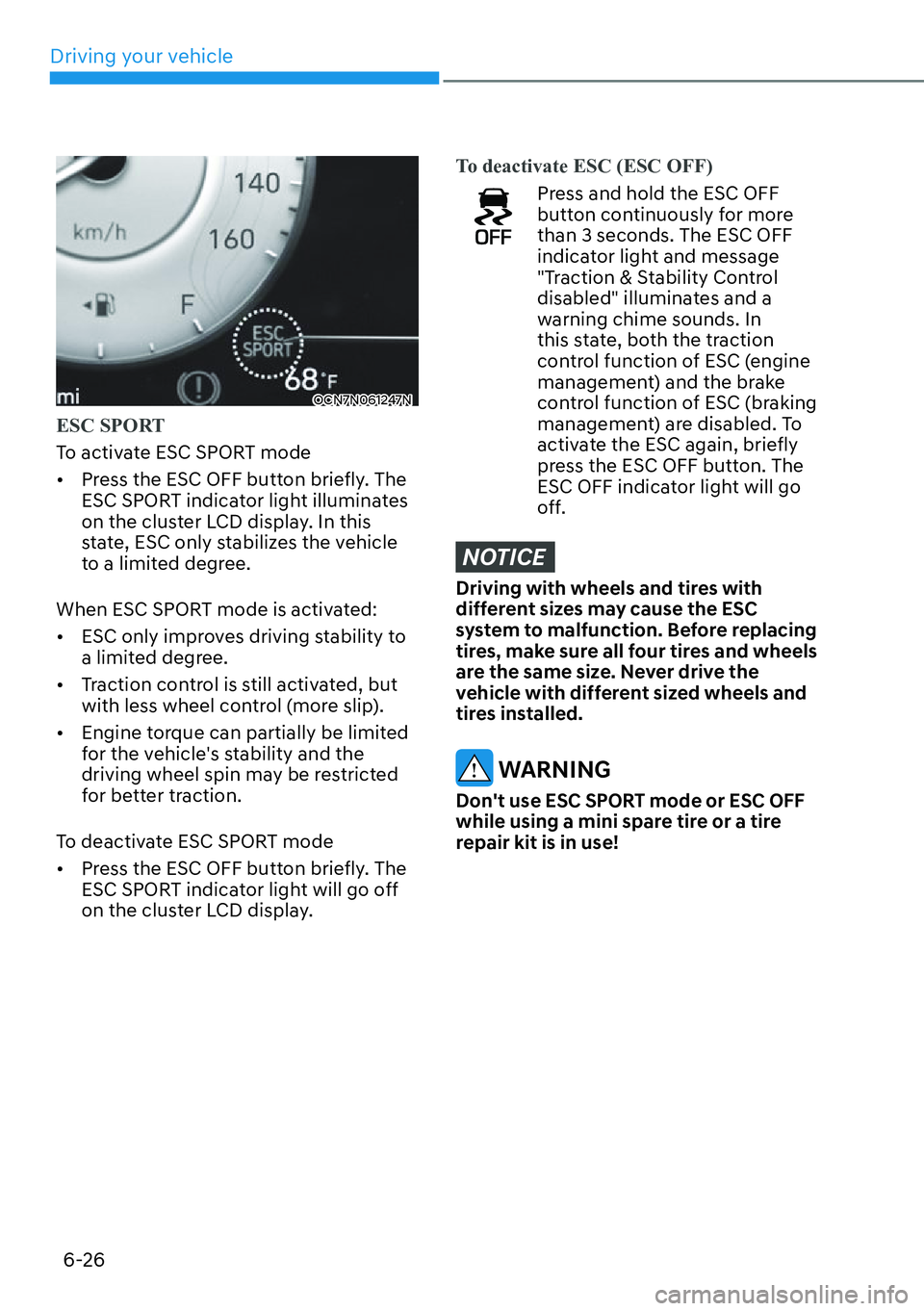

ESC SPORT
To activate ESC SPORT mode

[ Pr

ess the ESC OFF button briefly. The
ESC SPORT indicator light illuminates
on the cluster LCD display. In this
state, ESC only stabilizes the vehicle
to a limited degree.
When ESC SPORT mode is activated:

[ ESC only improves driving stability to
a limited degree.

[ Traction control is still activated, but
with less wheel control (more slip).

[ Engine torque can partially be limited
for the vehicle's stability and the
driving wheel spin may be restricted
for better traction.
To deactivate ESC SPORT mode

[ Press the ESC OFF button briefly. The
ESC SPORT indicator light will go off
on the cluster LCD display.
To deactivate ESC (ESC OFF)
Press and hold the ESC OFF
button continuously for more
than 3 seconds. The ESC OFF
indicator light and message
"Traction & Stability Control
disabled" illuminates and a
warning chime sounds. In
this state, both the traction
control function of ESC (engine
management) and the brake
control function of ESC (braking
management) are disabled. To
activate the ESC again, briefly
press the ESC OFF button. The
ESC OFF indicator light will go
off.
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized wheels and
tires installed.
WARNING
Don't use ESC SPORT mode or ESC OFF
while using a mini spare tire or a tire
repair kit is in use!

06
6-29
VSM operation
When operating
When you apply your brakes under
conditions which ma
y activate ESC, you
may hear sounds from the brakes, or feel
a corresponding sensation in the brake
pedal. This is normal and it means your
VSM is active.
Information
VSM does not operate when:

[ Driving through banked corners might
result in a ESC system shut down,
due to system self-diagnostics and an
assumption of a sensor failure. In the
next ignition cycle, the ESC system is
available again.

[ Driving in reverse.

[ The ESC OFF indicator light is on.

[ The EPS (Electric power steering)
warning light (
) is on or blinks.
VSM OFF condition
To cancel VSM operation, press the ESC
OFF butt

on. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator light
will go out.
WARNING
If the ESC () indicator light or EPS
() warning light stays illuminated
or blinks, your vehicle may have a
malfunction with the VSM system.
When the warning light illuminates
have the vehicle be checked by an
authorized HYUNDAI dealer as soon as
possible.
NOTICE
Driving with wheels and tires with
different sizes may cause the VSM
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never drive the
vehicle with different sized tires and
wheels installed.

Driving your vehicle6-36

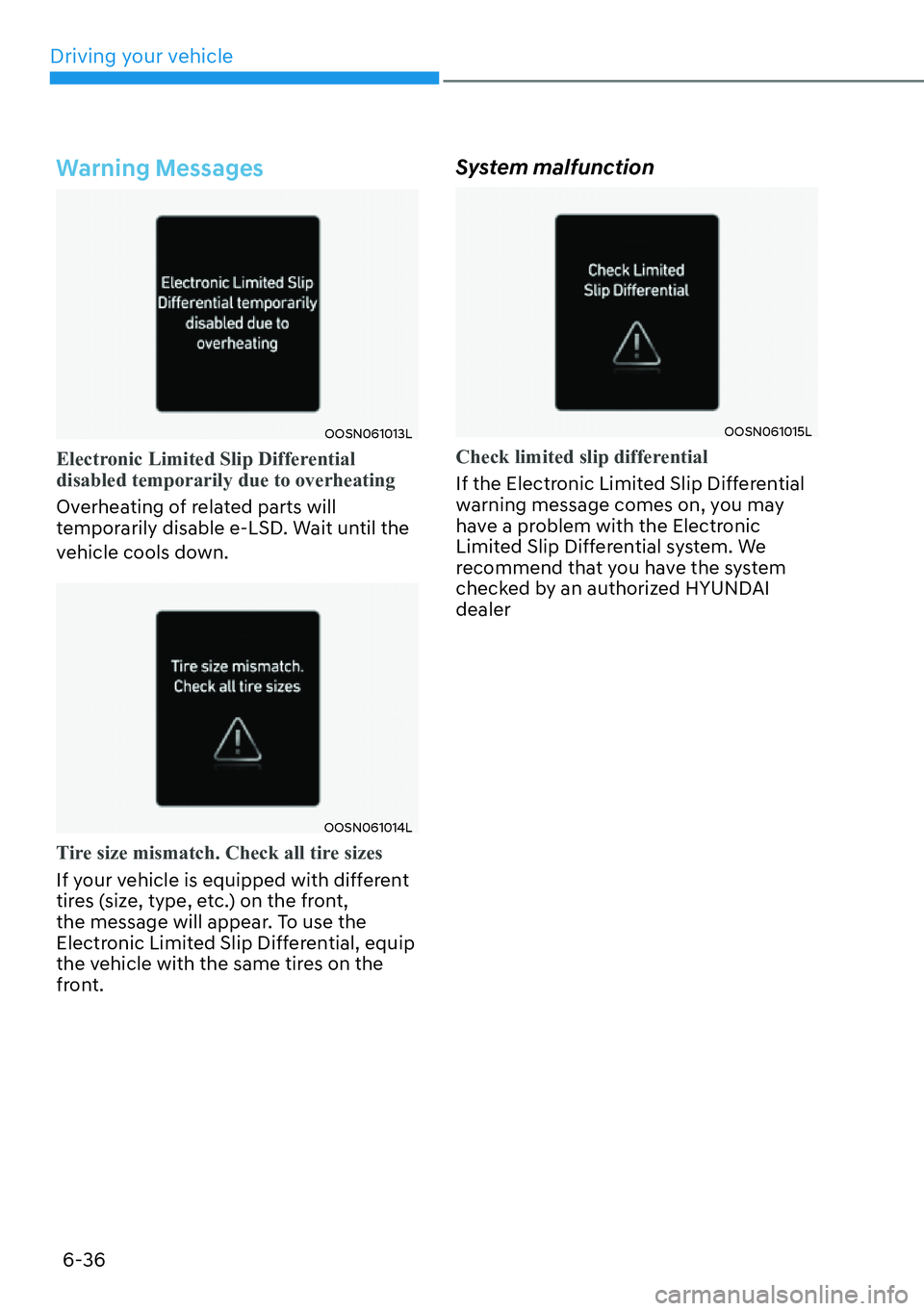

Warning Messages
OOSN061013L
Electronic Limited Slip Differential
disabled temporarily due to overheating
Overheating of related parts will
t
emporarily disable e-LSD. Wait until the
vehicle cools down.
OOSN061014L
Tire size mismatch. Check all tire sizes
If your vehicle is equipped with different
tir
es (size, type, etc.) on the front,
the message will appear. To use the
Electronic Limited Slip Differential, equip
the vehicle with the same tires on the
front.
System malfunction
OOSN061015L
Check limited slip differential
If the Electronic Limited Slip Differential
w
arning message comes on, you may
have a problem with the Electronic
Limited Slip Differential system. We
recommend that you have the system
checked by an authorized HYUNDAI
dealer

06
6-55

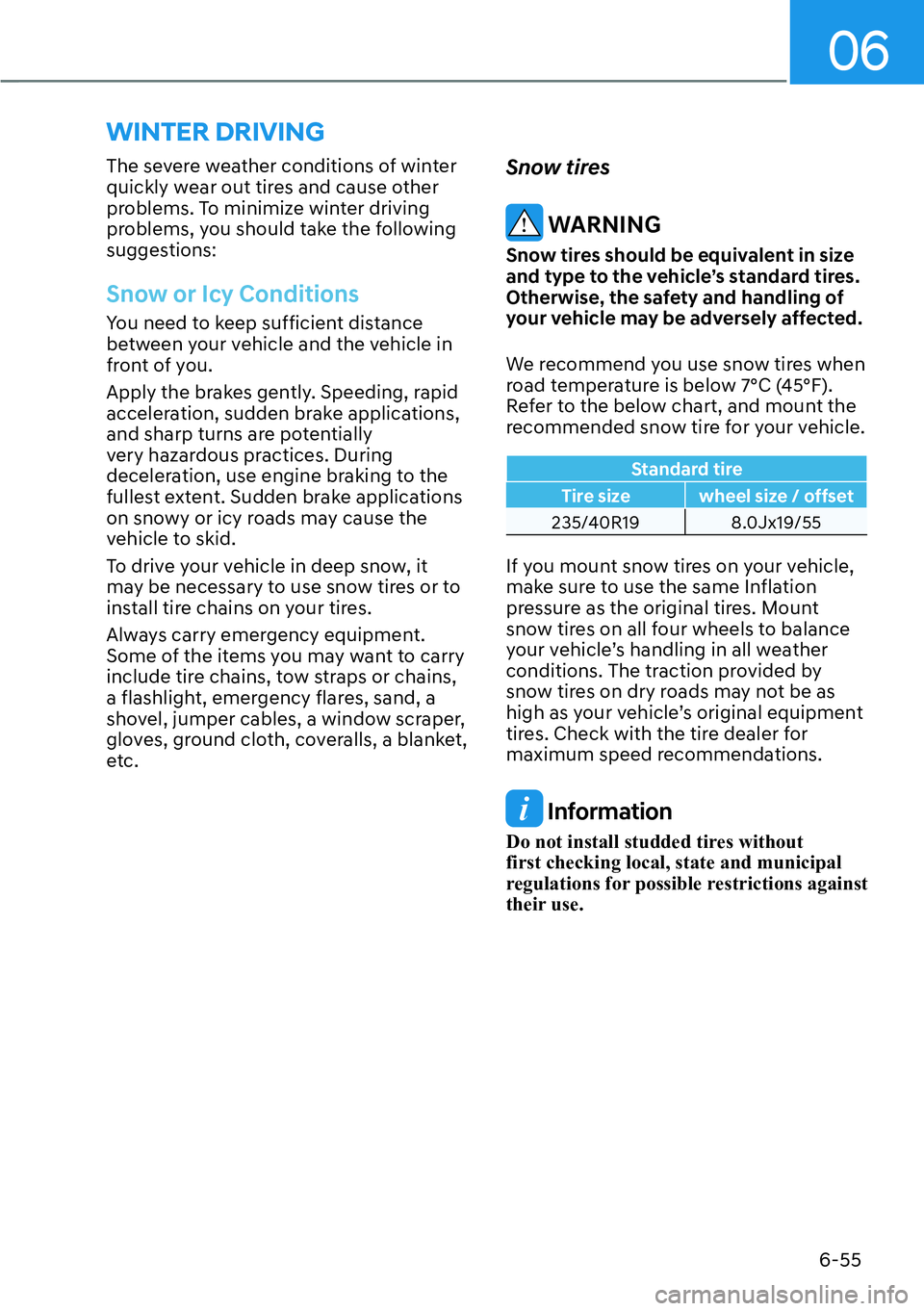

WINTER DRIVING
The severe weather conditions of winter
quickly wear out tires and cause other
problems. To minimize winter driving
problems, you should take the following
suggestions:
Snow or Icy Conditions
You need to keep sufficient distance
between your vehicle and the vehicle in
front of you.
Apply the brakes gently. Speeding, rapid
acceleration, sudden brake applications,
and sharp turns are potentially
very hazardous practices. During
deceleration, use engine braking to the
fullest extent. Sudden brake applications
on snowy or icy roads may cause the
vehicle to skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tires or to
install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to carry
include tire chains, tow straps or chains,
a flashlight, emergency flares, sand, a
shovel, jumper cables, a window scraper,
gloves, ground cloth, coveralls, a blanket,
etc.
Snow tires
WARNING
Snow tires should be equivalent in size
and type to the vehicle’s standard tires.
Otherwise, the safety and handling of
your vehicle may be adversely affected.
We recommend you use snow tires when
road temperature is below 7°C (45°F).
Refer to the below chart, and mount the
recommended snow tire for your vehicle.
Standard tire
Tire size wheel size / offset
235/40R19 8.0Jx19/55
If you mount snow tires on your vehicle,
make sure to use the same Inflation
pressure as the original tires. Mount
snow tires on all four wheels to balance
your vehicle’s handling in all weather
conditions. The traction provided by
snow tires on dry roads may not be as
high as your vehicle’s original equipment
tires. Check with the tire dealer for
maximum speed recommendations.
Information
Do not install studded tires without
first checking local, state and municipal
regulations for possible restrictions against
their use.

Driving your vehicle6-56

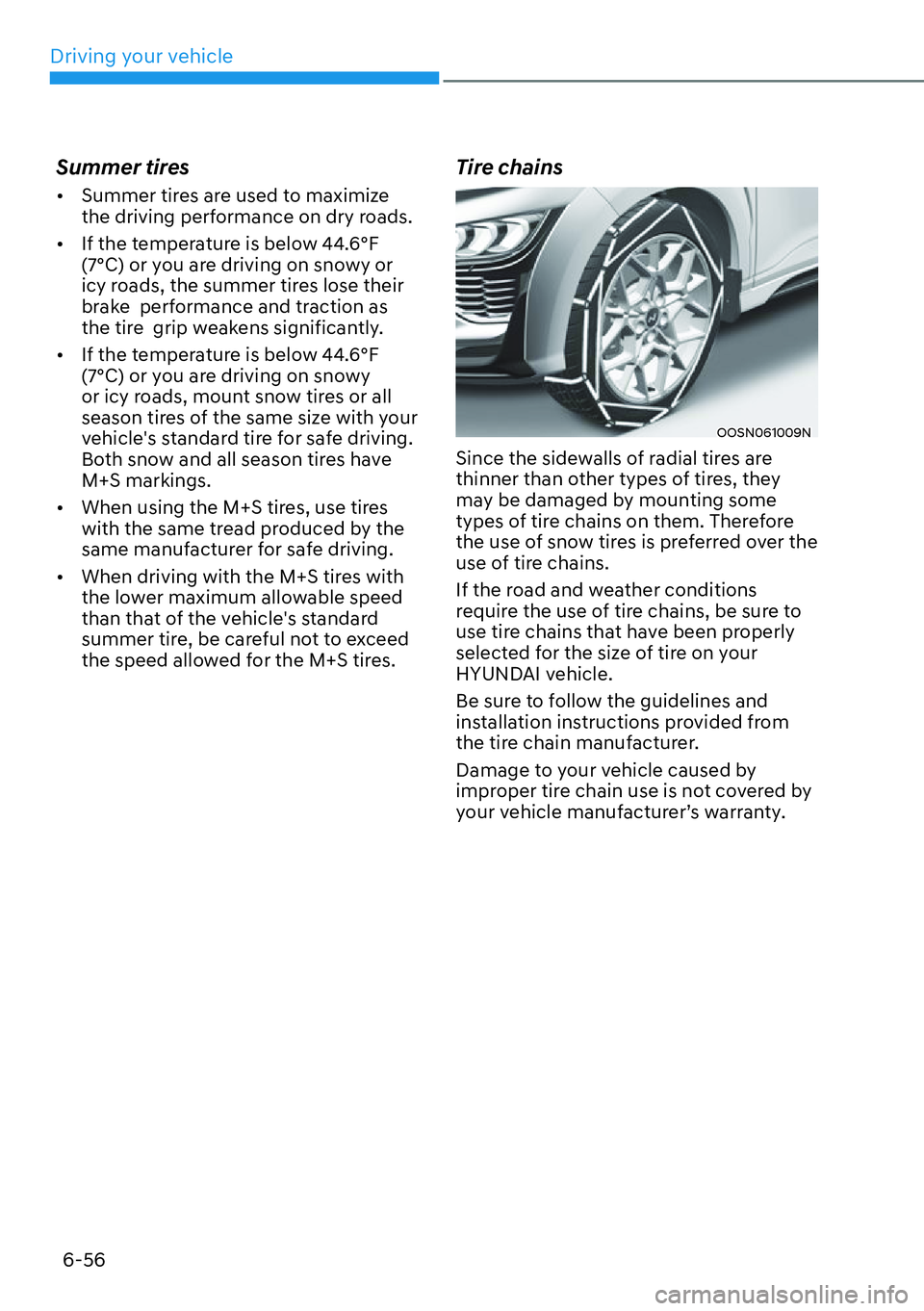

Summer tires

[ Summer tires are used to maximize
the driving performance on dry roads.

[ If the temperature is below 44.6°F
(7°C) or you are driving on snowy or
icy roads, the summer tires lose their
brake performance and traction as
the tire grip weakens significantly.

[ If the temperature is below 44.6°F
(7°C) or you are driving on snowy
or icy roads, mount snow tires or all
season tires of the same size with your
vehicle's standard tire for safe driving.
Both snow and all season tires have
M+S markings.

[ When using the M+S tires, use tires
with the same tread produced by the
same manufacturer for safe driving.

[ When driving with the M+S tires with
the lower maximum allowable speed
than that of the vehicle's standard
summer tire, be careful not to exceed
the speed allowed for the M+S tires.
Tire chains
OOSN061009N
Since the sidewalls of radial tires are
thinner than other types of tires, they
may be damaged by mounting some
types of tire chains on them. Therefore
the use of snow tires is preferred over the
use of tire chains.
If the road and weather conditions
require the use of tire chains, be sure to
use tire chains that have been properly
selected for the size of tire on your
HYUNDAI vehicle.
Be sure to follow the guidelines and
installation instructions provided from
the tire chain manufacturer.
Damage to your vehicle caused by
improper tire chain use is not covered by
your vehicle manufacturer’s warranty.

06
6-57

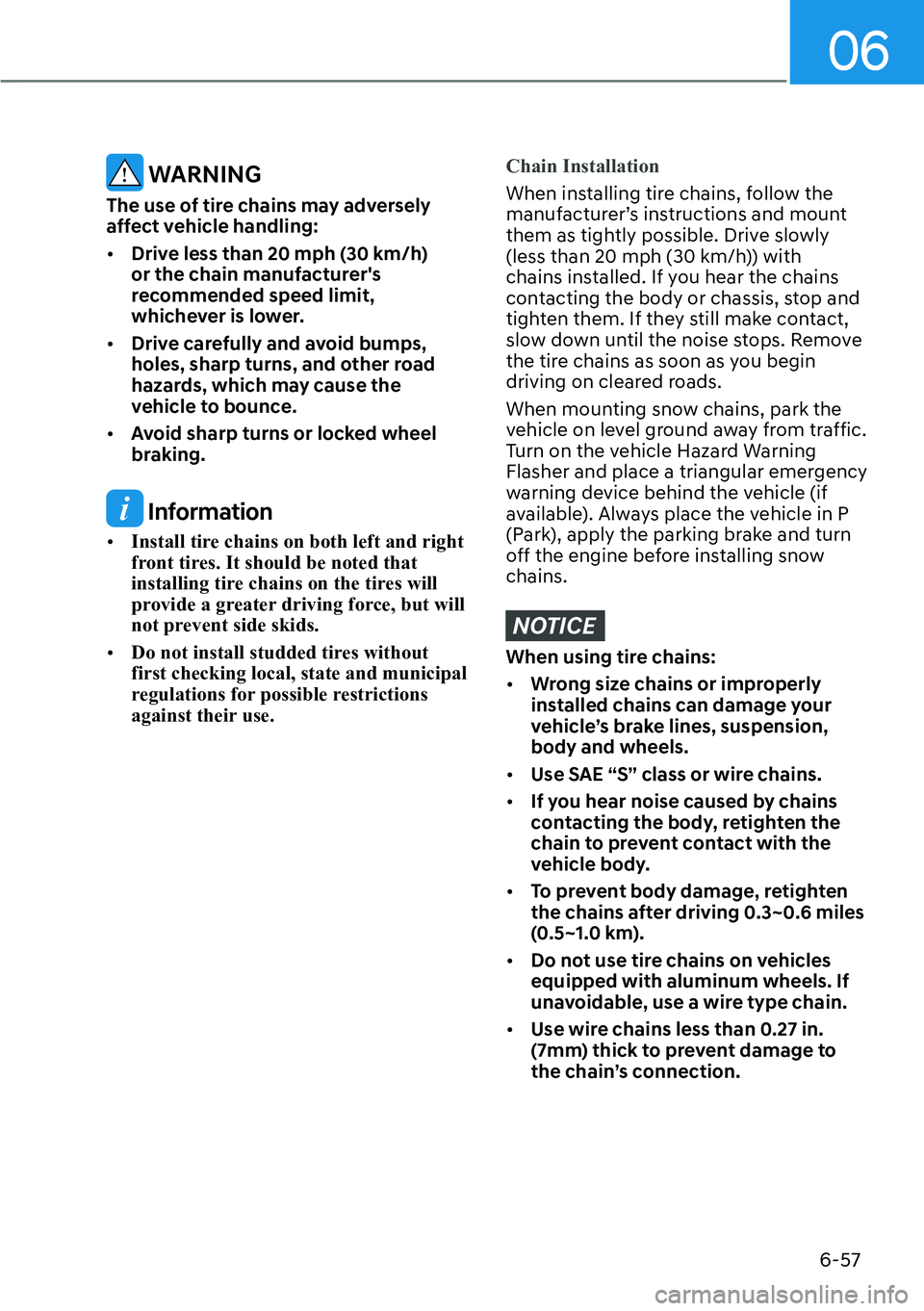

WARNING
The use of tire chains may adversely
affect vehicle handling:

[Drive less than 20 mph (30 km/h)
or the chain manufacturer's
recommended speed limit,
whichever is lower.

[ Drive carefully and avoid bumps,
holes, sharp turns, and other road
hazards, which may cause the
vehicle to bounce.

[ Avoid sharp turns or locked wheel
braking.
Information

[Install tire chains on both left and right
front tires. It should be noted that
installing tire chains on the tires will
provide a greater driving force, but will
not prevent side skids.

[ Do not install studded tires without
first checking local, state and municipal
regulations for possible restrictions
against their use.
Chain Installation
When installing tire chains, follow the
manuf

acturer’s instructions and mount
them as tightly possible. Drive slowly
(less than 20 mph (30 km/h)) with
chains installed. If you hear the chains
contacting the body or chassis, stop and
tighten them. If they still make contact,
slow down until the noise stops. Remove
the tire chains as soon as you begin
driving on cleared roads.
When mounting snow chains, park the
vehicle on level ground away from traffic.
Turn on the vehicle Hazard Warning
Flasher and place a triangular emergency
warning device behind the vehicle (if
available). Always place the vehicle in P
(Park), apply the parking brake and turn
off the engine before installing snow
chains.
NOTICE
When using tire chains:

[ Wrong size chains or improperly
installed chains can damage your
vehicle’s brake lines, suspension,
body and wheels.

[ Use SAE “S” class or wire chains.

[ If you hear noise caused by chains
contacting the body, retighten the
chain to prevent contact with the
vehicle body.

[ To prevent body damage, retighten
the chains after driving 0.3~0.6 miles
(0.5~1.0 km).

[ Do not use tire chains on vehicles
equipped with aluminum wheels. If
unavoidable, use a wire type chain.

[ Use wire chains less than 0.27 in.
(7mm) thick to prevent damage to
the chain’s connection.

06
6-61

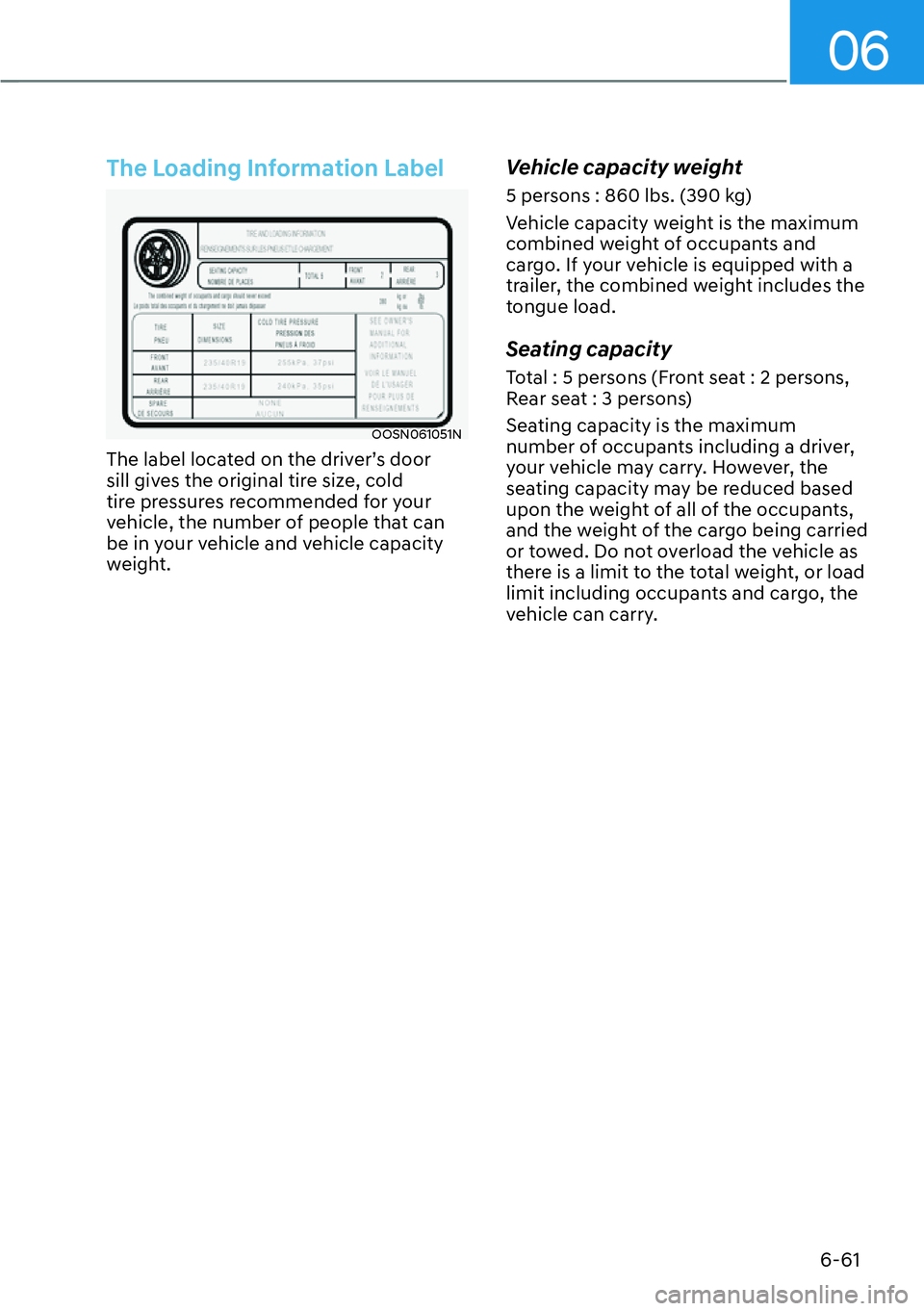

The Loading Information Label
OOSN061051N
The label located on the driver’s door
sill gives the original tire size, cold
tire pressures recommended for your
vehicle, the number of people that can
be in your vehicle and vehicle capacity
weight.
Vehicle capacity weight
5 persons : 860 lbs. (390 kg)
Vehicle capacity weight is the maximum
combined weight of occupants and
cargo. If your vehicle is equipped with a
trailer, the combined weight includes the
tongue load.
Seating capacity
Total : 5 persons (Front seat : 2 persons,
Rear seat : 3 persons)
Seating capacity is the maximum
number of occupants including a driver,
your vehicle may carry. However, the
seating capacity may be reduced based
upon the weight of all of the occupants,
and the weight of the cargo being carried
or towed. Do not overload the vehicle as
there is a limit to the total weight, or load
limit including occupants and cargo, the
vehicle can carry.
