2023 HYUNDAI IONIQ 6 charging

Convenience Features
5-12
Vehicle > Digital Key > Smartphone
Key .
3. Select the vehicle to save on your HYUNDAI Digital Key app and activate
the save mode.
Information If the Smartphone key button is disabled,
delete the previously saved digital key
(smartphone key) using the “Deleting
Digital Key (Smartphone Key)” procedure
in this chapter.
Refer to the 'tutorial' on your HYUNDAI
Digital Key app and then delete the
previously saved key in your smartphone.

4. Place your smartphone on the vehicle authentication pad (wireless charging
pad) with the screen facing up to begin
the saving process.
B5026502[A] Vehicle authentication pad (Wireless charging pad)
Once the digital key (smartphone key)
is saved, a message appears on the
infotainment system screen or
instrument cluster.
5. Remove the smartphone from the vehicle authentication pad (wireless
charging pad) and then complete the
saving process in the app.
Deleting Digital Key (Smartphone
Key)
B0901EU05
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete the digital key (smartphone key) in the infotainment system. From the
Settings menu, you can delete all the
registered digital key or only my
registered digital key.
Select:
• Setup > Vehicle > Digital Key >
Smartphone Key > Delete All
(deleting all registered key)
• Setup > Vehicle >Digital Key >
Smartphone Key > My Smartphone
Key Delete (my registered key
deleting)
Information The Delete button is disabled if there is no
digital key (smartphone key) saved.

3. Go to the Initialize Digital Key menu in
the HYUNDAI Digital Key app and select
the vehicle to delete the digital key
information:
Menu > Initialize Digital Key
A
Hyundai_CE_en_US.book Page 12

5
5-13
Information • If the saved digital key (smartphone key) information in your vehicle is deleted while
in vehicle maintenance, the digital key
(smartphone key) in your smartphone must
be deleted.
• For more information, refer to the 'tutorial' in your HYUNDAI Digital Key app.

Information The following do not allow the saving process
to be completed:
• If the smartphone is removed from the vehicle authentication pad (wireless
charging pad).
• If the infotainment system or instrument cluster screen is changed during this
process.
• If the vehicle is turned off.
• If the gear is shifted.
• If you try to save using a smartphone that is not logged in with the vehicle owner’s ID or
if you try to save the card key.
• If the NFC setting on your smartphone is off.
• If the smartphone screen is changed to off or locked status.
• If there is no smart key during the saving process.

When user changes
smartphone or deletes digital
key application
Setting digital key after smartphone
change or reset
If you have changed or reset your
smartphone, the previously registered
digital key may not be used. To set up the
digital key again:
1. Install the HYUNDAI Digital Key app and log in.
2. If you are the owner, try the digital key save process.
3. If you are the sharer, ask the owner to share the key.
Reinstalling digital key app after
deleting
If you have deleted the HYUNDAI Digital
Key app, download the digital key app
again:
1. Reinstall the app and log in.
2. Input the PIN number for user verification.
If the PIN is correct, the digital key data is
downloaded to your smartphone. You can
use it without any further registration or
sharing.
How to save/delete the digital
key (Card Key)
Saving Digital Key (Card Key)
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Install the HYUNDAI Digital Key app on your smartphone and set up the digital
key.
3. Using the Pair Card Key menu in the app, activate the Card Key registration
mode.
Hyundai_CE_en_US.book Page 13

Convenience Features
5-14
• NFC authentication: Enter the NFC authentication menu and touch your
smartphone to the outside door
handle.
• Bluetooth authentication: Enter the Bluetooth authentication menu and
press the OK button.
Information • If you activate the registration
mode,complete the card key saving
process within 5 minutes.
• If you have not registered the digital key (card key), register the digital key(card
key) with two smart keys.

B0902EU01
4. Register the digital key (card key) in the infotainment system. From the Settings
menu, go to Setup > Vehicle > Digital
Key > Card Key and then select Enable
Card Key.
Information The Enable Card Key button is disabled if
the digital key (card key) is already saved.
If you need to save a new digital key(card
key), delete the previous digital key (card
key) using “Deleting Digital key(Card
key)” procedure in this chapter.

5. Place the digital key (card key) on the vehicle authentication pad (wireless charging pad). The process begins
automatically.
If successful, a message appears on the
infotainment system screen or
instrument cluster.
Once a digital key (card key) has been
registered, it cannot be used with
another vehicle.
Deleting digital key (card key)
B0902EU03
1. Turn on the vehicle with the smart key
and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete your digital key (card key) from in the infotainment system. From the
Settings menu, go to Setup > Vehicle >
Digital Key > Card Key and then select
Delete .
Information • The Delete button is disabled if there is
no digital key (card key) saved.
• If the digital key (card key) is deleted,it can be re-registered to the same vehicle
as long as a new digital key (card key)
has not been registered.
• If you set up a new digital key (card key), the previously registered digital key (card
key) is no longer active and cannot be
re-registered.

Hyundai_CE_en_US.book Page 14

Convenience Features
5-16
[A] Vehicle authentication pad (Wireless charging pad)
1. After placing your registered card key
on the vehicle authentication pad
(wireless charging pad), depress the
brake pedal and press the Start/Stop
button.
2. After start-up, the digital key data will be automatically updated within 5 to 20
seconds. Remove the digital key (card
key) from the pad.
Information • If you do not place the digital key(card key) on the center of the vehicle authentication
pad (wireless charging pad), the vehicle
may not start. Remove the digital key (card
key) and then try again.
• If the digital key (card key) is near other NFC-enabled cards such as a transportation
card or credit card, it may not be
recognized.
For more information, refer to the
"Start/Stop Button" section in Chapter 6.
• Always remove the digital key (card key) from the vehicle authentication pad
(wireless charging pad) after turning on the
vehicle. If you place the card key on the
wireless charging pad while driving, the
digital key (card key) may malfunction.

Disabling digital key
B5026401_3
If you do not want to use the digital key
(smartphone key and card key), disable the function temporarily. Have the smart
key in the vehicle to change the settings.
From the Settings menu, go to Setup
>
Vehicle > Digital Key > Enable Card Key
(deselect) in the infotainment system.
Personalized profile and
vehicle settings
You can set the registered digital key
profiles for Driver 1 and Driver 2. When
you use the digital card key or the
HYUNDAI Digital Key app, the vehicle can
be set to the user-defined personalized
profile (includes items such as driver
settings and audio preferences).
Linking/Unlinking profile
Profile link
1. Select Setup > User Profile > Profile
Settings > Link Digital Key
(Smartphone) in the infotainment
system.
2. Unlock your smartphone and place it on the vehicle authentication pad
(wireless charging pad).
3. Select Link to connect the registered
phone’s digital key and the user’s
profile.
Profile unlink
Select Digital Key Information from the
infotainment system Settings menu to
unlink a profile.
Information If you connect both Driver 1 and Driver 2 with
a single smartphone, the digital key
(smartphone key) always uses the profile
settings for Driver 1. If you unlink Driver 1,
the Driver 2 profile settings are used.

Hyundai_CE_en_US.book Page 16

5
5-17
Precautions for using the vehicle
profile link and unlink
Be aware:
• Profile link can be used with the digital key. (Infotainment system: Setup >
Vehicle > Digital Key > Enable Digital
Key )
• Profile link information remains even when the digital key function is
disabled.
• Only the smartphone with the HYUNDAI Digital Key app can be linked
to your profile, not the card key.
• Profile link works only when the smartphone and the digital key are
registered to the vehicle.
• Do not remove the smartphone from the vehicle authentication pad
(wireless charging pad) until the profile
is linked.
Driver Profile operation
The profile linked with the digital key
locks or unlocks the doors when:
• The profile linked smartphone touches the driver’s door handle.
• HYUNDAI Digital Key app is used on a profile linked smartphone.
ItemPersonalization
Operation
Initial value Guest
Profile linked
smartphone key Linked profile
Profile unlinked
smartphone key Recently activated
profile
NFC card key
Smart key
Hyundai_CE_en_US.book Page 17

Convenience Features
5-32
Seat Easy Access
Seat easy access will move the driver’s
seat automatically as follows:
• Exiting the vehicle:The driver’s seat will move as follows
when the Start/Stop button is in the
OFF position with the gear in P (Park)
and the driver’s door open.
- Driver seat: Moves rearward depending on the distance selected
from the Settings menu in the
infotainment system.
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and the
rear seats.
• Entering the vehicle: The driver’s seat will move as follows
when the Start/Stop button is pressed
to the ACC, ON or START position or
while carrying the smart key, the
driver’s door is closed with the
Start/Stop button in the OFF position.
- Driver seat: Moves back to its original position.
• You can set the 'Seat Easy Access' function from the Settings menu in the
infotainment system. Select:
- Driver seat
Setup > Vehicle > Seat > Seating
Easy Access > Driver Seat Easy
Access > Extended/Normal/Off
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.

Steering Wheel
Motor Driven Power Steering
(MDPS)
The system assists you with steering the
vehicle. If the vehicle is turned off or if the
power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
If you notice any change in the effort
required to steer during normal vehicle
operation, have the system inspected by
an authorized HYUNDAI dealer.
CAUTION If Motor Driven Power Steering does not
operate normally, the warning light and
the message 'Check motor driven power
steering' will illuminate on the instrument
cluster. You may steer the vehicle, but it
will require increased steering efforts.
Take the vehicle to an authorized
HYUNDAI dealer and have the system
inspected as soon as possible.

Information During normal vehicle operation:
• The steering effort may be high immediately after pressing the Start/Stop
button to the ON position.
This happens as the system performs the
MDPS system diagnostics. When the
diagnostics are completed, the steering
wheel effort will return to its normal
condition.
• When the 12 V battery voltage is low, you might have to put more steering effort.
However, it is a temporary condition so that
it will return to normal condition after
charging the battery.
Hyundai_CE_en_US.book Page 32

Convenience Features
5-60
if equipped
Smart Trunk
B5012501
On a vehicle equipped with a smart key,
the trunk can be opened with hands-free
activation using the smart trunk system.
Using Smart Trunk
The hands-free smart trunk system can
used when:
• The smart trunk option is enabled in the Settings menu in the infotainment
system.
• The smart trunk is activated 15 seconds after all the doors are closed and
locked.
• The smart trunk opens when the smart key is detected in the area behind the
vehicle for 3 seconds.
• When disconnecting the charging connector, the smart trunk is activated.
Information The smart trunk does not operate when:
• A door is not locked or closed.
• The smart key is detected within 15 seconds from when the doors were closed and
locked.
• The smart key is detected within 15 seconds after the doors are closed and locked, and
within 60 in. (1.5 m) from the front door
handles. (for vehicles equipped with
Welcome Mirror). • The smart key is in the vehicle.
• The vehicle is on charge.

1. Settings
To use smart trunk, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Door > Smart
Trunk .
Information The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.

2. Detect and Alert The smart trunk detecting area extends
about 20-40 in. (50-100 cm) behind the
vehicle. If you are positioned in the
detecting area and are carrying the
smart key, the hazard warning lights
blink and the chime sounds before
opening.
Information If you unintentionally enter the detecting
area and the hazard warning lights and
chime starts, move away from the vehicle
with the smart key. The trunk remains
closed.

3. Automatic opening After the hazard warning lights blink
and the chime sounds 6 times, the
smart trunk opens.
Hyundai_CE_en_US.book Page 60

Convenience Features
5-62

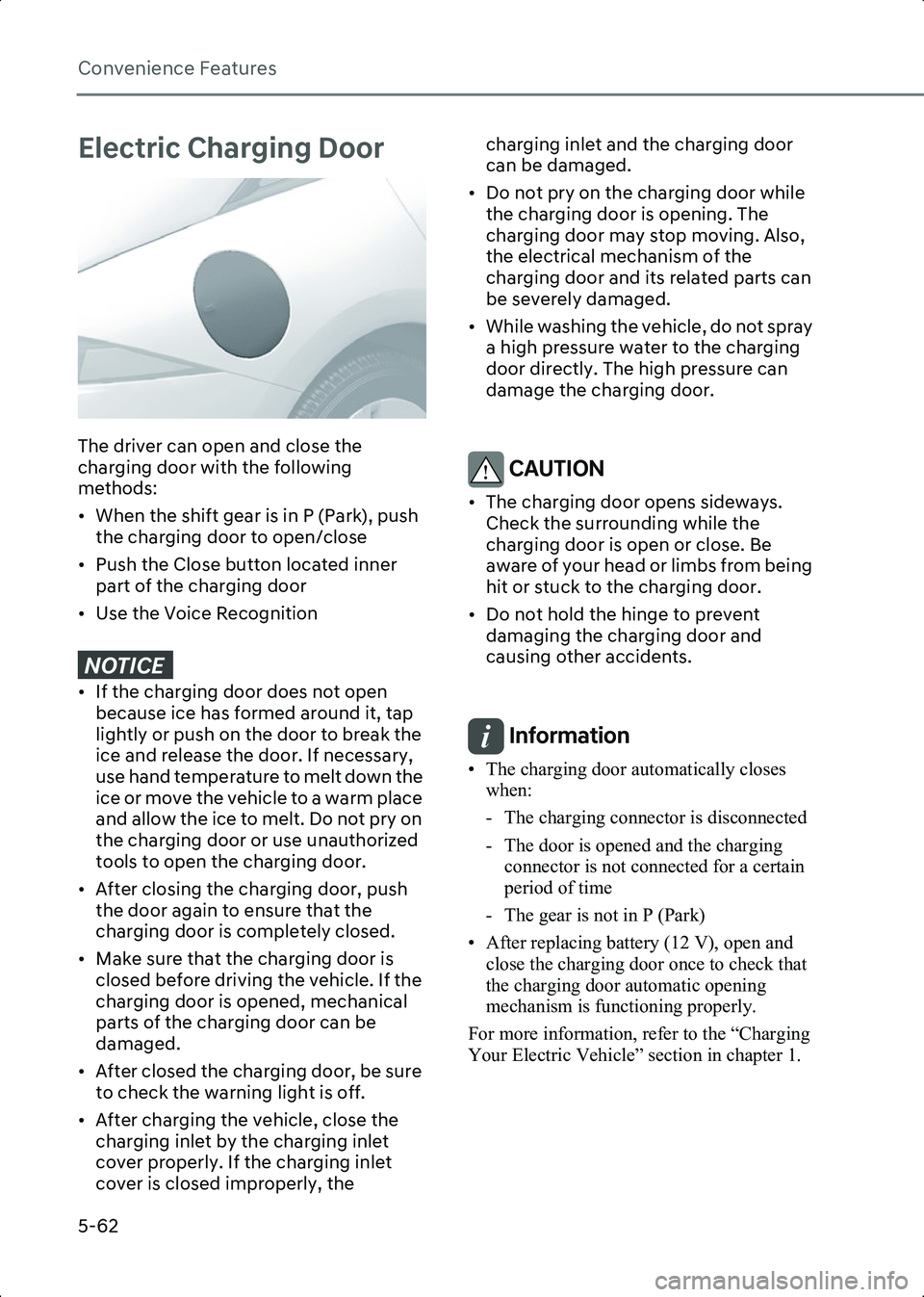

Electric Charging Door
B5013501
The driver can open and close the
charging door with the following
methods:
• When the shift gear is in P (Park), push the charging door to open/close
• Push the Close button located inner part of the charging door
• Use the Voice Recognition
NOTICE
[ ,IWKHFKDUJLQJGRRUGRHVQRWRSHQ EHFDXVHLFHKDVIRUPHGDURXQGLWWDS
OLJKWO\RUSXVKRQWKHGRRUWREUHDNWKH
LFHDQGUHOHDVHWKHGRRU,IQHFHVVDU\
XVHKDQGWHPSHUDWXUHWRPHOWGRZQWKH
LFHRUPRYHWKHYHKLFOHWRDZDUPSODFH
DQGDOORZWKHLFHWRPHOW'RQRWSU\RQ
WKHFKDUJLQJGRRURUXVHXQDXWKRUL]HG
WRROVWRRSHQWKHFKDUJLQJGRRU

[ $IWHUFORVLQJWKHFKDUJLQJGRRUSXVK WKHGRRUDJDLQWRHQVXUHWKDWWKH
FKDUJLQJGRRULVFRPSOHWHO\FORVHG

[ 0DNHVXUHWKDWWKHFKDUJLQJGRRULV FORVHGEHIRUHGULYLQJWKHYHKLFOH,IWKH
FKDUJLQJGRRULVRSHQHGPHFKDQLFDO
SDUWVRIWKHFKDUJLQJGRRUFDQEH
GDPDJHG

[ $IWHUFORVHGWKHFKDUJLQJGRRUEHVXUH WRFKHFNWKHZDUQLQJOLJKWLVRII

[ $IWHUFKDUJLQJWKHYHKLFOHFORVHWKH FKDUJLQJLQOHWE\WKHFKDUJLQJLQOHW
FRYHUSURSHUO\,IWKHFKDUJLQJLQOHW
FRYHULVFORVHGLPSURSHUO\WKH FKDUJLQJLQOHWDQGWKHFKDUJLQJGRRU
FDQEHGDPDJHG

[ 'RQRWSU\RQWKHFKDUJLQJGRRUZKLOH WKHFKDUJLQJGRRULVRSHQLQJ7KH
FKDUJLQJGRRUPD\VWRSPRYLQJ$OVR
WKHHOHFWULFDOPHFKDQLVPRIWKH
FKDUJLQJGRRUDQGLWVUHODWHGSDUWVFDQ
EHVHYHUHO\GDPDJHG

[ :KLOHZDVKLQJWKHYHKLFOHGRQRWVSUD\ DKLJKSUHVVXUHZDWHUWRWKHFKDUJLQJ
GRRUGLUHFWO\7KHKLJKSUHVVXUHFDQ
GDPDJHWKHFKDUJLQJGRRU

CAUTION • The charging door opens sideways. Check the surrounding while the
charging door is open or close. Be
aware of your head or limbs from being
hit or stuck to the charging door.
• Do not hold the hinge to prevent damaging the charging door and
causing other accidents.

Information • The charging door automatically closes when:
- The charging connector is disconnected
- The door is opened and the charging connector is not connected for a certain
period of time
- The gear is not in P (Park)
• After replacing battery (12 V), open and close the charging door once to check that
the charging door automatic opening
mechanism is functioning properly.
For more information, refer to the “Charging
Your Electric Vehicle” section in chapter 1.

Hyundai_CE_en_US.book Page 62
