2023 HYUNDAI IONIQ 6 light
[x] Cancel search: lightPage 85 of 582
2
2-11
Bulb Wattage
Light BulbBulb TypeWattage
Front Headlight
Low
LEDLED
High LEDLED
Turn signal light LEDLED
Parking light LEDLED
Daytime Running light (DRL) LEDLED
Side marker LEDLED
Front trunk light LEDLED
Side repeater light LEDLED
Rear Stop light
LEDLED
Tail light LEDLED
Turn signal light LEDLED
Reverse light LEDLED
Side marker LEDLED
License plate light LEDLED
High mounted stop light LEDLED
Interior Front seat map and room lamp
LEDLED
Rear seat room lamp LEDLED
Vanity mirror lamp LEDLED
Glove box lamp LEDLED
Door mood lamp LEDLED
Cargo area lamp LEDLED
Hyundai_CE_en_US.book Page 11
Page 95 of 582
3

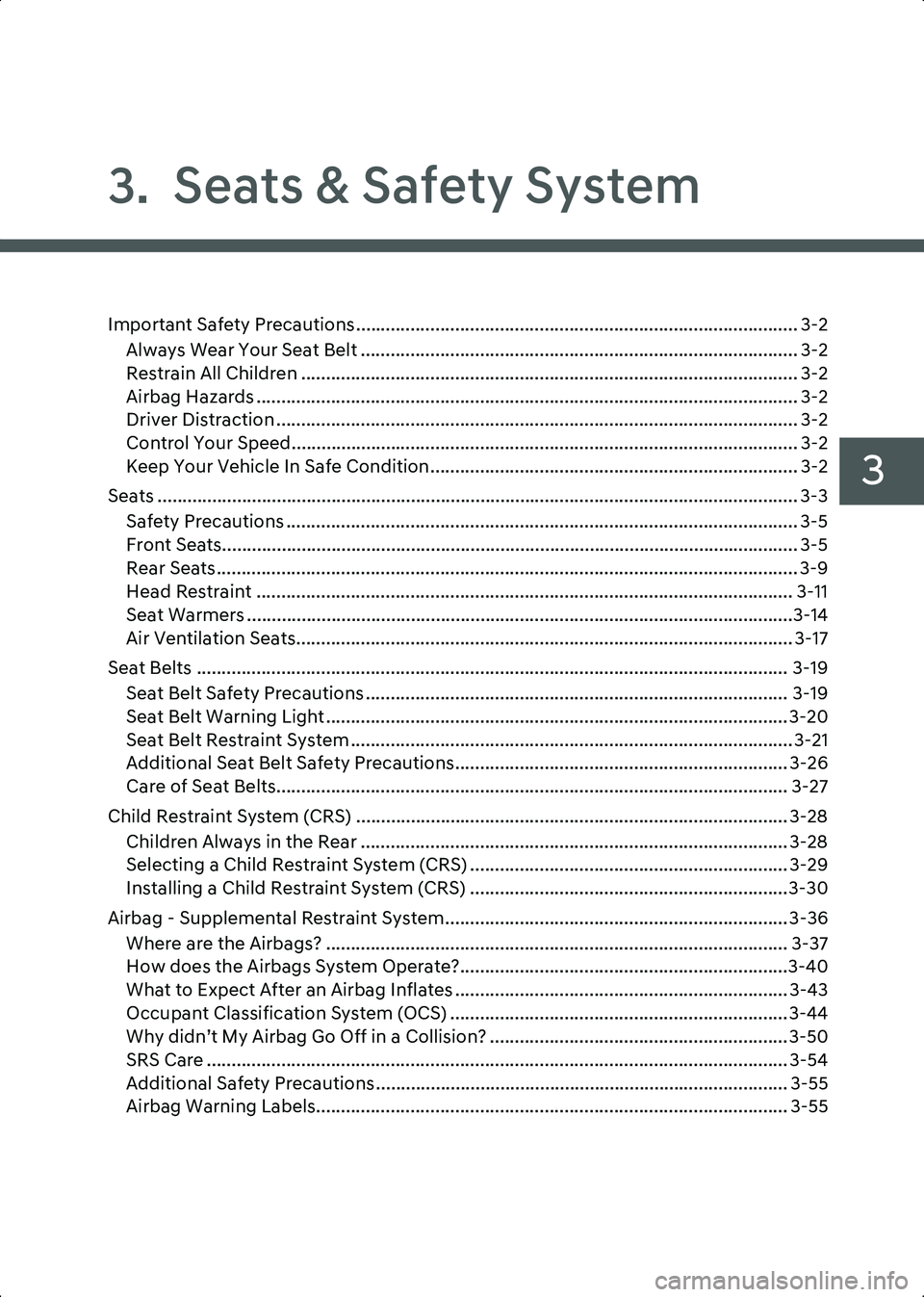

3. Seats & Safety System
Important Safety Precautions......................................................................................... 3-2Always Wear Your Seat Belt ........................................................................................ 3-2Restrain All Children .................................................................................................... 3-2
Airbag Hazards ............................................................................................................. 3-2
Driver Distraction ......................................................................................................... 3-2Control Your Speed...................................................................................................... 3-2Keep Your Vehicle In Safe Condition .......................................................................... 3-2
Seats ................................................................................................................................. 3-3 Safety Precautions ....................................................................................................... 3-5
Front Seats.................................................................................................................... 3-5Rear Seats ..................................................................................................................... 3-9
Head Restraint ............................................................................................................ 3-11
Seat Warmers ..............................................................................................................3-14
Air Ventilation Seats.................................................................................................... 3-17
Seat Belts ....................................................................................................................... 3-19 Seat Belt Safety Precautions ..................................................................................... 3-19
Seat Belt Warning Light ............................................................................................. 3-20
Seat Belt Restraint System ......................................................................................... 3-21
Additional Seat Belt Safety Precautions................................................................... 3-26
Care of Seat Belts....................................................................................................... 3-27
Child Restraint System (CRS) ....................................................................................... 3-28 Children Always in the Rear ...................................................................................... 3-28Selecting a Child Restraint System (CRS) ................................................................ 3-29
Installing a Child Restraint System (CRS) ................................................................3-30
Airbag - Supplemental Restraint System..................................................................... 3-36 Where are the Airbags? ............................................................................................. 3-37
How does the Airbags System Operate?..................................................................3-40
What to Expect After an Airbag Inflates ................................................................... 3-43
Occupant Classification System (OCS) .................................................................... 3-44
Why didn’t My Airbag Go Off in a Collision? ............................................................3-50
SRS Care ..................................................................................................................... 3-54
Additional Safety Precautions ................................................................................... 3-55
Airbag Warning Labels............................................................................................... 3-55
Hyundai_CE_en_US.book Page 1
Page 100 of 582
Seats & Safety System
3-6
• Do not allow anything to interfere with the normal position and proper locking
of the seatback.
• Do not place a cigarette lighter on the floor or seat. When you operate the
seat, gas may exit out of the lighter
causing a fire.
• Use extreme caution when picking up small objects trapped under the seats
or between the seat and the center
console. Your hands might be cut or
injured by the sharp edges of the seat
mechanism.
• If there are occupants in the rear seats, be careful while adjusting the front seat
position.
• Make sure that the seat is locked in place after the adjustment. If not, the
seat might move unexpectedly
resulting in an accident.
CAUTION To prevent injury:
• Do not adjust your seat while wearing your seat belt. Moving the seat cushion
forward may cause strong pressure on
your abdomen.
• Do not allow your hands or fingers to get caught in the seat mechanisms
while the seat is moving.
WARNING NEVER allow children in the vehicle
unattended. The power seats are
operable when the vehicle is turned off.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H V H D W V
[ $ O Z D \ V V W R S D G M X V W L Q J W K H V H D W V Z K H Q W K H V H D W K D V E H H Q D G M X V W H G D V I D U
I R U Z D U G R U U H D U Z D U G D V S R V V L E O H [ ' R Q R W D G M X V W W K H V H D W V O R Q J H U W K D Q
Q H F H V V D U \ Z K H Q W K H Y H K L F O H L V W X U Q H G
R I I 7 K L V P D \ U H V X O W L Q X Q Q H F H V V D U \
E D W W H U \ G U D L Q
[ ' R Q R W R S H U D W H W Z R R U P R U H V H D W V D W W K H V D P H W L P H 7 K L V P D \ U H V X O W L Q D Q
H O H F W U L F D O P D O I X Q F W L R Q
if equipped
Manual adjustment
The front seat can be adjusted by using
the levers located underneath the seat
cushion. Before driving, adjust the seat to
the proper position so that you can easily
control the steering wheel, foot pedals
and controls on the instrument panel.
Forward and rearward adjustment
B3000201
To move the seat forward or rearward:
1. Pull up the seat slide adjustment lever and hold it.
2. Slide the seat to the position you desire.
3. Release the lever and make sure the seat is locked in place. Move forward
and rearward without using the lever. If
the seat moves, it is not locked
properly.
Hyundai_CE_en_US.book Page 6
Page 101 of 582
3
3-7
Seatback angle
B3000202
To recline the seatback:
1. Lean forward slightly and lift up the seatback lever.
2. Carefully lean back on the seat and adjust the seatback to the position you
desire.
3. Release the lever and make sure the seatback is locked in place. (The lever
MUST return to its original position for
the seatback to lock.)
Reclining seatback
Sitting in a reclined position when the
vehicle is in motion can be dangerous.
Even when buckled up, the protections of
your restraint system (seat belts and/or
airbags) is greatly reduced by reclining
your seatback.
WARNING NEVER ride with a reclined seatback
when the vehicle is moving.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
Drivers and passengers should ALWAYS
sit well back in their seats, properly
belted, and with the seatbacks upright.
Seat belts must be snug against your hips
and chest to work properly. When the
seatback is reclined, the shoulder belt
cannot do its job because it will not be snug against your chest. Instead, it will be
in front of you. During an accident, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
Seat height
To change the height of the seat cushion:
B3000203
• Push down the lever several times, to
lower the seat cushion.
• Pull up the lever several times, to raise the seat cushion.
if equipped
Power adjustment
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion. Before
driving, adjust the seat to the proper
position so that you can easily control the
steering wheel, foot pedals and controls
on the instrument panel.
Hyundai_CE_en_US.book Page 7
Page 103 of 582
3
3-9
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.

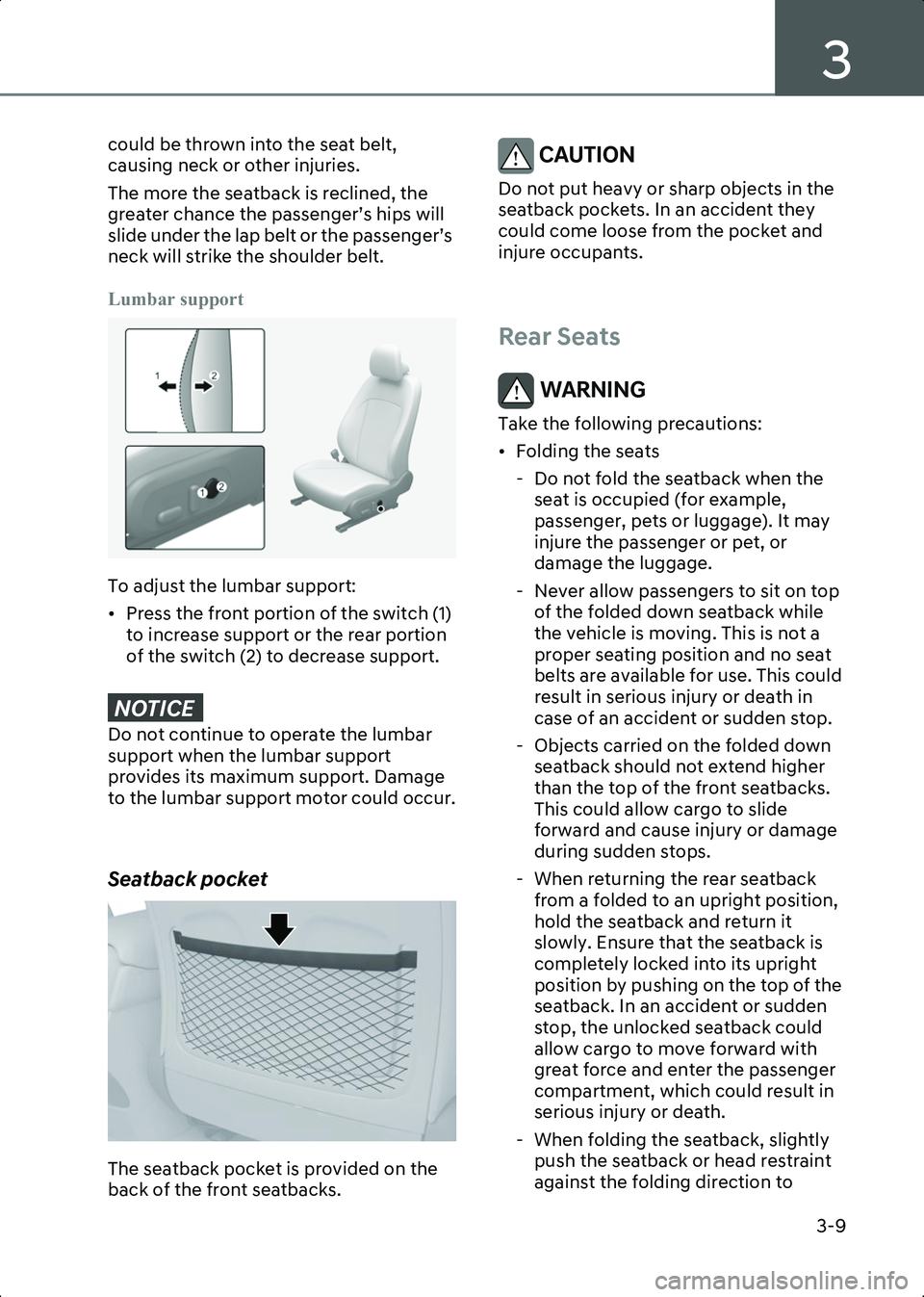

Lumbar support
B3000207
To adjust the lumbar support:
• Press the front portion of the switch (1) to increase support or the rear portion
of the switch (2) to decrease support.
NOTICE ' R Q R W F R Q W L Q X H W R R S H U D W H W K H O X P E D U
V X S S R U W Z K H Q W K H O X P E D U V X S S R U W
S U R Y L G H V L W V P D [ L P X P V X S S R U W ' D P D J H
W R W K H O X P E D U V X S S R U W P R W R U F R X O G R F F X U
Seatback pocket
B3000222
The seatback pocket is provided on the
back of the front seatbacks.
CAUTION Do not put heavy or sharp objects in the
seatback pockets. In an accident they
could come loose from the pocket and
injure occupants.
Rear Seats
WARNING Take the following precautions:
• Folding the seats
- Do not fold the seatback when the seat is occupied (for example,
passenger, pets or luggage). It may
injure the passenger or pet, or
damage the luggage.
- Never allow passengers to sit on top of the folded down seatback while
the vehicle is moving. This is not a
proper seating position and no seat
belts are available for use. This could
result in serious injury or death in
case of an accident or sudden stop.
- Objects carried on the folded down seatback should not extend higher
than the top of the front seatbacks.
This could allow cargo to slide
forward and cause injury or damage
during sudden stops.
- When returning the rear seatback from a folded to an upright position,
hold the seatback and return it
slowly. Ensure that the seatback is
completely locked into its upright
position by pushing on the top of the
seatback. In an accident or sudden
stop, the unlocked seatback could
allow cargo to move forward with
great force and enter the passenger
compartment, which could result in
serious injury or death.
- When folding the seatback, slightly push the seatback or head restraint
against the folding direction to
Hyundai_CE_en_US.book Page 9
Page 114 of 582
Seats & Safety System
3-20
Seat Belt Warning Light
Driver’s seat belt warning
Instrument cluster
B3001502
As a reminder to the driver, the driver’s
seat belt warning lights will illuminate for
about 6 seconds each time the Start/Stop
button is in the ON position regardless of
belt fastening. If the seatbelt is not
fastened, the warning chime will sound
for about 6 seconds.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12 mph (20 km/h) or
stop, the corresponding warning light will
illuminate.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
When the seat belt is unfastened during
driving, the warning light will illuminate
when the speed is under 12 mph (20
km/h).
When the speed is 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
Front passenger’s seat belt warning
As a reminder to the front passenger, the
front passenger’s seat belt warning lights
will illuminate for about 6 seconds each
time the Start/Stop button is in the ON
position regardless of belt fastening.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive under 12 mph (20 km/h) or
stop, the corresponding warning light will
illuminate.
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive 12 mph (20 km/h) and
faster, the warning light will blink and
warning chime will sound for about 100
seconds.
When the seat belt is unfastened during
driving, the warning light will illuminate
when the speed is under 12 mph (20
km/h). When the speed is 12 mph (20
km/h) and faster, the warning light will
blink and warning chime will sound for
about 100 seconds.
WARNING Riding in an improper position adversely
affects the front passenger’s seat belt
warning system. It is important for the
driver to instruct the passenger to
properly be seated as instructed in this
manual.
Information • Although the front passenger seat is not occupied, the seat belt warning light will
blink or illuminate for 6 seconds.
• The front passenger’s seat belt warning may operate when luggage is placed on the front
passenger seat.
Hyundai_CE_en_US.book Page 20
Page 115 of 582
3
3-21
Rear passenger’s seat belt warning
B3001503
For rear left and right side seat
• As a reminder to the rear passenger, the rear passenger’s seat belt warning
lights will illuminate for about 6
seconds each time the Start/Stop
button is in the ON position regardless
of belt fastening.
• If you unfasten the seat belt when you drive under 12 mph (20 km/h), the
corresponding warning light will
continue to illuminate until you fasten
the seat belt.
• If you unfasten the seat belt when you drive 12 mph (20 km/h) and faster, the
seat belt warning chime will sound for
about 35 seconds and the
corresponding warning light will blink.
• When the seat belt is unfastened during driving, the warning lights will
illuminate when the speed is under 12
mph (20 km/h).
• When the speed is 12 mph (20 km/h) and faster, the warning light will blink
and warning chime will sound for about
35 seconds.
For rear center seat
• As a reminder to the rear passenger, the rear passenger’s seat belt warning
lights will illuminate for about 6
seconds each time the Start/Stop
button is in the ON position regardless
of belt fastening. • If you unfasten the seat belt when you
drive under 12 mph (20 km/h), the
corresponding warning light will
continue to illuminate for about 70
seconds.
• If you unfasten the seat belt when you drive over 12 mph (20 km/h), the seat
belt warning chime will sound for about
35 seconds and the corresponding
warning light will blink.
• If the rear door is opened under 6 mph (10 km/h), warning light and warning
sound does not work even if driving
over 12 mph (20 km/h).
Seat Belt Restraint System
WARNING
B3001505
Improperly positioned seat belts may
increase the risk of serious injury in an
accident. Take the following precautions
when adjusting the seat belt:
• Position the lap portion of the seat belt as low as possible across your hips, not
on your waist, so that it fits snugly. This
allows your strong pelvic bones to
absorb the force of the crash, reducing
the chance of internal injuries.
• Position one arm under the shoulder belt and the other over the belt, as
shown in the illustration.
• Always position the shoulder belt anchor into the locked position at the
appropriate height.
Hyundai_CE_en_US.book Page 21
Page 119 of 582
3
3-25

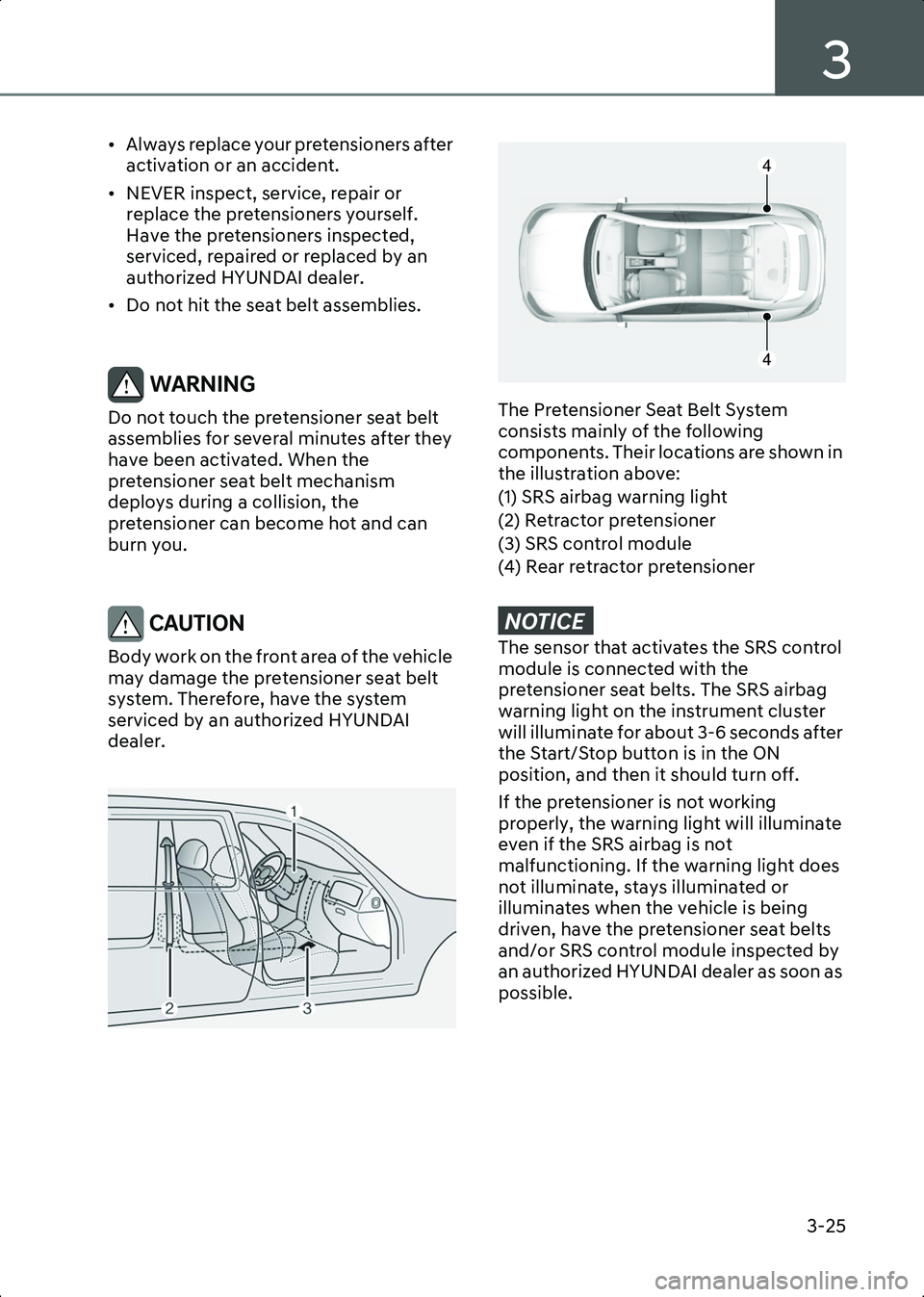

• Always replace your pretensioners after activation or an accident.
• NEVER inspect, service, repair or replace the pretensioners yourself.
Have the pretensioners inspected,
serviced, repaired or replaced by an
authorized HYUNDAI dealer.
• Do not hit the seat belt assemblies.
WARNING Do not touch the pretensioner seat belt
assemblies for several minutes after they
have been activated. When the
pretensioner seat belt mechanism
deploys during a collision, the
pretensioner can become hot and can
burn you.
CAUTION Body work on the front area of the vehicle
may damage the pretensioner seat belt
system. Therefore, have the system
serviced by an authorized HYUNDAI
dealer.
OHI038175L ONE1031086L
The Pretensioner Seat Belt System
consists mainly of the following
components. Their locations are shown in
the illustration above:
(1) SRS airbag warning light
(2) Retractor pretensioner
(3) SRS control module
(4) Rear retractor pretensioner
NOTICE 7 K H V H Q V R U W K D W D F W L Y D W H V W K H 6 5 6 F R Q W U R O
P R G X O H L V F R Q Q H F W H G Z L W K W K H
S U H W H Q V L R Q H U V H D W E H O W V 7 K H 6 5 6 D L U E D J
Z D U Q L Q J O L J K W R Q W K H L Q V W U X P H Q W F O X V W H U
Z L O O L O O X P L Q D W H I R U D E R X W V H F R Q G V D I W H U
W K H 6 W D U W 6 W R S E X W W R Q L V L Q W K H 2 1
S R V L W L R Q D Q G W K H Q L W V K R X O G W X U Q R I I
, I W K H S U H W H Q V L R Q H U L V Q R W Z R U N L Q J
S U R S H U O \ W K H Z D U Q L Q J O L J K W Z L O O L O O X P L Q D W H
H Y H Q L I W K H 6 5 6 D L U E D J L V Q R W
P D O I X Q F W L R Q L Q J , I W K H Z D U Q L Q J O L J K W G R H V
Q R W L O O X P L Q D W H V W D \ V L O O X P L Q D W H G R U
L O O X P L Q D W H V Z K H Q W K H Y H K L F O H L V E H L Q J
G U L Y H Q K D Y H W K H S U H W H Q V L R Q H U V H D W E H O W V
D Q G R U 6 5 6 F R Q W U R O P R G X O H L Q V S H F W H G E \
D Q D X W K R U L ] H G + < 8 1 ' $ , G H D O H U D V V R R Q D V
S R V V L E O H
4
4
Hyundai_CE_en_US.book Page 25
