Checking the warning lights
Check the cause of the warning lights referring to the table below and take appropriate
measures.
Warning LightCauseMeasure
Service warning light This warning light illuminates:
• When there is a problem with
related parts of the electric
vehicle control system, such
as sensors, etc.
• When an actuator, electric compressor for air
conditioning, etc.
malfunctions. In a normal condition, it
illuminates for about 3 seconds
when the Start/Stop button is in
the ON position and then goes
off.
• When the warning light
illuminates while driving, or
does not go off after starting
the vehicle, have your vehicle
inspected by an authorized
HYUNDAI dealer.
Power down indicator light This warning light illuminates:
• When the high voltage
battery level is too low or
voltage is decreasing.
(Output limit occurs when the
charge level is insufficient.)
• When the temperature of the high voltage battery is too
high or too low.
• When the driving system temperature is overheated
and requires protection. If it illuminates alone, it is not
failure.
• If both Power down indicator
light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• When the indicator is illuminating, immediately
charge the vehicle. The
driving speed may be limited
and the vehicle may not
properly drive uphill.
High voltage battery level warning light This warning light illuminates
when the high voltage battery
level is low. Immediately charge the
vehicle. The vehicle can drive
an additional 18-31 mi. (30-50
km).
• The actual distance to empty
depends on the driving
conditions.
Regenerative brake warning light This warning light illuminates
when the regenerative brake
does not operate and the brake
does not perform well due to
the malfunction of the brake
system. Drive safely and have your
vehicle inspected by an
authorized HYUNDAI dealer.
• The operation of the brake
pedal may feel deeper than
normal or the braking
distance may increase.
Hyundai_CE_en_US.book Page 59
Page 66 of 582
Introduction/Getting Started with Your Electric Vehicle
1-60
Checking the indicator lights
Check the meaning of the indicator lights referring to the table below and take
appropriate measures if necessary.
Indicator LightMeaning
Charging connector indicator light Indicates the charging connector is connected to
the high voltage battery.
• When the charging connector is connected, it
turns green.
Ready indicator light Illuminates when the electric vehicle is ready to be
driven, and indicates that the vehicle is operable.
• When the vehicle malfunctions, the indicator goes
off or blinks.
• If the indicator is turned off or blinks, have the vehicle inspected and repaired by an authorized
HYUNDAI dealer.
Hyundai_CE_en_US.book Page 60
Page 67 of 582
1
1-61
Checking warning messages
Check the meaning of the warning messages referring to the table below and take
appropriate measures.
WARNING • Do not drive with a warning message displayed.
• If a warning message does not go off after taking measures, have the vehicle immediately inspected and repaired by an authorized HYUNDAI dealer.
Warning MessageCauseMeasure
Low EV battery The high voltage battery level
reaches below 20 %.
• The warning light on the instrument cluster turns on
simultaneously. Charge the vehicle
immediately.
Charge immediately.
Power limited The high voltage battery level
reaches below 10 %.
• The warning light on the
instrument cluster turns on
simultaneously.
• The vehicle’s power may be reduced to minimize the
energy consumption of the
high voltage battery. Charge the battery
immediately.
Check electric vehicle
system There is a problem with the
electric vehicle control system. • Do not drive when the warning
message is displayed.
• Have the vehicle inspected by an authorized HYUNDAI
dealer.
- P X C B U U F S Z
$ I B S H F
J N N F E J B U F M Z
1 P X F S M J N J U F E
$ I F D L F M F D U S J D W F I J D M F T Z T U F N
Hyundai_CE_en_US.book Page 61
Page 68 of 582
Introduction/Getting Started with Your Electric Vehicle
1-62
Power limitedThis warning message is
displayed when the power of
the vehicle is limited to ensure
the safety of high-powered
components for the reasons
below:
• The high voltage battery level
is too low or voltage is
decreasing.
• The temperature of the high voltage battery is too high or
too low.
• When the driving system is overheated and requires
protection. If it illuminates alone, it did not
fail.
• Charge the vehicle is the
charge level is low.
• If both Power down indicator light and Service warning
light illuminate at the same
time, have the vehicle
inspected by an authorized
HYUNDAI dealer.
• Do not accelerate or start the vehicle suddenly when the
warning message is
displayed.
• Be careful when the Power down indicator light is
displayed. The vehicle may
not properly drive uphill and
roll back on a slope.
Low EV battery
temperature. Power
limited If you start or turn off the
vehicle when the outside
temperature is low, both
warning messages appear to
protect electric vehicle system.
• If the high voltage battery
charge level is low and parked
outside for a long time,
vehicle power could be
limited due to the low battery
temperature. • Charging the battery before
driving helps increase power.
• If these warning messages are still displayed even after the
ambient temperature has
increased, have the vehicle
inspected and repaired by an
authorized HYUNDAI dealer.
EV Battery
Overheated! Stop
vehicle The high voltage battery
temperature is too high. • Stop the vehicle in a safe place
and turn off the Start/Stop
button and wait until the
battery temperature
decreases.
• If these warning messages are still displayed even after
turning off the engine and
waiting for a sufficient time,
immediately have the vehicle
inspected by an authorized
HYUNDAI dealer.
Warning MessageCauseMeasure
1 P X F S M J N J U F E
- P X C B U U F S Z
U F N Q F S B U V S F
1 P X F S M J N J U F E
# B U U F S Z
P W F S I F B U F E 4 U P Q T B G F M Z
Hyundai_CE_en_US.book Page 62
Page 71 of 582
1
1-65

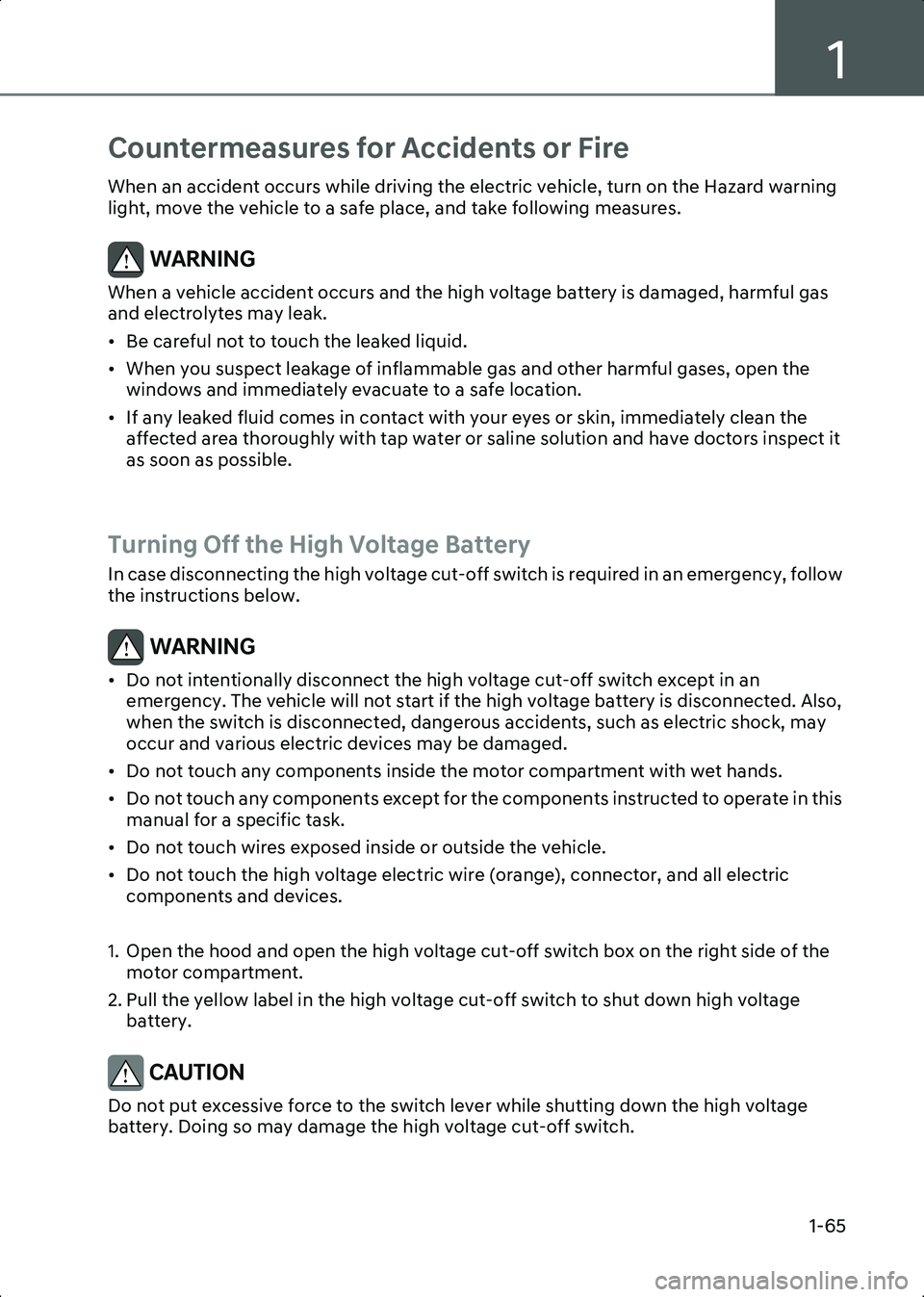

Countermeasures for Accidents or Fire
When an accident occurs while driving the electric vehicle, turn on the Hazard warning
light, move the vehicle to a safe place, and take following measures.
WARNING When a vehicle accident occurs and the high voltage battery is damaged, harmful gas
and electrolytes may leak.
• Be careful not to touch the leaked liquid.
• When you suspect leakage of inflammable gas and other harmful gases, open the windows and immediately evacuate to a safe location.
• If any leaked fluid comes in contact with your eyes or skin, immediately clean the affected area thoroughly with tap water or saline solution and have doctors inspect it
as soon as possible.
Turning Off the High Voltage Battery
In case disconnecting the high voltage cut-off switch is required in an emergency, follow
the instructions below.
WARNING • Do not intentionally disconnect the high voltage cut-off switch except in an emergency. The vehicle will not start if the high voltage battery is disconnected. Also,
when the switch is disconnected, dangerous accidents, such as electric shock, may
occur and various electric devices may be damaged.
• Do not touch any components inside the motor compartment with wet hands.
• Do not touch any components except for the components instructed to operate in this manual for a specific task.
• Do not touch wires exposed inside or outside the vehicle.
• Do not touch the high voltage electric wire (orange), connector, and all electric components and devices.
1. Open the hood and open the high voltage cut-off switch box on the right side of the motor compartment.
2. Pull the yellow label in the high voltage cut-off switch to shut down high voltage battery.
CAUTION Do not put excessive force to the switch lever while shutting down the high voltage
battery. Doing so may damage the high voltage cut-off switch.
Hyundai_CE_en_US.book Page 65
Page 76 of 582
Vehicle Information, Consumer Information, and Reporting Safety Defects
2-2
Exterior Overview (Front View)
A1000201The actual shape may differ from the illustration.
(1) Hood .......................................................................................................................... 5-53
(2) Headlight ..................................................................................................................9-44
(3) Tires and wheels .......................................................................................................9-20
(4) Side view mirror ....................................................................................................... 5-43
(5) Wide sunroof ............................................................................................................5-50
(6) Front windshield wiper blades ................................................................................ 9-15
(7) Window ..................................................................................................................... 5-46
(8) Wide-front view camera .......................................................................................... 7-98
(9) Front radar .................................................................................................................. 7-7
1
2
3
3
5
6
7
8
9
4
Hyundai_CE_en_US.book Page 2
Page 77 of 582
2
2-3

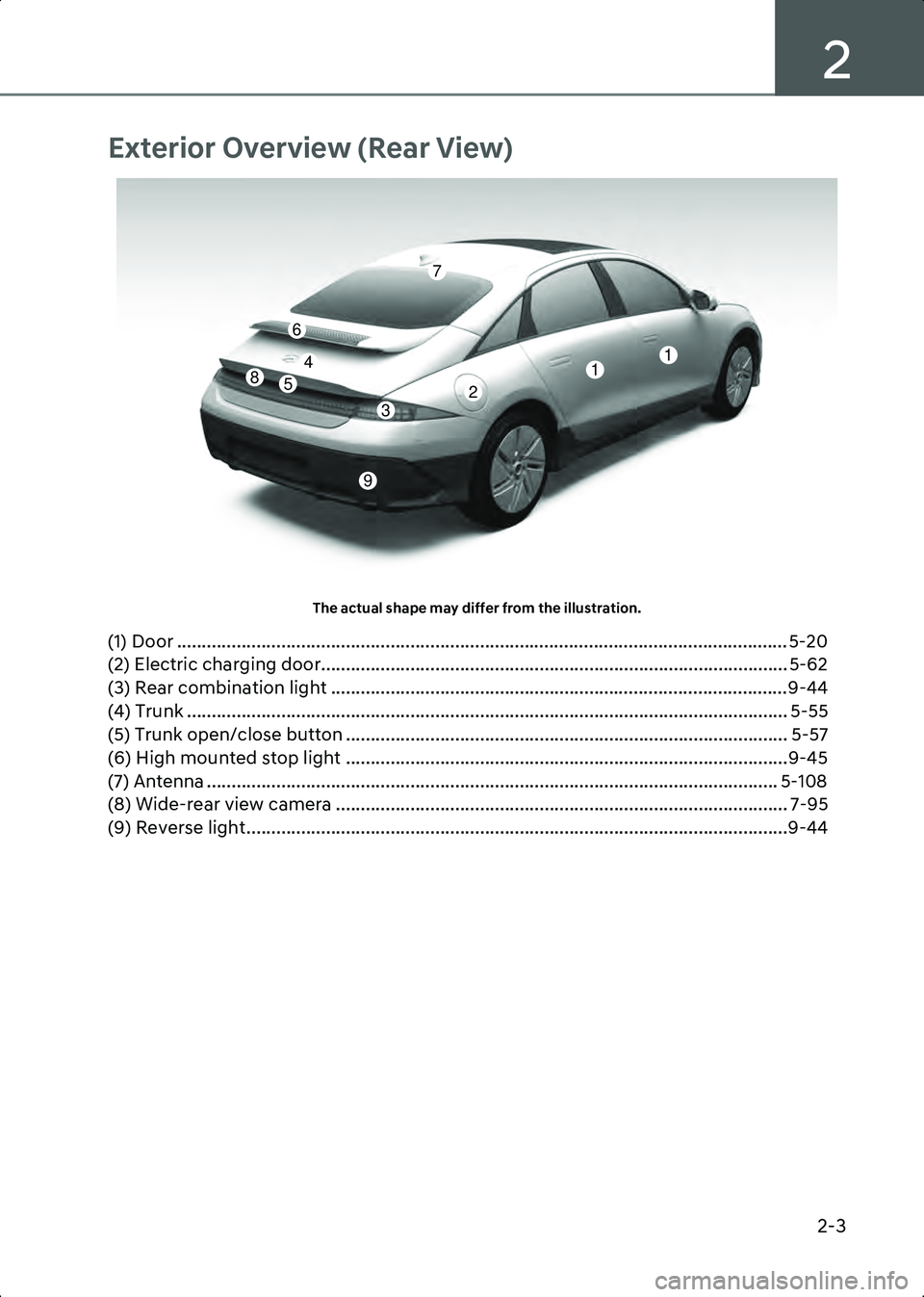

Exterior Overview (Rear View)
