Seats & Safety System
3-46
Condition and operation in the front passenger Occupant Classification System
*1 The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the system may recognize him/her as a child depending on his/her physique and posture.
*2 Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a child restraint system sits in the front passenger seat, the system may recognize him/her as an adult depending upon his/her
physique or sitting position.
*3 Never install a child restraint system on the front passenger seat.
*4 The PASSENGER AIRBAG “OFF” indicator may turn on or off when a child above 12 months to 12 years old (with or without child restraint system) sits in the front passenger seat. This is a normal condition.
Condition Detected by the
Occupant Classification System
Indicator/Warning LightDevices
“PASSENGER AIRBAG OFF”
Indicator LightSRS Warning LightFront Passenger Airbag
Adult
*1Off OffActivated
Infant
*2 or child restraint system
with 12 months old *3*4On Off Deactivated
Unoccupied OnOff Deactivated
Malfunction in the system OffOnActivated
Hyundai_CE_en_US.book Page 46
Page 146 of 582
Seats & Safety System
3-52

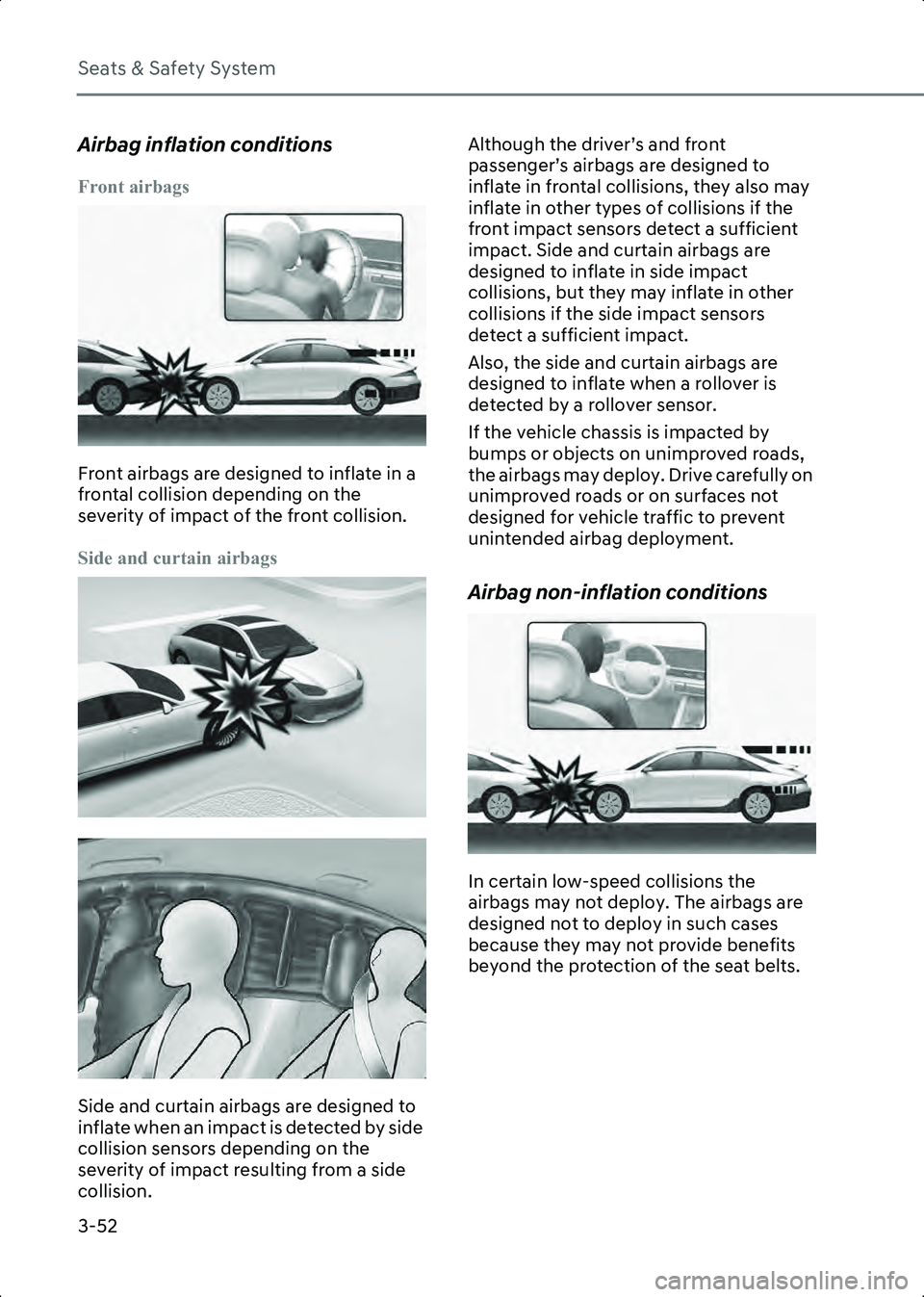

Airbag inflation conditions
Front airbags
B3003401
Front airbags are designed to inflate in a
frontal collision depending on the
severity of impact of the front collision.
Side and curtain airbags
B3003402
B3003403
Side and curtain airbags are designed to
inflate when an impact is detected by side
collision sensors depending on the
severity of impact resulting from a side
collision.Although the driver’s and front
passenger’s airbags are designed to
inflate in frontal collisions, they also may
inflate in other types of collisions if the
front impact sensors detect a sufficient
impact. Side and curtain airbags are
designed to inflate in side impact
collisions, but they may inflate in other
collisions if the side impact sensors
detect a sufficient impact.
Also, the side and curtain airbags are
designed to inflate when a rollover is
detected by a rollover sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the airbags may deploy. Drive carefully on
unimproved roads or on surfaces not
designed for vehicle traffic to prevent
unintended airbag deployment.
Airbag non-inflation conditions
B3003404
In certain low-speed collisions the
airbags may not deploy. The airbags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
Hyundai_CE_en_US.book Page 52
Page 154 of 582
Instrument Cluster
4-4
decelerating or driving on a downhill
road (being charged by the
regenerative brakes). As more electric
energy charges, the lower the gauge
level.
State of Charge (SOC) Gauge
for High Voltage Battery
B4000307
• The SOC gauge shows the charging status of the high voltage battery.
• The low percentage number on the indicator indicates that there is not
enough energy in the high voltage
battery. 100 % indicates that the high
voltage battery is fully charged.
• When driving on highways, make sure to check in advance if the high voltage
battery is charged enough.
B4000308
1. When the remaining battery is lower than 10 % on the SOC gauge, the High
Voltage Battery Level ( ) warning
light Illuminates, to alert you of the
battery level. 2. When the High Voltage Battery Level
( ) warning light Illuminates, the
vehicle can drive an additional 18-25 mi.
(30-40 km) depending on the driving
speed, heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE : K H Q W K H K L J K Y R O W D J H E D W W H U \ O H Y H O L V
O R Z W K H 3 R Z H U ' R Z Q \f L Q G L F D W R U O L J K W
L O O X P L Q D W H V D Q G W K H Y H K L F O H S R Z H U L V
O L P L W H G
& K D U J H W K H E D W W H U \ L P P H G L D W H O \ V L Q F H
\ R X U Y H K L F O H P D \ Q R W E H G U L Y H Q R U P D \
U R O O E D F N R Q D V O R S H Z L W K W K H L Q G L F D W R U O L J K W
L O O X P L Q D W H G
Outside temperature gauge
B4000304
The temperature reads in Fahrenheit or
Celsius depending on the units selected
from the Settings menu in the
infotainment system. The temperature
indicated on the instrument cluster may
not change as quickly as the outside
temperature.
Select: Setup > General > Units >
Temperature Unit > °F/°C
Both the temperature unit on the
instrument cluster and climate control
screen is changed.
'
Hyundai_CE_en_US.book Page 4
Page 172 of 582
Instrument Cluster
4-22
Stop vehicle and check power
supply
This warning message is displayed when
a failure occurs in the power supply
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check electric vehicle system
This warning message is displayed when
there is a problem with the electric
vehicle control system.
Refrain from driving when the warning
message is displayed.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
Check active air flap system
OOSEV040510L
This warning message is displayed in the
following situations:
• There is a malfunction with the actuator flap
• There is a malfunction with the actuator air flap controller
• The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Check virtual engine sound system
OOSEV040512L
This message is displayed when there is a
problem with the Virtual Engine Sound
System (VESS).
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
$ I F D L " D U J W F
" J S ' M B Q 4 Z T U F N
$ I F D L 7 J S U V B M & O H J O F 4 P V O E 4 Z T U F N
Hyundai_CE_en_US.book Page 22
Page 180 of 582
5
Inside Rearview Mirror ...............................................................................................5-35
Side View Mirrors ...................................................................................................... 5-43
Reverse Parking Aid .................................................................................................. 5-45
Windows ........................................................................................................................ 5-46 Power Windows .......................................................................................................... 5-47
Wide Sunroof................................................................................................................. 5-50
Hood ...............................................................................................................................5-53 Opening the Hood ......................................................................................................5-53
Closing the Hood ........................................................................................................5-53
Front Trunk .................................................................................................................... 5-54 Opening the Front Trunk........................................................................................... 5-54
Power Trunk ...................................................................................................................5-55 Power Trunk Operating Conditions...........................................................................5-55
Operating the Power Trunk ...................................................................................... 5-56Resetting the Power Trunk ....................................................................................... 5-58
Emergency Trunk Safety Release............................................................................. 5-58
Smart Trunk ................................................................................................................... 5-60 Using Smart Trunk ..................................................................................................... 5-60
Deactivating smart trunk ........................................................................................... 5-61
Detecting area ............................................................................................................ 5-61
Electric Charging Door ................................................................................................. 5-62
Head-up Display ........................................................................................................... 5-63 Head-up Display Settings ......................................................................................... 5-63
Head-up Display Information ................................................................................... 5-63
Precautions while Using the Head-up Display ........................................................ 5-63
Over-The-Air Software Update .................................................................................... 5-65 Downloading Software ............................................................................................. 5-65
Approving Software Update ..................................................................................... 5-65
Preparing Software Update ...................................................................................... 5-65Updating Software .................................................................................................... 5-65
Lighting ...........................................................................................................................5-67 Exterior Lights ............................................................................................................. 5-67
Welcome system ........................................................................................................5-70
Interior Lights ................................................................................................................. 5-71 Interior Light AUTO cut .............................................................................................. 5-71
Hyundai_CE_en_US.book Page 2
Page 187 of 582
5
5-9
circuit of the smart key to malfunction
which may not be covered under
warranty.
• Avoid dropping or throwing the smart key.
• Protect the smart key from extreme temperatures.
Loss of a smart key
A maximum of three smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you should
immediately take the vehicle and
remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
• The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
• The smart key is near a mobile two way radio system or a mobile phone.
• Another vehicle’s smart key is being operated close to your vehicle.
• The smart key is near any normal electronic devices or credit cards.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such as
making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the same location such as pants or jacket
pocket in order to avoid interference
between the two devices.
Information Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment. If the keyless entry
system is inoperative due to changes or
modifications not expressly approved by the
party responsible for compliance, it will not be
covered by your manufacturer’s vehicle
warranty.
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.
NOTICE [ . H H S W K H V P D U W N H \ D Z D \ I U R P H O H F W U R P D J Q H W L F P D W H U L D O V W K D W E O R F N V
H O H F W U R P D J Q H W L F Z D Y H V W R W K H N H \
V X U I D F H
[ $ O Z D \ V K D Y H W K H V P D U W N H \ Z L W K \ R X Z K H Q O H D Y L Q J W K H Y H K L F O H , I W K H V P D U W
N H \ L V O H I W Q H D U W K H Y H K L F O H W K H Y H K L F O H
E D W W H U \ P D \ E H G L V F K D U J H G
Hyundai_CE_en_US.book Page 9
Page 196 of 582
Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18
Page 220 of 582
Convenience Features
5-42
3. Release the buttons once the HomeLink indicator light (7) changes to
Green and flashes rapidly
4. Now all three HomeLink buttons (1), (2) and (3) are cleared of any programming
Information HomeLink® and the HomeLink® House logo
are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.
FCC (USA) and ISED (Canada)
This device complies with FCC rules part
15 and Innovation, Science, and
Economic Development Canada RSS-210.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference that may be
received including interference that may
cause undesired operation. WARNING:
The transmitter has been tested and
complies with FCC and ISED rules.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the device.
This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. End
Users must follow the specific operating
instructions for satisfying RF exposure
compliance. This transmitter must be at
least 20cm from the user and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
Cet appareil est conforme aux reglements
de la FCC, section 15, et au CNR-210
d’Innovation, Sciences et
Dhveloppement economique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes: (1) cet appareil ne
doit pas causer d’interferences nuisibles
et (2) cet appareil doit accepter toute
interference recue, y compris celle qui pourrait entrainer un dysfonctionnement.
MISE EN GARDE: L’emetteur a subi des
tests et est conforme aux reglements de
la FCC et d’ISDE. Les changements ou
modifications non approuves
explicitement par la partie responsable de
la conformite pourraient rendre caduque
l’autorisation de l’utilisateur de se servir
du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE etablies pour un environnement
non controle. Les utilisateurs finaux
doivent respecter les instructions
d’utilisation specifiques pour satisfaire
aux exigences de conformite aux
expositions de RF. L’emetteur doit se
trouver a 20 cm au minimum de
l’utilisateur et ne doit pas etre situe au
meme endroit que tout autre emetteur ou
antenne ni fonctionner avec un autre
emetteur ou antenne.
HomeLink 5 Programing Flow Chart
ODL3A040518
Hyundai_CE_en_US.book Page 42
