Driver Assistance System
7-124
Parking Collision-Avoidance Assist
disabled
B7008102
B7008103
The ‘Parking Collision-Avoidance Assist
system limited. Camera obscured’ or
‘Parking Collision-Avoidance Assist syst.
limited. Ultrasonic sensor blocked’
warning message will appear on the
instrument cluster if the following
situations occur:
• The camera(s) or ultrasonic sensor(s) is covered with foreign material, such as
snow or rain, etc.
• There is inclement weather, such as heavy snow, heavy rain, etc.
If this occurs, Parking
Collision-Avoidance Assist may turn off or
may not operate properly. Check whether
the cameras and ultrasonic sensors are
clean.
Limitations of Parking
Collision-Avoidance Assist
Parking Collision-Avoidance Assist may
not assist braking or warn the driver even
if there are pedestrians or objects under
the following circumstances:
• Problems with vehicle - Any non-factory equipment or accessory is installed
- Your vehicle is unstable due to an accident or other causes
- Bumper height or rear ultrasonic sensor installation has been modified
- Wide view camera(s) or ultrasonic sensor(s) is damaged
- Wide view camera(s) or the ultrasonic sensor(s) is stained with
foreign material, such as snow, dirt,
etc.
- Wide view camera(s) is obscured by a light source or by inclement weather,
such as heavy rain, fog, snow, etc.
- Your vehicle height is low or high due to heavy loads, abnormal tire
pressure, etc.
• Problems with the surroundings - The surrounding is very bright or very dark
- Outside temperature is very high or very low
- The wind is either strong (above 12 mph (20 km/h)) or blowing
perpendicular to the rear bumper
- Objects generating excessive noise, such as vehicle horns, loud
motorcycle vehicles or truck air
brakes, are near your vehicle
- An ultrasonic sensor with similar frequency is near your vehicle
- The road is slippery or inclined
- The image of the pedestrian in the front view camera is
indistinguishable from the
background
• Problems with pedestrian or object
Hyundai_CE_en_US.book Page 124

Driver Assistance System
7-126
CAUTION • Noise may be heard when sudden braking occurs to avoid a collision.
• If any other warning sound such as the seat belt warning chime is already
generated, Parking
Collision-Avoidance Assist warning
may not sound.
• Parking Collision-Avoidance Assist may not work properly if the bumper has
been damaged, replaced or repaired.
• Parking Collision-Avoidance Assist may not operate properly if interfered by
strong electromagnetic waves.
• Playing the vehicle audio system at high volume may prevent passengers
from hearing Parking
Collision-Avoidance Assist warning
sounds.
• Turn off Parking Collision-Avoidance Assist when towing a trailer. If towing
and moving in reverse, Parking
Collision-Avoidance Assist will activate
as it detects the trailer.
• The brake control may not operate properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control) warning light is on
- ESC (Electronic Stability Control) is engaged in a different function

CAUTION Take the following precautions to
maintain optimal performance of the
detecting sensors:
• Always keep the wide view cameras and ultrasonic sensors clean.
• Do not use any cleanser containing acid or alkaline detergents when cleaning
the camera lens. Use only a mild soap or neutral detergent, and rinse thoroughly
with water.
• Do not spray the wide view cameras or the rear ultrasonic sensors or their
surrounding area directly with a high
pressure washer. It may cause the wide
angle cameras or the ultrasonic sensors
to malfunction.
• Do not apply objects, such as a bumper sticker or a bumper guard, near the
wide angle cameras or ultrasonic
sensors or apply paint to the bumper.
Doing so may adversely affect the
performance of Parking
Collision-Avoidance Assist.
• Never disassemble or apply impact on the wide angle cameras or the
ultrasonic sensors components.
• Do not apply unnecessary force on the wide view cameras or the ultrasonic
sensors. Parking Collision-Avoidance
Assist may not operate properly if the
wide angle cameras or the ultrasonic
sensor(s) is forcibly moved out of
proper alignment. Have the vehicle
inspected by an authorized HYUNDAI
dealer.

Information Parking Collision-Avoidance Assist can
detect a pedestrian or an object when:
• A pedestrian is standing behind the vehicle
• A large obstacle, such as a vehicle is parked in the rear center of your vehicle

Hyundai_CE_en_US.book Page 126

Driver Assistance System
7-142
1. Getting ready for exit
B7009401
1. With the vehicle turned on, depress the brake pedal and shift the gear to P
(Park) or N (Neutral).
2. Press and hold the Parking/View ( ) button to turn on Remote Smart
Parking Assist.
Information •Agree must be selected on the infotainment
system and the infotainment system has to
operate properly to use Smart Exit function.
• Drive below 3 mph (5 km/h) with the vehicle on and shift the gear to P (Park) or
N (Neutral), Smart Exit function can be
used.
• If the function is turned on again after parallel parking is completed by Remote
Smart Parking Assist, Smart Exit function
can be used.

2. Checking space
B7009402
When the vehicle is stopped by
depressing the brake pedal, the vehicle
sensors will detect the distance from
nearby objects and check for space to
exit.
When checking for space is complete, a
message will appear on the infotainment
system with an audible sound to notify
the search is complete.
WARNING • While checking for space, if there is a risk of collision with pedestrian, animal
or object in the direction of vehicle exit,
for your safety, Smart Exit function can
be turned off.
• Even if check for space is completed, objects in the blind spot area cannot be
detected by the sensors. The driver
must directly check the blind spot area
and continue using the function.

Information Due to abnormal performance of the
ultrasonic sensor or the influence of the
surroundings, Parking function may not be
able to search for a parking space even if there
is a parking space, or may search for a space
that is not suitable for parking.
For more information, refer to the
"Limitations of Remote Smart Parking Assist"
section in this chapter.

7TEGI
/IITXLIZILMGPIWXEXMSREV]
Hyundai_CE_en_US.book Page 142

7
7-149

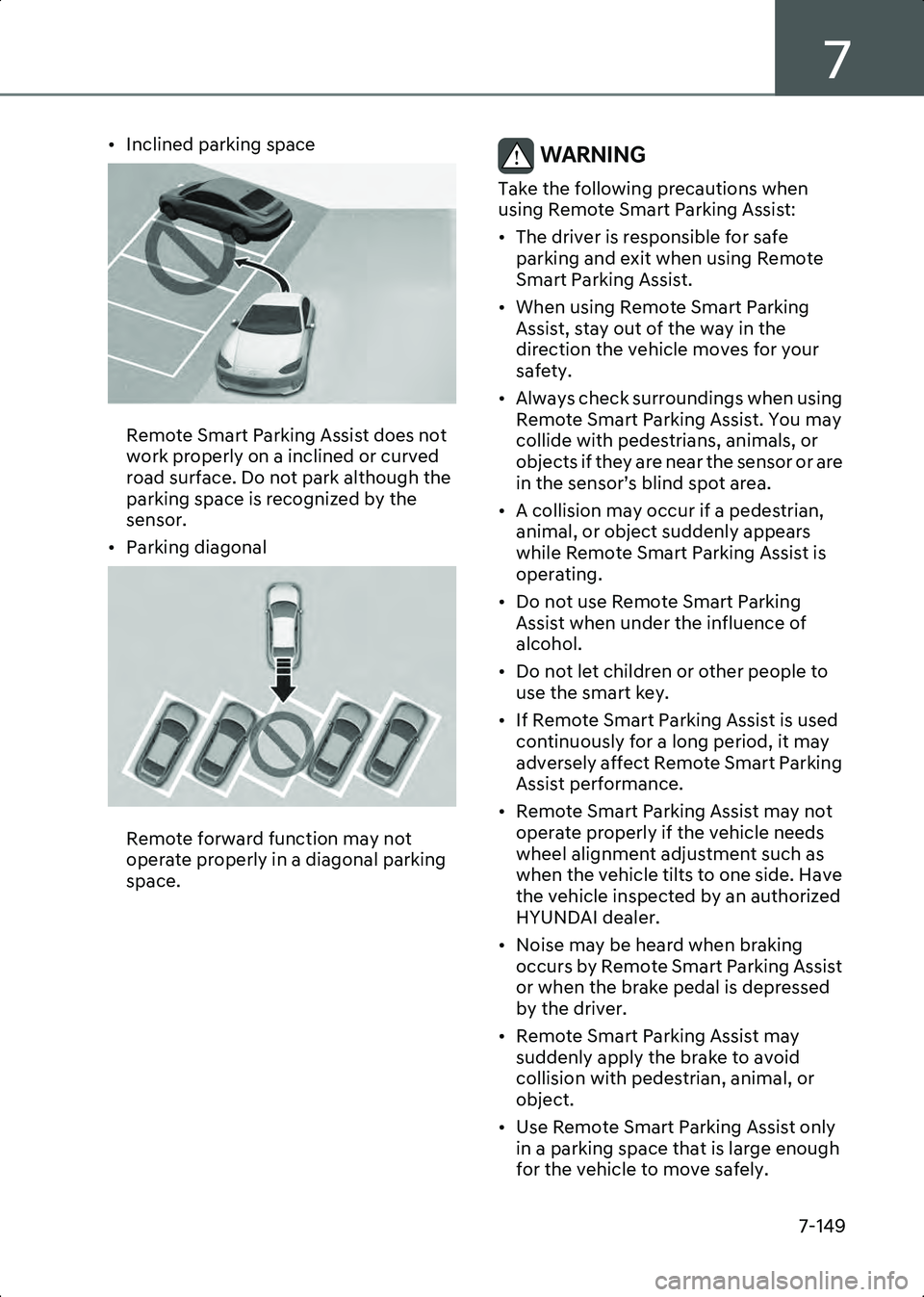

• Inclined parking space
B7009513
Remote Smart Parking Assist does not
work properly on a inclined or curved
road surface. Do not park although the
parking space is recognized by the
sensor.
• Parking diagonal
B7009514
Remote forward function may not
operate properly in a diagonal parking
space.
WARNING Take the following precautions when
using Remote Smart Parking Assist:
• The driver is responsible for safe parking and exit when using Remote
Smart Parking Assist.
• When using Remote Smart Parking Assist, stay out of the way in the
direction the vehicle moves for your
safety.
• Always check surroundings when using Remote Smart Parking Assist. You may
collide with pedestrians, animals, or
objects if they are near the sensor or are
in the sensor’s blind spot area.
• A collision may occur if a pedestrian, animal, or object suddenly appears
while Remote Smart Parking Assist is
operating.
• Do not use Remote Smart Parking Assist when under the influence of
alcohol.
• Do not let children or other people to use the smart key.
• If Remote Smart Parking Assist is used continuously for a long period, it may
adversely affect Remote Smart Parking
Assist performance.
• Remote Smart Parking Assist may not operate properly if the vehicle needs
wheel alignment adjustment such as
when the vehicle tilts to one side. Have
the vehicle inspected by an authorized
HYUNDAI dealer.
• Noise may be heard when braking occurs by Remote Smart Parking Assist
or when the brake pedal is depressed
by the driver.
• Remote Smart Parking Assist may suddenly apply the brake to avoid
collision with pedestrian, animal, or
object.
• Use Remote Smart Parking Assist only in a parking space that is large enough
for the vehicle to move safely.
Hyundai_CE_en_US.book Page 149

9
9-47
Appearance Care
Exterior Care
NOTICE If you park your vehicle near a stainless
steel sign or glass facade building, the
vehicle’s exterior plastic parts such as a
bumper, spoiler, garnish, light or side
view mirror might be damaged due to
sunlight reflected from the sign or
building. To prevent damage of the
exterior plastic parts, you should avoid
parking in areas where light may be
reflected or use a car cover. (The exterior
plastic parts applied to your vehicle may
vary.)

Exterior general caution
It is very important to follow the label
directions when using any chemical
cleaner or polish. Read all warning and
caution statements that appear on the
label.
Finish maintenance
Washing
To help protect your vehicle’s finish from
rust and deterioration, wash it thoroughly
and frequently at least once a month with
lukewarm or cold water.
If you use your vehicle for off-road
driving, you should wash it after each
off-road trip. Pay special attention to the
removal of any accumulation of salt, dirt,
mud, and other foreign materials. Make
sure the drain holes in the lower edges of
the doors and rocker panels are kept clear
and clean.
Insects, tar, tree sap, bird droppings,
industrial pollution and similar deposits
can damage your vehicle’s finish if not
removed immediately.Even prompt washing with plain water
may not completely remove all these
deposits. A mild soap, safe for use on
painted surfaces, should be used.
After washing, rinse the vehicle
thoroughly with lukewarm or cold water.
Do not allow soap to dry on the finish.
High-pressure washing
• When using high-pressure washers,
make sure to maintain sufficient
distance from the vehicle.
Insufficient clearance or excessive
pressure can lead to component
damage or water penetration.
• Do not spray the camera, sensors or its surrounding area directly with a high
pressure washer. Shock applied from
high pressure water may cause the
device to not operate normally.
• Do not bring the nozzle tip close to boots (rubber or plastic covers) or
connectors as they may be damaged if
they come into contact with high
pressure water.
WARNING After washing the vehicle, test the brakes
while driving slowly to see if they have
been affected by water before getting on
the road. If braking performance is
impaired, dry the brakes by applying
them lightly while maintaining a slow
forward speed.

NOTICE
[ 'RQRWXVHVWURQJVRDSFKHPLFDOGHWHUJHQWVRUKRWZDWHUDQGGRQRW
ZDVKWKHYHKLFOHLQGLUHFWVXQOLJKWRU
ZKHQWKHERG\RIWKHYHKLFOHLVZDUP

[ %HFDUHIXOZKHQZDVKLQJWKHVLGH ZLQGRZVRI\RXUYHKLFOH

[ (VSHFLDOO\ZLWKKLJKSUHVVXUHZDWHU ZDWHUPD\OHDNWKURXJKWKHZLQGRZV
DQGZHWWKHLQWHULRU
