Convenience Features
5-42
3. Release the buttons once the HomeLink indicator light (7) changes to
Green and flashes rapidly
4. Now all three HomeLink buttons (1), (2) and (3) are cleared of any programming
Information HomeLink® and the HomeLink® House logo
are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.
FCC (USA) and ISED (Canada)
This device complies with FCC rules part
15 and Innovation, Science, and
Economic Development Canada RSS-210.
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference that may be
received including interference that may
cause undesired operation. WARNING:
The transmitter has been tested and
complies with FCC and ISED rules.
Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s
authority to operate the device.
This equipment complies with FCC and
ISED radiation exposure limits set forth
for an uncontrolled environment. End
Users must follow the specific operating
instructions for satisfying RF exposure
compliance. This transmitter must be at
least 20cm from the user and must not be
co-located or operating in conjunction
with any other antenna or transmitter.
Cet appareil est conforme aux reglements
de la FCC, section 15, et au CNR-210
d’Innovation, Sciences et
Dhveloppement economique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes: (1) cet appareil ne
doit pas causer d’interferences nuisibles
et (2) cet appareil doit accepter toute
interference recue, y compris celle qui pourrait entrainer un dysfonctionnement.
MISE EN GARDE: L’emetteur a subi des
tests et est conforme aux reglements de
la FCC et d’ISDE. Les changements ou
modifications non approuves
explicitement par la partie responsable de
la conformite pourraient rendre caduque
l’autorisation de l’utilisateur de se servir
du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE etablies pour un environnement
non controle. Les utilisateurs finaux
doivent respecter les instructions
d’utilisation specifiques pour satisfaire
aux exigences de conformite aux
expositions de RF. L’emetteur doit se
trouver a 20 cm au minimum de
l’utilisateur et ne doit pas etre situe au
meme endroit que tout autre emetteur ou
antenne ni fonctionner avec un autre
emetteur ou antenne.
HomeLink 5 Programing Flow Chart
ODL3A040518
Hyundai_CE_en_US.book Page 42
Page 231 of 582
5
5-53
and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information If the sunroof is not reset after the vehicle
battery is disconnected or discharged, or the
sunroof fuse is blown, the sunroof may not
operate normally.
Sunroof open warning
B5027901
If the driver turns off the vehicle when the
sunroof is not fully closed, the warning
chime will sound for several seconds and
the sunroof open warning will appear on
the cluster display. Close the sunroof
securely when leaving your vehicle.
CAUTION Make sure the sunroof is closed fully
when leaving your vehicle. If the sunroof
is left open, rain or snow may wet the
interior of the vehicle. Also, leaving the
sunroof open when the vehicle is
unattended may invite theft.
Hood
Opening the Hood
B5010001
1. Park the vehicle and apply the parking brake.
2. Pull the release lever to unlatch the hood. The hood pops open slightly.
B5010002
3. Go to the front of the vehicle, raise the hood slightly, push to the left the
secondary hood release lever (1) inside
of the hood center and lift the hood (2).
Closing the Hood
1. Before closing the hood, check in and around the motor compartment to
ensure the following:
• Any tools or other loose objects have been removed.
• All glove, rags, or other combustible material have been removed.
Hyundai_CE_en_US.book Page 53
Page 233 of 582
5
5-55
CAUTION • Do not exceed the luggage volume capacity of the front trunk. The
overweighted front trunk can be
severely damaged.
• Do not store the fragile objects in the front trunk.
• ALWAYS keep the front trunk cover closed securely while driving. Items
inside your vehicle are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items can be damaged.
• Do not spray water in the front trunk. Vehicle driving system may get
damaged since the front trunk is
located at the center of motor
compartment.
• Be careful when you store any liquid in the front trunk. If liquid leak outside the
front trunk, it will cause damage to the
electric devices in the motor
compartment.
• Do not press the front trunk cover or place the objects on the front trunk
cover. It may be deformed or damaged.
• When closing the front trunk cover, be careful not to touch objects inside the
trunk. Loaded objects or the front trunk
may be deformed or damaged and the
front trunk cover may be opened during
driving due to poor closing, resulting in
joints and damage.
NOTICE 7 R D Y R L G S R V V L E O H W K H I W G R Q R W O H D Y H
Y D O X D E O H V L Q W K H V W R U D J H F R P S D U W P H Q W V
Power Trunk
Power Trunk Operating
Conditions
The power trunk operates when vehicle
speed is below 1.8 mph (3 km/h).
WARNING • Never leave children or animals unattended in your vehicle. Children
may operate the power trunk. Doing so
can result in injury to themselves or
others and can damage the vehicle.
• Make sure there are no people or objects and enough space around the
trunk before operating the power trunk
or smart trunk prior to use. Serious
injury, damage to the vehicle or
damage to surrounding objects (for
example, walls, ceilings, vehicles, etc.)
may result if contact with the trunk
occurs.
• Make sure there are no people or objects around the trunk before
operating the power trunk. Wait until
the trunk is opened fully and stopped
before loading or unloading cargo from
the vehicle.
NOTICE [ ' R Q R W F O R V H R U R S H Q W K H S R Z H U W U X Q N P D Q X D O O \ 7 K L V P D \ F D X V H G D P D J H W R
W K H S R Z H U W U X Q N , I L W L V Q H F H V V D U \ W R
F O R V H R U R S H Q W K H S R Z H U W U X Q N P D Q X D O O \
Z K H Q W K H E D W W H U \ L V G L V F K D U J H G R U
G L V F R Q Q H F W H G G R Q R W D S S O \ H [ F H V V L Y H
I R U F H
[ ' R Q R W R S H U D W H W K H S R Z H U W U X Q N P R U H W K D Q W L P H V F R Q W L Q X R X V O \ Z K H Q W K H
Y H K L F O H L V W X U Q H G R I I L Q G L F D W R U R I I \f
L V R I I 8 V H W K H S R Z H U W U X Q N Z L W K W K H
Y H K L F O H W X U Q H G R Q L Q G L F D W R U R Q \f
Z K H Q W K H S R Z H U W U X Q N L V X V H G
Hyundai_CE_en_US.book Page 55
Page 278 of 582
Convenience Features
5-100
Storage Compartment
WARNING Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items may
catch fire and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items may fly out of the compartment and
may cause an injury if they strike the
driver or a passenger.
NOTICE 7 R D Y R L G S R V V L E O H W K H I W G R Q R W O H D Y H
Y D O X D E O H V L Q W K H V W R U D J H F R P S D U W P H Q W V
Center Console Storage
Console Box
B5022101
To open:
Grab and hold the latch on the arm rest
then lift the lid.
• This space provides objects storing compartment.
Glove Box
B5022201
To open:
Pull the lever (1).
WARNING ALWAYS close the glove box door after
use.
An open glove box door can cause serious
injury to the passenger in an accident,
even if the passenger is wearing a seat
belt.
NOTICE 8 V H R I H [ F H V V L Y H I R U F H W R W K H J O R Y H E R [
P D \ G D P D J H W K H V O L G L Q J U D L O R U W K H O H Y H U
Hyundai_CE_en_US.book Page 100
Page 279 of 582
5
5-101
Interior Features
Cup Holder
Front
B5023101Rear
B5023102
Cups or small beverages cups may be
placed in the cup holders.
WARNING • Avoid abrupt starting and braking when the cup holder is in use to prevent
spilling your drink. If hot liquid spills,
you could be burned. Such a burn to the
driver could cause loss of vehicle
control resulting in an accident.
• Do not place uncovered or unsecured cups, bottles, cans, etc., in the cup
holder containing hot liquid while the
vehicle is in motion. Injuries may result
in the event of a sudden stop or
collision. • Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING Keep cans or bottles out of direct sun light
and do not put them in a hot vehicle. It
may explode.
NOTICE [ . H H S \ R X U G U L Q N V V H D O H G Z K L O H G U L Y L Q J W R S U H Y H Q W V S L O O L Q J \ R X U G U L Q N , I O L T X L G
V S L O O V L W P D \ J H W L Q W R W K H Y H K L F O HT V
H O H F W U L F D O H O H F W U R Q L F V \ V W H P D Q G
G D P D J H H O H F W U L F D O H O H F W U R Q L F S D U W V
[ : K H Q F O H D Q L Q J V S L O O H G O L T X L G V G R Q R W X V H K R W D L U W R E O R Z R X W R U G U \ W K H F X S
K R O G H U 7 K L V P D \ G D P D J H W K H L Q W H U L R U
Sunvisor
B5023401
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun from
the side window, pull it downward,
release it from the bracket (1) and swing it
to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the ticket
holder (5) to hold tickets.
Hyundai_CE_en_US.book Page 101

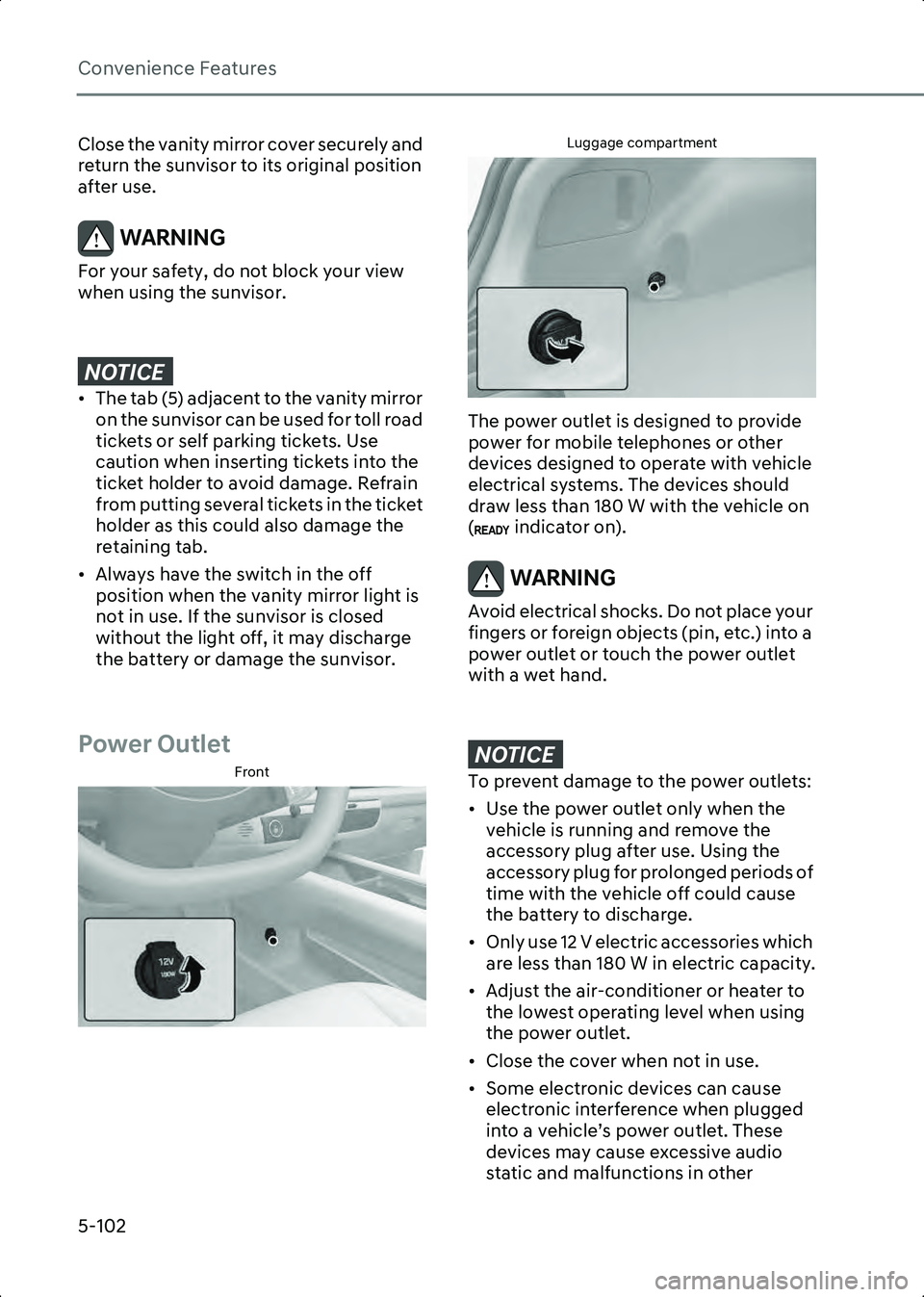

Page 280 of 582
Convenience Features
5-102
Close the vanity mirror cover securely and
return the sunvisor to its original position
after use.
WARNING For your safety, do not block your view
when using the sunvisor.
NOTICE [ 7 K H W D E \f D G M D F H Q W W R W K H Y D Q L W \ P L U U R U R Q W K H V X Q Y L V R U F D Q E H X V H G I R U W R O O U R D G
W L F N H W V R U V H O I S D U N L Q J W L F N H W V 8 V H
F D X W L R Q Z K H Q L Q V H U W L Q J W L F N H W V L Q W R W K H
W L F N H W K R O G H U W R D Y R L G G D P D J H 5 H I U D L Q
I U R P S X W W L Q J V H Y H U D O W L F N H W V L Q W K H W L F N H W
K R O G H U D V W K L V F R X O G D O V R G D P D J H W K H
U H W D L Q L Q J W D E
[ $ O Z D \ V K D Y H W K H V Z L W F K L Q W K H R I I S R V L W L R Q Z K H Q W K H Y D Q L W \ P L U U R U O L J K W L V
Q R W L Q X V H , I W K H V X Q Y L V R U L V F O R V H G
Z L W K R X W W K H O L J K W R I I L W P D \ G L V F K D U J H
W K H E D W W H U \ R U G D P D J H W K H V X Q Y L V R U
Power Outlet
Front
B5023601
Luggage compartment
B5023602
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 W with the vehicle on
( indicator on).
WARNING Avoid electrical shocks. Do not place your
fingers or foreign objects (pin, etc.) into a
power outlet or touch the power outlet
with a wet hand.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H S R Z H U R X W O H W V
[ 8 V H W K H S R Z H U R X W O H W R Q O \ Z K H Q W K H Y H K L F O H L V U X Q Q L Q J D Q G U H P R Y H W K H
D F F H V V R U \ S O X J D I W H U X V H 8 V L Q J W K H
D F F H V V R U \ S O X J I R U S U R O R Q J H G S H U L R G V R I
W L P H Z L W K W K H Y H K L F O H R I I F R X O G F D X V H
W K H E D W W H U \ W R G L V F K D U J H
[ 2 Q O \ X V H 9 H O H F W U L F D F F H V V R U L H V Z K L F K D U H O H V V W K D Q : L Q H O H F W U L F F D S D F L W \
[ $ G M X V W W K H D L U F R Q G L W L R Q H U R U K H D W H U W R W K H O R Z H V W R S H U D W L Q J O H Y H O Z K H Q X V L Q J
W K H S R Z H U R X W O H W
[ & O R V H W K H F R Y H U Z K H Q Q R W L Q X V H
[ 6 R P H H O H F W U R Q L F G H Y L F H V F D Q F D X V H H O H F W U R Q L F L Q W H U I H U H Q F H Z K H Q S O X J J H G
L Q W R D Y H K L F O HT V S R Z H U R X W O H W 7 K H V H
G H Y L F H V P D \ F D X V H H [ F H V V L Y H D X G L R
V W D W L F D Q G P D O I X Q F W L R Q V L Q R W K H U
Hyundai_CE_en_US.book Page 102
Page 284 of 582
Convenience Features
5-106
Clock
The clock can be set from the
infotainment system.
For more information, refer to the user’s
manual provided in the infotainment
system and the quick reference guide.
WARNING Do not attempt to adjust the clock while
driving. Doing so may result in distracted
driving which may lead to an accident
involving personal injury or death.
Coat Hook
B5024201
These hooks are not designed to hold
large or heavy items.
WARNING
B5024202
Do not hang other objects such as
hangers or hard objects except clothes. Also, do not put heavy, sharp or breakable
objects in the clothes pockets. In an
accident or when the curtain airbag is
inflated, it may cause vehicle damage or
personal injury.
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet keep
the floor mats from sliding forward.
WARNING Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the anchors.
WARNING The following must be observed when
installing ANY floor mat to the vehicle.
• Ensure to remove a protective film
attached on the carpet before
attaching a floor mat on the front floor
carpet. Otherwise, the floor mat may
move freely on the protective film and it
could result in unintentional braking or
accelerating.
• Ensure that the floor mats are securely attached to the vehicle’s floor mat
anchor(s) before driving the vehicle.
• Do not use ANY floor mat that cannot be firmly attached to the vehicle’s floor
mat anchors.
• Do not stack floor mats on top of one another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should be
installed in each position.
IMPORTANT Your vehicle was
manufactured with driver’s side floor mat
anchors that are designed to securely
Hyundai_CE_en_US.book Page 106
Page 291 of 582
6
6-3
Before Driving
Before Entering the Vehicle
• Make sure all windows, outer side mirror(s), and outside lights are clean
and unobstructed.
• Remove frost, snow, or ice from both the front and rear windshield as well as
the front side windows.
• Visually check the tires for uneven wear and damage.
• Check under the vehicle for any sign of leaks.
• Make sure there are no obstacles behind you if you intend to back up.
Before Starting
• Make sure the hood, the trunk, and the doors are securely closed and locked.
• Adjust the position of the seat and steering wheel.
• Adjust the inside rearview mirror and outer side view mirrors.
• Verify all the lights work.
• Fasten your seat belt. Check that all passengers have fastened their seat
belts.
• Check the gauges and indicators in the instrument panel and the messages on
the cluster display when the vehicle is
in the ON position.
• Check that any items you are carrying are stored properly or fastened down
securely.
WARNING To reduce the risk of SERIOUS INJURY or
DEATH, take the following precautions:
• ALWAYS wear your seat belt. All passengers must be properly belted
whenever the vehicle is moving. For
more information, refer to the “Seat
Belts” section in chapter 3. • Always drive defensively. Assume other
drivers or pedestrians may be careless
and make mistakes.
• Stay focused on the task of driving. Driver distraction can cause accidents.
• Leave plenty of space between you and the vehicle in front of you.
WARNING NEVER drink or take drugs and drive.
Drinking or taking drugs and driving is
dangerous and may result in an accident
and SERIOUS INJURY or DEATH.
Drunk driving is the number one
contributor to the highway death toll each
year. Even a small amount of alcohol will
affect your reflexes, perceptions and
judgment. Just one drink can reduce your
ability to respond to changing conditions
and emergencies. Your reaction time gets
worse with each additional drink.
Driving while under the influence of drugs
is as dangerous or more dangerous than
driving under the influence of alcohol.
You are much more likely to have a
serious accident if you drink or take drugs
and drive. If you are drinking or taking
drugs, don’t drive. Do not ride with a
driver who has been drinking or taking
drugs. Choose a designated driver or call
a taxi.
Hyundai_CE_en_US.book Page 3
