Maintenance
9-42

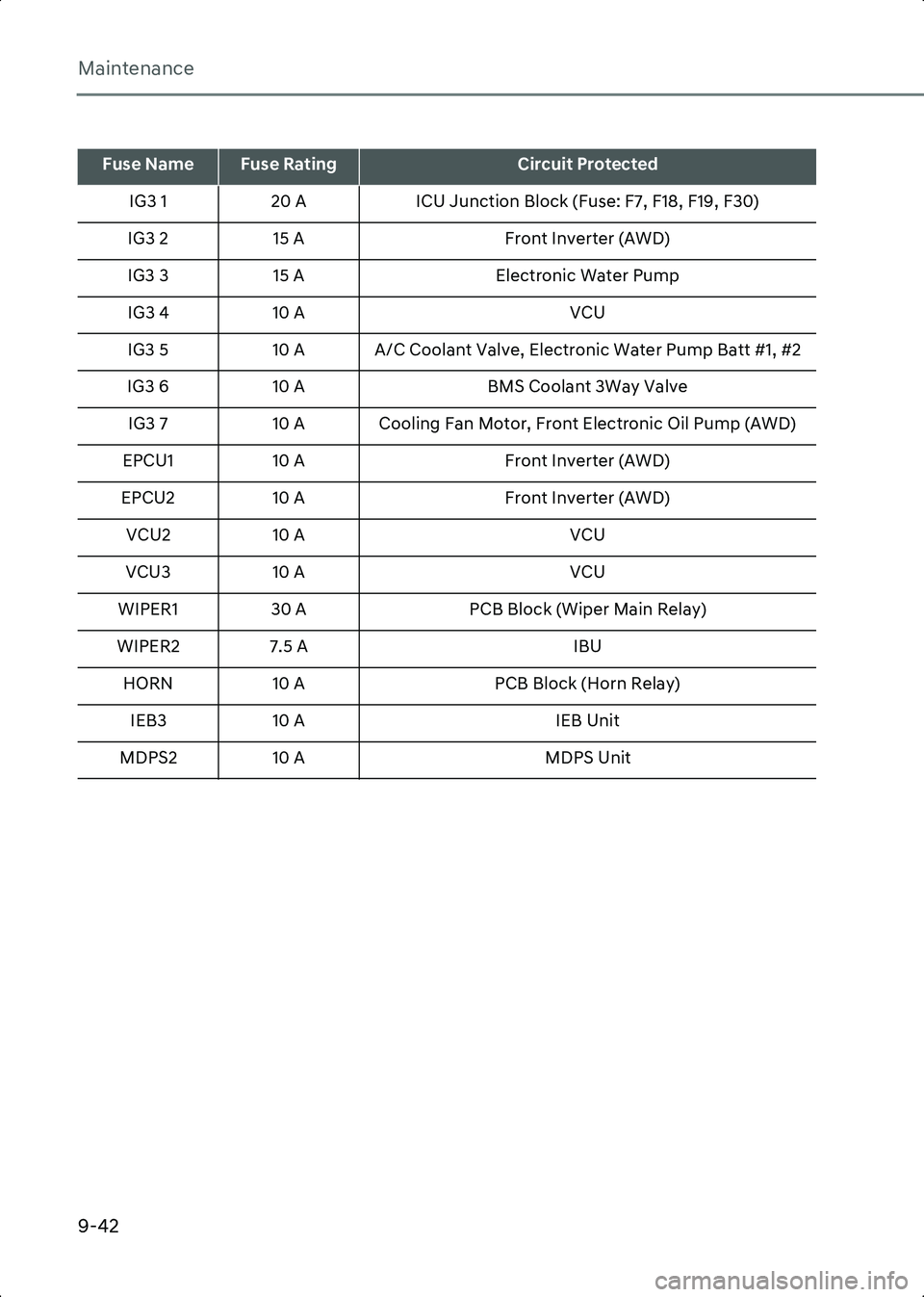

Fuse NameFuse RatingCircuit Protected
IG3 1 20 A ICU Junction Block (Fuse: F7, F18, F19, F30)
IG3 2 15 A Front Inverter (AWD)
IG3 3 15 A Electronic Water Pump
IG3 4 10 A VCU
IG3 5 10 A A/C Coolant Valve, Electronic Water Pump Batt #1, #2
IG3 6 10 A BMS Coolant 3Way Valve
IG3 7 10 A Cooling Fan Motor, Front Electronic Oil Pump (AWD)
EPCU1 10 A Front Inverter (AWD)
EPCU2 10 A Front Inverter (AWD)
VCU2 10 A VCU
VCU3 10 A VCU
WIPER1 30 A PCB Block (Wiper Main Relay)
WIPER2 7.5 A IBU
HORN 10 A PCB Block (Horn Relay)
IEB3 10 A IEB Unit
MDPS2 10 A MDPS Unit
Hyundai_CE_en_US.book Page 42
I
I-5

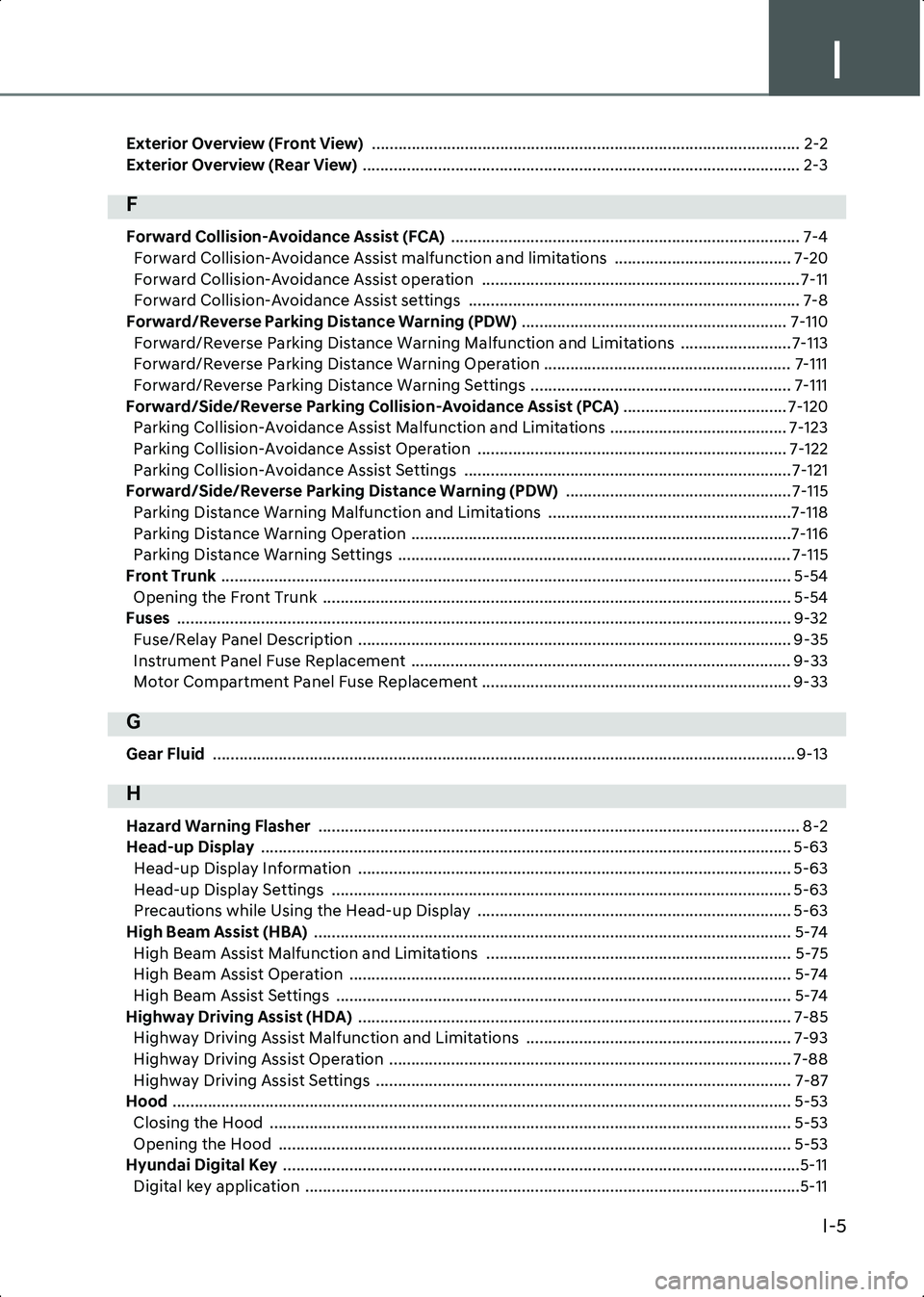

Exterior Overview (Front View) ................................................................................................. 2-2
