2023 HYUNDAI IONIQ 6 relay

1
1-29

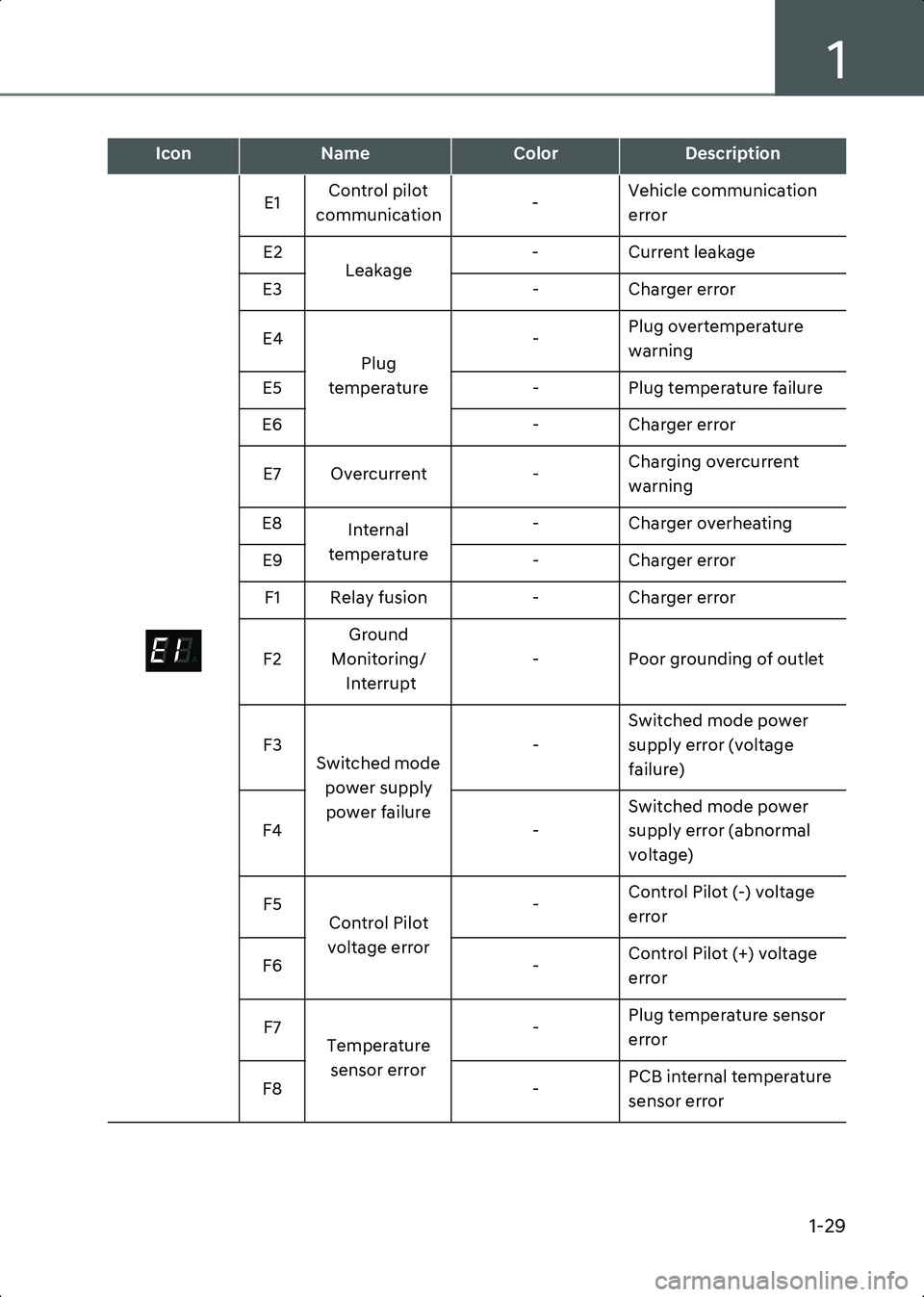

E1Control pilot
communication -Vehicle communication
error
E2 Leakage - Current leakage
E3 - Charger error
E4 Plug
temperature -
Plug overtemperature
warning
E5 - Plug temperature failure
E6 - Charger error
E7 Overcurrent -Charging overcurrent
warning
E8 Internal
temperature - Charger overheating
E9 - Charger error
F1 Relay fusion - Charger error
F2 Ground
Monitoring/ Interrupt - Poor grounding of outlet
F3 Switched mode
power supply power failure -
Switched mode power
supply error (voltage
failure)
F4 -Switched mode power
supply error (abnormal
voltage)
F5 Control Pilot
voltage error -
Control Pilot (-) voltage
error
F6 -Control Pilot (+) voltage
error
F7 Temperature
sensor error -
Plug temperature sensor
error
F8 -PCB internal temperature
sensor error
IconNameColorDescription
A
Hyundai_CE_en_US.book Page 29

5
5-33
• A click noise may be heard from the MDPS relay after the Start/Stop button is in the ON
or OFF position.
• Motor noise may be heard when the vehicle is at a stop or at a low driving speed.
• When you operate the steering wheel in low temperatures, abnormal noise may occur. If
the temperature rises, the noise will
disappear. This is a normal condition.
• When an error is detected from MDPS, the steering effort assist function will not be
activated in order to prevent fatal accidents.
Instrument cluster warning lights may be on
or the steering effort may be high. If these
symptoms occur, drive the vehicle to a safe
area as soon as it is safe to do so. Have the
system inspected by an authorized
HYUNDAI dealer as soon as possible.

Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.

NOTICE:KLOHDGMXVWLQJWKHVWHHULQJZKHHO
KHLJKWSOHDVHGRQRWSXVKRUSXOOLWKDUG
VLQFHWKHIL[WXUHFDQEHGDPDJHG

Manual adjustment
B5006301
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever (1).
2. Adjust the steering wheel to the desired angle (2) and distance forward/back
(3).
3. Pull up the lock-release lever to lock the steering wheel in place.
Information Sometimes the lock-release lever may not
engage completely. Pull down on the
lock-release lever, readjust the steering wheel
again, and then pull back up on the
lock-release lever to lock the steering wheel in
place.

Horn
B5006501
To sound the horn, press the area
indicated by the horn symbol on your
2
13
2
Hyundai_CE_en_US.book Page 33

9

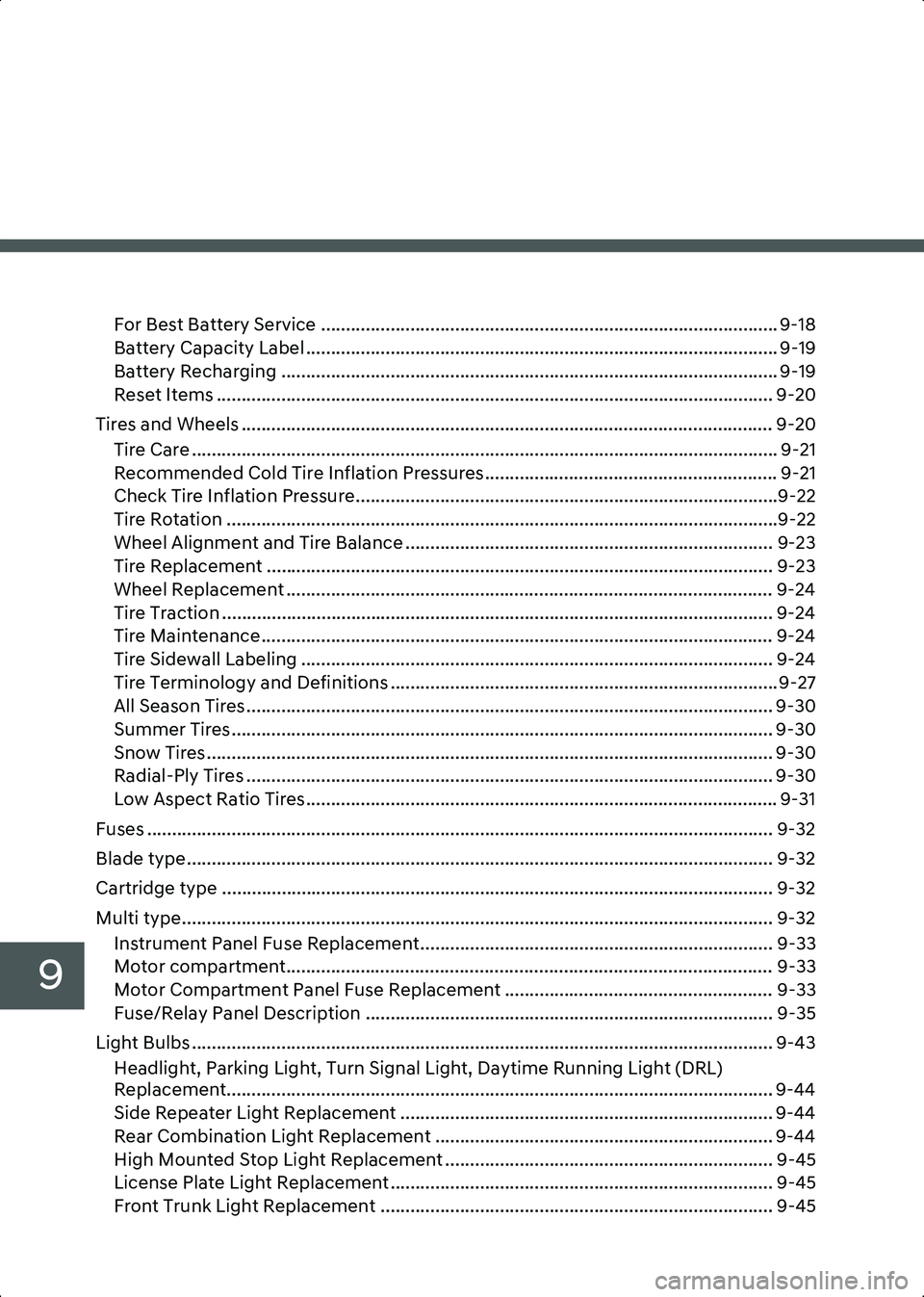

For Best Battery Service ............................................................................................ 9-18
Battery Capacity Label ............................................................................................... 9-19
Battery Recharging .................................................................................................... 9-19
Reset Items ................................................................................................................ 9-20
Tires and Wheels ........................................................................................................... 9-20 Tire Care ...................................................................................................................... 9-21
Recommended Cold Tire Inflation Pressures........................................................... 9-21
Check Tire Inflation Pressure.....................................................................................9-22
Tire Rotation ...............................................................................................................9-22
Wheel Alignment and Tire Balance .......................................................................... 9-23
Tire Replacement ...................................................................................................... 9-23
Wheel Replacement .................................................................................................. 9-24
Tire Traction ............................................................................................................... 9-24
Tire Maintenance....................................................................................................... 9-24
Tire Sidewall Labeling ............................................................................................... 9-24
Tire Terminology and Definitions .............................................................................. 9-27
All Season Tires .......................................................................................................... 9-30
Summer Tires ............................................................................................................. 9-30
Snow Tires .................................................................................................................. 9-30
Radial-Ply Tires .......................................................................................................... 9-30
Low Aspect Ratio Tires ............................................................................................... 9-31
Fuses .............................................................................................................................. 9-32
Blade type...................................................................................................................... 9-32
Cartridge type ............................................................................................................... 9-32
Multi type....................................................................................................................... 9-32 Instrument Panel Fuse Replacement....................................................................... 9-33
Motor compartment.................................................................................................. 9-33
Motor Compartment Panel Fuse Replacement ...................................................... 9-33
Fuse/Relay Panel Description .................................................................................. 9-35
Light Bulbs ..................................................................................................................... 9-43 Headlight, Parking Light, Turn Signal Light, Daytime Running Light (DRL)
Replacement.............................................................................................................. 9-44
Side Repeater Light Replacement ........................................................................... 9-44Rear Combination Light Replacement .................................................................... 9-44
High Mounted Stop Light Replacement .................................................................. 9-45
License Plate Light Replacement ............................................................................. 9-45
Front Trunk Light Replacement ............................................................................... 9-45
Hyundai_CE_en_US.book Page 2

9
9-35

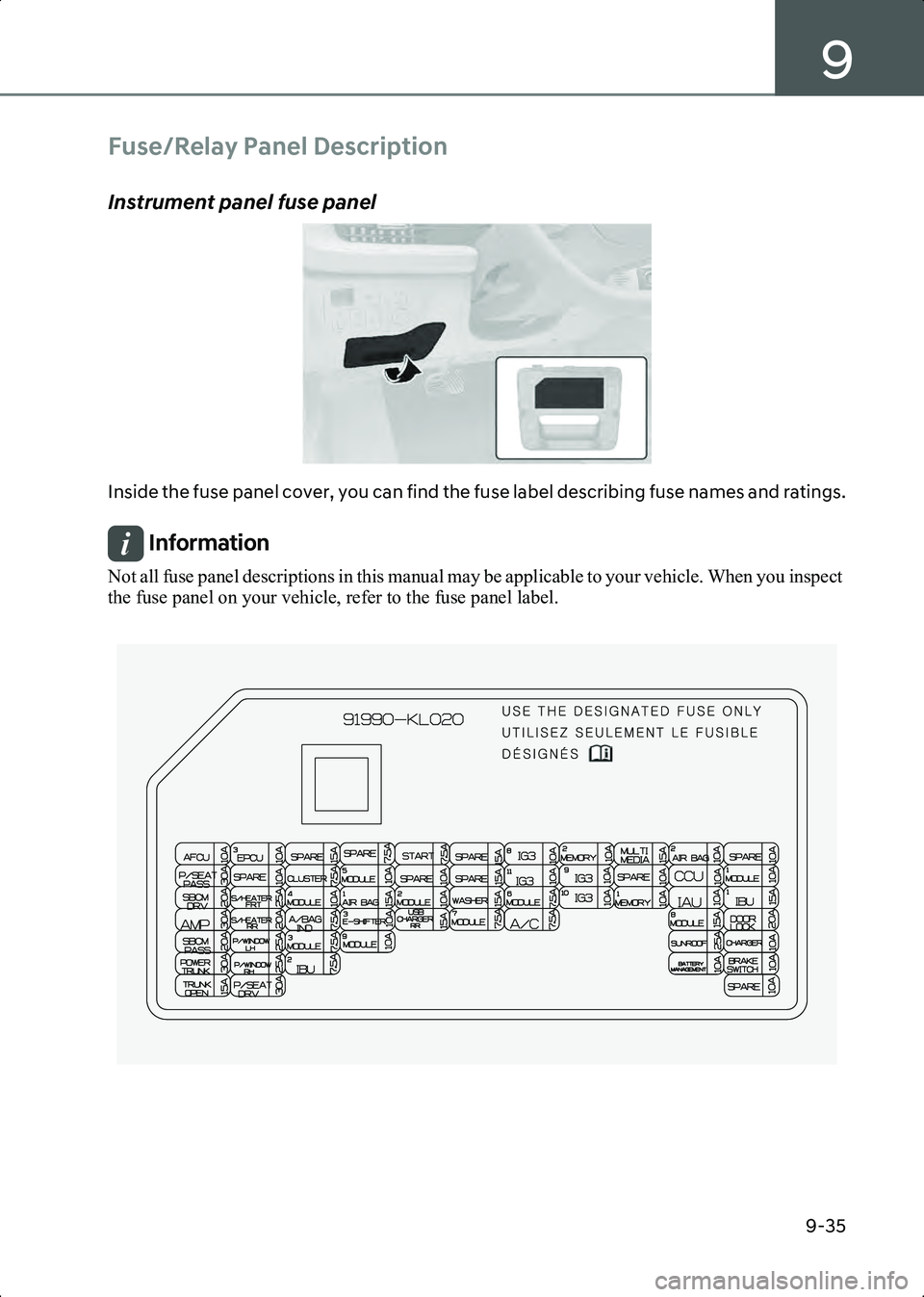

Fuse/Relay Panel Description
Instrument panel fuse panel
B9006001
Inside the fuse panel cover, you can find the fuse label describing fuse names and ratings.
Information Not all fuse panel descriptions in this manual may be applicable to your vehicle. When you inspect
the fuse panel on your vehicle, refer to the fuse panel label.

ONE1091046N
Hyundai_CE_en_US.book Page 35

9
9-37

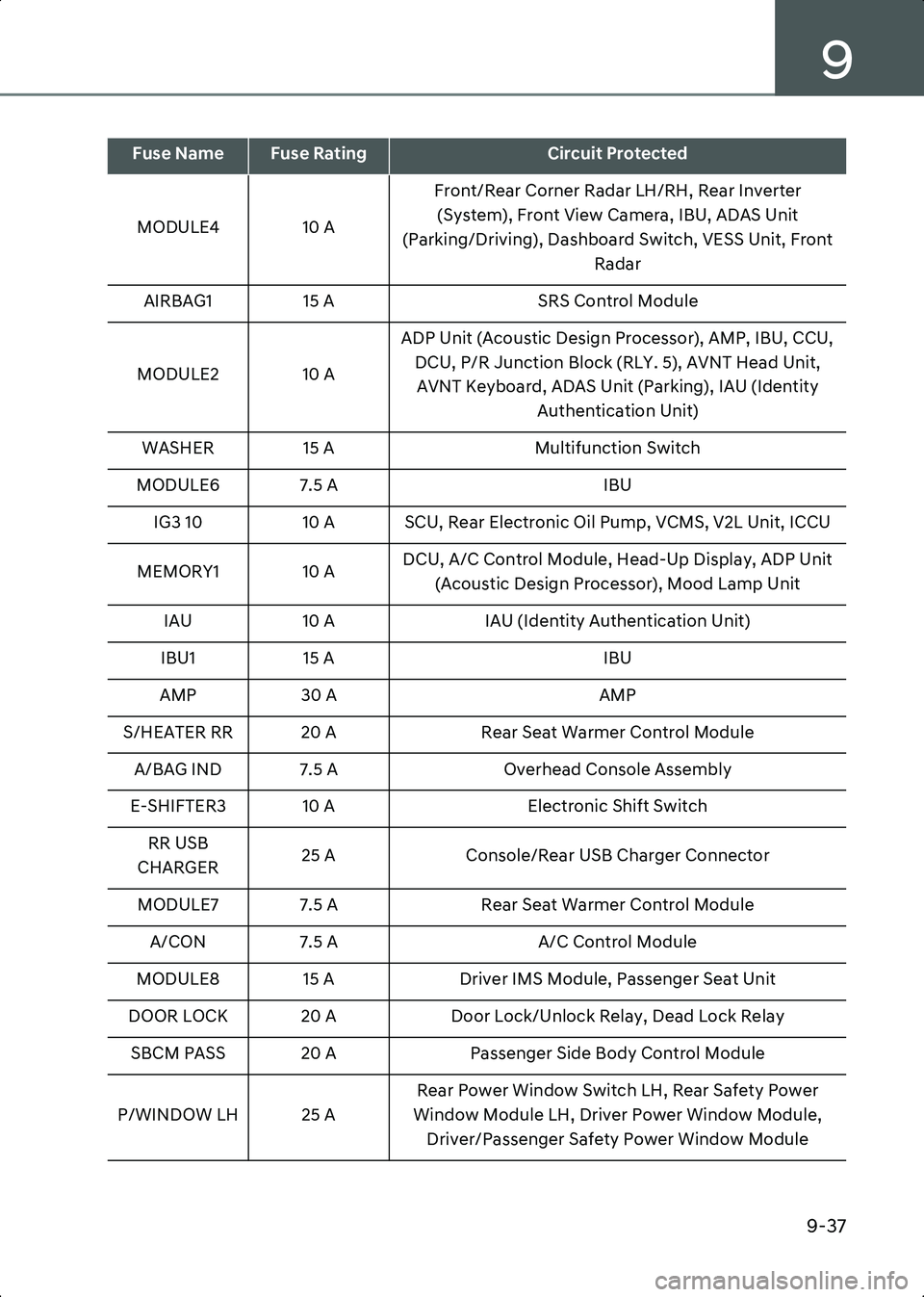

MODULE4 10 AFront/Rear Corner Radar LH/RH, Rear Inverter
(System), Front View Camera, IBU, ADAS Unit
(Parking/Driving), Dashboard Switch, VESS Unit, Front Radar
AIRBAG1 15 A SRS Control Module
MODULE2 10 A ADP Unit (Acoustic Design Processor), AMP, IBU, CCU,
DCU, P/R Junction Block (RLY. 5), AVNT Head Unit, AVNT Keyboard, ADAS Unit (Parking), IAU (Identity Authentication Unit)
WASHER 15 A Multifunction Switch
MODULE6 7.5 A IBU
IG3 10 10 A SCU, Rear Electronic Oil Pump, VCMS, V2L Unit, ICCU
MEMORY1 10 A DCU, A/C Control Module, Head-Up Display, ADP Unit
(Acoustic Design Processor), Mood Lamp Unit
IAU 10 A IAU (Identity Authentication Unit)
IBU1 15 A IBU
AMP 30 A AMP
S/HEATER RR 20 A Rear Seat Warmer Control Module
A/BAG IND 7.5 A Overhead Console Assembly
E-SHIFTER3 10 A Electronic Shift Switch
RR USB
CHARGER 25 A
Console/Rear USB Charger Connector
MODULE7 7.5 A Rear Seat Warmer Control Module
A/CON 7.5 A A/C Control Module
MODULE8 15 A Driver IMS Module, Passenger Seat Unit
DOOR LOCK 20 A Door Lock/Unlock Relay, Dead Lock Relay
SBCM PASS 20 A Passenger Side Body Control Module
P/WINDOW LH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
Fuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 37

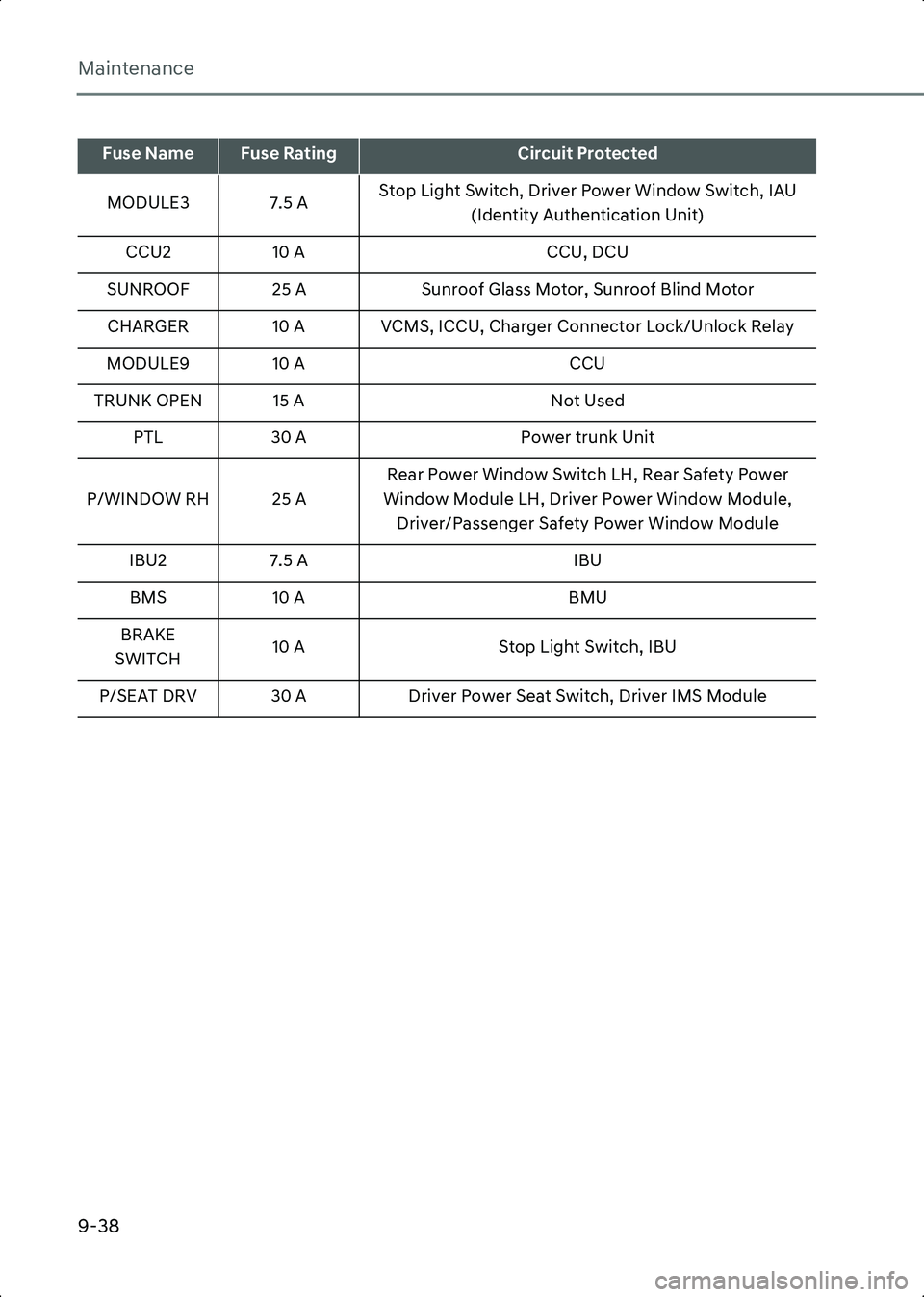

Maintenance
9-38
MODULE3 7.5 AStop Light Switch, Driver Power Window Switch, IAU
(Identity Authentication Unit)
CCU2 10 A CCU, DCU
SUNROOF 25 A Sunroof Glass Motor, Sunroof Blind Motor
CHARGER 10 A VCMS, ICCU, Charger Connector Lock/Unlock Relay
MODULE9 10 A CCU
TRUNK OPEN 15 A Not Used
PTL 30 A Power trunk Unit
P/WINDOW RH 25 A Rear Power Window Switch LH, Rear Safety Power
Window Module LH, Driver Power Window Module, Driver/Passenger Safety Power Window Module
IBU2 7.5 A IBU
BMS 10 A BMU
BRAKE
SWITCH 10 A
Stop Light Switch, IBU
P/SEAT DRV 30 A Driver Power Seat Switch, Driver IMS Module
Fuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 38

Maintenance
9-40

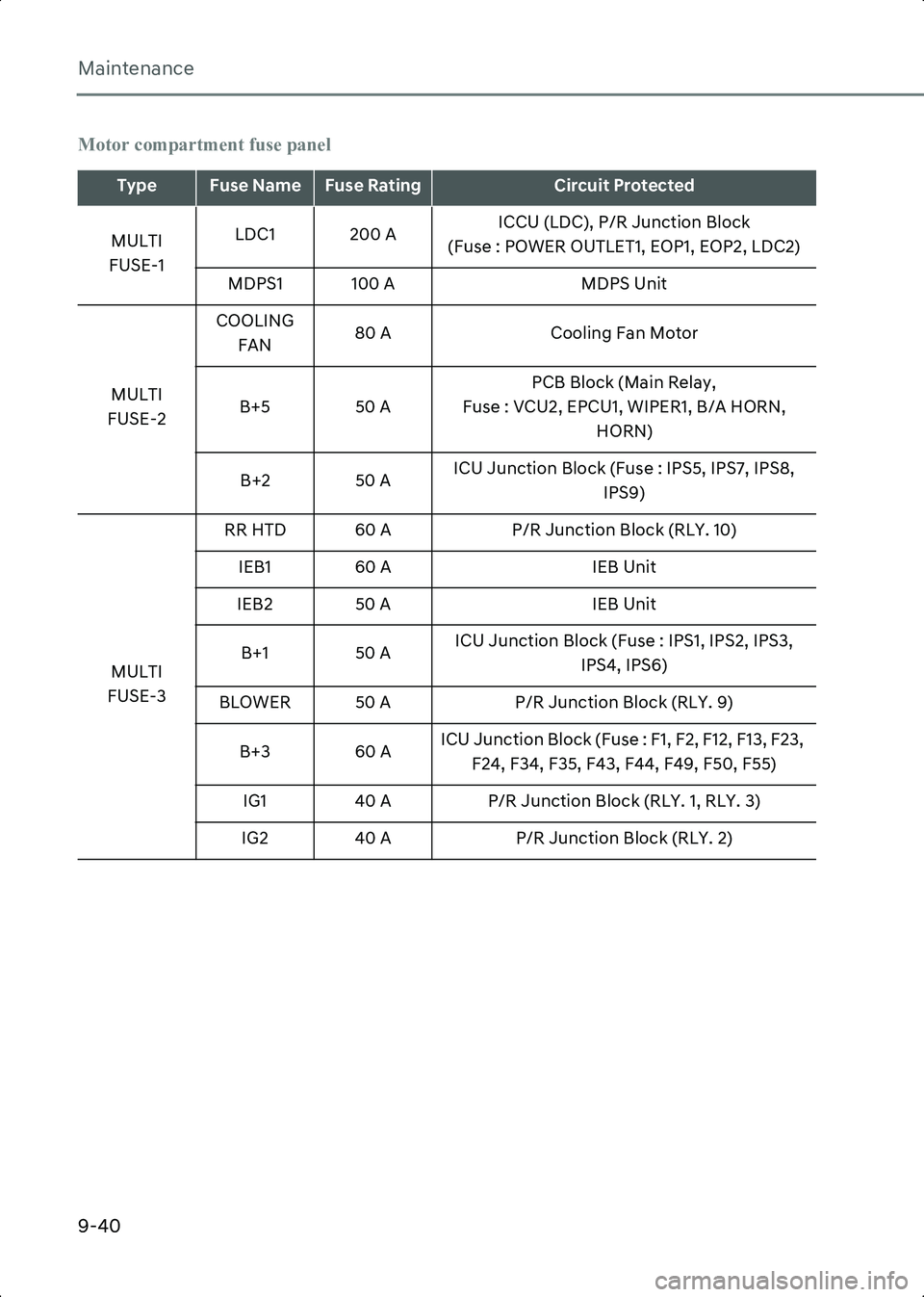

Motor compartment fuse panel
TypeFuse NameFuse RatingCircuit Protected
MULTI
FUSE-1 LDC1 200 A
ICCU (LDC), P/R Junction Block
(Fuse : POWER OUTLET1, EOP1, EOP2, LDC2)
MDPS1 100 A MDPS Unit
MULTI
FUSE-2 COOLING
FAN 80 A
Cooling Fan Motor
B+5 50 A PCB Block (Main Relay,
Fuse : VCU2, EPCU1, WIPER1, B/A HORN, HORN)
B+2 50 A ICU Junction Block (Fuse : IPS5, IPS7, IPS8,
IPS9)
MULTI
FUSE-3 RR HTD 60 A
P/R Junction Block (RLY. 10)
IEB1 60 A IEB Unit
IEB2 50 A IEB Unit
B+1 50 A ICU Junction Block (Fuse : IPS1, IPS2, IPS3,
IPS4, IPS6)
BLOWER 50 A P/R Junction Block (RLY. 9)
B+3 60 A ICU Junction Block (Fuse : F1, F2, F12, F13, F23,
F24, F34, F35, F43, F44, F49, F50, F55)
IG1 40 A P/R Junction Block (RLY. 1, RLY. 3)
IG2 40 A P/R Junction Block (RLY. 2)
Hyundai_CE_en_US.book Page 40

9
9-41

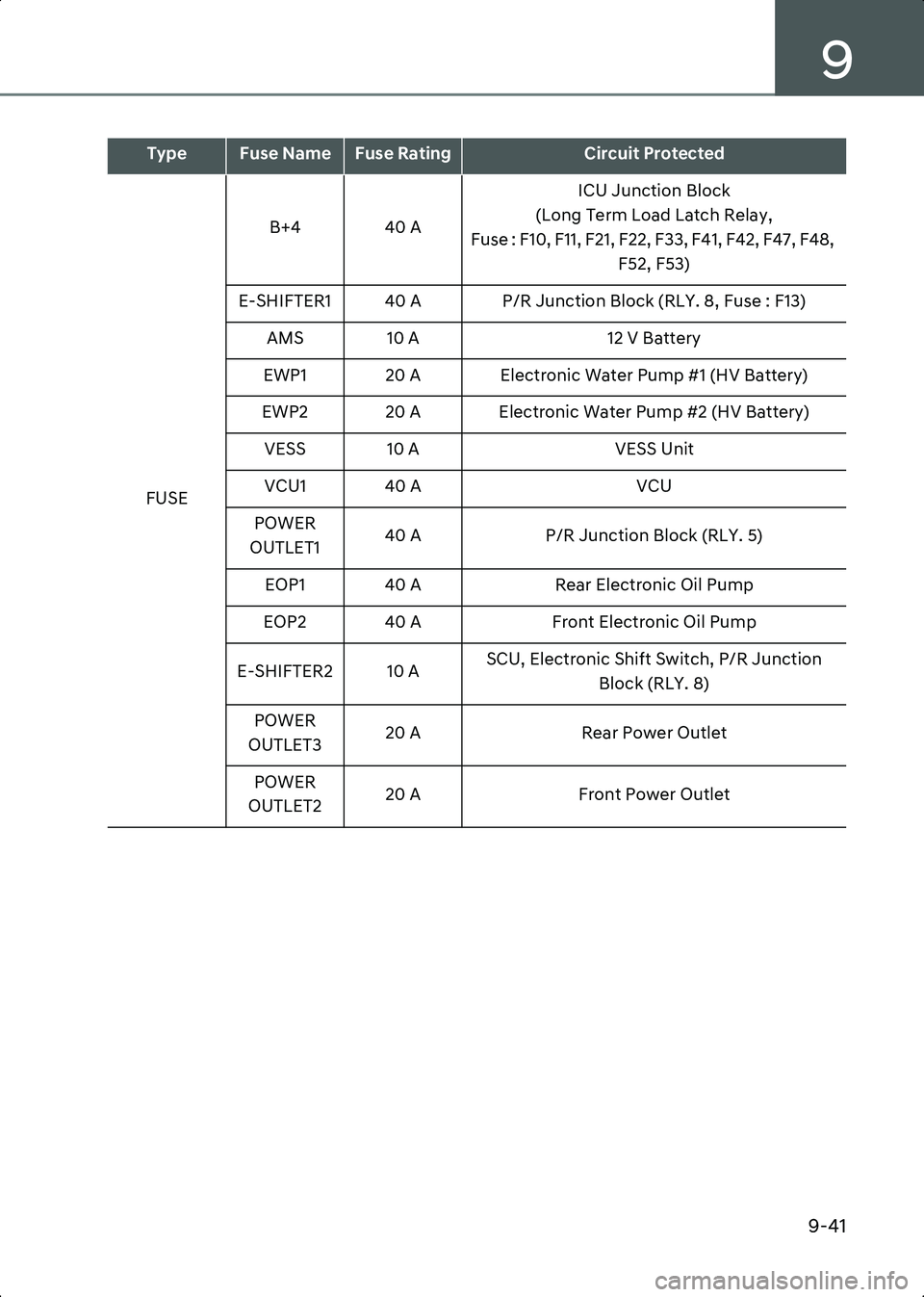

FUSEB+4 40 A
ICU Junction Block
(Long Term Load Latch Relay,
Fuse : F10, F11, F21, F22, F33, F41, F42, F47, F48, F52, F53)
E-SHIFTER1 40 A P/R Junction Block (RLY. 8, Fuse : F13) AMS 10 A 12 V Battery
EWP1 20 A Electronic Water Pump #1 (HV Battery)
EWP2 20 A Electronic Water Pump #2 (HV Battery) VESS 10 A VESS Unit
VCU1 40 A VCU
POWER
OUTLET1 40 A
P/R Junction Block (RLY. 5)
EOP1 40 A Rear Electronic Oil Pump
EOP2 40 A Front Electronic Oil Pump
E-SHIFTER2 10 A SCU, Electronic Shift Switch, P/R Junction
Block (RLY. 8)
POWER
OUTLET3 20 A
Rear Power Outlet
POWER
OUTLET2 20 A
Front Power Outlet
TypeFuse NameFuse RatingCircuit Protected
Hyundai_CE_en_US.book Page 41
