5
5-7
Electric type (if equipped)
B5002804
When you release the Two Press Unlock
function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Have the smart key with you.
2. Touch the touch sensor on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and the
chime will sound.
• If you unlock the doors using the passenger side door handle, all the
doors are unlocked. If you unlock the
doors using the driver side door
handle, either the driver’s side door is
unlocked or all the doors are
unlocked depending on the setting
for the Two Press Unlock feature.
Change the Driver Door unlock mode
by referring to “Setting the Two Press
Unlock feature”.
Information • The side view mirror will unfold if ‘Enable
on Door Unlock’ is selected from the
Settings menu in the infotainment system.
Select Setup > Vehicle > Lights >
Welcome Mirror/Light > Enable on Door
Unlock .
• The door handle button or touch sensor only operates when the smart key is within 28-40
in. (0.7-1 m) from the outside door handle. • If you do not open the door after unlocking
within 30 seconds, it returns to the lock
mode.
Setting the Two Press Unlock feature
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Door > Two Press
Unlock .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.
Setting the door lock/unlock prevention
feature
The doors may lock or unlock if the touch
sensor of the outside door handle is
recognized while washing your vehicle or
due to heavy rain.
To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immediately press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights
blink four times. At this time, the doors do
not lock or unlock even though the touch
sensor is touched on the outside door
handle. To deactivate the function, press
the door lock or unlock button on the
smart key.
Information During a vehicle wash or rain, in order to
minimize unintentional operation of the touch
sensor, the touch sensor may become
insensitive. This is not a malfunction.
Hyundai_CE_en_US.book Page 7
Page 196 of 582
Convenience Features
5-18
Vehicle personalization with digital key
The infotainment system may change after software updates. For more information,
refer to the user's manual provided in the infotainment system and the quick reference
guide.
SystemPersonalization Item
Vehicle settings Light
Blink number of one-touch
signal lights
Cluster Information display on the
cluster, Voice volume, Welcome sound
Seat/Mirror Seat position, Side view
mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock,
Two Press Unlock
Head Up Display (HUD) Position adjustment of
image, Information display selection
Infotainment system Navigation
Preferred volume of the
navigation system, Recent destination
User preset My menu list settings, Radio
preset
Phone connectivity Bluetooth preferential
connect CarPlay/Android Auto On/Off
Air conditioning Operating conditionLatest operation setup of the
following functions:
Temperature, AUTO, air flow direction, air volume, air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
Hyundai_CE_en_US.book Page 18
Page 208 of 582
Convenience Features
5-30
Declaration of Conformity
The radio frequency components (ROA
Radar Sensor) complies:
• For USA
OANATEL323
• For Canada
OANATEL324
Integrated Memory
if equipped
System
B5005201
Integrated Memory System for the
driver’s seat is provided to store and recall
the following memory settings with a
simple button operation.
• Driver’s seat position
• Side view mirror position
• Head-up display position
WARNING Never attempt to operate the integrated
memory system while the vehicle is
moving.
Information • If the battery is disconnected, the memory settings will be erased.
• If integrated memory system does not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.
Hyundai_CE_en_US.book Page 30
Page 209 of 582
5
5-31
Storing Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Adjust the driver’s seat position, side view mirror position, and head-up
display height to the desired position.
3. Hold the button (1 or 2). The system will beep once and notify you ‘Driver 1 (or 2)
settings saved’ will appear on the
infotainment system.
Recalling Memory Positions
1. Shift to P (Park) while the Start/Stop button is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once, and then
the driver’s seat position, side view
mirror position, and head-up display
height will automatically adjust to the
stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the infotainment system.
Information • In order to adjust the memory button (2) while adjusting the memory button (1),
press the memory button (1) to pause the
adjustment of (1), then press memory
button (2).
• If you adjust the seat, side view mirror, head-up display while recalling the stored
positions, the manually adjusted settings
will be applied.
Resetting the System
Take the following procedures to reset
integrated memory system, when it does
not operate properly.
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s door with the Start/Stop button in the ON position and the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the memory button 1 (or 2) and push forward the driver’s seat
movement switch over 2 seconds
simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
• The memory button is pressed.
• The seat control switch is operated.
• The gear is shifted out of P (Park).
• The driving speed exceeds 2 mph (3 km/h).
• The driver’s door is closed.
NOTICE [ : K L O H L Q W H J U D W H G P H P R U \ V \ V W H P L V E H L Q J U H V H W L I W K H U H V H W W L Q J D Q G
Q R W L I L F D W L R Q V R X Q G V W R S V L Q F R P S O H W H O \
U H V W D U W W K H U H V H W W L Q J S U R F H G X U H D J D L Q
[ 0 D N H V X U H W K D W W K H U H L V Q R R E M H F W V D U R X Q G W K H G U L Y H UT V V H D W L Q D G Y D Q F H R I
U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \
V \ V W H P
[ $ I W H U U H V H W W L Q J W K H L Q W H J U D W H G P H P R U \ V \ V W H P W K H D G M X V W P H Q W I R U W K H G U L Y H U
V H D W P X V W E H V W R U H G D J D L Q W R U H F D O O W K H
P H P R U \ S R V L W L R Q
Hyundai_CE_en_US.book Page 31

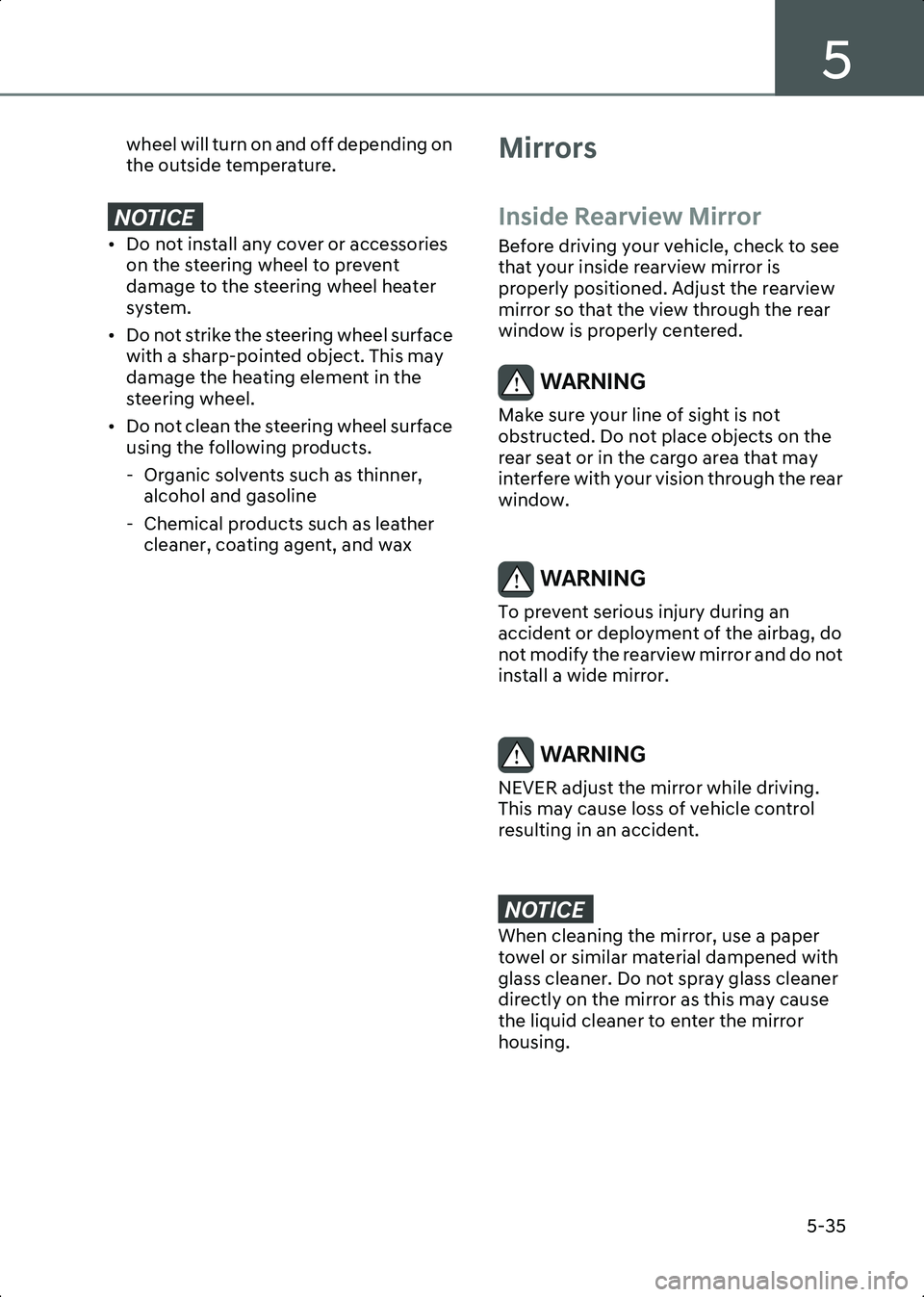

Page 213 of 582
5
5-35
wheel will turn on and off depending on
the outside temperature.
NOTICE [ ' R Q R W L Q V W D O O D Q \ F R Y H U R U D F F H V V R U L H V R Q W K H V W H H U L Q J Z K H H O W R S U H Y H Q W
G D P D J H W R W K H V W H H U L Q J Z K H H O K H D W H U
V \ V W H P
[ ' R Q R W V W U L N H W K H V W H H U L Q J Z K H H O V X U I D F H Z L W K D V K D U S S R L Q W H G R E M H F W 7 K L V P D \
G D P D J H W K H K H D W L Q J H O H P H Q W L Q W K H
V W H H U L Q J Z K H H O
[ ' R Q R W F O H D Q W K H V W H H U L Q J Z K H H O V X U I D F H X V L Q J W K H I R O O R Z L Q J S U R G X F W V
2 U J D Q L F V R O Y H Q W V V X F K D V W K L Q Q H U D O F R K R O D Q G J D V R O L Q H
& K H P L F D O S U R G X F W V V X F K D V O H D W K H U F O H D Q H U F R D W L Q J D J H Q W D Q G Z D [
Mirrors
Inside Rearview Mirror
Before driving your vehicle, check to see
that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING Make sure your line of sight is not
obstructed. Do not place objects on the
rear seat or in the cargo area that may
interfere with your vision through the rear
window.
WARNING To prevent serious injury during an
accident or deployment of the airbag, do
not modify the rearview mirror and do not
install a wide mirror.
WARNING NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE : K H Q F O H D Q L Q J W K H P L U U R U X V H D S D S H U
W R Z H O R U V L P L O D U P D W H U L D O G D P S H Q H G Z L W K
J O D V V F O H D Q H U ' R Q R W V S U D \ J O D V V F O H D Q H U
G L U H F W O \ R Q W K H P L U U R U D V W K L V P D \ F D X V H
W K H O L T X L G F O H D Q H U W R H Q W H U W K H P L U U R U
K R X V L Q J
Hyundai_CE_en_US.book Page 35
Page 214 of 582
Convenience Features
5-36
if equipped
Day/night rearview mirror
B5006901
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
if equipped
Electric Chromic Mirror (ECM)
B5006902[A] Indicator
Some vehicles come equipped with an
electrochromic mirror that helps control
glare while driving at night or under low
light driving conditions.
When the vehicle is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to control the headlight glare from vehicles
behind you.
Whenever the gear is shifted to R
(Reverse), the mirror will automatically go
to the brightest setting in order to
improve the driver’s view behind the
vehicle.
Electrochromic mirror (ECM) with
if equipped
HomeLink® system
Your vehicle may be equipped with a
Gentex Automatic-Dimming Mirror with
an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature will
automatically detect and reduce rearview
mirror glare. The HomeLink® Universal
Transceiver allows you to activate your
garage door(s), electric gate, home
lighting, etc.
ONE1051261N(1) HomeLink Channel 1
(2) HomeLink Channel 2
(3) HomeLink Channel 3
(4) Garage Door Opener Status Indicator:
Closing or Closed
(5) HomeLink Operation Indicator
(6) Garage Door Opener Status Indicator: Opening or Opened
(7) HomeLink User Interface Indicator
Hyundai_CE_en_US.book Page 36
Page 215 of 582
5
5-37
Automatic-Dimming Night Vision Safety™
if equipped
(NVS®) Mirror
The NVS® Mirror automatically reduces
glare by monitoring light levels in the
front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
For more information regarding NVS®
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim upon
detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink® Wireless Control
System
The HomeLink® Wireless Control System
provides a convenient way to replace up
to three hand-held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE + R P H / L Q N p R S H U D W H V Z K L O H W K H 6 W D U W 6 W R S
E X W W R Q L V L Q W K H $ & & R U 2 1 S R V L W L R Q I R U
V D I H W \ U H D V R Q V , W L V W R S U H Y H Q W
X Q L Q W H Q W L R Q D O V H F X U L W \ S U R E O H P V I U R P
K D S S H Q L Q J Z K H Q W K H Y H K L F O H L V S D U N H G
R X W V L G H W K H J D U D J H
WARNING Before programming HomeLink® to a
garage door opener or gate operator,
make sure people and objects are out of
the way of the device to prevent potential
harm or damage. Do not use the
HomeLink® with any garage door opener
that lacks the safety stop and reverse features required by U.S. federal safety
standards (this includes any garage door
opener model manufactured before April
1, 1982). A garage door that cannot detect
an object-signaling the door to stop and
reverse-does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
For more information, contact
HomeLink® at www.homelink.com, or call
Home-Link customer support at
1-800-355-3515.
It is also recommended that a new battery
be replaced in the hand-held transmitter
of the device being trained to HomeLink®
for quicker training and accurate
transmission of the radio frequency.
1. Programming HomeLink®
The following steps show how to program
HomeLink. If you have any questions or
are having difficulty programming your
HomeLink buttons, refer to the HomeLink
website or call the HomeLink customer
support toll-free number. Do this, before
going back to the dealer who sold you the
vehicle.
• Visit the HomeLink website at:
www.homelink.com. Then at the top of
the page, choose your vehicle make.
Then watch the You Tube video, and/or
access additional website information.
• If you choose to access the website via your cell phone, scan the QR code.
• Or, call HomeLink customer support at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
Hyundai_CE_en_US.book Page 37
Page 217 of 582
5
5-39
the hanging antenna wire is attached to
the motor-head unit (see the device’s
manual to identify this button). The
name and color of the button may vary
by manufacturer.
• A ladder and/or second person may simplify the following steps.
7. Firmly press and release the 'Learn', 'Smart', 'Set' or 'Program' button. You
now have up to 30 seconds in which to
complete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and release, the
HomeLink button up to three times in a
row slowly. Do not press the HomeLink
button rapidly. As soon as you see the
garage door start to move, stop
pressing any buttons until a few
seconds after the garage door has
come to a complete stop, regardless of
position. At this point, programming is
complete and your device should
operate when the HomeLink button is
pressed and released.
3) Two-Way Communication
Programming (For select garage door
openers)
If your garage door opener has the ‘myQ’
logo on its side, your opener likely has
Two-Way Communication capability.
HomeLink has the capability to establish
Two-Way Communication with your
garage door opener. HomeLink can
receive and display “closing” or
“opening” status messages from
compatible garage door openers. At any
time, Home-Link can also recall and
display the last recorded status
communicated by the garage door
opener to indicate your garage door
being “closed” or “opened”.
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-w
ay-Communication. If your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror appear while the garage door is opening/closing, then no further
steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators (4),
(6) in the mirror DO NOT appear while the
garage door is opening/closing, use the
following instructions to enable this
functionality.
1. In your vehicle, press and hold the
programmed HomeLink button for 2
seconds, then release. Confirm that the
garage door is moving. AFTER it stops,
you will have one minute to complete
the following steps:
• A ladder and/or second person may simplify the following steps.
2. On your garage door opener in your garage, locate the 'Learn' button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device’s owner’s manual.
3. Press and release the 'Learn' button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators (4), (6) in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate your
garage door. The Two-Way
Communication indicators (4), (6) flash
in orange when the door is moving. Do
not make any additional button presses
until AFTER the garage door has come
to a complete stop.
6. Your Two-Way Communication programming is now complete.
Hyundai_CE_en_US.book Page 39
