3
3-5
Safety Precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers as much as seat
belts and airbags when in an accident.
WARNING Do not use a cushion that reduces friction
between the seat and the passenger. The
passenger’s hips may slide under the lap
portion of the seat belt during an accident
or a sudden stop.
Serious or fatal internal injuries could
result because the seat belt cannot
operate properly.
Airbags
You can take steps to reduce the risk of
being injured by an inflating airbag.
Sitting too close to an airbag greatly
increases the risk of injury in the event the
airbag inflates. Move your seat as far back
as possible from front airbags while still
maintaining control of the vehicle.
WARNING To reduce the risk of serious injury or
death from an inflating airbag, take the
following precautions:
• Adjust the driver’s seat as far to the rear as possible while maintaining the ability
to control the vehicle.
• Adjust the front passenger seat as far to the rear as possible.
• Hold the steering wheel by the rim with your hands at the 9 o’clock and 3
o’clock positions to minimize the risk of
injuries to your hands and arms.
• NEVER place anything or anyone between you and the airbag.
• Do not allow the front passenger to place feet or legs on the dashboard to
minimize the risk of leg injuries.
Seat belts
Always fasten your seat belt before
starting any trip. At all times, passengers
should sit upright and be properly
restrained. Infants and small children
must be restrained in appropriate Child
Restraint Systems. Children who have
outgrown a booster seat and adults must
be restrained using the seat belts.
WARNING Take the following precautions when
adjusting your seat belt:
• NEVER use one seat belt for more than one occupant.
• Always position the seatback upright with the lap portion of the seat belt
snug and low across the hips.
• NEVER allow children or small infants, or pets to ride on a passenger’s lap.
• Do not route the seat belt across your neck, across sharp edges, or reroute
the shoulder strap away from your
body.
• Do not allow the seat belt to become caught or jammed.
Front Seats
WARNING Take the following precautions when
adjusting your seat:
• NEVER attempt to adjust the seat while the vehicle is moving. The seat could
respond with unexpected movement
and may cause loss of vehicle control
resulting in an accident.
• Do not place anything under the front seats. Loose objects in the driver’s foot
area could interfere with the operation
of the foot pedals, causing an accident.
Hyundai_CE_en_US.book Page 5
Page 133 of 582
3
3-39
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The side airbags are not designed to
deploy in all side impact or rollover
situations.
WARNING To reduce the risk of serious injury or
death from an inflating side airbag, take
the following precautions:
• Seat belts must be worn at all times to help keep occupants positioned
properly.
• Do not allow passengers to lean their heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
• Hold the steering wheel at the 9 o’clock and 3 o’clock positions, to minimize the
risk of injuries to your hands and arms.
• Do not use any accessory seat covers. This could reduce or prevent the
effectiveness of the system.
• Do not hang other objects except clothes. In an accident it may cause
vehicle damage or personal injury
especially when airbag is inflated.
• Do not place any objects over the airbag or between the airbag and
yourself. Also, do not attach any objects
around the area the airbag inflates such
as the door, side door glass, front and
rear pillar.
• Do not place any objects between the door and the seat. They may become
dangerous projectiles if the side airbag
inflates.
• Do not install any accessories on the side or near the side airbags.
• Do not impact the doors when the Start/Stop button is in the ON or START
position as this may cause the side
airbags to inflate. • If the seat or seat cover is damaged,
have the system serviced by an
authorized HYUNDAI dealer.
Curtain airbags
B3003301
B3003302
Curtain airbags are located along both
sides of the roof rails above the front and
rear doors.
They are designed to help protect the
heads of the front seat occupants and the
rear outboard seat occupants in certain
side impact collisions.
The curtain airbags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
Hyundai_CE_en_US.book Page 39

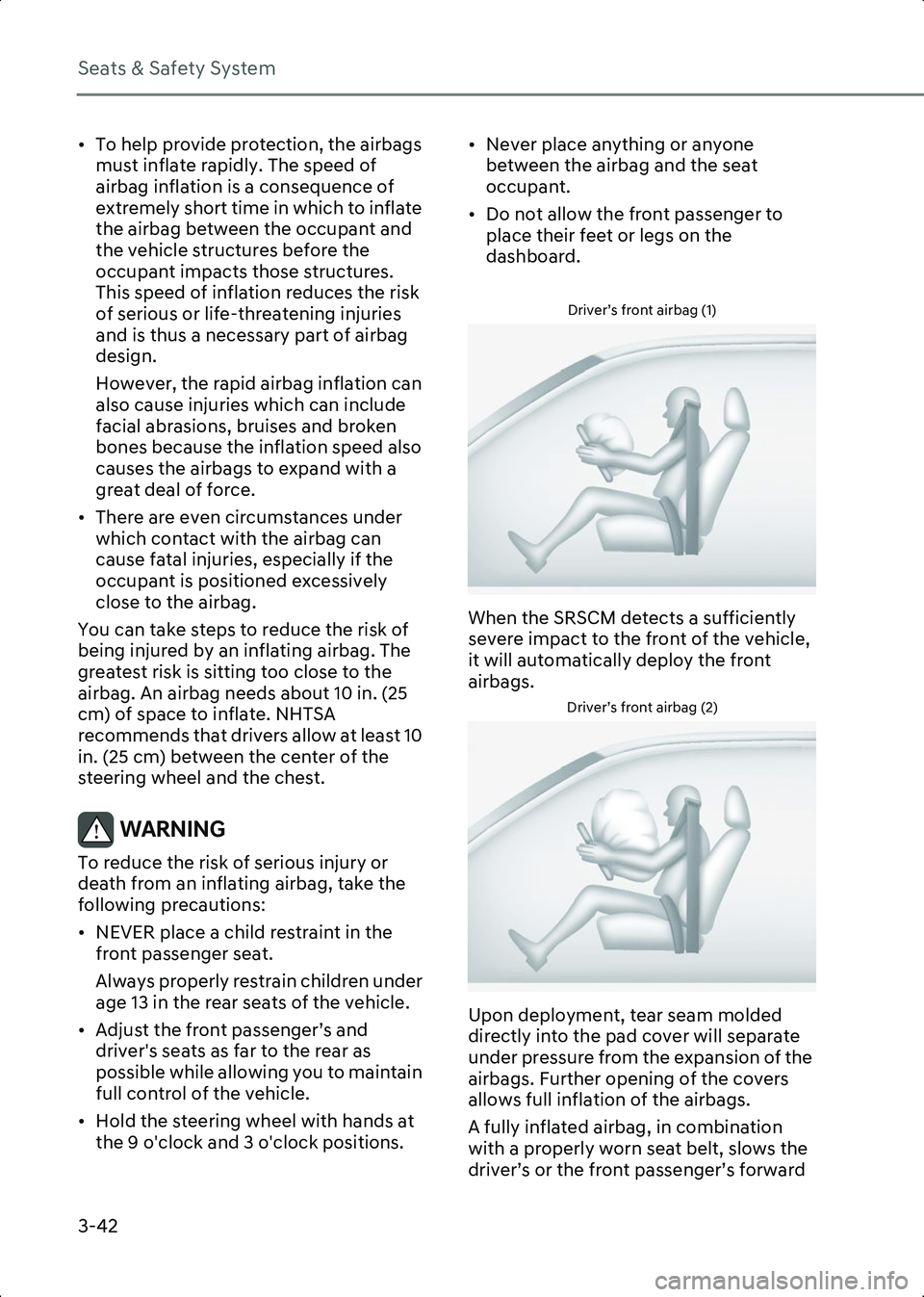

Page 136 of 582
Seats & Safety System
3-42
• To help provide protection, the airbags must inflate rapidly. The speed of
airbag inflation is a consequence of
extremely short time in which to inflate
the airbag between the occupant and
the vehicle structures before the
occupant impacts those structures.
This speed of inflation reduces the risk
of serious or life-threatening injuries
and is thus a necessary part of airbag
design.
However, the rapid airbag inflation can
also cause injuries which can include
facial abrasions, bruises and broken
bones because the inflation speed also
causes the airbags to expand with a
great deal of force.
• There are even circumstances under which contact with the airbag can
cause fatal injuries, especially if the
occupant is positioned excessively
close to the airbag.
You can take steps to reduce the risk of
being injured by an inflating airbag. The
greatest risk is sitting too close to the
airbag. An airbag needs about 10 in. (25
cm) of space to inflate. NHTSA
recommends that drivers allow at least 10
in. (25 cm) between the center of the
steering wheel and the chest.
WARNING To reduce the risk of serious injury or
death from an inflating airbag, take the
following precautions:
• NEVER place a child restraint in the front passenger seat.
Always properly restrain children under
age 13 in the rear seats of the vehicle.
• Adjust the front passenger’s and driver's seats as far to the rear as
possible while allowing you to maintain
full control of the vehicle.
• Hold the steering wheel with hands at the 9 o'clock and 3 o'clock positions. • Never place anything or anyone
between the airbag and the seat
occupant.
• Do not allow the front passenger to place their feet or legs on the
dashboard.
Driver’s front airbag (1)
OLMB033054
When the SRSCM detects a sufficiently
severe impact to the front of the vehicle,
it will automatically deploy the front
airbags.
Driver’s front airbag (2)
OLMB033055
Upon deployment, tear seam molded
directly into the pad cover will separate
under pressure from the expansion of the
airbags. Further opening of the covers
allows full inflation of the airbags.
A fully inflated airbag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
Hyundai_CE_en_US.book Page 42

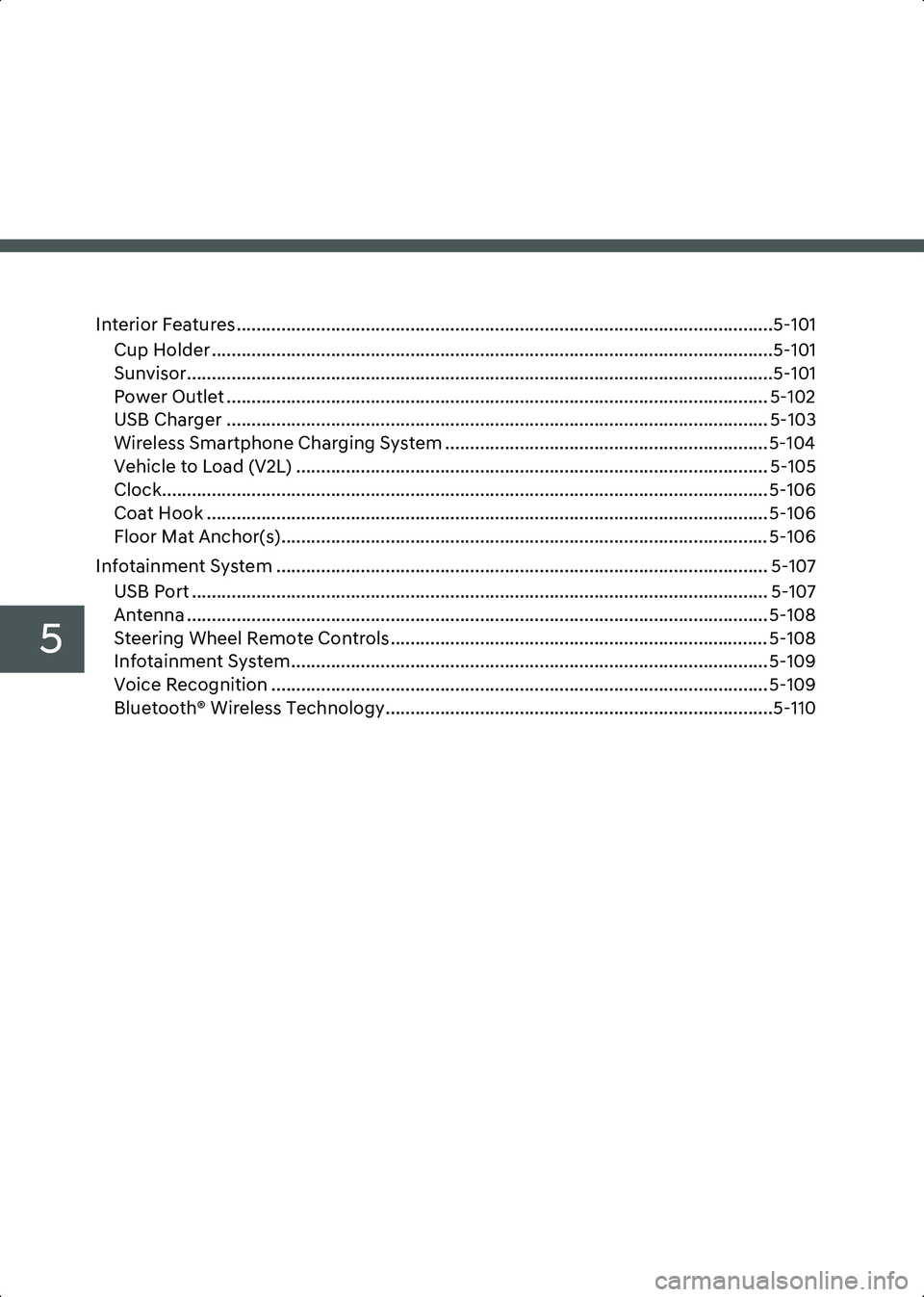

Page 182 of 582
5
Interior Features............................................................................................................5-101Cup Holder .................................................................................................................5-101
Sunvisor......................................................................................................................5-101
Power Outlet ............................................................................................................. 5-102
USB Charger ............................................................................................................. 5-103
Wireless Smartphone Charging System ................................................................. 5-104
Vehicle to Load (V2L) ............................................................................................... 5-105
Clock.......................................................................................................................... 5-106
Coat Hook ................................................................................................................. 5-106
Floor Mat Anchor(s).................................................................................................. 5-106
Infotainment System ................................................................................................... 5-107 USB Port .................................................................................................................... 5-107
Antenna ..................................................................................................................... 5-108
Steering Wheel Remote Controls ............................................................................ 5-108
Infotainment System................................................................................................ 5-109
Voice Recognition .................................................................................................... 5-109
Bluetooth® Wireless Technology..............................................................................5-110
Hyundai_CE_en_US.book Page 4

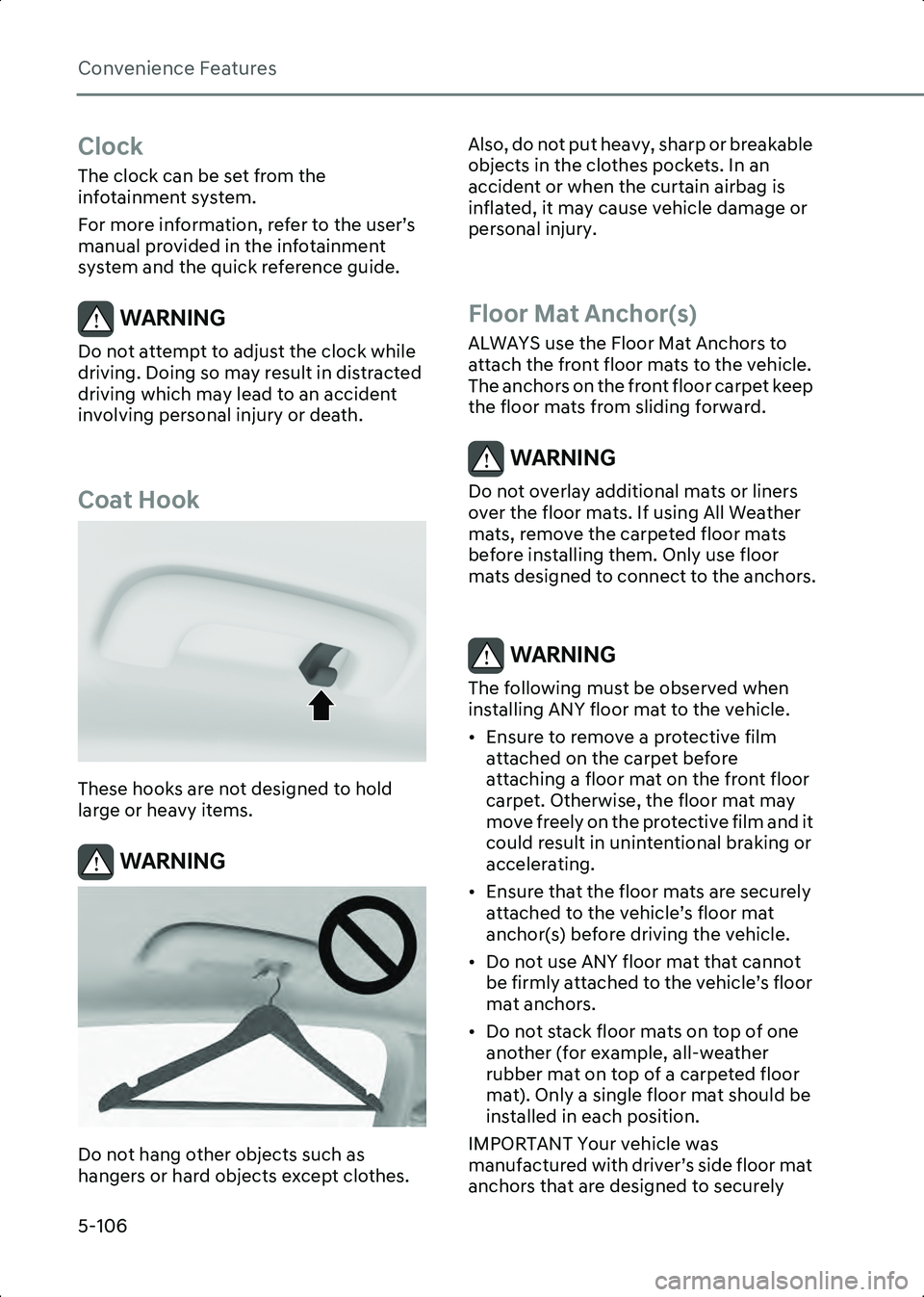

Page 284 of 582
Convenience Features
5-106
Clock
The clock can be set from the
infotainment system.
For more information, refer to the user’s
manual provided in the infotainment
system and the quick reference guide.
WARNING Do not attempt to adjust the clock while
driving. Doing so may result in distracted
driving which may lead to an accident
involving personal injury or death.
Coat Hook
B5024201
These hooks are not designed to hold
large or heavy items.
WARNING
B5024202
Do not hang other objects such as
hangers or hard objects except clothes. Also, do not put heavy, sharp or breakable
objects in the clothes pockets. In an
accident or when the curtain airbag is
inflated, it may cause vehicle damage or
personal injury.
Floor Mat Anchor(s)
ALWAYS use the Floor Mat Anchors to
attach the front floor mats to the vehicle.
The anchors on the front floor carpet keep
the floor mats from sliding forward.
WARNING Do not overlay additional mats or liners
over the floor mats. If using All Weather
mats, remove the carpeted floor mats
before installing them. Only use floor
mats designed to connect to the anchors.
WARNING The following must be observed when
installing ANY floor mat to the vehicle.
• Ensure to remove a protective film
attached on the carpet before
attaching a floor mat on the front floor
carpet. Otherwise, the floor mat may
move freely on the protective film and it
could result in unintentional braking or
accelerating.
• Ensure that the floor mats are securely attached to the vehicle’s floor mat
anchor(s) before driving the vehicle.
• Do not use ANY floor mat that cannot be firmly attached to the vehicle’s floor
mat anchors.
• Do not stack floor mats on top of one another (for example, all-weather
rubber mat on top of a carpeted floor
mat). Only a single floor mat should be
installed in each position.
IMPORTANT Your vehicle was
manufactured with driver’s side floor mat
anchors that are designed to securely
Hyundai_CE_en_US.book Page 106
Page 298 of 582
Driving Your Vehicle
6-10
NOTICE $ O Z D \ V F R P H W R D F R P S O H W H V W R S E H I R U H
V K L I W L Q J L Q W R R U R X W R I 5 5 H Y H U V H \f W R
S U H Y H Q W G D P D J L Q J W K H J H D U
N (Neutral)
B6013703
To shift the gear to N (Neutral), rotate the
rotary shifter to N (Neutral) while
depressing the brake pedal.
Always depress the brake pedal when you
are shifting from N (Neutral) to another
gear.
If you turn the vehicle off in N (Neutral),
the gear will automatically shift to P
(Park).
However, if you need to stay in N
(Neutral) with the vehicle off, refer to the
“To stay in N (Neutral) when vehicle is
OFF” in the following description.
To rotate the rotary shifter to N (Neutral),
rotate the rotary shifter once clockwise or
counterclockwise.
If the current gear position is in D (Drive),
rotate the rotary shifter
counterclockwise. When the gear
position is in R (Reverse), rotate the rotary
shifter clockwise.
To stay in N (Neutral) when vehicle is
OFF
B6013705
B6013706
[A] OK button
If you want to stay in N (Neutral) after the
vehicle is in the ACC state, do the
following:
1. Turn off Auto Hold and release Electronic Parking Brake when the
vehicle is on ( indicator on).
2. Rotate the rotary shifter to N (Neutral) while depressing the brake pedal.
3. Take your foot off the brake pedal. The message ‘Press and hold OK button
Press and hold the OK button on the
steering wheel to stay in Neutral'
appears on the cluster display.
4. Press and hold the OK button on the steering wheel for more than 1 second.
5. When the message ‘Vehicle will stay in
(N). Change gear to cancel’ appears on
the cluster display, press the Start/Stop
button while depressing the brake
pedal.
However, if you open the driver’s door
within 3 minutes in the ACC state, the
1 S F T T B O E I P M E U I F 0 ,
C V U U P O P O U I F T U F F S J O H
X I F F M U P T U B Z J O / F V U S B M
Hyundai_CE_en_US.book Page 10
Page 515 of 582

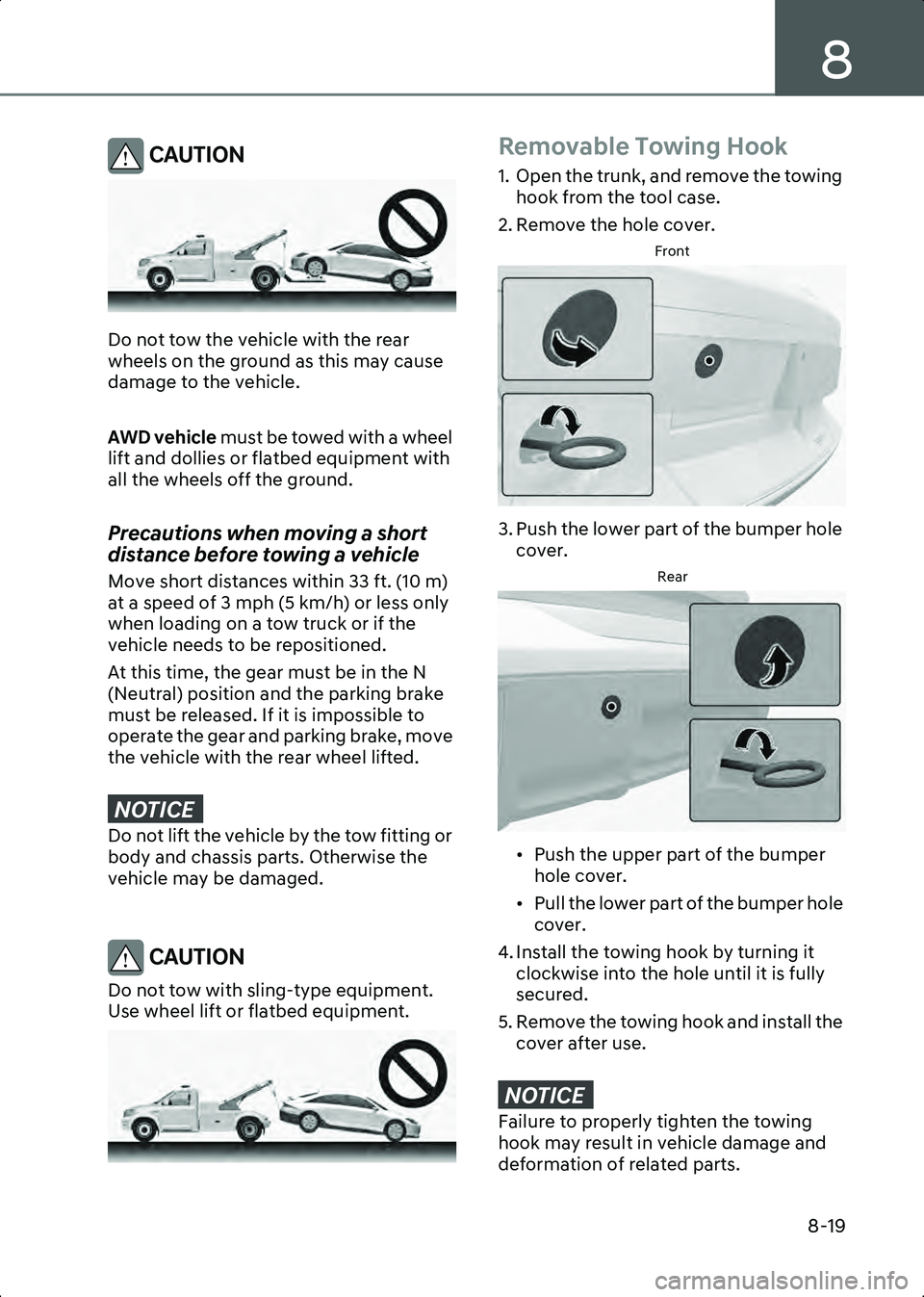

8
8-19
CAUTION
B8002705
Do not tow the vehicle with the rear
wheels on the ground as this may cause
damage to the vehicle.
AWD vehicle must be towed with a wheel
lift and dollies or flatbed equipment with
all the wheels off the ground.
Precautions when moving a short
distance before towing a vehicle
Move short distances within 33 ft. (10 m)
at a speed of 3 mph (5 km/h) or less only
when loading on a tow truck or if the
vehicle needs to be repositioned.
At this time, the gear must be in the N
(Neutral) position and the parking brake
must be released. If it is impossible to
operate the gear and parking brake, move
the vehicle with the rear wheel lifted.
NOTICE ' R Q R W O L I W W K H Y H K L F O H E \ W K H W R Z I L W W L Q J R U
E R G \ D Q G F K D V V L V S D U W V 2 W K H U Z L V H W K H
Y H K L F O H P D \ E H G D P D J H G
CAUTION Do not tow with sling-type equipment.
Use wheel lift or flatbed equipment.
B8002704
Removable Towing Hook
1. Open the trunk, and remove the towing hook from the tool case.
2. Remove the hole cover.
Front
B8002801
3. Push the lower part of the bumper hole cover.
Rear
B8002802
• Push the upper part of the bumper hole cover.
• Pull the lower part of the bumper hole cover.
4. Install the towing hook by turning it clockwise into the hole until it is fully
secured.
5. Remove the towing hook and install the cover after use.
NOTICE ) D L O X U H W R S U R S H U O \ W L J K W H Q W K H W R Z L Q J
K R R N P D \ U H V X O W L Q Y H K L F O H G D P D J H D Q G
G H I R U P D W L R Q R I U H O D W H G S D U W V
Hyundai_CE_en_US.book Page 19
Page 536 of 582
Maintenance
9-20
Information
An inappropriately disposed battery can be
harmful to the environment and human health.
Dispose of the battery according to your local
law(s) or regulation.
Reset Items
The following items may need to be reset
after the battery has been discharged or
the battery has been disconnected:
• Drive info/After Recharging/Accumulated info (items in
View modes) (refer to chapter 4)
• Integrated Memory System (refer to chapter 5)
• Power Windows (refer to chapter 5)
• Wide Sunroof (if equipped) (refer to chapter 5)
• Power Trunk (refer to chapter 5)
• Automatic Climate Control System (refer to chapter 5)
• Clock (refer to the Infotainment system manual)
• Infotainment System (refer to the Infotainment system manual)
Tires and Wheels
WARNING Tire failure may cause loss of vehicle
control resulting in an accident. To
reduce risk of SERIOUS INJURY or
DEATH, take the following
precautions:
• Inspect your tires monthly for proper inflation as well as wear and
damage.
• The recommended cold tire pressure for your vehicle can be
found in this manual and on the tire
label located on the driver’s side
center pillar. Always use a tire
pressure gauge to measure tire
pressure. Tires with too much or
too little pressure wear unevenly
causing poor handling.
• Check the pressure of the spare every time you check the pressure
of the other tires on your vehicle.
• Replace tires that are worn, show uneven wear, or are damaged.
Worn tires can cause loss of braking
effectiveness, steering control, or
traction.
• ALWAYS replace tires with the same size, type, construction and
tread pattern as each tire that was
originally supplied with this vehicle.
Using tires and wheels other than
the recommended sizes could
cause unusual handling
characteristics, poor vehicle
control, or negatively affect your
vehicle’s Anti-Lock Brake System
(ABS) resulting in a serious
accident.
Hyundai_CE_en_US.book Page 20
