2023 HONDA PILOT tailgate

Contents
Child Safety P. 77Exhaust Gas Hazard P. 95Safety Labels P. 96
Tailgate P. 196 Security System P. 207 Windows P. 210
Operating the Switches Around the Steering Wheel P. 217 Mirrors P. 236
Climate Control System P. 283
Audio Error Messages P. 398 General Information on the Audio System P. 400
Bluetooth ® HandsFreeLink ® P. 459, 479 Refuel Recommend P. 498
Off-Highway Driving Guidelines P. 519 When Driving P. 524 Honda Sensing ® P. 567 Braking P. 652
Surround View Camera System* P. 674 Refueling P. 686 Fuel Economy and CO2 Emissions P. 689
Maintenance Under the Hood P.705 Replacing Light Bulbs P. 718
Checking and Maintaining Tires P. 728 Batt ery P. 737 Remote Transmitter Care P. 739
Accessories and Modifications P. 747
Engine Does Not Start P. 762 If the Battery Is Dead P. 767
Fuses P. 778 Emergency Towing P. 785
If You Cannot Open the Tailgate P. 787 Refueling P. 788
Devices that Emit Radio Waves P. 793 Reporting Safety Defects P. 794
Authorized Manuals P. 800 Customer Service Information P. 801 Open Source License P. 802
Quick Reference GuideP. 8
Safe DrivingP. 37
Instrument PanelP. 97
ControlsP. 175
FeaturesP. 291
DrivingP. 501
MaintenanceP. 691
Handling the UnexpectedP. 749
InformationP. 789
IndexP. 804
23 PILOT-31T906000_03.book 7 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

8
Quick Reference Guide
Quick Reference Guide
Visual Index
❚Gauges (P121)
❚Driver Information
Interface
(P125, 151, 154)
❚System Indicators (P98)
❚ Vehicle Stability AssistTM (VSA®)
System OFF Button
(P556)
❚ Heated Windshield Button* (P232)
❚ Power Tailgate Button* (P203)
❚Audio System (P292)
❚Navigation System*
() See the Navigation System Manual
❚Hazard Warning Button
❚ Rear Defogger/ Heated Door
Mirror* Button (P232)
❚ Front Seat Heater Buttons* (P280)
❚ Front Seat Heaters and Seat
Ventilator Buttons* (P281)
❚Climate Control System (P283)
❚Shift Button (P533)
❚Auto Idle Stop OFF Button (P543)
❚ Hill Descent Control Button (P554)
❚Drive Mode Switch (P548)
❚ENGINE START/STOP Button (P217)
❚Steering Wheel Adjustments (P235)
❚Electric Parking Brake Switch (P652)
❚Automatic Brake Hold Button (P656)
23 PILOT-31T906000_03.book 8 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Visual Index
12
Quick Reference Guide
❚Maintenance Under the Hood (P705)
❚Windshield Wipers (P229, 723)
❚Tires (P728, 751)
❚Power Door Mirrors (P237)
❚How to Refuel (P687)
❚High-Mount Brake Light (P722)
❚Rear Wiper (P231, 726)
❚Rear License Plate Light (P721)
❚Tailgate Outer Handle (P197)
❚Multi-View Rear Camera* (P672)
❚Surround View Camera* (P674)
❚Fog Lights* (P224, 718)
❚Opening/Closing the Tailgate (P196)
❚Taillights* (P721)
❚Back-Up Lights (P721)
❚Rear Side Marker Lights (P719)
❚Rear Turn Signal Lights (P719)
❚Brake/Taillights (P719)
❚Front Turn Signal Lights (P222, 718)
❚Headlights (P220, 718)
❚Front Side Marker Lights (P220, 718)
❚Daytime Running Lights/Parking Lights (P220, 225, 718)
❚Surround View Camera* (P674)
❚Surround View Camera* (P674)
❚Side Turn Signal Lights* (P222, 718)
❚Door Lock/Unlock Control (P181)
23 PILOT-31T906000_03.book 12 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

20
Quick Reference Guide
Unlocking the Front
Doors from the Inside
(P193)
●Pull either front door inner handle to
unlock and open it at the same time.
Tailgate (P 196)
●Press the tailgate outer handle to unlock
and open the tailgate when you have the
keyless remote on you.
●Press and hold the power tailgate button
on the driver’s side control panel or the
remote transmitter to open and close the
power tailgate.
Models with power tailgate
With the remote on you, raise and lower
your foot (in a kicking motion) under the
center of the rear bumper to open or close
the tailgate.
Models with hands free access
1 sec.
Power Door Mirrors
(P 237)
●With the power mode in ON, move the
selector switch to L or R .
●Push the appropriate edge of the
adjustment switch to adjust the mirror.
●Press the folding button to fold in and
out the door mirrors.
Models with folding button
Selector Switch
Adjustment SwitchFolding Button*
23 PILOT-31T906000_03.book 20 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

35
Quick Reference Guide
Why does a beeper sound
when I walk away from the
vehicle after I close the
door?The beeper sounds if you move outside the walk away auto lock
operating range before the door completely closes.
2Locking the doors and tailgate (Walk away auto lock ®) (P184)
Why does the beeper
sound when I start driving?The beeper sounds when the driver and/or front passenger are
not wearing their seat belts.
Pushing the electric
parking brake switch does
not release the parking
brake. Why?Push the electric parking brake switch with the brake pedal
depressed.
I’m seeing an amber
indicator of a tire with an
exclamation point. What is
that?The Tire Pressure Monitoring Sy stem (TPMS) needs attention.
Check tire pressure.
2 If the Low Tire Pressure/TPMS Indicator Comes On or Blinks (P776)
Depressing the accelerator
pedal does not release the
parking brake
automatically. Why?●Fasten the driver’s seat belt.
●Check if the transmission is in (P or (N. If so, select any other
position.
23 PILOT-31T906000_03.book 35 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

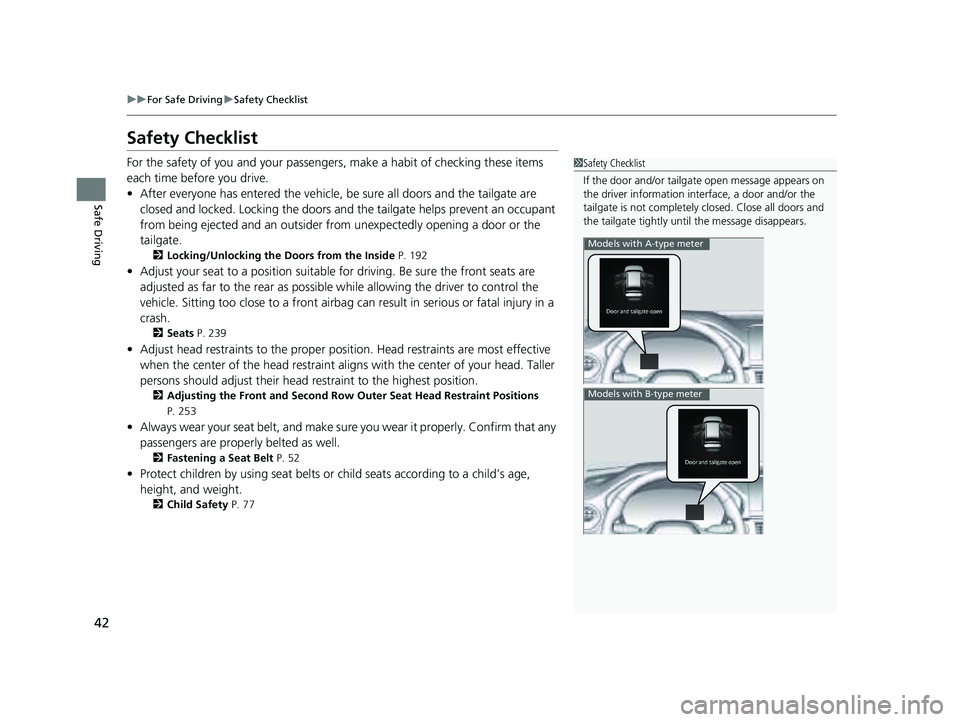

42
uuFor Safe Driving uSafety Checklist
Safe Driving
Safety Checklist
For the safety of you and your passenge rs, make a habit of checking these items
each time before you drive.
• After everyone has entered the vehicle, be sure all doors and the tailgate are
closed and locked. Locking the doors and the tailgate helps prevent an occupant
from being ejected and an outsider from unexpectedly opening a door or the
tailgate.
2 Locking/Unlocking the Doors from the Inside P. 192
•Adjust your seat to a position suitable for driving. Be sure the front seats are
adjusted as far to the rear as possible while allowing the driver to control the
vehicle. Sitting too close to a front airbag can result in serious or fatal injury in a
crash.
2 Seats P. 239
•Adjust head restraints to the proper position. Head restraints are most effective
when the center of the head restraint alig ns with the center of your head. Taller
persons should adjust their head restraint to the highest position.
2 Adjusting the Front and Second Row Outer Seat Head Restraint Positions
P. 253
• Always wear your seat belt, and make sure you wear it properly. Confirm that any
passengers are properly belted as well.
2 Fastening a Seat Belt P. 52
•Protect children by using seat belts or child seats according to a child’s age,
height, and weight.
2 Child Safety P. 77
1Safety Checklist
If the door and/or tailga te open message appears on
the driver information inte rface, a door and/or the
tailgate is not completely closed. Close all doors and
the tailgate tightly unti l the message disappears.
Models with A-type meter
Models with B-type meter
23 PILOT-31T906000_03.book 42 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

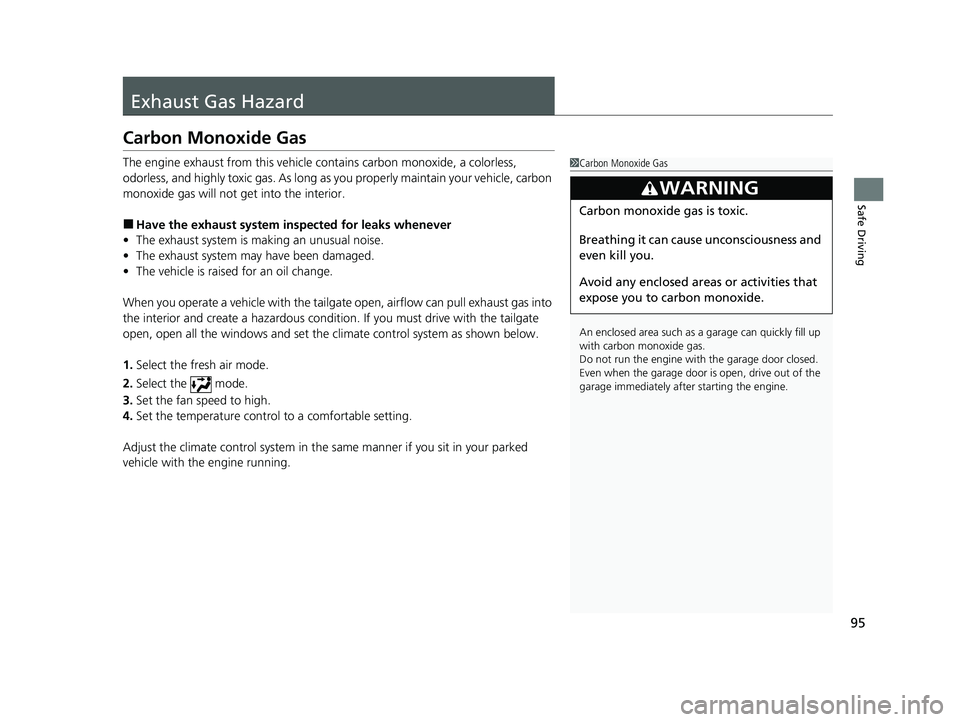

95
Safe Driving
Exhaust Gas Hazard
Carbon Monoxide Gas
The engine exhaust from this vehicle contains carbon monoxide, a colorless,
odorless, and highly toxic gas. As long as you properly maintain your vehicle, carbon
monoxide gas will not get into the interior.
■Have the exhaust system in spected for leaks whenever
• The exhaust system is making an unusual noise.
• The exhaust system may have been damaged.
• The vehicle is raised for an oil change.
When you operate a vehicle with the tailga te open, airflow can pull exhaust gas into
the interior and create a hazardous conditio n. If you must drive with the tailgate
open, open all the windows and set the climate control system as shown below.
1. Select the fresh air mode.
2. Select the mode.
3. Set the fan speed to high.
4. Set the temperature control to a comfortable setting.
Adjust the climate control system in the same manner if you sit in your parked
vehicle with the engine running.
1 Carbon Monoxide Gas
An enclosed area such as a garage can quickly fill up
with carbon monoxide gas.
Do not run the engine with the garage door closed.
Even when the garage door is open, drive out of the
garage immediat ely after starting the engine.
3WARNING
Carbon monoxide gas is toxic.
Breathing it can cause unconsciousness and
even kill you.
Avoid any enclosed areas or activities that
expose you to carbon monoxide.
23 PILOT-31T906000_03.book 95 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

147
uuGauges and Displays uDriver Information Interface (A-type Meter)
Continued
Instrument Panel
*1:Default SettingSetup Group Customizable Features
Description Selectable Settings
Power
tailgate
setup
*
Keyless open mode Changes the keyless setting for when the
power tailgate opens. Anytime*1/
When unlocked
Power open by outer
handle Changes the setting to open power
tailgate by tailgate outer handle.
ON(Power/Manual)
*1/
OFF(Manual only)
Maintenance
reset—
Resets the Maintenance Minder display
when you have performed the
maintenance service.
(Selects Reset Items)
Default all —Cancels customized changes you have
made or restores them to their default
setting. Cancel
/Set
* Not available on all models
23 PILOT-31T906000_03.book 147 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
