2023 HONDA PILOT tailgate

204
uuTailgate uOpening/Closing the Power Tailgate*
Controls

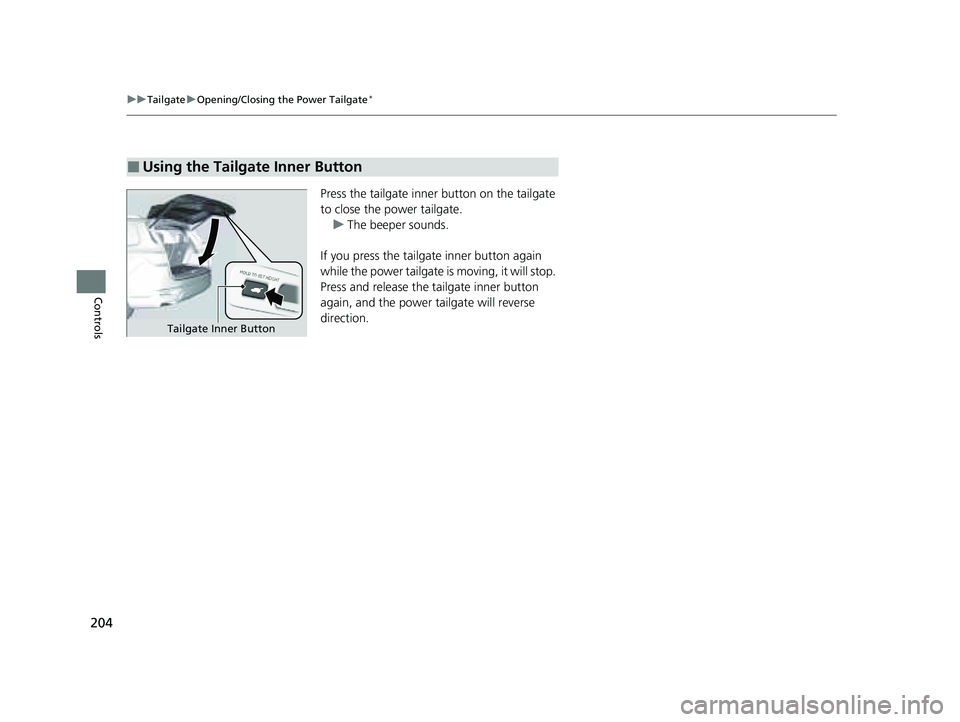

Press the tailgate inner button on the tailgate
to close the power tailgate.
u The beeper sounds.
If you press the tailgate inner button again
while the power tailgate is moving, it will stop.
Press and release the tailgate inner button
again, and the power tailgate will reverse
direction.
■Using the Tailgate Inner Button
Tailgate Inner Button
23 PILOT-31T906000_03.book 204 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued205
uuTailgate uOpening/Closing the Power Tailgate*
Controls

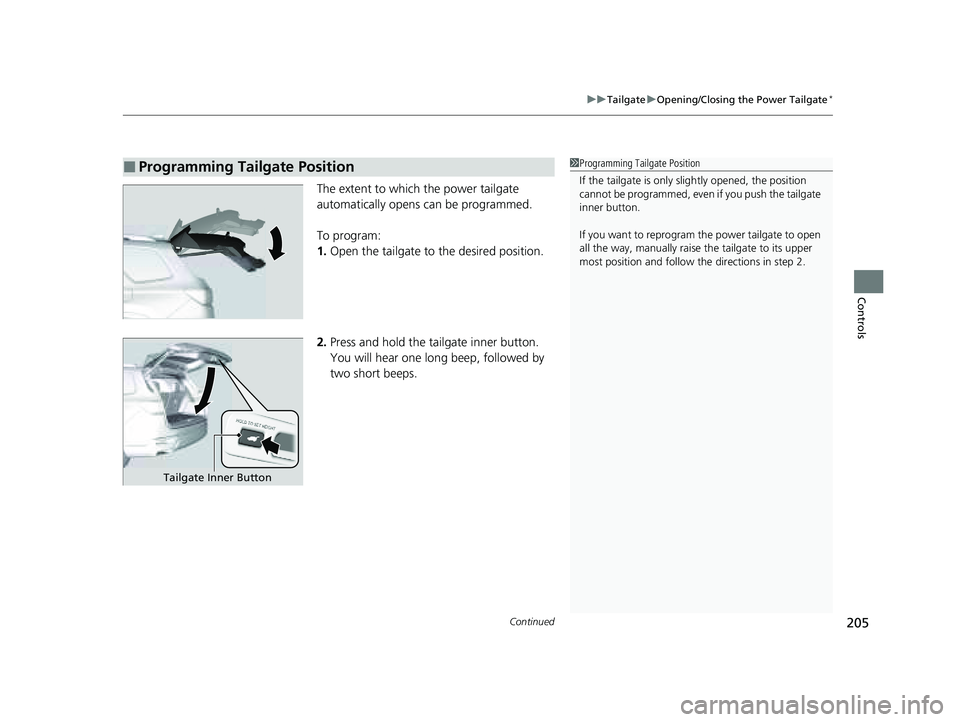

The extent to which the power tailgate
automatically opens can be programmed.
To program:
1. Open the tailgate to the desired position.
2. Press and hold the tailgate inner button.
You will hear one long beep, followed by
two short beeps.
■Programming Tailgate Position1Programming Tailgate Position
If the tailgate is only sl ightly opened, the position
cannot be programmed, even if you push the tailgate
inner button.
If you want to reprogram the power tailgate to open
all the way, manually raise the tailgate to its upper
most position and follow the directions in step 2.
Tailgate Inner Button
23 PILOT-31T906000_03.book 205 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuTailgate uOpening/Closing the Power Tailgate*
206
Controls

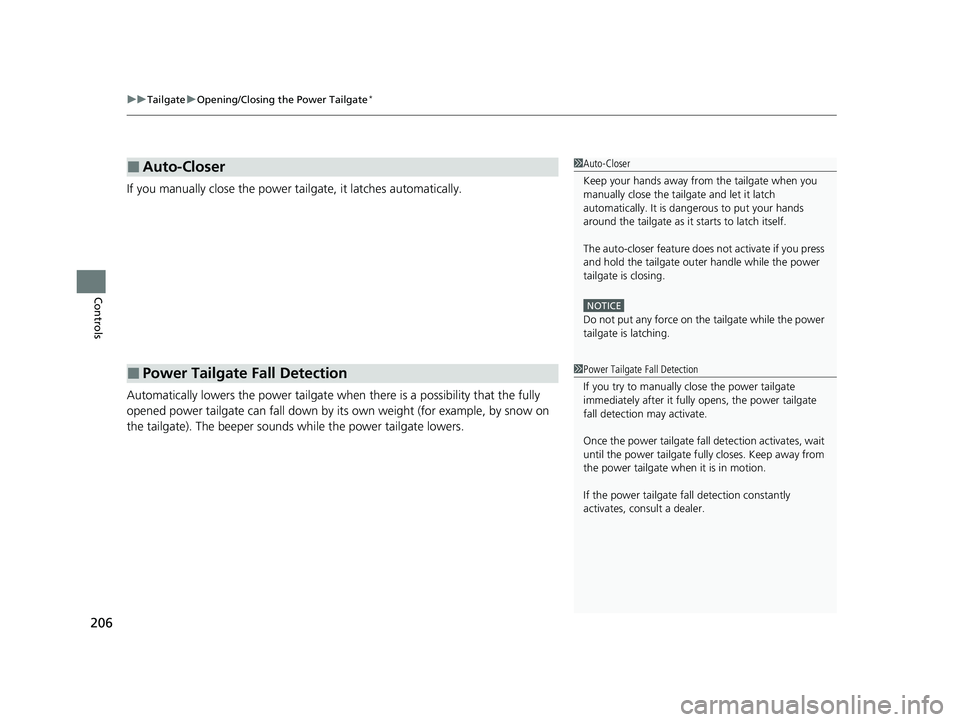

If you manually close the power ta ilgate, it latches automatically.
Automatically lowers the power tailgate wh en there is a possibility that the fully
opened power tailgate can fall down by it s own weight (for example, by snow on
the tailgate). The beeper sounds while the power tailgate lowers.
■Auto-Closer
■Power Tailgate Fall Detection
1 Auto-Closer
Keep your hands away from the tailgate when you
manually close the tailga te and let it latch
automatically. It is dange rous to put your hands
around the tailgate as it st arts to latch itself.
The auto-closer feature does not activate if you press
and hold the tailgate outer handle while the power
tailgate is closing.
NOTICE
Do not put any force on the tailgate while the power
tailgate is latching.
1 Power Tailgate Fall Detection
If you try to manually close the power tailgate
immediately after it full y opens, the power tailgate
fall detection may activate.
Once the power tailgate fall detection activates, wait
until the power tailgate full y closes. Keep away from
the power tailgate when it is in motion.
If the power tailgate fa ll detection constantly
activates, consult a dealer.
23 PILOT-31T906000_03.book 206 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

207Continued
Controls
Security System
Immobilizer System
This system prevents a key that has not been pre-registered from starting the
engine.
Pay attention to the follo wing when pressing the ENGINE START/STOP button:
• Do not allow objects that emit strong radio waves near the ENGINE START/
STOP button.
• Make sure the key is not covered by or touching a metal object.
• Do not bring a key from another vehicle’s immobilizer system near the ENGINE
START/STOP button.
• Do not put the key near magnetic items. El ectronic device, such as televisions and
audio systems, emit strong magnetic fiel ds. Note that even a key chain can
become magnetic.
Security System Alarm
The security system alarm activates when the tailgate, hood, or doors are forcibly
opened. The alarm does not activate if the tailgate or doors are opened with the key,
remote transmitter, or keyless access system.
However, the alarm activates if a door is opened with the key and then the hood is
opened before the power mode is set to ON.
1 Immobilizer System
NOTICE
Leaving the key in the vehicl e can result in theft or
accidental movement of the vehicle.
Always take the key with you whenever you leave the
vehicle unattended.
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
Apply and hold the brake pedal before turning the
vehicle on the first time after the battery has been
disconnected.
Canadian models
1 Security System Alarm
Do not alter the system or add other devices to it.
Doing so may damage the system and make your
vehicle inoperable.
The security alarm continues for a maximum of two
minutes until the security system alarm deactivates.
23 PILOT-31T906000_03.book 207 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuSecurity System uSecurity System Alarm
208
Controls

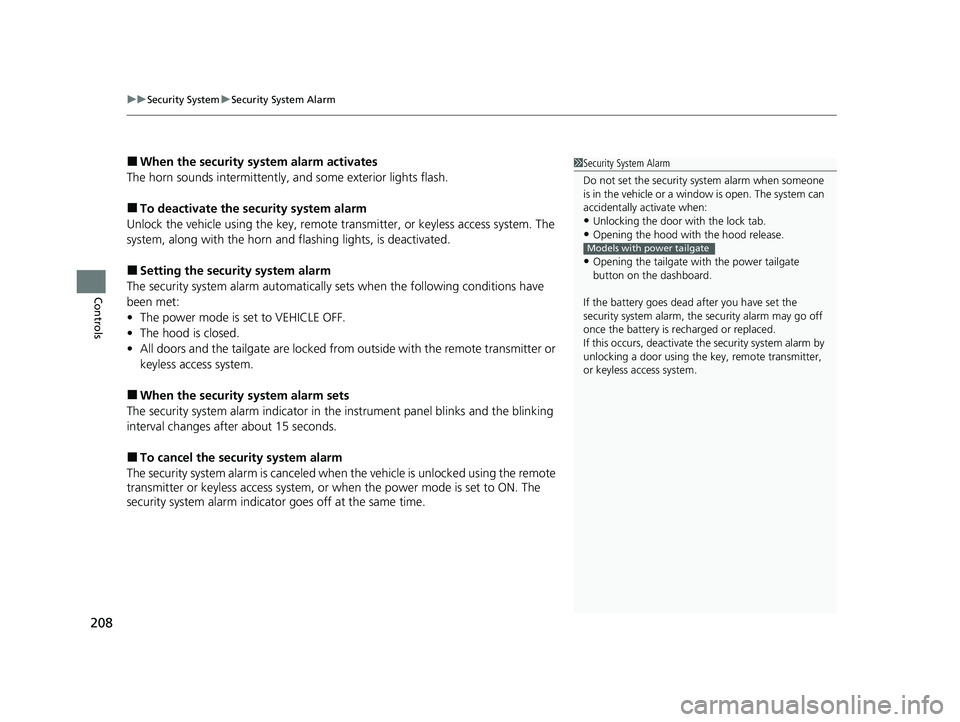

■When the security sy stem alarm activates
The horn sounds intermittently, and some exterior lights flash.
■To deactivate the security system alarm
Unlock the vehicle using the key, remote transmitter, or keyless access system. The
system, along with the horn and flashing lights, is deactivated.
■Setting the security system alarm
The security system alarm automatically sets when the following conditions have
been met:
• The power mode is set to VEHICLE OFF.
• The hood is closed.
• All doors and the tailgate are locked from outside with the remo te transmitter or
keyless access system.
■When the security system alarm sets
The security system alarm indicator in the instrument panel blinks and the blinking
interval changes after about 15 seconds.
■To cancel the security system alarm
The security system alarm is canceled when the vehicle is unlocked using the remote
transmitter or keyless access system, or wh en the power mode is set to ON. The
security system alarm indicator goes off at the same time.
1 Security System Alarm
Do not set the security system alarm when someone
is in the vehicle or a window is open. The system can
accidentally activate when:
•Unlocking the door with the lock tab.•Opening the hood with the hood release.
•Opening the tailgate with the power tailgate
button on the dashboard.
If the battery goes dead after you have set the
security system alarm, the security alarm may go off
once the battery is re charged or replaced.
If this occurs, deactivate the security system alarm by
unlocking a door using the ke y, remote transmitter,
or keyless access system.
Models with power tailgate
23 PILOT-31T906000_03.book 208 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

260
Controls
Interior Convenience Items
Interior Lights
■ON
The interior lights come on regardless of
whether the tailgate and doors are open or
closed.
■Door activated
The interior lights come on in the following
situations:
• When the tailgate or any doors are opened.
• You unlock the driver’s door.
• When the power mode is set to VEHICLE
OFF.
■OFF
The interior lights remain off regardless of
whether the tailgate or any doors are open or
closed.
■Interior Light Switches1 Interior Light Switches
In the door activated position, the interior lights fade
out and turn off about 30 seconds after the doors are
closed.
The lights turn off afte r about 30 seconds in the
following situations:
•When you unlock the driver’s door but do not open
it.
•When you set the power mode to VEHICLE OFF but
do not open a door.
You can change the interi or lights dimming time.
2 Settings
* P. 140
2 How to Customize the Vehicle Settings
P. 444
The interior lights turn off immediately in the
following situations:
•When you lock the driver’s door.
•When you close the driver’s door in ACCESSORY
mode.
•When you set the power mode to ON.
Models with 7-in. Color Touchscreen
Models with 9-in. Color Touchscreen
Door Activated Position
Off On
* Not available on all models
23 PILOT-31T906000_03.book 260 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

Continued261
uuInterior Convenience Items uInterior Lights
Controls
■Front
The map lights can be turned on and off by
pressing the (map light) button.
■Second and third row
The map lights can be turned on and off by
pressing the lenses when the front interior
light switch is in the door activated position or
ON position.
■Map Light Switches1 Interior Light Switches
If you leave any of the tailgate or doors open in
VEHICLE OFF mode, the inte rior lights go off after
about 15 minutes.
To avoid draining the ba ttery, do not leave the
interior light on for an extended length of time when
the engine is off.
Front
Second and third row
1 Map Light Switches
When the interior light swit ch is in the door activated
position and any door is ope n, the front map lights
will not go off when you press the button.
23 PILOT-31T906000_03.book 261 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

uuInterior Convenience Items uInterior Lights
262
Controls
The cargo area light comes on when you open
the tailgate.
■Cargo Area Light1Cargo Area Light
The cargo area light does not have an on/off switch.
In case the tailgate is left open for an extended period
of time, they automaticall y turn off in 30 minutes.
23 PILOT-31T906000_03.book 262 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
