uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1BATTERY225 A
2 Idle Stop 1 (30 A)
Idle Stop 2 (30 A)
EPS 80 A
FET Main 1 70 A
Fuse Box Main 1 60 A
Fuse Box Option 1 60 A Rear Blower 30 A
3
ACM30 A
Starter Cut30 A
Sub Fan Motor30 A
Heater Motor40 A
Accessory Power Socket Main*(40 A)
Rear Defogger40 A
Fuse Box Option 260 A
4 AC Power Outlet*(30 A)
EBB 40 A
Power Tailgate
*(40 A)
ABS/VSA FSR 40 A - 60 A
Wiper Motor 30 A
Fuse Box Main 2 60 A
5
FET Main 230 A
ABS/VSA Motor40 A
IG Main 230 A
SRM 230 A
SRM 130 A
AWD*(30 A)
IG Main 130 A
6 Condenser Fan 30 A
7Trailer Main*(30 A)
8 Power Tailgate*(20 A)
9Back Up Audio*(15 A)
10 - -
11Back Up10 A
12 Trailer Charge*(20 A)
13Trailer Brake*(20 A)
14 Horn 15 A
15--
16 VBU 10 A
17--
18 - -
19FI Main20 A
20 Injector 20 A
21TCU 115 A
22 IG Coil 15 A
23Hazard15 A
24 Right H/L 15 A
25Stop5 A
Circuit ProtectedAmps
26 Left H/L 15 A
27TCU 310 A
28 TCU 2 10 A
29--
30 - -
31Front Washer15 A
32 Battery Sensor 10 A
33Shutter Grille10 A
34 IG1 START 5 A
35Battery Fan5 A
36 FI ECU 5 A
37--
38 IG1 PCS 5 A
39IGPS RAD10 A
40 IGPS VSSV*(10 A)
41--
Circuit ProtectedAmps
* Not available on all models
23 PILOT-31T906000_03.book 779 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

781
uuFuses uFuse Locations
Continued
Handling the Unexpected
■Circuit protected and fuse rating
Circuit ProtectedAmps
1Driver’s Power Window30 A
2 Front Passenger’s Power
Window 30 A
3Rear Right Side Power
Window30 A
4 Rear Left Side Power
Window 30 A
5Option10 A
6 SRS 10 A
7Tailgate Motor*(10 A)
8- -
9Rear Accessory Power Socket*(20 A)
10 Door Lock Main 20 A
11Meter10 A
12 Transmission 10 A
13Rear Wiper10 A
14 - -
15Driver’s Door Unlock(10 A)
16 Panoramic Roof*(20 A)
17--
18 HAC ACCESSORY*(20 A)
19AWD*(10 A)
20 - -
21--
Fuse Box22 Keyless Access System 10 A
23Driver’s Door Lock(10 A)
24 - -
25Shifter10 A
26 SRS 10 A
27ACG15 A
28 ABS/VSA 10 A
29FUEL PUMP20 A
30 Left Side Door Unlock 10 A
31Right Side Door Unlock10 A
32 Sunshade*(20 A)
33IMG10 A
34 - -
35USB Charger10 A
36 - -
37Audio Amp*(10 A)
38 Rear Seat Act 20 A
39Right Side Door Lock10 A
40 Driver’s Power Seat Slide*(20 A)
41Driver’s Power Seat Recline*(20 A)
42 Starter 10 A
43AIRCON10 A
44 DRL 10 A
45Accessory10 A
46 - -
47Left Side Door Lock 10 A
Circuit ProtectedAmps
48 - -
49Front Passenger’s Power
Seat Slide*(20 A)
50 Driver’s Power Seat
Lumbar
*(10 A)
51--
52 - -
53Front Passenger’s Power Seat Recline*(20 A)
54 - -
55Audio Amp*(30 A)
56 - -
Circuit ProtectedAmps
AOption(10 A)
B Accessory (10 A)
CAudio(15 A)
D Surround View Camera
System
*(10 A)
EAudio(20 A)
F- -
GMeter(15 A)
HMICU (10 A)
Circuit ProtectedAmps
Sub Fuse Box
* Not available on all models
23 PILOT-31T906000_03.book 781 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

786
Handling the Unexpected

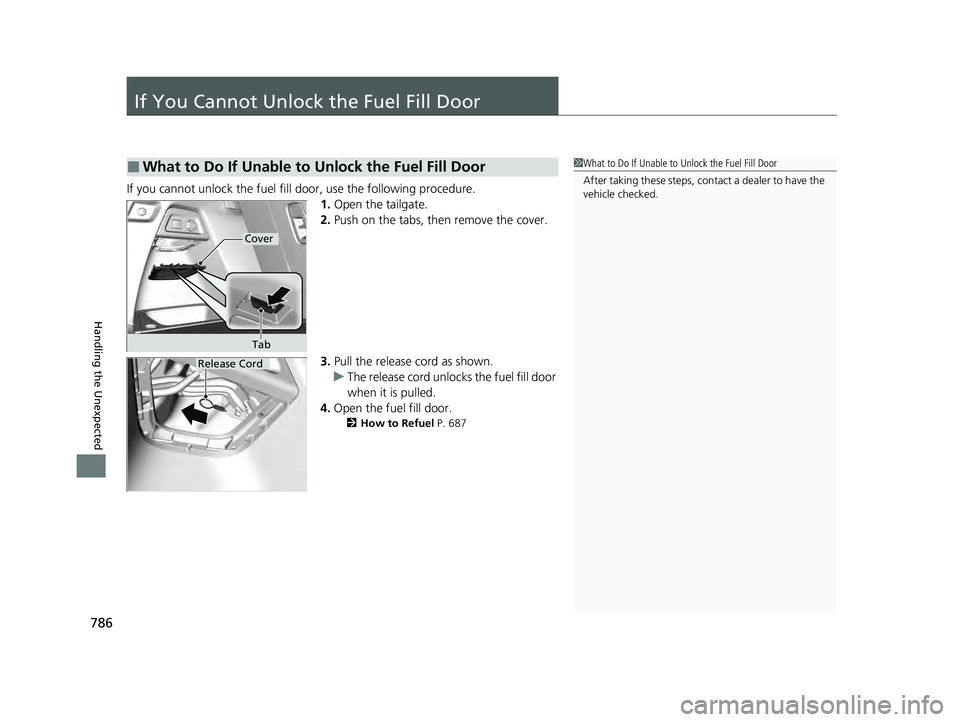

If You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.1.Open the tailgate.
2. Push on the tabs, then remove the cover.
3. Pull the release cord as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
4. Open the fuel fill door.
2 How to Refuel P. 687
■What to Do If Unable to Unlock the Fuel Fill Door1What to Do If Unable to Unlock the Fuel Fill Door
After taking these steps, cont act a dealer to have the
vehicle checked.
Cover
Tab
Release Cord
23 PILOT-31T906000_03.book 786 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分

787
Handling the Unexpected

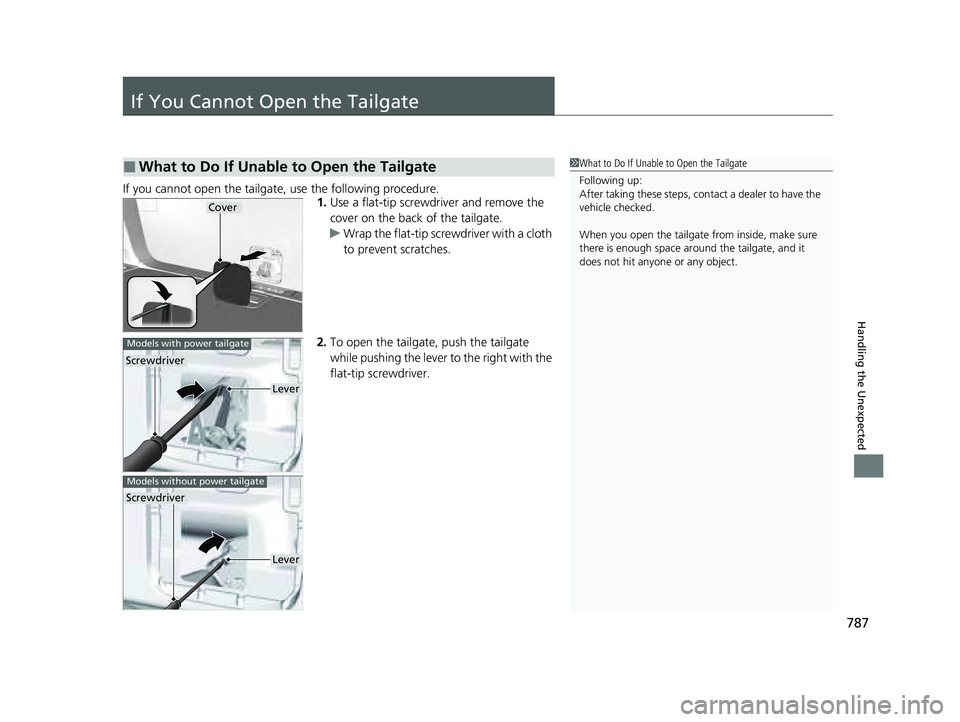

If You Cannot Open the Tailgate
If you cannot open the tailgate, use the following procedure.1.Use a flat-tip screwdriver and remove the
cover on the back of the tailgate.
u Wrap the flat-tip screwdriver with a cloth
to prevent scratches.
2. To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
■What to Do If Unable to Open the Tailgate1What to Do If Unable to Open the Tailgate
Following up:
After taking these steps, cont act a dealer to have the
vehicle checked.
When you open the tailgate from inside, make sure
there is enough space around the tailgate, and it
does not hit anyone or any object.
Cover
Lever
Models with power tailgate
Screwdriver
Lever
Models without power tailgate
Screwdriver
23 PILOT-31T906000_03.book 787 ページ ２０２２年１０月３１日　月曜日　午前１０時２６分
