2023 HONDA ODYSSEY Owners Manual

679

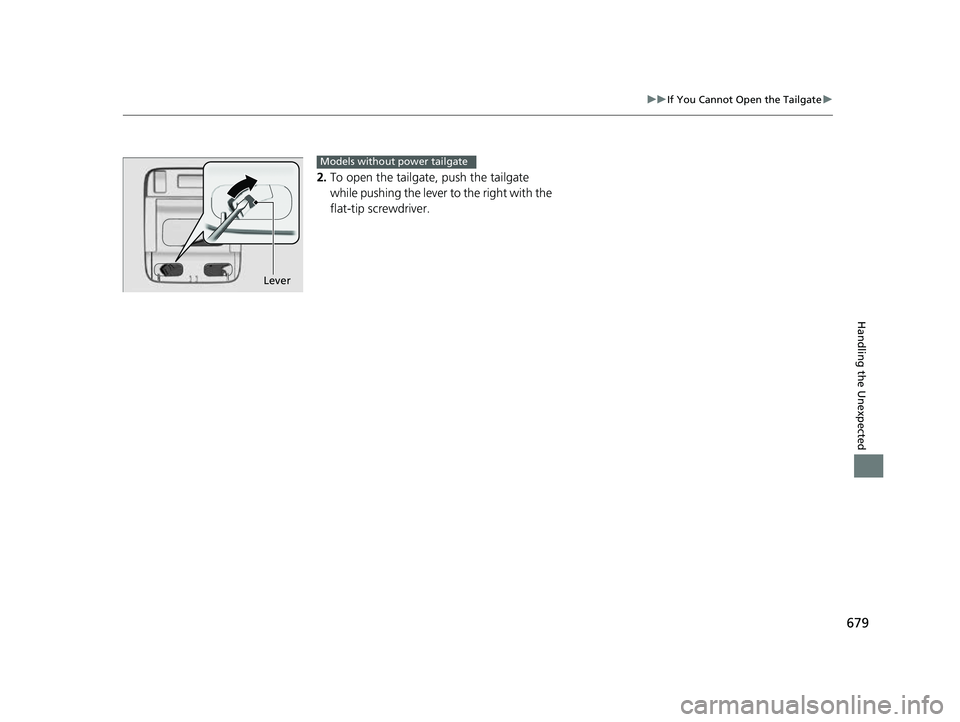

uuIf You Cannot Open the Tailgate u
Handling the Unexpected
2.To open the tailgate, push the tailgate
while pushing the lever to the right with the
flat-tip screwdriver.
Lever
Models without power tailgate
23 US ODYSSEY-31THR6500.book 679 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

680
Handling the Unexpected
When You Cannot Close the Power Sliding Doors
If either power sliding door does not latch when closed, use the following
procedure.
1.Set the sliding door main switch in the OFF
position.
2 Switching between manual and
automatic operations P. 175
2.Push front edge of the cover on hand
pocket of the power sliding door to pop it
out, and remove it as shown in the image.
3. Pull the rear latch reset cable (yellow)
towards the front of the vehicle until it
bottoms out (about 9/16 inch [15 mm]).
4. Manually close the door and confirm
latches engage.
■What to Do When Unable to Close the Power Sliding Doors1When You Cannot Close the Power Sliding Doors
After taking these steps, contact a dealer to have
your vehicle checked.
Cover
Rear Latch
Reset Cable
23 US ODYSSEY-31THR6500.book 680 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

681Continued
Handling the Unexpected

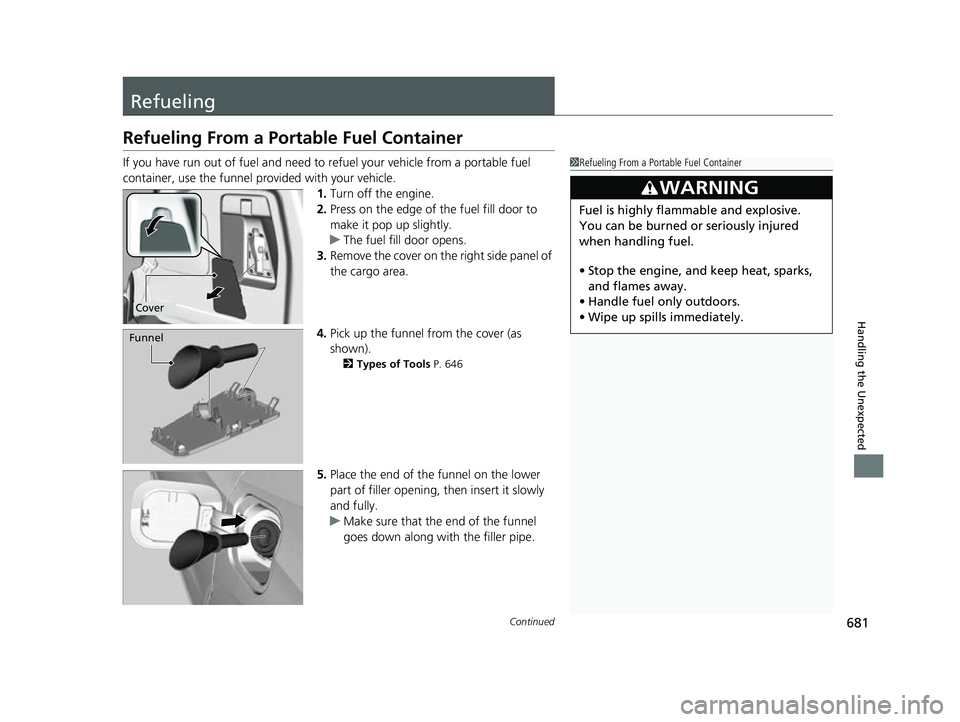

Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Remove the cover on the right side panel of
the cargo area.
4. Pick up the funnel from the cover (as
shown).
2 Types of Tools P. 646
5.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
1Refueling From a Portable Fuel Container
3WARNING
Fuel is highly fla mmable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flames away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Cover
Funnel
23 US ODYSSEY-31THR6500.book 681 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

uuRefueling uRefueling From a Portable Fuel Container
682
Handling the Unexpected
6. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
7. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
8. Shut the fuel fill door by hand.1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
23 US ODYSSEY-31THR6500.book 682 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

683
Information
This chapter includes your vehicle’s specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 684
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 686
Devices that Emit Radio Waves ....... 687
Reporting Safety Defects ................. 688
Emissions Testing Testing of Readiness Codes.............. 689
Warranty Coverages ........................ 691
Authorized Manuals ......................... 694
Customer Service Information ......... 695
23 US ODYSSEY-31THR6500.book 683 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

684
Information
Specifications
■Vehicle Specifications
■ Air Conditioning
ModelOdyssey
No. of Passengers:
Front 2
Rear 2nd Row 3 3rd Row 3
Total 8
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Gross Combined Weight
Rating U.S.: 8,565 lbs (3,885 kg)
Canada: 3,885 kg
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 20.3 - 22.0 oz (575 - 625 g)
Lubricant TypeND-OIL14 (POE)
Quantity 7.3 - 8.2 cu-in (120 - 135 cm3)
■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement212 cu-in (3,471 cm3)
Spark Plugs NGK DILZKR7B11G
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 19.5 US gal (73.8 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)LED
Headlights (High Beam) LED
Fog LightsLED
Front Turn Signal Lights 28/8W (Amber)
Front Side Marker Lights3CP
Parking/Daytime Running Lights LED
Side Turn Signal Lights
(on Door Mirrors)LED
Brake Lights 21W
Rear Side Marker/TaillightsLED
Rear Turn Signal Lights 21W
Back-Up Lights21W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsFront Map Lights5WRear Map Lights5WAmbient LightLEDCargo Area Light8WVanity Mirror Lights1.4WDoor Courtesy Lights3.8W (2CP)Glove Box Light1.4WFoot Lights*LEDConsole Compartment
Light1.4W
Door Inner Handle
Lights*LED
Door Tray Ambient
Lights*LED
Pass Through Light*LED
* Not available on all models
23 US ODYSSEY-31THR6500.book 684 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

685
uuSpecifications u
Information
■
Brake Fluid
■ Automatic Tran smission Fluid
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda ATF-Type 2
■
Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 5.4 US qt (5.1 L)
Change
including
filter
5.7 US qt (5.4 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.69 US gal (6.38 L)
(change including the remaining 0.19 US gal
(0.73 L) in the reserve tank)
■ Tire
*1: Original tire size is mentioned on the tire information label on
the driver’s doorjamb.
*2: Models with 235/60R18 tires
*3: Models with 235/55R19 tires
RegularSize*1235/60R18 103H
235/55R19 101H
Pressure
psi (kPa [kgf/cm2])35 (240 [2.4])*2
36 (250 [2.5])*3
Compact
Spare Size
T135/80D17 103M
Pressure
psi (kPa [kgf/cm
2]) 60 (420 [4.2])
Wheel SizeRegular18 x 7 1/2J*2
19 x 7 1/2J*3
Compact Spare17 x 4T
23 US ODYSSEY-31THR6500.book 685 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

686
Information

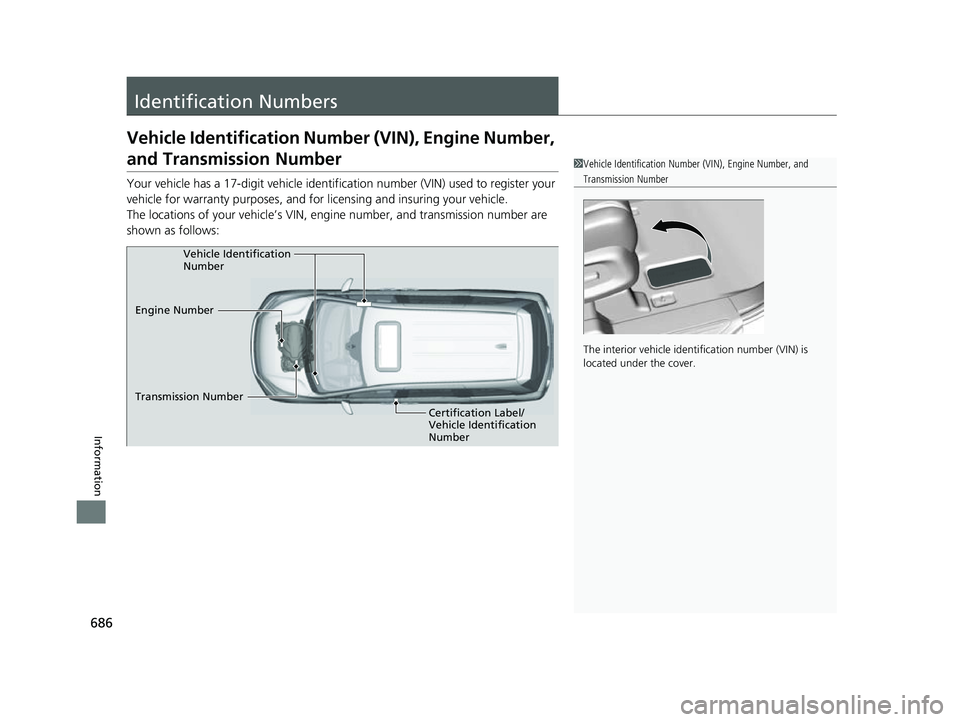

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, engine number, and transmission number are
shown as follows:
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification
Number
Certification Label/
Vehicle Identification
Number
Engine Number
Transmission Number
