2023 HONDA ODYSSEY Owners Manual

103
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(Amber)
•Comes on for a few seconds when
you set the power mode to ON,
then goes off.
• Comes on if there is a problem
with ACC with Low Speed Follow.•Comes on while driving - Have your
vehicle checked by a dealer.
• Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.
• ACC with Low Speed Follow has
been automatically canceled.•Make sure the total load is within the
Maximum Load Limit.
2 Maximum Load Limit P. 467
•Stays on constantly - Have your
vehicle checked by a dealer.
—
Adaptive Cruise
Control (ACC)
with Low Speed
Follow Indicator
(White/Green)• Lights up in white when you press
the button.
• Lights up in green when you press
the RES/+ button or -/SET button.
2Adaptive Cruise Control (ACC) with
Low Speed Follow P. 523—
23 US ODYSSEY-31THR6500.book 103 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

104
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Cruise Mode
Indicator
(White/Green)•Lights up in white when you
change to cruise mode.
• Lights up in green when you have
set a speed for cruise control.
2 To Switch ACC with Low Speed
Follow to Cruise Control P. 537—
Safety Support
Indicator
(Amber)
•Comes on if there is a problem
with RDM, CMBSTM, or blind spot
information system.
• Stays on constantly - Have your
vehicle checked by a dealer.
• Indicator may come on
temporarily when the Maximum
Load Limit is exceeded.•Make sure the total lo ad is within the
Maximum Load Limit.
2 Maximum Load Limit P. 467
23 US ODYSSEY-31THR6500.book 104 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

105
uuIndicators u
Continued
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
•Comes on when RDM and/or
CMBSTM shuts itself off.
•Indicator may come on temporarily
when passing through an enclosed
space, such as a tunnel.
• The area around the radar sensor is
blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the
debris off with a soft cloth. Indicator may
take some time to go off after the radar
sensor is cleaned.
• Have your vehicle chec ked by a dealer if
the indicator does not go off even after
you have cleaned the radar sensor.
2 Radar Sensor P. 560
•Stays on - The temperature inside the
camera is too high.
Use the climate control system to cool
down the camera.
The system activates when the
temperature inside the camera cools
down.
2 Front Sensor Camera P. 558
23 US ODYSSEY-31THR6500.book 105 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

106
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator
(Amber)
•Comes on when RDM and/or
CMBSTM shuts itself off.
•Stays on - The area around the camera
is blocked by dirt, mud, etc. Stop your
vehicle in a safe place and wipe the
debris off with a soft cloth.
• Have your vehicle checked by a dealer if
the indicator and message are still
displayed even after you have cleaned
the area around the camera.
2 Front Sensor Camera P. 558
•Comes on when mud, snow, or ice
has accumulated in the vicinity of
the blind spot information system
sensor.•Comes on while driving - Something
may be interfering with the blind spot
information system sensor. Check the
vicinity of the blind spot information
system sensor and remove any obstacles.
2 Blind spot information System
P. 506
23 US ODYSSEY-31THR6500.book 106 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

107
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
Safety Support
Indicator (Green/
Gray)
•Lights up in green when RDM,
CMBSTM, and blind spot
information system are on.
• Lights up in green and gray when
RDM, CMBS
TM, or blind spot
information system or any two of
these systems are off.
• Lights up in gray when RDM,
CMBS
TM, and blind spot
information system are off.
2 RDM On and Off P. 550
2 CMBSTM On and Off P. 516
2 Blind spot information system on
and off P. 508
23 US ODYSSEY-31THR6500.book 107 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

108
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
Driver Information Interface Warning and Information Messages
The following messages appear only on the driver information interface. Press the (home) button, select Warnings, then press the
ENTER button to see the message again with the system message indicator on.
MessageConditionExplanation
•Appears if any door or the tailgate is not completely
closed.•Goes off when all doors and the tailgate are closed.
•Appears when the hood is opened.•Close the hood.
•Appears when the engine oil pressure is low.•Appears while driving - Immediately stop in a safe
place.
2 If the Engine Oil Low Warning Appears P. 663
•Appears if there is a problem with the shutter grille,
and the radiator coolant temperature is too high.• Power output will be reduce d, so you may not be able
to accelerate or maintain your current speed. Have your
vehicle checked by a dealer.
23 US ODYSSEY-31THR6500.book 108 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

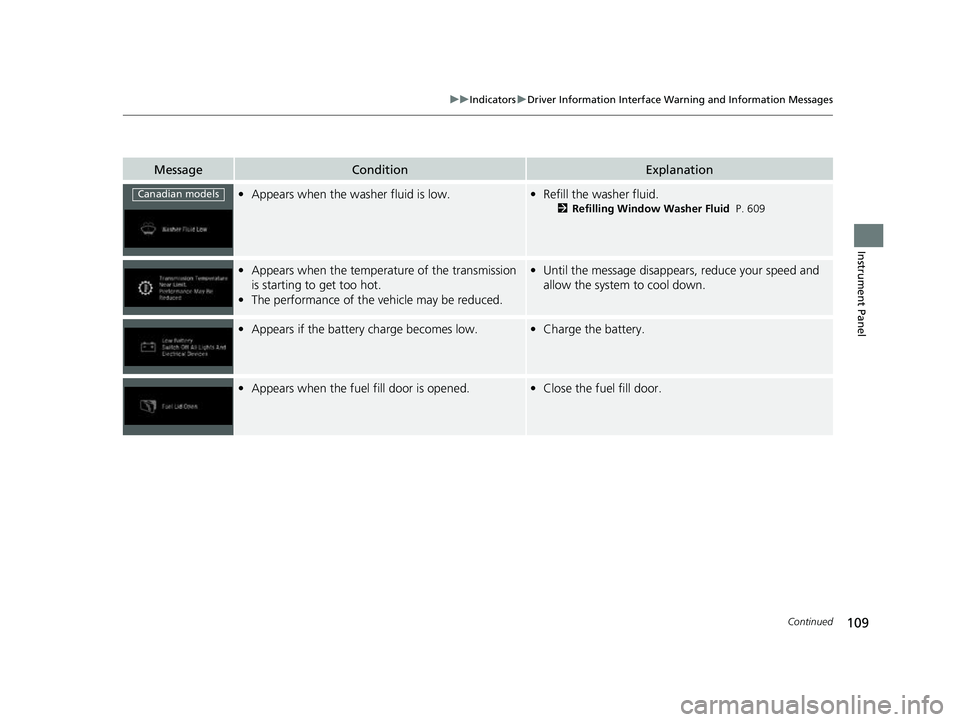

109
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
•Appears when the washer fluid is low.•Refill the washer fluid.
2 Refilling Window Washer Fluid P. 609
•Appears when the temperature of the transmission
is starting to get too hot.
• The performance of the vehicle may be reduced.•Until the message disappears, reduce your speed and
allow the system to cool down.
•Appears if the battery charge becomes low.•Charge the battery.
•Appears when the fuel fill door is opened.•Close the fuel fill door.
Canadian models
23 US ODYSSEY-31THR6500.book 109 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

110
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
•Appears when there is a problem with the battery
charging system.•Have your vehicle checked by a dealer.
•Appears when the schedu led maintenance is due
soon.
• Consequently, Maintenance Due Now and
Maintenance Past Due follow.
2Maintenance Minder Messages on the Driver
Information Interface P. 593
•Appears if there is a problem with the power sliding
door system.•Turn off the main switch and manually operate the
power sliding doors.
• Have your vehicle checked by a dealer.
2 Opening/Closing the Power Sliding Doors P. 174
U.S.
Canada
23 US ODYSSEY-31THR6500.book 110 ページ ２０２２年１月２４日　月曜日　午前１１時３５分
