2023 HONDA ODYSSEY Owners Manual

647Continued
Handling the Unexpected
If a Tire Goes Flat
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe plac e. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possib le to have the full-size tire repaired or
replaced.
1. Park the vehicle on a firm, level, non-slippery surface and apply the parking brake.
2. Put the transmission into
(P.
3. Turn on the hazard warning lights an d set the power mode to VEHICLE OFF.
1Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
23 US ODYSSEY-31THR6500.book 647 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

648
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the second row floor mat.
2 Floor Mats P. 637
2.Pull up the floor carpet.
3. Lift up the floor lid using the handle and
remove it.
4. Take the tool case out of the spare tire well.
Take the jack and wheel nut wrench out of
the tool case.
5. Unscrew the wing bolt, then remove the
spare tire.
6. Place a wheel block or rock in front and rear
of the wheel diagonal to the flat tire.
■Getting Ready to Replace the Flat Tire
Floor Carpet
Handle
Floor Lid
Spare Tire
Tool Case
Wheel
Blocks
The tire to be replaced.
23 US ODYSSEY-31THR6500.book 648 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

649
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
7. Place the compact spare tire (wheel side up)
under the vehicle body, near the tire that
needs to be replaced.
8. Loosen each wheel nut about one turn
using the wheel nut wrench.
23 US ODYSSEY-31THR6500.book 649 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

uuIf a Tire Goes Flat uChanging a Flat Tire
650
Handling the Unexpected
1. Place the jack under the jacking point
closest to the tire to be changed.
2. Turn the end bracket cl ockwise as shown in
the image until the top of the jack contacts
the jacking point.
u Make sure that the jacking point tab is
resting in the jack notch.
3. Raise the vehicle, using the jack handle bar
and the jack handle, until the tire is off the
ground.
■How to Set Up the Jack1How to Set Up the Jack
Do not use the jack with people or luggage in the
vehicle.
Use the jack provided in your vehicle.
Other jacks may not support the weight (“load”) or
may not fit the jacking point.
The following instructions must be followed to use
the jack safely:
•Do not use while the engine is running.
•Use only where the ground is firm and level.
•Use only at the jacking points.•Do not get in the vehicl e while using the jack.
•Do not put anything on top of or underneath the
jack.
Turn off the sliding door main switch before
replacing a rear tire. If the main switch is on, the
power sliding door may acci dentally operate, causing
an accident.
3WARNING
The vehicle can easily roll off the jack,
seriously injuring anyone underneath.
Follow the directions for changing a tire
exactly, and never get under the vehicle
when it is supported only by the jack.
Jack
Handle
Bar Wheel Nut
Wrench as Jack Handle
23 US ODYSSEY-31THR6500.book 650 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

Continued651
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
1. Remove the wheel nuts and flat tire.
2. Wipe the mounting surfaces of the wheel
with a clean cloth.
3. Mount the compact spare tire.
4. Screw the wheel nuts until they touch the
lips around the mounting holes, then stop
rotating.
■Replacing the Flat Tire1Replacing the Flat Tire
Do not over tighten the wheel nuts by applying extra
torque using your foot or a pipe.
23 US ODYSSEY-31THR6500.book 651 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

uuIf a Tire Goes Flat uChanging a Flat Tire
652
Handling the Unexpected
5. Lower the vehicle and remove the jack.
Tighten the wheel nuts in the order
indicated in the image. Go around,
tightening the nuts, two to three times in
this order.
Wheel nut torque:
94 lbf∙ft (127 N∙m, 13 kgf∙m)
The storage bag, bracket, mounting wing bolt
(A) and mounting wing bolt (B) are in the tool
case.
1. Put the flat tire in the storage bag provided
with your vehicle.
■Storing the Flat Tire1Storing the Flat Tire
3WARNING
Loose items can fly around the interior in a
crash and can seriously injure the
occupants.
Store the wheel, jack, and tools securely
before driving.
Bracket
Mounting Wing Bolt (A)
Mounting Wing Bolt (B)Storage Bag
23 US ODYSSEY-31THR6500.book 652 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

653
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
2. Pull down the U-sh aped carpet piece.
3. Remove the plastic screw with a coin.
4. Install the bracket an d the mounting wing
bolt (A) on the attachment point, and
tighten the bolt.
5. Install the flat tire on the bracket with the
inside of the wheel facing toward you.
6. Install the mounting wing bolt (B) to the
bracket through one of the five wheel nut
holes, and tighten the bolt.
u Poke a hole in the storage bag as
needed.
Plastic Screw
Carpet Piece
Mounting
Wing Bolt
(A)
Bracket
Mounting Wing Bolt (B)
23 US ODYSSEY-31THR6500.book 653 ページ ２０２２年１月２４日　月曜日　午前１１時３５分

654
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected

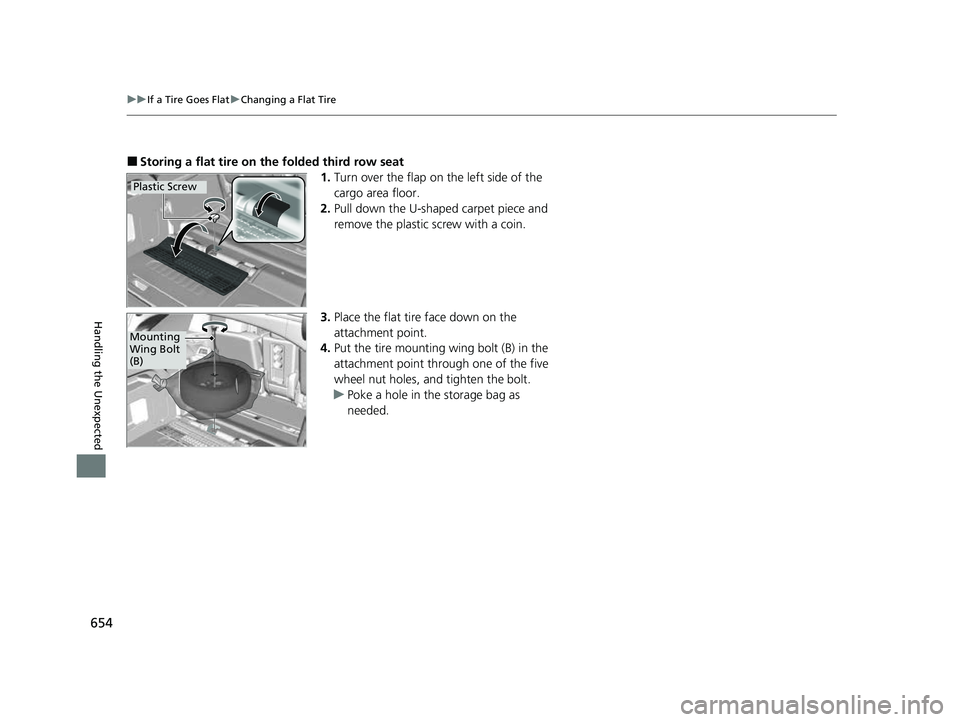

■Storing a flat tire on the folded third row seat
1.Turn over the flap on the left side of the
cargo area floor.
2. Pull down the U-shaped carpet piece and
remove the plastic screw with a coin.
3. Place the flat tire face down on the
attachment point.
4. Put the tire mounting wing bolt (B) in the
attachment point through one of the five
wheel nut holes, and tighten the bolt.
u Poke a hole in the storage bag as
needed.
Plastic Screw
Mounting
Wing Bolt
(B)
