2023 CADILLAC XT4 headlamp

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 299
Warning (Continued)
windshield, headlamps, and
FCA sensors clean and in
good repair.
Collision Alert
With Head-Up Display
Without Head-Up Display
When your vehicle approaches
another detected vehicle too
rapidly, the red FCA display
will flash on the windshield.
Also, eight rapid high-pitched
beeps will sound from the
front, or both sides of the Safety Alert Seat will pulse
five times. When this Collision
Alert occurs, the brake system
may prepare for driver braking
to occur more rapidly which
can cause a brief, mild
deceleration. Continue to
apply the brake pedal as
needed.
Tailgating Alert
The vehicle ahead indicator
will display amber when you
are following a vehicle ahead
much too closely.
Selecting the Alert Timing
The Collision Alert control is
on the steering wheel. Press
[to set the FCA timing to
Far, Medium, or Near. The first
button press shows the
current setting on the DIC.
Additional button presses will
change this setting. The
chosen setting will remain until
it is changed and will affect
the timing of both the Collision
Alert and the Tailgating Alert
features. The timing of both
alerts will vary based on
vehicle speed. The faster the
vehicle speed, the farther
away the alert will occur.
Consider traffic and weather
conditions when selecting the
alert timing. The range of
selectable alert timings may
not be appropriate for all
drivers and driving conditions.
If your vehicle is equipped with
Adaptive Cruise Control (ACC),
changing the FCA timing
setting automatically changes
the following gap setting (Far,
Medium, or Near).

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
300 Driving and Operating
Following Distance
Indicator
The following distance to a
moving vehicle ahead in your
path is indicated in following
time in seconds on the Driver
Information Center (DIC). See
Driver Information Center
(DIC)0136. The minimum
following time is 0.5 seconds
away. If there is no vehicle
detected ahead, or the vehicle
ahead is out of sensor range,
dashes will be displayed.
Unnecessary Alerts
FCA may provide unnecessary
alerts for turning vehicles,
vehicles in other lanes, objects
that are not vehicles,
or shadows. These alerts are
normal operation and the
vehicle does not need service.
Cleaning the System
If the FCA system does not
seem to operate properly, this
may correct the issue:
.Clean the outside of the
windshield in front of the
rearview mirror.
.Clean the entire front of the
vehicle.
.Clean the headlamps.
Automatic Emergency
Braking (AEB)
If equipped, the AEB system
may help avoid or reduce the
harm caused by front-end
crashes. AEB also includes
Intelligent Brake Assist (IBA).
When the system detects a
vehicle in the path ahead that
is traveling in the same
direction, and that you may
crash into, it can provide a
boost to braking,
or automatically brake the
vehicle. This can help avoid or
lessen the severity of crashes
when driving in a forward gear.
Depending on the situation,
the vehicle may automatically
brake moderately or hard. This
Automatic Emergency Braking
can only occur if a vehicle is detected. Vehicle detection is
shown by the Forward
Collision Alert (FCA) vehicle
ahead indicator being lit. See
Forward Collision Alert (FCA)
System
0297.
The system works when
driving in a forward gear
between 8 km/h (5 mph) and
80 km/h (50 mph), or on
vehicles with Adaptive Cruise
Control (ACC), above 4 km/h
(2 mph). It can detect vehicles
up to approximately 60 m
(197 ft).
{Warning
AEB is an emergency crash
preparation feature and is
not designed to avoid
crashes. Do not rely on AEB
to brake the vehicle. AEB will
not brake outside of its
operating speed range and
only responds to detected
vehicles. (Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
302 Driving and Operating
{Warning
Using AEB or IBA while
towing a trailer could cause
you to lose control of the
vehicle and crash. Turn the
system to Alert or Off when
towing a trailer.
A system unavailable message
may display if:
.The front of the vehicle or
windshield is not clean.
.Heavy rain or snow is
interfering with object
detection.
.There is a problem with the
StabiliTrak/Electronic
Stability Control (ESC)
system.
The AEB system does not
need service.
Front Pedestrian
Braking (FPB) System
If equipped, the FPB system
may help avoid or reduce the
harm caused by front-end crashes with nearby
pedestrians when driving in a
forward gear. FPB displays an
amber indicator,
~, when a
nearby pedestrian is detected
ahead. When approaching a
detected pedestrian too
quickly, FPB provides a red
flashing alert on the
windshield and rapidly beeps
or pulses the driver seat. FPB
can provide a boost to braking
or automatically brake the
vehicle. This system includes
Intelligent Brake Assist (IBA),
and the Automatic Emergency
Braking (AEB) system may also
respond to pedestrians. See
Automatic Emergency Braking
(AEB) 0300.
The FPB system can detect
and alert to pedestrians in a
forward gear at speeds
between 8 km/h (5 mph) and
80 km/h (50 mph). During
daytime driving, the system
detects pedestrians up to a
distance of approximately 40 m (131 ft). During nighttime
driving, system performance is
very limited.
{Warning
FPB does not provide an
alert or automatically brake
the vehicle, unless it detects
a pedestrian. FPB may not
detect pedestrians, including
children:
.When the pedestrian is
not directly ahead, fully
visible, or standing upright,
or when part of a group.
.Due to poor visibility,
including nighttime
conditions, fog, rain,
or snow.
.If the FPB sensor is
blocked by dirt, snow,
or ice.
.If the headlamps or
windshield are not cleaned
or in proper condition.
(Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 303
Warning (Continued)
Be ready to take action and
apply the brakes. For more
information, see Defensive
Driving0230. Keep the
windshield, headlamps, and
FPB sensor clean and in
good repair.
FPB can be set to Off, Alert,
or Alert and Brake through
vehicle settings. To view
available settings from the
infotainment screen, touch
Settings > Vehicle > Collision/
Detection Systems.
Detecting the Pedestrian
Ahead
FPB alerts and automatic
braking will not occur unless
the FPB system detects a pedestrian. When a pedestrian
that may enter the vehicle’s
forward path is detected, the
pedestrian ahead indicator will
display amber.
Front Pedestrian Alert
With Head-Up Display
Without Head-Up Display
When the vehicle approaches
a pedestrian ahead too rapidly,
the red FPB alert display will
flash on the windshield. Eight
rapid high-pitched beeps will
sound from the front, or both
sides of the Safety Alert Seat will pulse five times. When this
Pedestrian Alert occurs, the
brake system may prepare for
driver braking to occur more
rapidly which can cause a
brief, mild deceleration.
Continue to apply the brake
pedal as needed. Cruise
control may be disengaged
when the Front Pedestrian
Alert occurs.
Automatic Braking
If FPB detects it is about to
crash into a pedestrian
directly ahead, and the brakes
have not been applied, FPB
may automatically brake
moderately or brake hard. This
can help to avoid some very
low speed pedestrian crashes
or reduce pedestrian injury.
FPB can automatically brake
to detected pedestrians
between 8 km/h (5 mph) and
80 km/h (50 mph). Automatic
braking levels may be reduced
under certain conditions, such
as higher speeds.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Driving and Operating 307
Lane Keep
Assist (LKA)
If equipped, LKA may help
avoid crashes due to
unintentional lane departures.
This system uses a camera to
detect lane markings. The LKA
can be ready to assist at
speeds between 60 km/h
(37 mph) and 180 km/h
(112 mph). On some vehicles,
the system will instead
operate above 50 km/h
(31 mph). LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking. It may also provide a
Lane Departure Warning
(LDW) alert if the vehicle
crosses a detected lane
marking. This system is not
intended to keep the vehicle
centered in the lane. LKA will
not assist and alert if the turn
signal is active in the direction
of lane departure, or if it
detects that you are
accelerating, braking oractively steering. LKA can be
overridden by turning the
steering wheel. If the system
detects you are steering
intentionally across a lane
marker, the LDW may not be
given. Do not expect the LDW
to occur when you are
intentionally crossing a lane
marker.
{Warning
The LKA system does not
continuously steer the
vehicle. It may not keep the
vehicle in the lane or give a
Lane Departure Warning
(LDW) alert, even if a lane
marking is detected.
The LKA and LDW systems
may not:
.Provide an alert or enough
steering assist to avoid a
lane departure or crash.
.Detect lane markings
under poor weather or
visibility conditions. This
(Continued)
Warning (Continued)
can occur if the windshield
or headlamps are blocked
by dirt, snow, or ice; if they
are not in proper
condition; or if the sun
shines directly into the
camera.
.Detect road edges.
.Detect lanes on winding or
hilly roads.
If LKA only detects lane
markings on one side of the
road, it will only assist or
provide an LDW alert when
approaching the lane on the
side where it has detected a
lane marking. Even with LKA
and LDW, you must steer
the vehicle. Always keep
your attention on the road
and maintain proper vehicle
position within the lane,
or vehicle damage, injury,
or death could occur. Always
keep the windshield, (Continued)

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
308 Driving and Operating
Warning (Continued)
headlamps, and camera
sensors clean and in good
repair. Do not use LKA in
bad weather conditions or
on roads with unclear lane
markings, such as
construction zones.
{Warning
Using LKA on slippery roads
could cause loss of control
of the vehicle and a crash.
Turn the system off.
{Warning
LKA will not alert the driver
if a towed trailer crosses
into an adjacent lane of
travel. Serious injury or
property damage may occur
if the trailer moves into
another lane. Always
monitor the trailer position(Continued)
Warning (Continued)
while towing to make sure it
is within the same lane as
the tow vehicle.
How the System Works
LKA uses a camera sensor
installed on the windshield
ahead of the rearview mirror
to detect lane markings. It may
provide brief steering assist if
it detects an unintended lane
departure. It may further
provide an audible alert or the
driver seat may pulse
indicating that a lane marking
has been crossed. The system
does not provide a Lane
Departure Warning (LDW)
when intentionally steering
across a lane marker.
To turn LKA on and off, press
Aon the center stack.
If equipped, the indicator light
on the button comes on when LKA is on and turns off when
LKA is disabled. In some
vehicles a long press of over
three seconds is required to
turn LKA off.
When on,
Ais white,
if equipped, indicating that the
system is not ready to assist.
Ais green if LKA is ready to
assist. LKA may assist by
gently turning the steering
wheel if the vehicle
approaches a detected lane
marking.
Ais amber when
assisting. It may also provide a
Lane Departure Warning
(LDW) alert by flashing
A
amber if the vehicle crosses a
detected lane marking.
Additionally, there may be
three beeps, or the driver seat
may pulse three times, on the
right or left, depending on the
lane departure direction.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
326 Vehicle Care
Vehicle Care
General Information
General Information . . . . . . 327
California PerchlorateMaterials
Requirements . . . . . . . . . . . . . 327
Accessories and Modifications . . . . . . . . . . . . . . 327
Vehicle Checks
Doing Your OwnService Work . . . . . . . . . . . . . . 328
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . 329
Engine Compartment Overview . . . . . . . . . . . . . . . . . . . . 331
Engine Oil . . . . . . . . . . . . . . . . . . . . 332
Engine Oil Life System . . . 335
Automatic Transmission Fluid . . . . . . . . . . . . . . . . . . . . . . . . . 336
Engine Air Filter Life System . . . . . . . . . . . . . . . . . . . . . . 336
Engine Air Cleaner/ Filter . . . . . . . . . . . . . . . . . . . . . . . . . 337
Cooling System . . . . . . . . . . . . 338
Engine Overheating . . . . . . 342
Washer Fluid . . . . . . . . . . . . . . . . 343
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 344
Brake Fluid . . . . . . . . . . . . . . . . . . 345 Battery - North
America . . . . . . . . . . . . . . . . . . . . . 346
All-Wheel Drive . . . . . . . . . . . . . 347
Park Brake and P (Park) Mechanism Check . . . . . . . 347
Wiper Blade Replacement . . . . . . . . . . . . . . 347
Windshield Replacement . . . . . . . . . . . . . . 349
Gas Strut(s) . . . . . . . . . . . . . . . . . 349Headlamp Aiming
Front Headlamp Aiming . . . . . . . . . . . . . . . . . . . . . . . 350
Bulb Replacement
Bulb Replacement . . . . . . . . 350
LED Lighting . . . . . . . . . . . . . . . . 350
Front Turn SignalLamps . . . . . . . . . . . . . . . . . . . . . . . 350
Back-Up Lamps . . . . . . . . . . . . . 351
Electrical System
Electrical System Overload . . . . . . . . . . . . . . . . . . . . 352
Fuses and Circuit Breakers . . . . . . . . . . . . . . . . . . . . 353
Engine Compartment Fuse Block . . . . . . . . . . . . . . . . . 354
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 360
Wheels and Tires
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . 364
All-Season Tires . . . . . . . . . . . 365
Winter Tires . . . . . . . . . . . . . . . . 366
Summer Tires . . . . . . . . . . . . . . 366
Tire Sidewall Labeling . . . . 367
Tire Designations . . . . . . . . . . 369
Tire Terminology andDefinitions . . . . . . . . . . . . . . . . . 370
Tire Pressure . . . . . . . . . . . . . . . 372
Tire Pressure for High-Speed
Operation . . . . . . . . . . . . . . . . . . 374
Tire Pressure Monitor System . . . . . . . . . . . . . . . . . . . . . . 375
Tire Pressure Monitor Operation . . . . . . . . . . . . . . . . . . 376
Tire Inspection . . . . . . . . . . . . . 380
Tire Rotation . . . . . . . . . . . . . . . . 381
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . 382
Buying New Tires . . . . . . . . . 383
Different Size Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . 385
Uniform Tire Quality Grading . . . . . . . . . . . . . . . . . . . . . 385
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . 387
Wheel Replacement . . . . . . 387
Tire Chains . . . . . . . . . . . . . . . . . . 388

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22

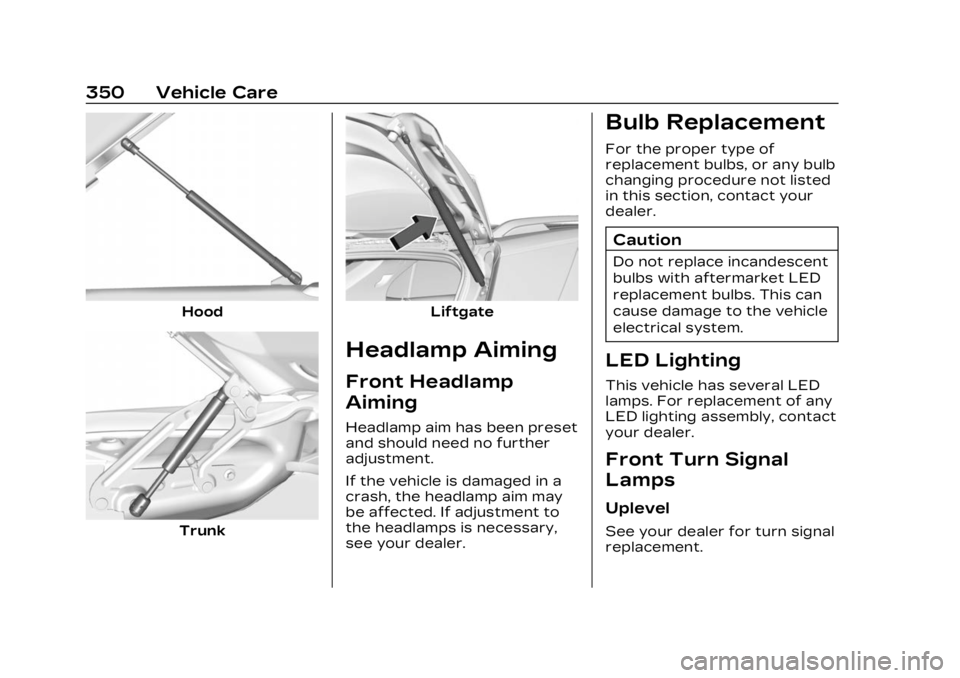

350 Vehicle Care
Hood
Trunk
Liftgate
Headlamp Aiming
Front Headlamp
Aiming
Headlamp aim has been preset
and should need no further
adjustment.
If the vehicle is damaged in a
crash, the headlamp aim may
be affected. If adjustment to
the headlamps is necessary,
see your dealer.
Bulb Replacement
For the proper type of
replacement bulbs, or any bulb
changing procedure not listed
in this section, contact your
dealer.
Caution
Do not replace incandescent
bulbs with aftermarket LED
replacement bulbs. This can
cause damage to the vehicle
electrical system.
LED Lighting
This vehicle has several LED
lamps. For replacement of any
LED lighting assembly, contact
your dealer.
Front Turn Signal
Lamps
Uplevel
See your dealer for turn signal
replacement.
