Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 353
2. Locate the fuse puller inthe engine compartment
fuse block.3. Use the fuse puller toremove the fuse from the
top or side, as shown
above.
4. If the fuse must be replaced immediately,
borrow a replacement fuse
with the same amperage
from the fuse block.
Choose a vehicle feature
that is not needed to
safely operate the vehicle.
Repeat Steps 2-3.
5. Insert the replacement fuse into the empty slot of
the blown fuse.
At the next opportunity, see
your dealer to replace the
blown fuse.
Headlamp Wiring
An electrical overload may
cause the lamps to go on and
off, or in some cases to remain
off. Have the headlamp wiring
checked right away if the
lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats
due to heavy snow or ice, the
windshield wipers will stop
until the motor cools and will
then restart.
Although the circuit is
protected from electrical
overload, overload due to
heavy snow or ice may cause
wiper linkage damage. Always
clear ice and heavy snow from
the windshield before using
the windshield wipers.
If the overload is caused by an
electrical problem and not
snow or ice, be sure to get it
fixed.
Fuses and Circuit
Breakers
The wiring circuits in the
vehicle are protected from
short circuits by a combination
of fuses and circuit breakers.
This greatly reduces the
chance of damage caused by
electrical problems.

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
358 Vehicle Care
Fuses Usage51 Spare
54 Spare
55 Spare
56 STARTER MOTOR –Starter
Motor
57 –
58 –
59 HDLP HI BEAM LT/RT–High
Beam Headlamps
60 –
61 Spare
62 Spare
63 Spare
65 A/C CONTROL –
Air Conditioning
Compressor
Clutch Fuses Usage
67 Spare
68 Spare
69 –
70 TRLR PRK LAMP –TRAILER PARK
LAMPS
–
72 STRTR PINION –
STARTER
PINION
74 –
75 ECM PWRTRN IGN 2–Engine
Control Module
Power Train
Ignition 2
76 ECM PWRTRN IGN 1–Engine
Control Module
Power Train
Ignition 1 Fuses Usage
78 Horn
79 WASH PUMPS –
Front and Rear
Washer Pumps
81 ECM –Engine
Control Module
Battery/Spare
82 –
83 IGNITION COILS –Ignition Coils

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
Vehicle Care 361

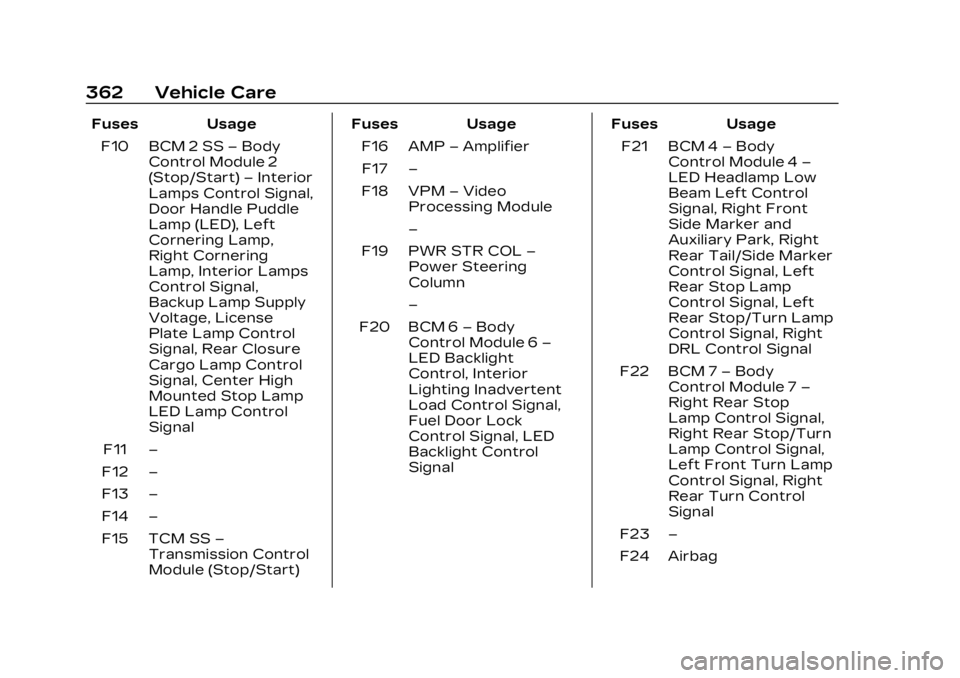

Fuses UsageF1 WNDW LT –Left
Power Window
F2 WNDW RT –Right
Power Window
F3 –
F4 DC-DC BAT 2/1 –
Direct Current to
Direct Current
Converter 2 Fuses Usage
F5 APO CARGO –
Auxiliary Power
Outlet –Cargo
F6 HTD SEAT BATT 1 –
Heated Seat
Battery 1
– Fuses Usage
F7 HTD SEAT RR 2 –
Not Used
–
F8 BCM 3 –Body
Control Module 3 –
LED Headlamp Low
Beam Right Control
Signal, Right Front
Turn Lamp Control
Signal, Left Front
Side Marker and
Auxiliary Park, Left
Rear Tail/Side Marker
Control Signal, Left
Daytime Running
Lamps Control Signal
F9 ELEC PRK/BRK –
Electric Park Brake

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
362 Vehicle Care
Fuses UsageF10 BCM 2 SS –Body
Control Module 2
(Stop/Start) –Interior
Lamps Control Signal,
Door Handle Puddle
Lamp (LED), Left
Cornering Lamp,
Right Cornering
Lamp, Interior Lamps
Control Signal,
Backup Lamp Supply
Voltage, License
Plate Lamp Control
Signal, Rear Closure
Cargo Lamp Control
Signal, Center High
Mounted Stop Lamp
LED Lamp Control
Signal
F11 –
F12 –
F13 –
F14 –
F15 TCM SS –
Transmission Control
Module (Stop/Start) Fuses Usage
F16 AMP –Amplifier
F17 –
F18 VPM –Video
Processing Module
–
F19 PWR STR COL –
Power Steering
Column
–
F20 BCM 6 –Body
Control Module 6 –
LED Backlight
Control, Interior
Lighting Inadvertent
Load Control Signal,
Fuel Door Lock
Control Signal, LED
Backlight Control
Signal Fuses Usage
F21 BCM 4 –Body
Control Module 4 –
LED Headlamp Low
Beam Left Control
Signal, Right Front
Side Marker and
Auxiliary Park, Right
Rear Tail/Side Marker
Control Signal, Left
Rear Stop Lamp
Control Signal, Left
Rear Stop/Turn Lamp
Control Signal, Right
DRL Control Signal
F22 BCM 7 –Body
Control Module 7 –
Right Rear Stop
Lamp Control Signal,
Right Rear Stop/Turn
Lamp Control Signal,
Left Front Turn Lamp
Control Signal, Right
Rear Turn Control
Signal
F23 –
F24 Airbag

Cadillac XT4 Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
16412876) - 2023 - CRC - 3/25/22
388 Vehicle Care
Warning (Continued)
it has been driven may be
unknown. It could fail
suddenly and cause a crash.
When replacing wheels, use
a new GM original
equipment wheel.
Caution
The wrong wheel can also
cause problems with bearing
life, brake cooling,
speedometer or odometer
calibration, headlamp aim,
bumper height, vehicle
ground clearance, and tire or
tire chain clearance to the
body and chassis.
Tire Chains
{Warning
If the vehicle has 235/60R18
or 245/45R20 size tires, do
not use tire chains. There is(Continued)
Warning (Continued)
not enough clearance. Tire
chains used on a vehicle
without the proper amount
of clearance can cause
damage to the brakes,
suspension, or other vehicle
parts. The area damaged by
the tire chains could cause
loss of control and a crash.
Use another type of traction
device only if its
manufacturer recommends
it for the vehicle's tire size
combination and road
conditions. Follow that
manufacturer's instructions.
To avoid vehicle damage,
drive slow and readjust or
remove the traction device if
it contacts the vehicle. Do
not spin the wheels. If
traction devices are used,
install them on the front
tires.
Caution
If the vehicle is equipped
with a tire size other than
235/60R18 or 245/45R20,
use tire chains only where
legal and only when
necessary. Use low profile
chains that add no more
than 12 mm thickness to the
tire tread and inner sidewall.
Use chains that are the
proper size for the tires.
Install them on the tires of
the front axle. Do not use
chains on the tires of the
rear axle. Tighten them as
tightly as possible with the
ends securely fastened.
Drive slowly and follow the
chain manufacturer's
instructions. If the chains
contact the vehicle, stop and
retighten them. If the
contact continues, slow
down until it stops. Driving(Continued)
