2022 TOYOTA VENZA HYBRID Owners Manual

3375-3. Using the storage features
5
Interior features
5-3.Using the storage features
Bottle holders (P.339)
Console box ( P.338)
Cup holders ( P.338)
Glove box ( P.337)
Open tray ( P.340)
Pull the lever to open the glove
box.
List of storage features
Location of the storage features
A
B
C
D
E
:$51,1*
■Items that should not be left
in the vehicle
Do not leave glasses, lighters or
spray cans in the storage spaces,
as this may cau se the following
when cabin temperature becomes
high:
●Glasses may be deformed by
heat or cracked if they come
into contact with other stored
items.
●Lighters or spray cans may
explode. If they come into con-
tact with other stored items, the
lighter may catch fire or the
spray can may release gas,
causing a fire hazard.
Glove box

3385-3. Using the storage features
Lift the lid while pulling up the
knob to release the lock.
The lid can be opened when the
front armrest is adjusted to the front
most position or rearmost position.
( P.358)
■Front armrest
 P.358
■Console box tray
●The tray can be removed.
When installing the tray, install it
with the arrow mark on the back side of the tray facing toward the
front of the vehicle.
●The spacers in the front cup hold-
ers can be stowed. (
P.339)
■Front
■Rear
Pull the rear armrest down.
WARNING
■Caution while driving
Keep the glove box closed. In the
event of sudden braking or sud-
den swerving, an accident may
occur due to an occupant being
struck by the open glove box or
the items stored inside.
Console box
WARNING
■Caution while driving
Keep the console box closed.
Injuries may resul t in the event of
an accident or sudden braking.
NOTICE
■Console box tray
Do not use as cup holders.
The contents may spill and
glasses may break.
Cup holders

3395-3. Using the storage features
5
Interior features
■Front cup holders
●The spacers in the front cup hold-
ers can be removed.
The front cup holder can also be
used as bottle holder by removing
the spacer.
●The spacers can be stowed in the
console box tray. ( P.338)
■Front
■Rear
■Bottle holders
●When storing a bottle, close the
cap.
WARNING
■Items unsuitable for the cup
holders
Do not place anything other than
cups or beverage cans in the cup
holders.
Inappropriate items must not be
stored in the cup holders even if
the lid is closed.
Other items may be thrown out of
the holders in the event of an
accident or sudden braking and
cause injury. If possible, cover hot
drinks to prevent burns.
■When using the front cup
holders
Observe the following precau-
tions.
Failure to do so may cause
stowed items or spacers etc. to be
thrown out in the event of sudden
braking or sudden swerving. In
these cases, these items may
interfere with pedal operation or
cause driver distraction, resulting
in an unexpected accident.
●Remove the spacers when
stowing items such as tall cups
or beverage cans etc.
●Stow any removed spacers in
the console box tray.
Bottle holders

3405-3. Using the storage features
●The bottle may not be stored
depending on its size or shape.
Wireless charger: P.351 1
Open the back door.
2 Pull the strap upwards and
open the deck board.
3 Lift the deck board and
remove the hook on the
backside of the deck board.
4 Secure the hook onto the
upper edge of the back door
NOTICE
■Items that should be not
stowed in the bottle holders
Do not place open bottles or glass
and paper cups containing liquid
in the bottle holders. The contents
may spill and glasses may break.
Open tray
WARNING
■Items unsuitable for the open
tray
Observe the following precautions
when putting items in the open
tray. Failure to do so may cause
items to be thrown out of the tray
in the event of sudden braking or
steering. In these cases, the items
may interfere with pedal operation
or cause driver distraction, result-
ing in an accident.
●Do not store items in the tray
that can easily shift or roll out.
●Do not stack items in the tray
higher than the tray’s edge.
●Do not put items in the tray that
may protrude over the tray’s
edge.
Luggage compart-
ment features
Deck board

3415-3. Using the storage features
5
Interior features
opening or head restraint as
shown in the illustration.Lift the deck board and attach
the hook. (P.340)
The following items can be stowed.
Accessories
Warning reflector
*
*: The warning reflector itself is not
included as an original equip-
ment.
■Warning reflector
Depending on the size and shape of
the warning reflector case, you may
not be able to store it.
WARNING
■When operating the deck
board
Do not place anything on the deck
board when operating the board.
Otherwise, your fingers may be
caught or an accident may result
causing injuries.
■Caution while driving
Keep the deck board closed.
In the event of sudden braking, an
accident may occur due to an
occupant being struck by the deck
board or the items stored under
the deck board.
NOTICE
■When closing the back door
Do not leave the hook secured on
the upper edge of the back door
opening.
The deck board may get dam-
aged.
Deck under tray
A
B

3425-3. Using the storage features
■Installing the luggage cover
1 Compress the both ends of
the luggage cover and insert
into the recess to install.
2 Pull out the luggage cover
and hook it onto the anchors.
■Removing the luggage
cover
1 Release the cover from the
left and right anchors and
allow it to retract. 2
Compress the end of the lug-
gage cover and lift the lug-
gage cover up.
■Stowing the luggage cover
1 Open the deck board.
( P.340)
2 Remove the side deck cov-
ers.
3 Insert the right end of the lug-
gage cover into the recess,
then insert the left end of the
luggage cover into the
recess.
Luggage cover

3435-3. Using the storage features
5
Interior features
4Attach the side deck covers
and close the deck board.
When taking out the luggage cover,
reverse the steps listed.
WARNING
■Luggage cover
●When installing/stowing the lug-
gage cover, make sure that the
luggage cover is securely
installed/stowed. Failure to do
so may result in serious injury in
the event of sudden braking or a
collision.
●Do not place anything on the
luggage cover. In the event of
sudden braking or turning, the
item may go flying and strike an
occupant. This could lead to an
unexpected accident, resulting
in death or serious injury.
●Do not allow ch ildren to climb
on the luggage cover. Climbing
on the luggage cover could
result in damage to the luggage
cover, possibly causing death or
serious injury to the child.
NOTICE
■To prevent damage to the lug-
gage cover
Do not place anything on top of
the luggage cover. When rolling
up the luggage cover, objects
may be caught in the cover, dam-
aging the cover and generating
noise.

3445-4. Using the other interior features
5-4.Using the other interior features

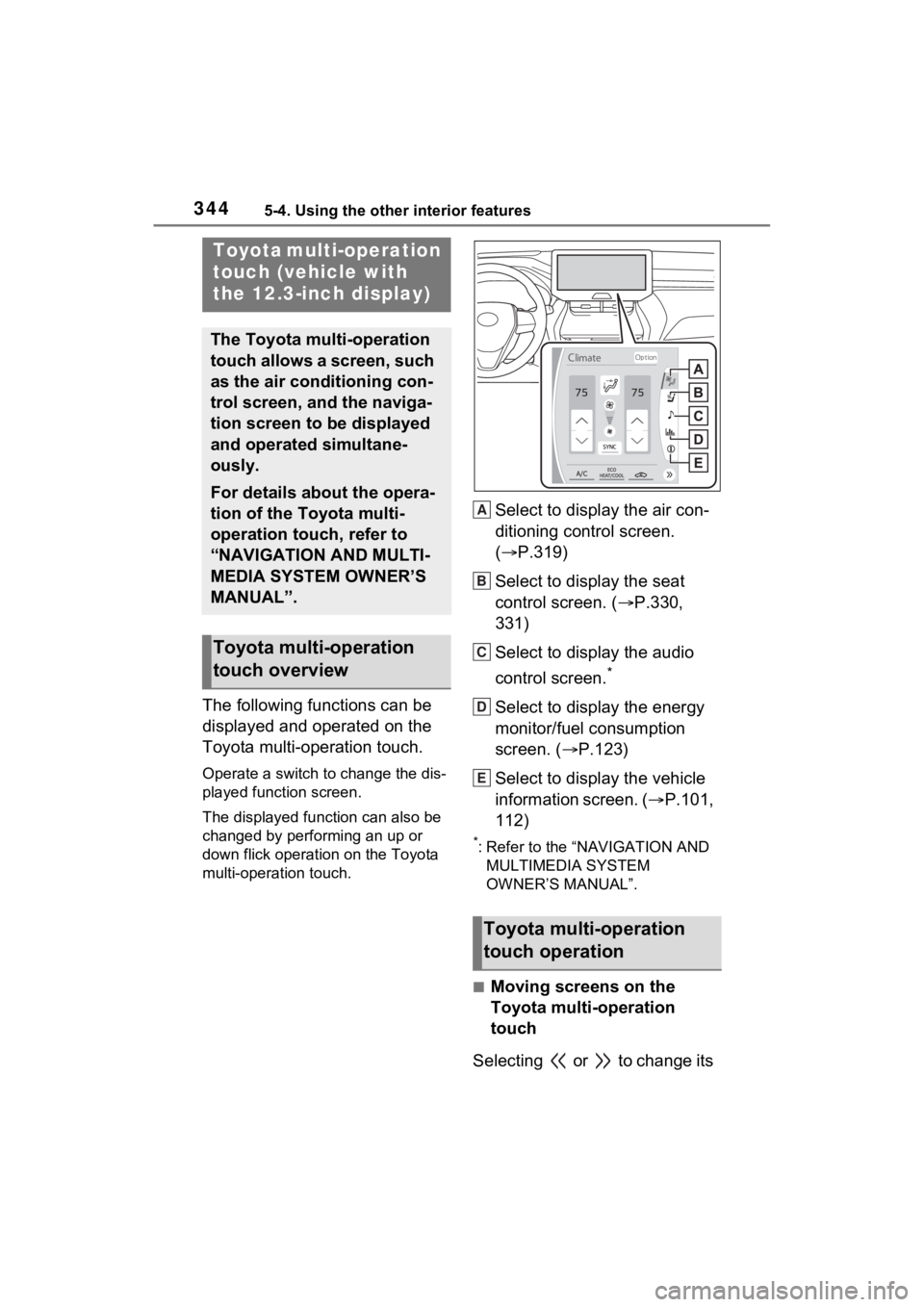

The following functions can be
displayed and operated on the
Toyota multi-operation touch.
Operate a switch to change the dis-
played function screen.
The displayed function can also be
changed by performing an up or
down flick operation on the Toyota
multi-operation touch.
Select to display the air con-
ditioning control screen.
( P.319)
Select to display the seat
control screen. ( P.330,
331)
Select to display the audio
control screen.
*
Select to display the energy
monitor/fuel consumption
screen. ( P.123)
Select to display the vehicle
information screen. ( P.101,
112)
*: Refer to the “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
■Moving screens on the
Toyota multi-operation
touch
Selecting or to change its
Toyota multi-operation
touch (vehicle with
the 12.3-inch display)
The Toyota multi-operation
touch allows a screen, such
as the air conditioning con-
trol screen, and the naviga-
tion screen to be displayed
and operated simultane-
ously.
For details about the opera-
tion of the Toyota multi-
operation touch, refer to
“NAVIGATION AND MULTI-
MEDIA SYSTEM OWNER’S
MANUAL”.
Toyota multi-operation
touch overview
Toyota multi-operation
touch operation
A
B
C
D
E
