2022 TOYOTA RAV4 HYBRID Owners Manual

6979-2. Customization
9
Vehicle specifications
■Intuitive parking assist*1 ( P.287)
*1: If equipped
*2: This setting is linked with the buzzer volume of the RCTA (Rea r Crossing
Traffic Alert) function.
■PKSB (Parking Support Brake)* (  P.295)
*: If equipped
■Automatic air conditioning system ( P.514)
■Illumination ( P.524)
FunctionDefault settingCustomized
setting
Intuitive parking assistOnOff–OO
Buzzer volume*221–OO3
FunctionDefault settingCustomized setting
PKSB (Parking Support
Brake) functionOnOff–O–
FunctionDefault settingCustomized setting
A/C Auto switch operationOnOffO–O
Switching to t he outside air
mode when the vehicle is
parked
OnOff––O
FunctionDefault settingCustomized setting
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff––O
Operation when the doors
are unlockedOnOff––O
ABC
ABC
ABC
ABC

6989-2. Customization
*1: Vehicles with smart key system only
*2: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door
locking function are both on, th e door lock operates as follows .
• If the vehicle is started with a ll the doors locked, the speed linked door
locking function would not operate.
• If the vehicle is started with any door unlocked, the speed li nked door lock-
ing function will operate.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
●When the smart key system is o ff, the selecting door to unlock cannot be
customized.
●When the doors remain closed after unlocking the doors and the auto-
matic door lock function is ac tivated, the signals will be gene rated in
accordance with the Operation si gnal (buzzer) and the Operation signal
(emergency flashers) settings.
Operation when you
approach the vehicle with the
electronic key on your per-
son
*1
OnOff––O
Footwell lighting*2OnOff––O
FunctionDefault settingCustomized
settingABC

6999-3. Initialization
9
Vehicle specifications
9-3.Initialization
*1: If equipped
*2: Vehicles with Audio Plus or Premium Audio, refer to “NAVIGATION AND
MULTIMEDIA SYSTEM OWNER’S MANUAL”.

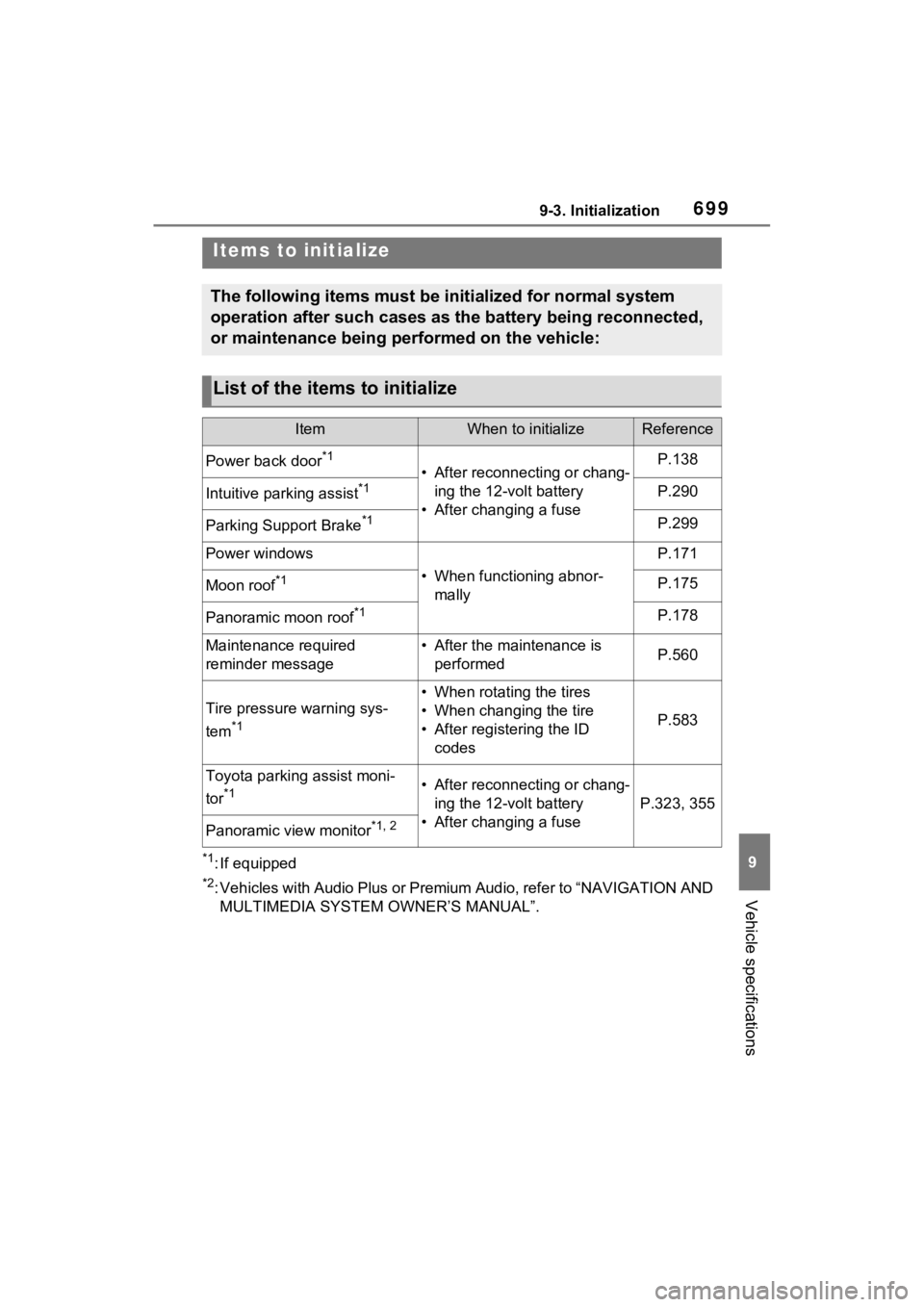

Items to initialize
The following items must be initialized for normal system
operation after such cases as the battery being reconnected,
or maintenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*1
• After reconnecting or chang- ing the 12-volt battery
• After changing a fuseP.138
Intuitive parking assist*1P.290
Parking Support Brake*1P.299
Power windows
• When functioning abnor- mally
P.171
Moon roof*1P.175
Panoramic moon roof*1P.178
Maintenance required
reminder message• After the maintenance is performedP.560
Tire pressure warning sys-
tem
*1
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.583
Toyota parking assist moni-
tor
*1• After reconnecting or chang-ing the 12-volt battery
• After changing a fuse
P.323, 355
Panoramic view monitor*1, 2

7009-3. Initialization

701
10
10
For owners
For owners
10-1.For ownersReporting safety defects for U.S. owners............... 702
Reporting safety defects for Canadian owners ...... 703
Seat belt instructions for Canadian owners (in
French) ...................... 703
SRS airbag instructions for Canadian owners (in
French) ...................... 705
Headlight aim instructions for Canadian owners (in
French) ...................... 712

70210-1. For owners
10-1.For owners

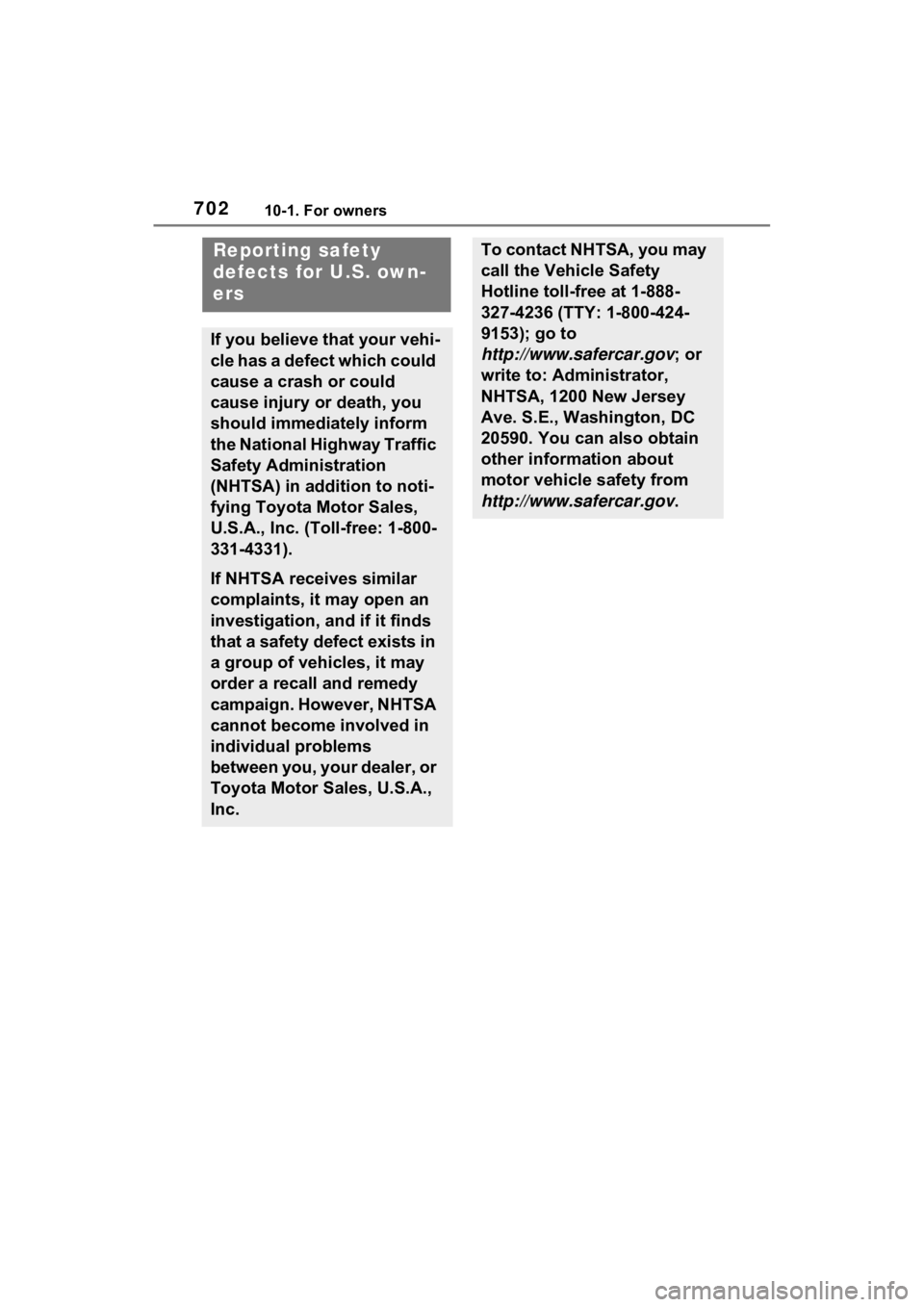

Reporting safety
defects for U.S. own-
ers
If you believe that your vehi-
cle has a defect which could
cause a crash or could
cause injury or death, you
should immediately inform
the National Highway Traffic
Safety Administration
(NHTSA) in addition to noti-
fying Toyota Motor Sales,
U.S.A., Inc. (Toll-free: 1-800-
331-4331).
If NHTSA receives similar
complaints, it may open an
investigation, and if it finds
that a safety defect exists in
a group of vehicles, it may
order a recall and remedy
campaign. However, NHTSA
cannot become involved in
individual problems
between you, your dealer, or
Toyota Motor Sales, U.S.A.,
Inc.
To contact NHTSA, you may
call the Vehicle Safety
Hotline toll-free at 1-888-
327-4236 (TTY: 1-800-424-
9153); go to
http://www.safercar.gov; or
write to: Administrator,
NHTSA, 1200 New Jersey
Ave. S.E., Washington, DC
20590. You can also obtain
other information about
motor vehicle safety from
http://www.safercar.gov .

70310-1. For owners
10
For owners
Tirez sur la ceinture épau-
lière jusqu’à ce qu’elle recou-
vre entièrement l’épaule; elle
ne doit cependant pas
toucher le cou ni glisser de
l’épaule.
 Placez la ceinture abdominale
le plus bas possible sur les
hanches.
 Réglez la position du dossier.
Tenez-vous assis bien au
fond du siège, le dos droit.
 Ne vrillez pas la ceinture de
sécurité.

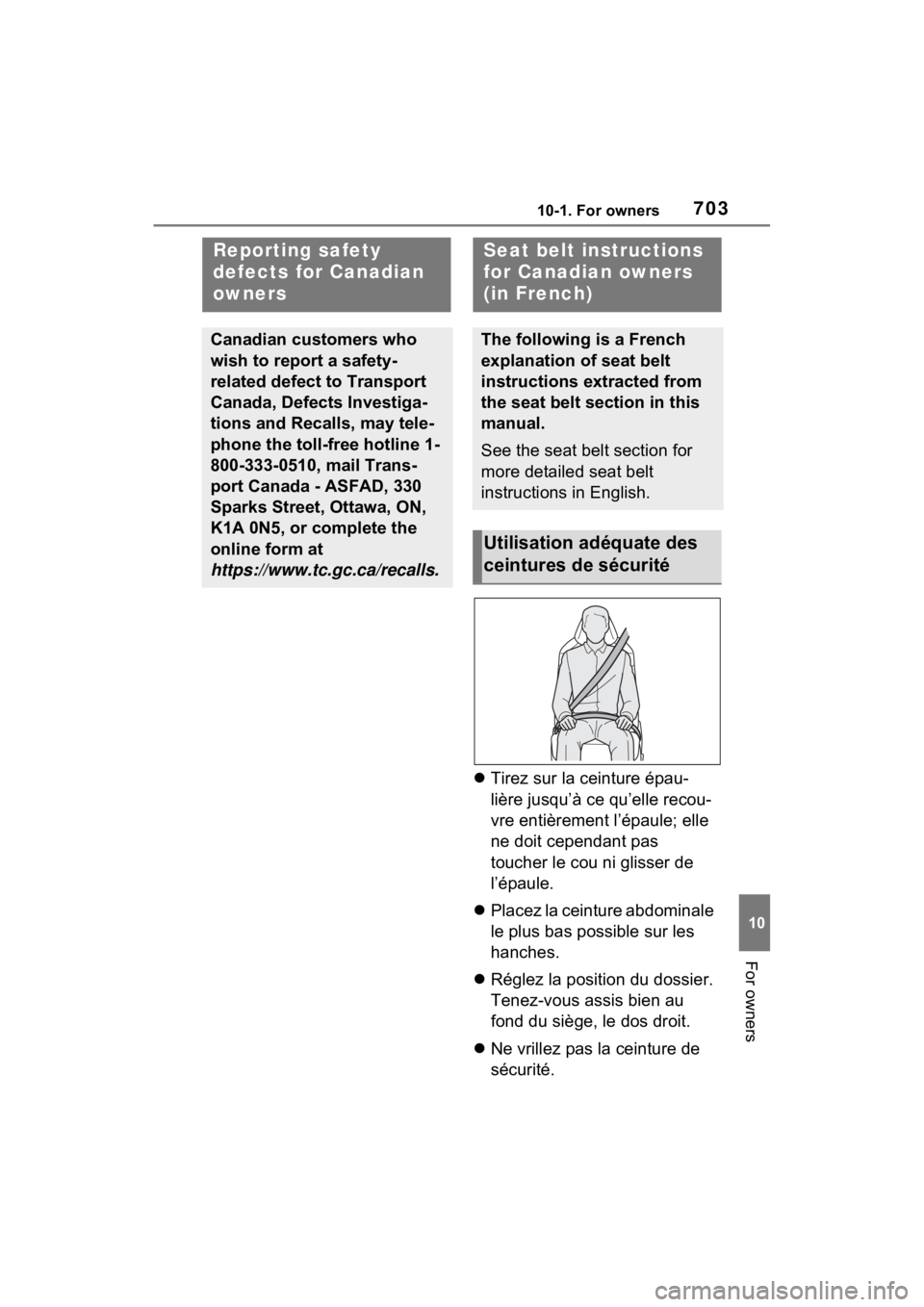

Reporting safety
defects for Canadian
owners
Canadian customers who
wish to report a safety-
related defect to Transport
Canada, Defects Investiga-
tions and Recalls, may tele-
phone the toll-free hotline 1-
800-333-0510, mail Trans-
port Canada - ASFAD, 330
Sparks Street, Ottawa, ON,
K1A 0N5, or complete the
online form at
https://www.tc.gc.ca/recalls.
Seat belt in structions
for Canadian owners
(in French)
The following is a French
explanation of seat belt
instructions extracted from
the seat belt section in this
manual.
See the seat belt section for
more detailed seat belt
instructions in English.
Utilisation adéquate des
ceintures de sécurité

70410-1. For owners
■Manipulation des ceintures
de sécurité
Avec un chiffon ou une éponge,
nettoyez à l’aide d’un savon
doux et de l’eau tiède. Vérifiez
aussi les ceintures régulière-
ment pour vous assurer qu’elles
ne présentent pas d’usure
excessive, d’effilochage ou de
coupures.
Entretien et soin
AVERTISSEMENT
■Dommages et usure de la
ceinture de sécurité
Vérifiez périodiquement le sys-
tème de ceintures de sécurité.
Vérifiez qu’il n’y a pas de cou-
pures, d’effilochures ni de pièces
desserrées. N’utilisez pas une
ceinture de sécurité endommagée
avant qu’elle ne soit remplacée.
Les ceintures de sécurité endom-
magées ne peuvent pas protéger
les occupants contre les bless-
ures graves, voire mortelles.
