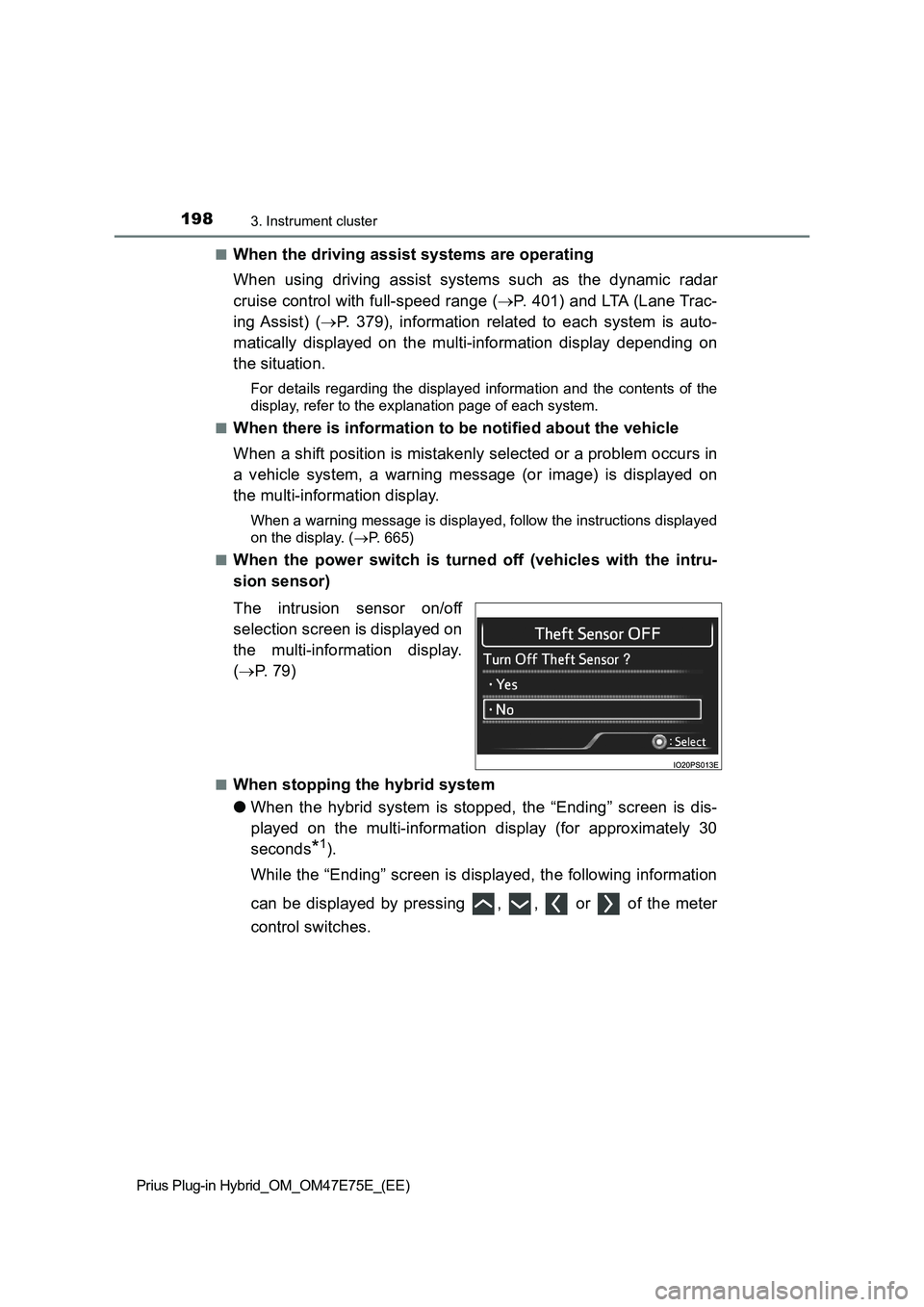

When the driving assist systems are operating
When using driving assist systems such as the dynamic radar
cruise control with full-speed range (P. 401) and LTA (Lane Trac-
ing Assist) (P. 379), information related to each system is auto-
matically displayed on the multi-information display depending on
the situation.
For details regarding the displayed information and the contents of the
display, refer to the explanation page of each system.
Q
When there is information to be notified about the vehicle
When a shift position is mistakenly selected or a problem occurs in
a vehicle system, a warning message (or image) is displayed on
the multi-information display.
When a warning message is displayed, follow the instructions displayed
on the display. (P. 665)
Q
When the power switch is turned off (vehicles with the intru-
sion sensor)
The intrusion sensor on/off
selection screen is displayed on
the multi-information display.
(P. 7 9 )
QWhen stopping the hybrid system
OWhen the hybrid system is stopped, the “Ending” screen is dis-
played on the multi-information display (for approximately 30
seconds
*1).
While the “Ending” screen is displayed, the following information
can be displayed by pressing , , or of the meter
control switches.

1993. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Score for each Eco score items (P. 230, 244)
Eco score result and advice
Driving time since the hybrid system started
Distance traveled since the hybrid system started
Average fuel consumption after the hybrid system started
Information for next charge schedule
*2
On/off setting for “Charge Now” (P. 1 7 4 )
The setting can be switched each time is pressed.
*1: The screen will be turned off immediately if the doors are locked.
*2: It can be displayed when the charge schedules are registered.
(P. 166)
OA check screen for “Traction Battery Cooler” may be displayed
when the hybrid system is stopped. (if equipped) (P. 145)
1
2
3
4
5
6
7

2003. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
To adjust the time, perform operations on the screen (P. 2 4 0 )
of the multi-information display.
QAdjusting the time
Press or of the meter control switches on the steering
wheel and select .
Press or of the meter control switches and select
.
Press to display the cursor.
Press or of the
meter control switches to
adjust the cursor position,
and then press or to
change the setting.
When the 12-hour display is
selected, “12H” is displayed,
and when the 24-hour display is
selected, “24H” is displayed.
When adjusting minutes, operation automatically starts from 00 sec-
onds.
After changing the settings, press to return to the previous screen.
Clock adjustment
1
2
3
4

2013. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

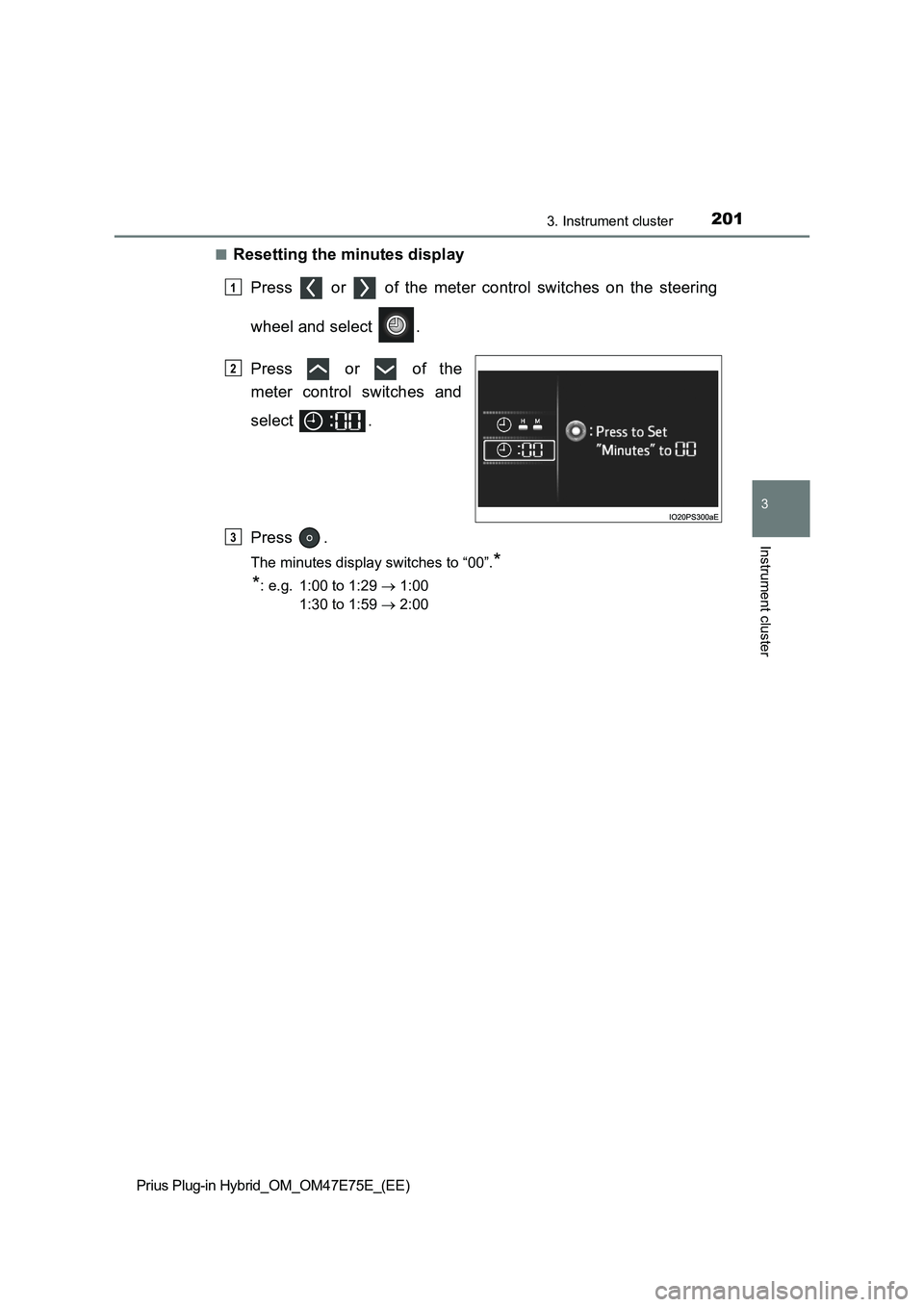

Resetting the minutes display
Press or of the meter control switches on the steering
wheel and select .
Press or of the
meter control switches and
select .
Press .
The minutes display switches to “00”.*
*
: e.g. 1:00 to 1:29  1:00
1:30 to 1:59  2:00
1
2
3

2023. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
QThe meters and display illuminate when
The power switch is in ON mode.
QAdjusting the instrument cluster brightness (P. 196)
OThe brightness levels that can be selected differ depending on whether the
tail lights are on and surrounding brightness levels, as shown in the table
below.
*: 22 levels of the brightness are displayed on the setting screen. However,
the brightness setting will be the brightest when other than 1st level (the
darkest) is selected. If other than 1st or 22nd level is selected, when the
tail lights are turned on in a dark place, the instrument cluster brightness
setting will be the selected level.
OIf the taillights are illuminated in a dark environment, the instrument cluster
light dims. However, when the brightness of the instrument cluster is set to
minimum or maximum (1st or 22nd level of the instrument cluster bright-
ness), even if the taillights are illuminated, the instrument cluster light will
not dim.
QWhen disconnecting and reconnecting 12-volt battery terminals
The settings of the clock will be reset.
QCalendar setting
OUntil the calendar setting is completed, the check screen is displayed every
time the power switch is turned to ON mode.
OAfter the calendar information is set, it can be changed in the “Meter Custo-
mize” settings. (P. 250)
The tail lights are offThe tail lights are on
In a bright place2 levels*2 levels*
In a dark place22 levels
If calendar recording is interrupted due to
replacement of the 12-volt battery or 12-
volt battery discharge, etc., when the
power switch is turned to ON mode after
maintenance, the calendar setting check
screen is automatically displayed on the
multi-information display.
OIf date information is not set, the electric-
ity and fuel consumption record cannot
be stored correctly. Also, the charging
schedule function can not operate prop-
erly. When the calendar setting check
screen is displayed, make sure to com-
plete the calendar setting. (P. 247)

2033. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

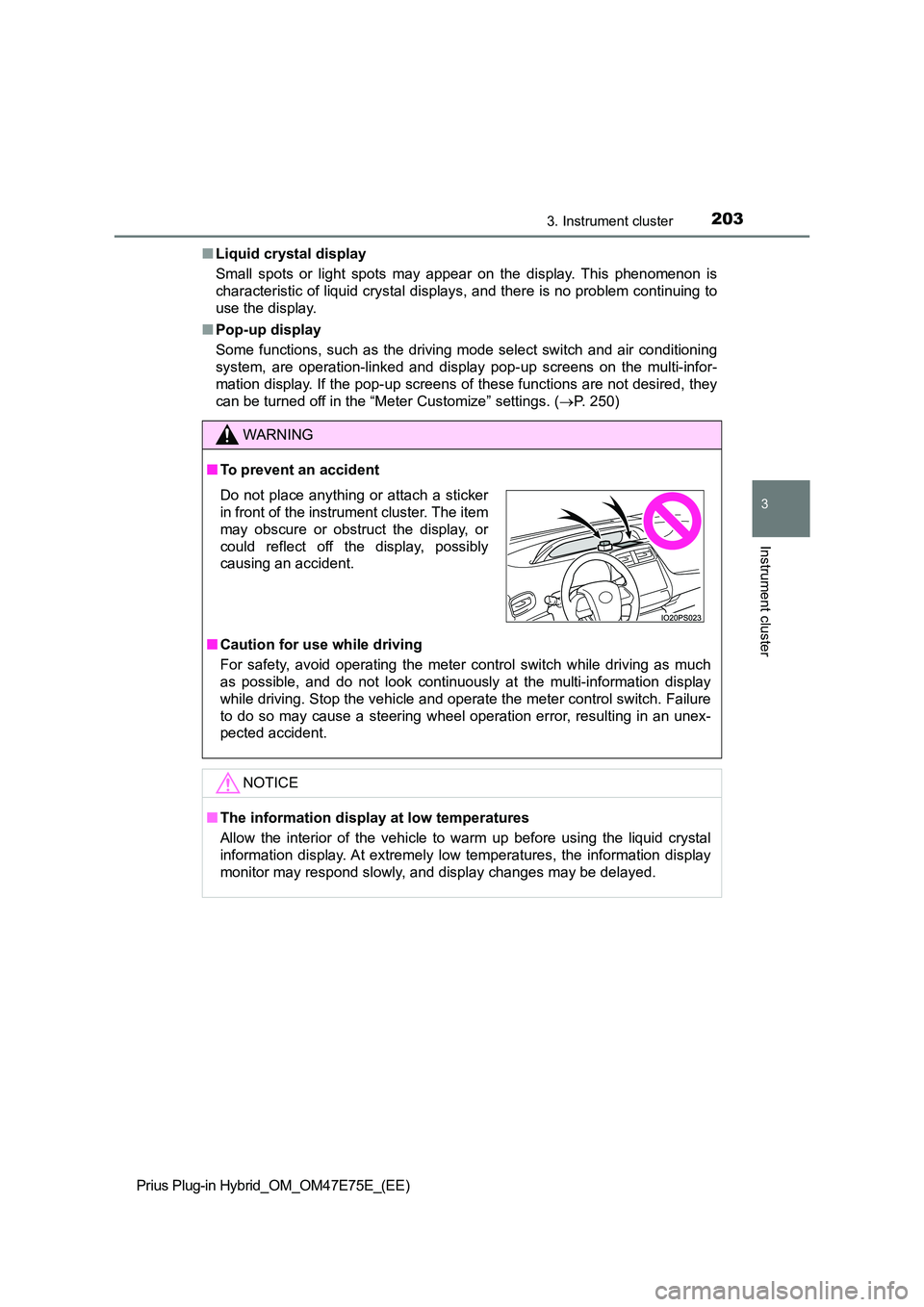

Q Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.
Q Pop-up display
Some functions, such as the driving mode select switch and air conditioning
system, are operation-linked and display pop-up screens on the multi-infor-
mation display. If the pop-up screens of these functions are no t desired, they
can be turned off in the “Meter Customize” settings. ( P. 250)
WARNING
QTo prevent an accident
Q Caution for use while driving
For safety, avoid operating the meter control switch while driv ing as much
as possible, and do not look continuously at the multi-informat ion display
while driving. Stop the vehicle and operate the meter control s witch. Failure
to do so may cause a steering wheel operation error, resulting in an unex-
pected accident.
NOTICE
Q The information display at low temperatures
Allow the interior of the vehicle to warm up before using the l iquid crystal
information display. At extremely low temperatures, the informa tion display
monitor may respond slowly, and display changes may be delayed.
Do not place anything or attach a sticker
in front of the instrument cluster. The item
may obscure or obstruct the display, or
could reflect off the display, possibly
causing an accident.

2093. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

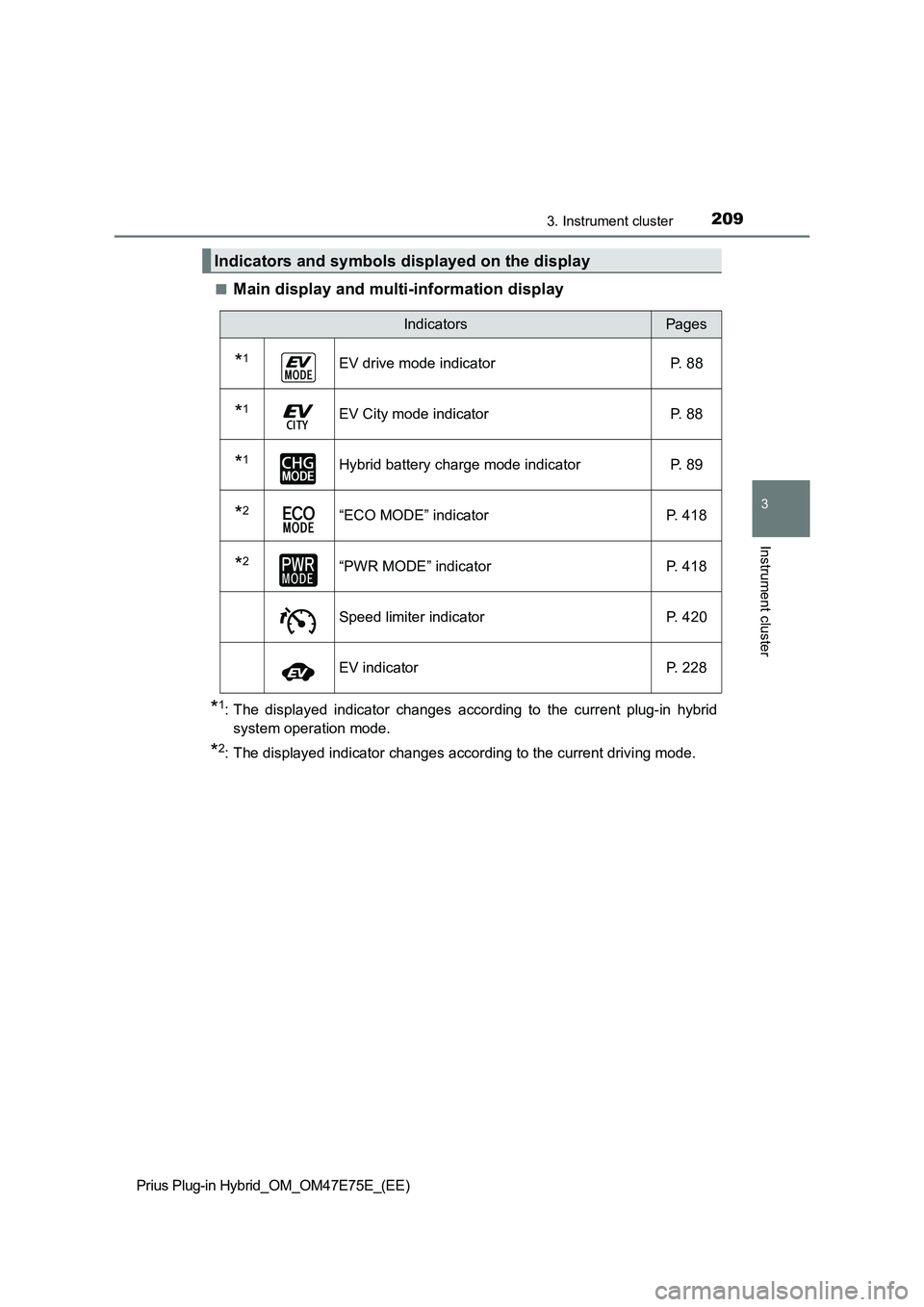

Main display and multi-information display
*1: The displayed indicator changes according to the current plug-in hybrid
system operation mode.
*2: The displayed indicator changes according to the current driving mode.
Indicators and symbols displayed on the display
IndicatorsPages
*1EV drive mode indicator P. 88
*1EV City mode indicator P. 88
*1Hybrid battery charge mode indicator P. 89
*2“ECO MODE” indicator P. 418
*2“PWR MODE” indicator P. 418
Speed limiter indicator P. 420
EV indicator P. 228

2103. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

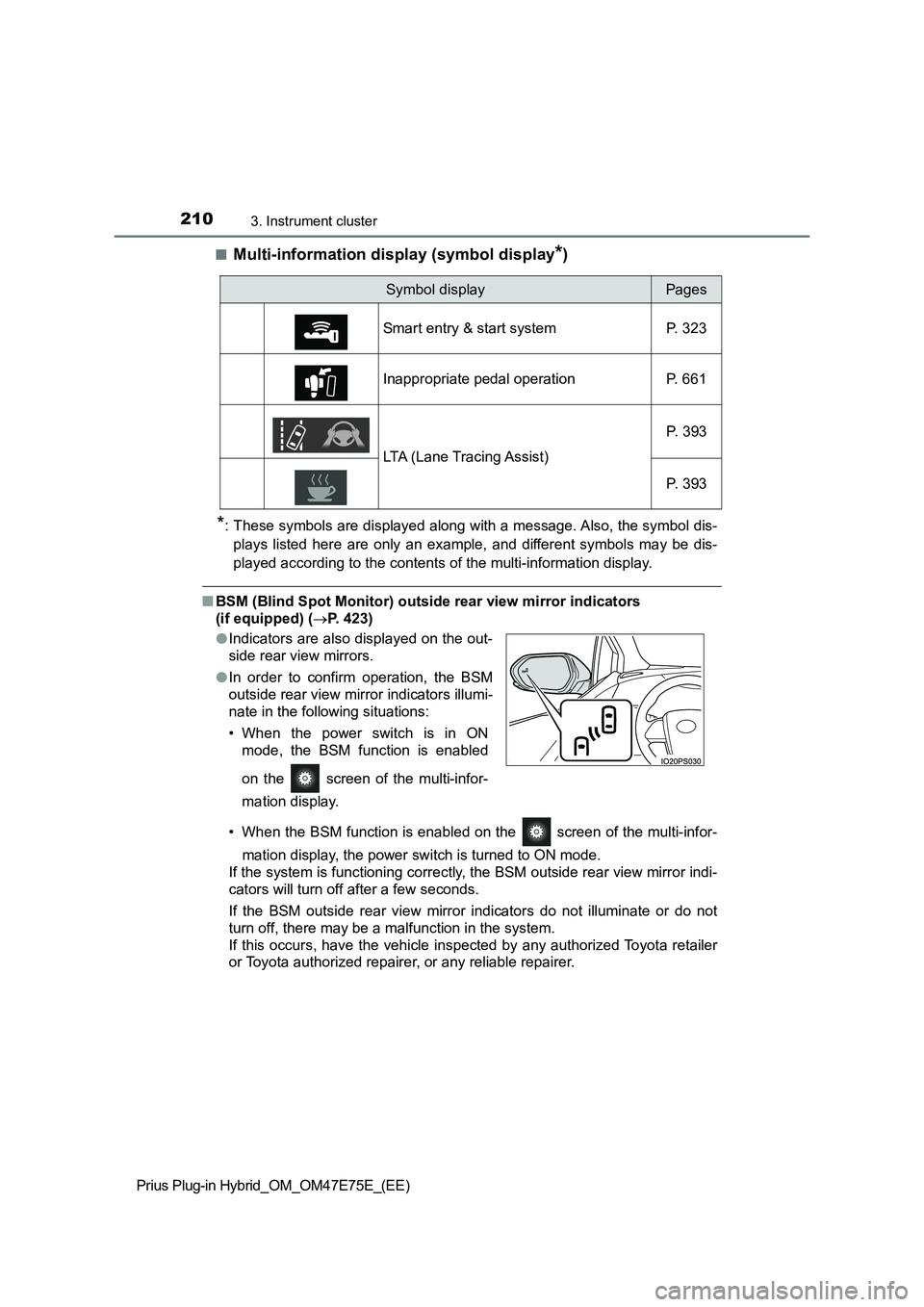

Multi-information display (symbol display*)
*: These symbols are displayed along with a message. Also, the symbol dis-
plays listed here are only an example, and different symbols may be dis-
played according to the contents of the multi-information display.
QBSM (Blind Spot Monitor) outside rear view mirror indicators
(if equipped) (P. 423)
• When the BSM function is enabled on the screen of the multi-infor-
mation display, the power switch is turned to ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indi-
cators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Symbol displayPages
Smart entry & start system P. 323
Inappropriate pedal operation P. 661
LTA (Lane Tracing Assist)P. 393
P. 393
OIndicators are also displayed on the out-
side rear view mirrors.
OIn order to confirm operation, the BSM
outside rear view mirror indicators illumi-
nate in the following situations:
• When the power switch is in ON
mode, the BSM function is enabled
on the screen of the multi-infor-
mation display.
