1712-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Press or of the
meter control switches to
select the desired day to acti-
vate for the repeated setting,
and then press .
Each time is pressed, the
repeated setting switches
between on and off.
When set to on, the selected day is highlighted and the charging sched-
ule is repeated on that day. It is possible to set more than one day to on.
If no days are set to on, charging is only carried out once according to
the charging schedule for the next 24 hours.
After changing the settings to the desired settings, press to return to
the previous screen.
When the charging mode is
set to “Departure”, set the
“Climate Prep” (P. 1 6 6 ) t o
on or off. (if equipped)
To turn the function on and oper-
ate the air conditioning, press
or of the meter control
switches to select “Climate
Prep”, and then press .
Each time is pressed, the function switches between on and off.
After setting operations are
complete, press .
A screen where the settings can
be saved will display.
Press or of the meter
control switches to select “Yes”,
and then press to save the
settings.
If you wish to change the settings, select “No” and perform the setting
procedure from step again.
After setting operations are complete, when the charging cable is con-
nected to the vehicle, charging will be carried out according to the
charging schedule settings.
7
8
9
3

1722-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q

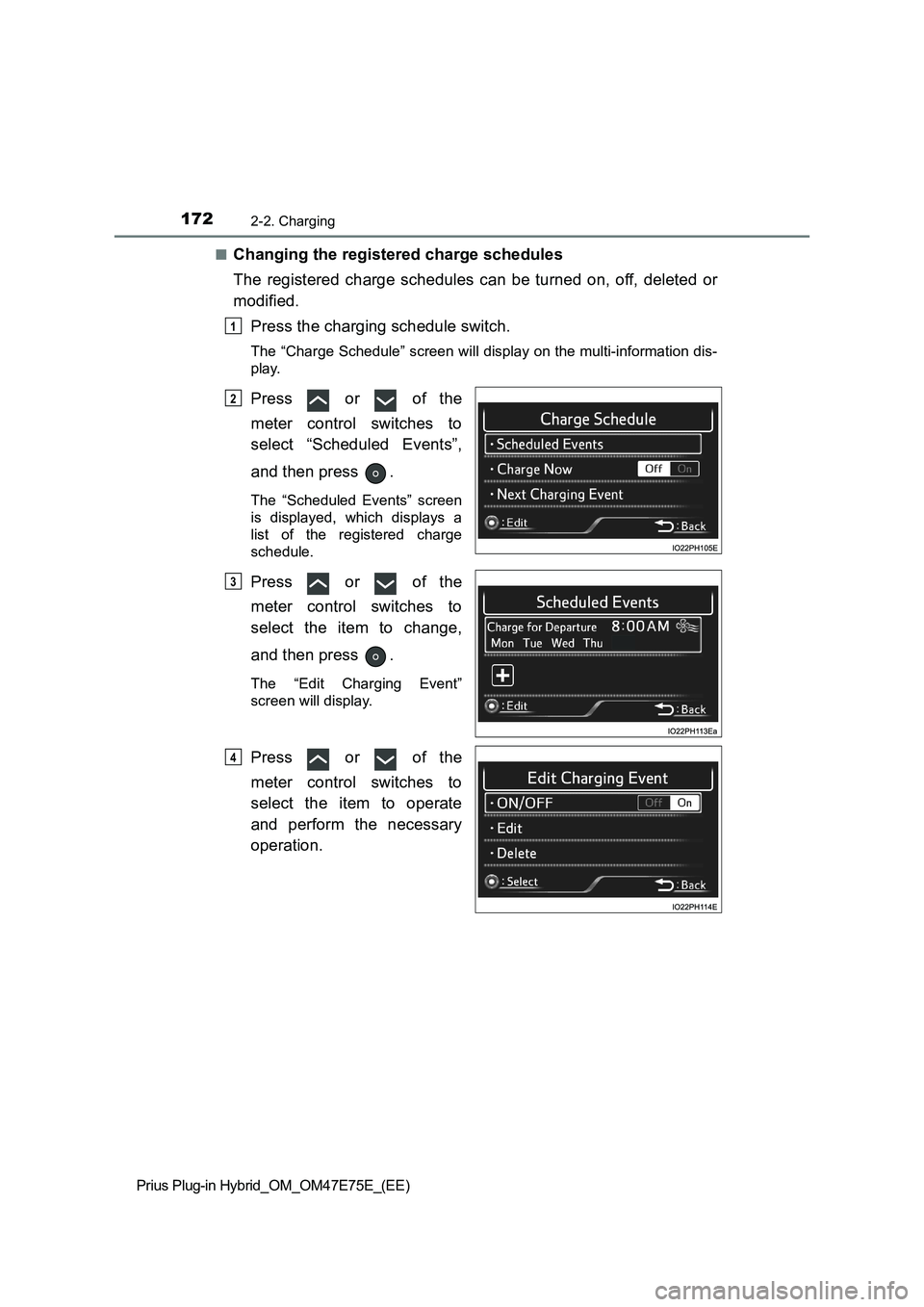

Changing the registered charge schedules
The registered charge schedules can be turned on, off, deleted or
modified.
Press the charging schedule switch.
The “Charge Schedule” screen will display on the multi-information dis-
play.
Press or of the
meter control switches to
select “Scheduled Events”,
and then press .
The “Scheduled Events” screen
is displayed, which displays a
list of the registered charge
schedule.
Press or of the
meter control switches to
select the item to change,
and then press .
The “Edit Charging Event”
screen will display.
Press or of the
meter control switches to
select the item to operate
and perform the necessary
operation.
1
2
3
4

1732-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

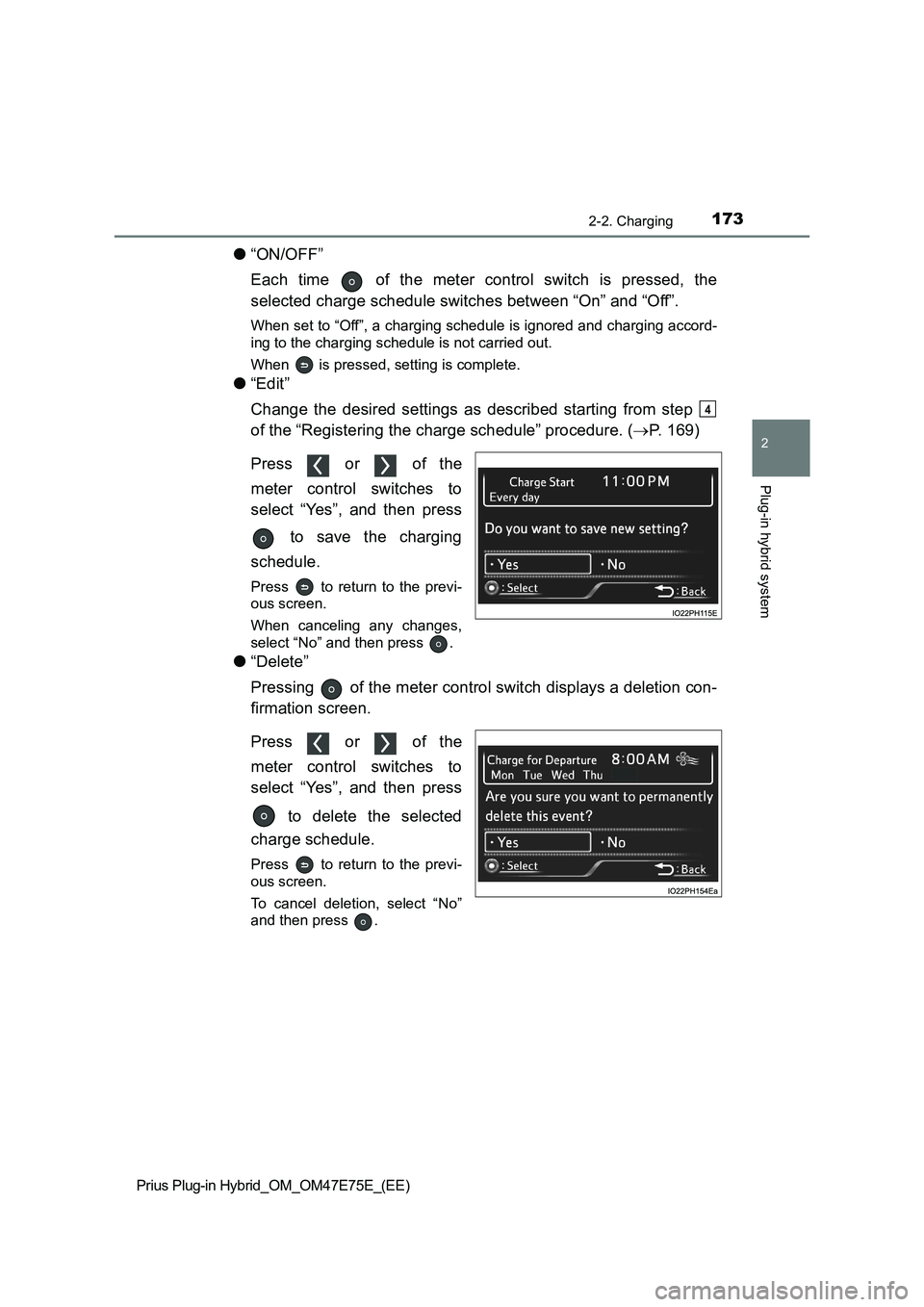

O“ON/OFF”
Each time of the meter control switch is pressed, the
selected charge schedule switches between “On” and “Off”.
When set to “Off”, a charging schedule is ignored and charging accord-
ing to the charging schedule is not carried out.
When is pressed, setting is complete.
O“Edit”
Change the desired settings as described starting from step
of the “Registering the charge schedule” procedure. (P. 1 6 9 )
Press or of the
meter control switches to
select “Yes”, and then press
to save the charging
schedule.
Press to return to the previ-
ous screen.
When canceling any changes,
select “No” and then press .
O“Delete”
Pressing of the meter control switch displays a deletion con-
firmation screen.
Press or of the
meter control switches to
select “Yes”, and then press
to delete the selected
charge schedule.
Press to return to the previ-
ous screen.
To cancel deletion, select “No”
and then press .
4

1742-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Setting “Charge Now” to “On”
The “Charge Now” setting can be changed by performing one of the
two following procedures.
Operation on “Charge Schedule” screen
Press the charging schedule switch.
The “Charge Schedule” screen will display on the multi-information dis-
play.
Press or of the
meter control switches to
select “Charge Now”, and
then press .
Each time is pressed,
“Charge Now” switches between
“On” and “Off”.
Operation on “Ending” screen
Turn the power switch off.
The “Ending” screen is displayed on the multi-information display.
(P. 198)
While the “Ending” screen is
displayed, press or
of the meter control switches
to display the “Next Event”
screen.
*
*
: When the power switch is turned
off, the “Charge Now” setting
screen may be displayed.
Press to set “Charge Now” to “On”.
Each time is pressed, “Charge Now” switches between “On” and
“Off”.
After setting operations are complete, charging starts when the
charging cable is connected. (P. 155)
1
2
1
2
3

1752-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)Q
Changing “Next Charging Event”*
*
: When “Charge Now” is set to “On” etc., it is not possible to change the reg-
istered “Next Charging Event”.
Press the charging schedule switch.
The “Charge Schedule” screen will display on the multi-information dis-
play.
Press or of the
meter control switches to
select “Next Charging
Event”, and then press .
The “Edit Next Charging Event”
screen will display.
Press or of the
meter control switches to
select the item to change,
and then press .
Change the registered settings
in accordance with the following
table.
1
2
3
SettingOperation
Charging Mode/Time
Operate , , and of the meter control
switches to set the charging mode (“Start” or
“Departure”) and charging start (or departure) time.
After changing the settings, press to return the
previous screen.
“Day”
Operate or of the meter control switches to
select the day to carry out charging according to the
charging schedule.
After changing the setting, press to return the
previous screen.
“Climate Prep”
(if equipped)
This can be set when the charging mode is set to
“Departure”. Each time is pressed, air condition-
ing-linked operation switches between “On” and
“Off”.

1762-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

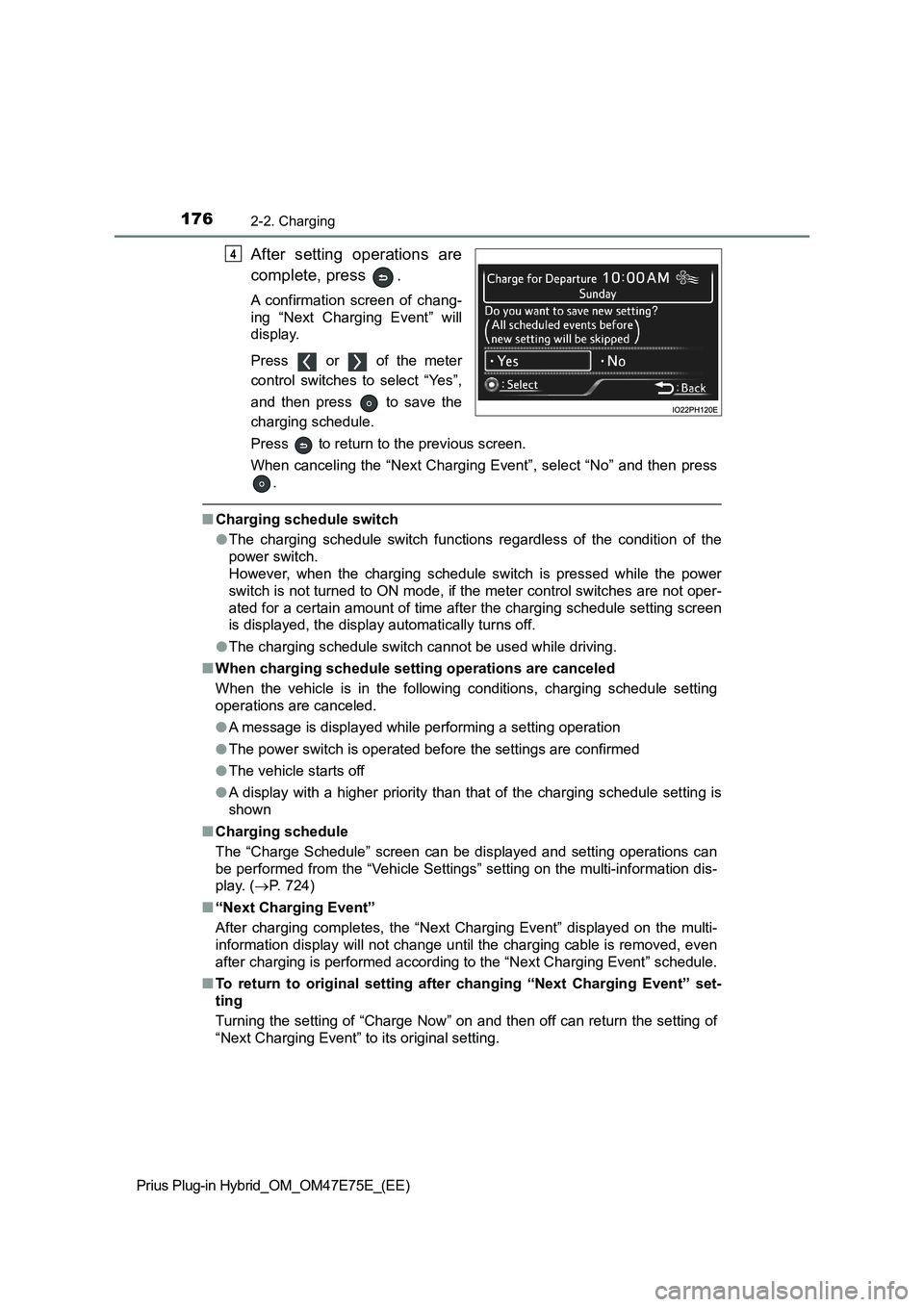

After setting operations are
complete, press .
A confirmation screen of chang-
ing “Next Charging Event” will
display.
Press or of the meter
control switches to select “Yes”,
and then press to save the
charging schedule.
Press to return to the previous screen.
When canceling the “Next Charging Event”, select “No” and then press
.
QCharging schedule switch
OThe charging schedule switch functions regardless of the condition of the
power switch.
However, when the charging schedule switch is pressed while the power
switch is not turned to ON mode, if the meter control switches are not oper-
ated for a certain amount of time after the charging schedule setting screen
is displayed, the display automatically turns off.
OThe charging schedule switch cannot be used while driving.
QWhen charging schedule setting operations are canceled
When the vehicle is in the following conditions, charging schedule setting
operations are canceled.
OA message is displayed while performing a setting operation
OThe power switch is operated before the settings are confirmed
OThe vehicle starts off
OA display with a higher priority than that of the charging schedule setting is
shown
QCharging schedule
The “Charge Schedule” screen can be displayed and setting operations can
be performed from the “Vehicle Settings” setting on the multi-information dis-
play. (P. 724)
Q“Next Charging Event”
After charging completes, the “Next Charging Event” displayed on the multi-
information display will not change until the charging cable is removed, even
after charging is performed according to the “Next Charging Event” schedule.
QTo return to original setting after changing “Next Charging Event” set-
ting
Turning the setting of “Charge Now” on and then off can return the setting of
“Next Charging Event” to its original setting.
4

1772-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Q When “Next Charging Event” is changed while charging
O When the charging mode is “Departure”, the current charging is interrupted
or continued depending on the remaining time until the charging is com-
pleted.
O When the charging mode is “Start”, the current charging is interrupted, the
next charging will start at the set time.
Q When the power switch is turned off
It is possible to check the next charge
schedule (“Next Charging Event”) by oper-
ating or of the meter control
switches while the power switch is turned
off and the “Ending” screen*1 ( P. 1 9 8 ) i s
displayed.*2
*1: The “Ending” screen may not be dis-
played during charging.
*2: When the power switch is turned off, the “Next Charging Event” confir-
mation screen may be displayed.
WARNING
Q Cautions while performing the setting operation
When performing the setting operation while the hybrid system i s operated,
ensure that the vehicle is parked in a place with adequate vent ilation. In a
closed area such as a garage, exhaust gases including harmful c arbon
monoxide (CO) may collect and enter the vehicle. This may lead to death or
a serious health hazard.
NOTICE
Q While performing the setting operation
When performing the setting operation while the hybrid system i s stopped,
be careful that the 12-volt battery will not be discharged.

1792-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)

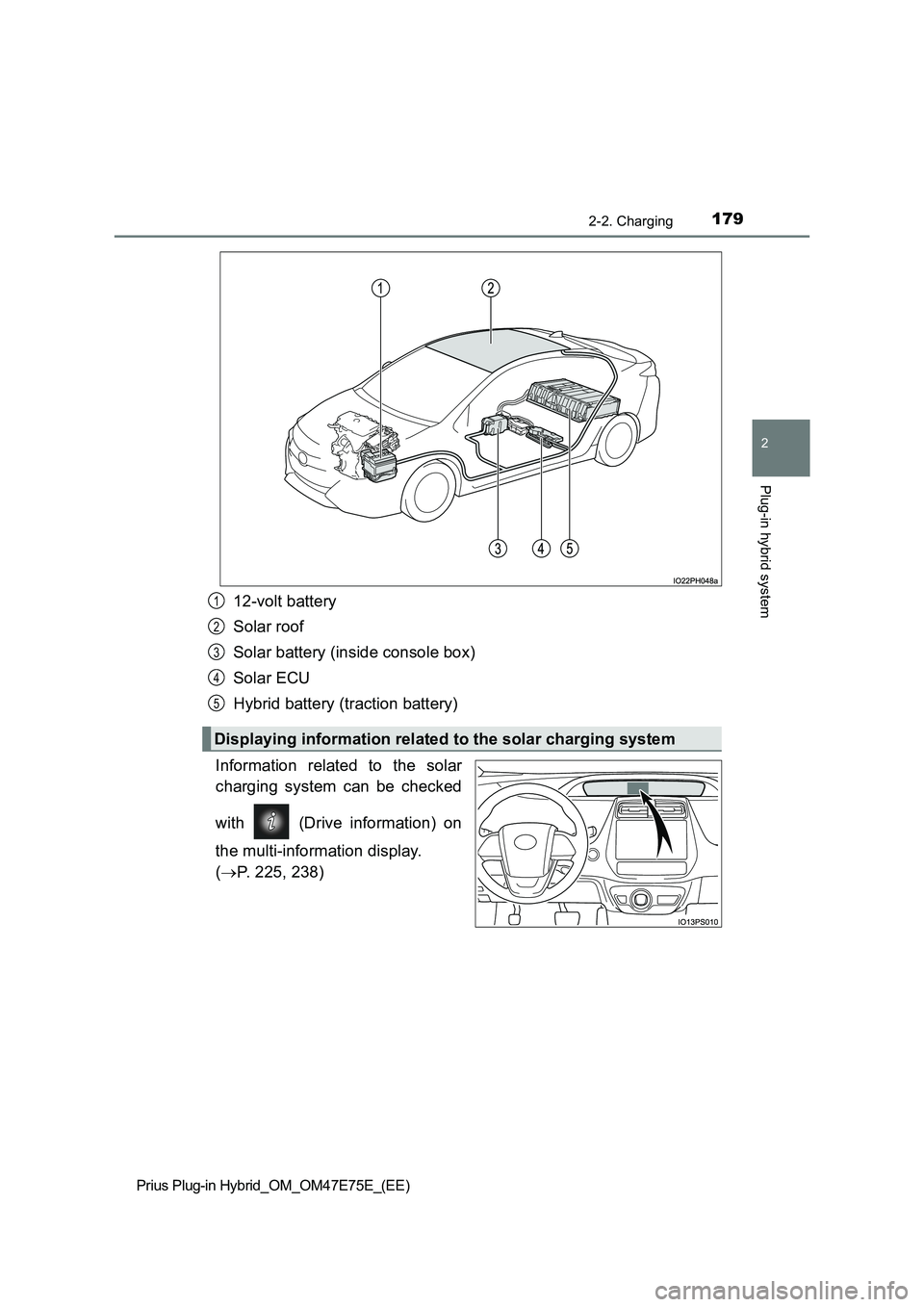

12-volt battery
Solar roof
Solar battery (inside console box)
Solar ECU
Hybrid battery (traction battery)
Information related to the solar
charging system can be checked
with (Drive information) on
the multi-information display.
(P. 225, 238)
Displaying information related to the solar charging system
1
2
3
4
