2022 TOYOTA PRIUS PLUG-IN HYBRID display

1822-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
When normal charging cannot be carried
out
Refer to the following table and carry out the appropriate correction
procedure.
When charging does not start, even though the normal proce-
dure is followed, check each of the following items.
If a message is shown on the multi-information display, also refer to
P. 1 8 7 .
When normal charging cannot be carried out
Likely causeCorrection procedure
The power source indicator on the CCID (Charging Circuit Interrupting
Device) does not illuminate, even though the plug is connected to an
external power source.
Plug is not properly con-
nected to socketCheck that the plug is properly connected to
the socket.
Power is outAfter power is restored, carry out the
charging procedure again.
Remote switch is offIf the remote switch is equipped, turn the
switch on.
Building breaker is tripped
and power is cut off
Check that the breaker is connected and if
there is no malfunction, check if the vehicle
can be charged through another socket.
If charging is possible, the first socket may
have a malfunction. Contact the building or
facility manager, or an electrician.
Short circuit between CCID
(Charging Circuit Interrupting
Device) and plugImmediately stop charging and contact any
authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.

1842-2. Charging
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
*: Refer to P. 115 for details regarding charging indicator illumination and
flashing.
Refer to the following table and carry out the appropriate correction
procedure.
Charging indicator flashes and charging cannot be carried out.
When charging indicator
flashes
*:
Charge schedule is regis-
tered
When you wish to charge according to the
charging schedule, wait until the set time.
To start charging, set “Charge Now” to “On”.
(P. 174)
When charging indicator rap-
idly flashes
*:
Malfunction occurred in an
external power source or the
vehicleStart the hybrid system and follow the
instructions displayed by the message on
the multi-information display. (P. 187)
When charging schedule function does not operate normally
Likely causeCorrection procedure
Cannot charge at desired time
Vehicle clock is not properly
adjustedCheck the clock settings and adjust it to the
proper time. (P. 200)
The vehicle calendar is not
set correctly.Check the calendar setting and set it to the
correct date. (P. 202)
Charging cable is not con-
nected to vehicleBefore using the charging schedule, con-
nect the charging cable.
Incorrect charging mode
selected
Check the charging mode setting. (P. 166)
When the charging mode is “Start”, charging
starts at the set time, but when it is “Depar-
ture”, charging is completed by the set time.
(The charging start time is automatically
controlled by the system.)
Likely causeCorrection procedure

1872-2. Charging
2
Plug-in hybrid system
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
When the hybrid system is started
after charging, a message is dis-
played in the multi-information dis-
play.
When this occurs, follow the
instructions displayed on the
screen.
When charging-related message is displayed
Likely causeCorrection procedure
If “Charging Stopped Due to Pulled Charging Connector” is shown
Charging connector is
removed while charging
When the charging connector is removed
while charging, charging stops. If you want
to fully charge the hybrid battery (traction
battery), reconnect the charging connector.
After the hybrid battery (trac-
tion battery) is fully charged,
the charging connector is
removed while the hybrid
battery (traction battery) is
being recharged again
because electricity-consum-
ing functions
* have been
used and the remaining
charge is now reduced.
*: Electricity is consumed
when operating “Traction
Battery Heater” (P. 144),
the air conditioning-linked
function (P. 166) or
Remote Air Conditioning
System (P. 535).

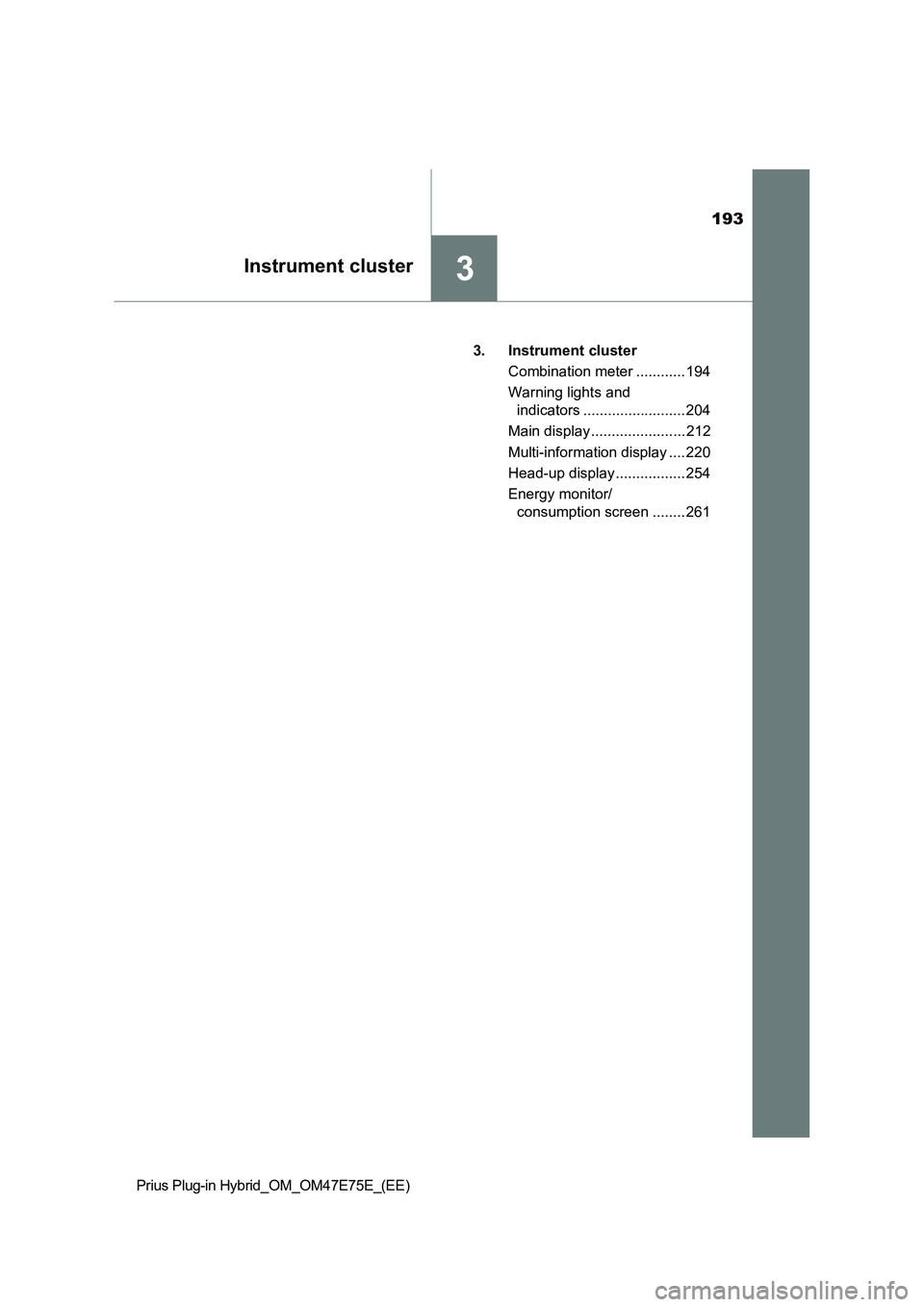

193
3Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)3. Instrument cluster
Combination meter ............ 194
Warning lights and
indicators ......................... 204
Main display ....................... 212
Multi-information display .... 220
Head-up display ................. 254
Energy monitor/
consumption screen ........ 261

1943. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Combination meter
The units used on the display may differ depending on the target region.
Main display (P. 212)
The main display shows basic information related to driving, such as the
vehicle speed and remaining fuel amount.
Multi-information display (P. 220)
The multi-information display shows information which makes the vehicle
convenient-to-use, such as the hybrid system operation condition, electric-
ity consumption and fuel consumption history. Also, the operation contents
of the driving support systems and the combination meter display settings
can be changed by switching to the settings screen.
Warning lights and indicators (P. 2 0 4 )
The warning lights and indicators comes on or flashes to indicate problems
with the vehicle or to show the operation status of the vehicle’s systems.
Clock (P. 200)
The large meter uses 2 liquid crystal displays to display informa-
tion such as the vehicle condition, driving status, electricity con-
sumption and fuel consumption.
Combination meter layout
1
2
3
4

1953. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
The meter control switches equipped on the steering wheel can be
used to switch the screen display and change settings related to func-
tions displayed on the screen.
Each time the button is
pressed, the mileage display
switches among odometer, trip
meters, etc., and the fuel con-
sumption information for each
distance switches as well.
(P. 214)
Pressing , , or
performs such operations as
scrolling the screen
*, switching
the contents of the display
* and
moving the cursor.
This button is used to perform such operations as selecting the cur-
rent item or switching between on and off.
When pressed, the display returns to the previous screen.
*: On screens where the screen can be scrolled and the display can be
switched, marks are displayed to indicate the direction of operation (such
as and ).
Operations related to the combination meter
1
2
3
4

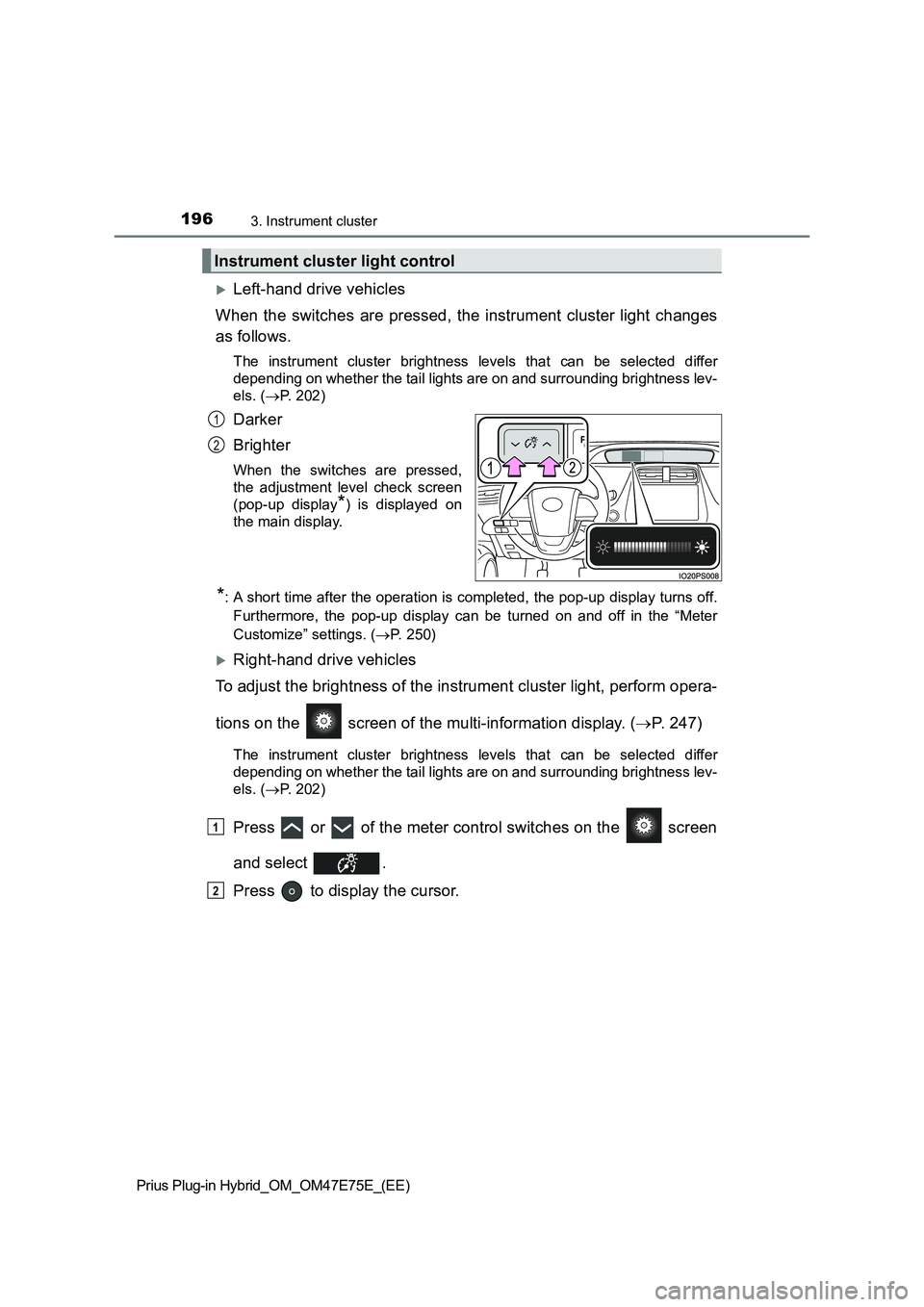

1963. Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Left-hand drive vehicles
When the switches are pressed, the instrument cluster light changes
as follows.
The instrument cluster brightness levels that can be selected differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (P. 202)
Darker
Brighter
When the switches are pressed,
the adjustment level check screen
(pop-up display
*) is displayed on
the main display.
*: A short time after the operation is completed, the pop-up display turns off.
Furthermore, the pop-up display can be turned on and off in the “Meter
Customize” settings. (P. 250)
Right-hand drive vehicles
To adjust the brightness of the instrument cluster light, perform opera-
tions on the screen of the multi-information display. (P. 247)
The instrument cluster brightness levels that can be selected differ
depending on whether the tail lights are on and surrounding brightness lev-
els. (P. 202)
Press or of the meter control switches on the screen
and select .
Press to display the cursor.
Instrument cluster light control
1
2
1
2

1973. Instrument cluster
3
Instrument cluster
Prius Plug-in Hybrid_OM_OM47E75E_(EE)
Press or of the meter control switches to adjust the bright-
ness of the instrument cluster light.
Darker
Brighter
After adjustment is completed,
press to return to the previous
screen.
Some information will be displayed automatically according to power
switch operation, vehicle condition, etc.
QWhen starting the hybrid system
When the hybrid system starts,
an opening animation is dis-
played on the 2 displays.
After the animation ends, the
screens switch to the normal
screen.
The opening animation will be
stopped in any of the following
situations.
• When the shift position is changed to other than P
• When the Simple Intelligent Parking Assist System (if equipped) is
turned on
3
1
2
Information automatically displayed
