3434-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)

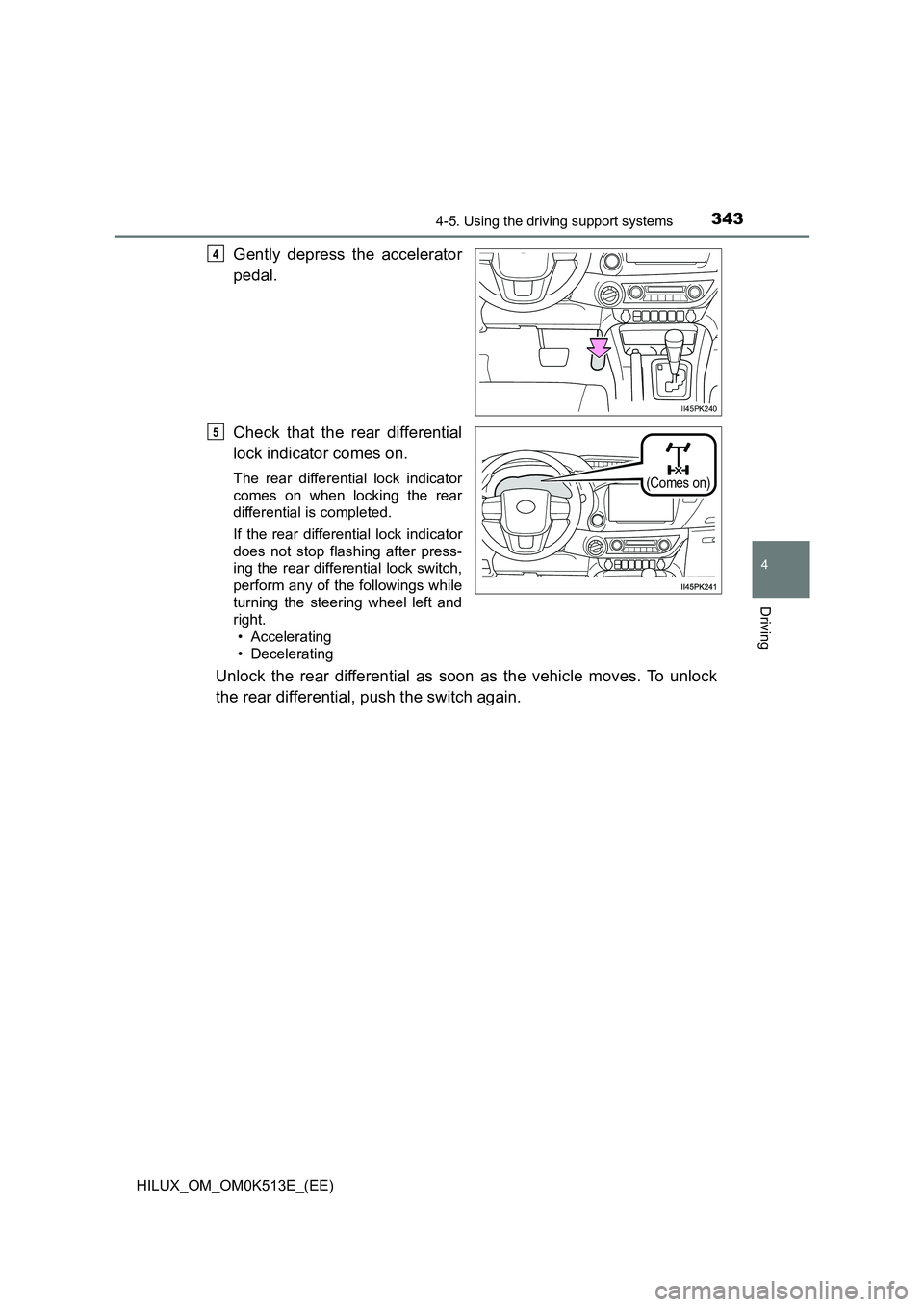

Gently depress the accelerator
pedal.
Check that the rear differential
lock indicator comes on.
The rear differential lock indicator
comes on when locking the rear
differential is completed.
If the rear differential lock indicator
does not stop flashing after press-
ing the rear differential lock switch,
perform any of the followings while
turning the steering wheel left and
right.
• Accelerating
• Decelerating
Unlock the rear differential as soon as the vehicle moves. To unlock
the rear differential, push the switch again.
II45PK240
4
(Comes on)
5

3444-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
QLocking the rear differential
The following systems do not operate w hen the rear differential is locked.
It is normal operation for the ABS warning light, VSC OFF indicator (if
equipped) and “TRC OFF” indicator (if equipped) to be on or for “TRC turned
off” to be displayed on the multi-information display (if equipped) at this time.
•ABS
• Brake assist (if equipped)
• VSC (if equipped)
• TRC/A-TRC (if equipped)
• Trailer Sway Control (if equipped)
• Hill-start assist control (if equipped)
• Downhill assist control (if equipped)
Q Unlocking the rear differential
If the rear differential lock indicator still flashes even after unlocking the rear
differential, check the safety of the surrounding area and slightly turn the
steering wheel in either direction while the vehicle is in motion.
Q Automatic system cancelation of the rear differential lock system
The rear differential lock is also unlocked in any of the following situations:
O The front-wheel drive control switch is turned to H2 or H4 (4WD models)
O The engine switch is turned to the “ACC” or “LOCK” position (vehicles with-
out smart entry & start system) or A CCESSORY or off (vehicles with smart
entry & start system)
Q After unlocking the rear differential
Check that the indicator goes off.
WARNING
Q To avoid an accident
Failure to observe the following precautions may result in an accident.
O Do not use the rear differential lock system except when wheel spinning
occurs in a ditch or on a slippery or rugged surface. Large steering effort
and careful cornering control will be required.
O Do not lock the rear differential until the wheels have stopped spinning.
Otherwise, the vehicle may move in an unexpected direction when the dif-
ferential lock is engaged, resulting in an accident. This may also lead to
possible damage to rear differential lock component parts.
O Do not drive over 8 km/h (5 mph) when the differential is locked.
O Do not keep driving with the rear differential lock switch on.

3474-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
When the engine is stopped by the Stop & Start system when the
vehicle is on an incline, when the brake pedal is released, brake force
is temporarily maintained to prevent the vehicle from rolling back-
wards before the engine is restarted and drive force is generated.
When drive force is generated, the maintained brake force is automat-
ically canceled.
O This function operates on flat surfaces as well as steep inclines.
O Sound may be generated from the brake system, but this does not
indicate a malfunction.
O Brake pedal response may change and vibration may occur, but
this does not indicate a malfunction.
Q Points for use
O If the engine switch is pressed when the engine is stopped by the Stop &
Start system, the engine will not be able to be restarted by the automatic
engine start function. In this case, restart the engine using the normal
engine starting procedure. ( P. 220, 223)
O When the engine is being restarted by the Stop & Start system, the power
outlets may be temporarily unusable, but this does not indicate a malfunc-
tion.
O Installation and removal of electrical components and wireless devices may
affect the Stop & Start system. Contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer for details.
O When stopping the vehicle for a longer period of time, turn the engine switch
to the “LOCK” position*1 or off*2 to stop the engine completely.
O When the engine is restarted by the Stop & Start system, the steering wheel
may temporarily feel heavy.
O 4WD models only: While driving in L4 mode, it is recommended that the
Stop & Start system be canceled because the system may not operate prop-
erly.
*1: Vehicles without smart entry & start system
*2: Vehicles with smart entry & start system
Hill-start assist control (vehicles with automatic transmission)

3484-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Q Operating conditions
O The Stop & Start system is operational when all of the following conditions
are met:
• The vehicle has been driven a certain amount of time.
• The brake pedal is being depressed firmly. (vehicles with automatic trans-
mission)
• The clutch pedal is not depressed. (vehicles with manual transmission)
• The D shift position is selected. (v ehicles with automatic transmission)
• The shift lever is in N. (vehicles with manual transmission)
• The driver’s seat belt is fastened.
• The driver’s door is closed.
• The selected driving mode is normal or Eco drive mode. (if equipped)
• The rear differential is not locked. (if equipped)
• is off. (vehicles without manual air conditioning system)
• The accelerator pedal is not being depressed. (vehicles with automatic
transmission)
• The engine is adequately warmed up.
• The outside temperature is -5°C (23°F) or higher.
• The hood is closed. ( P. 349)
O In the following situations, the engine may not be stopped by the Stop &
Start system. This is not a malfunction of the Stop & Start system.
• When the air conditioning system is being used.
• When the battery is undergoing a periodic recharge.
• When the battery is not sufficiently charged, such as if the vehicle has
been parked for a long time and the battery charge has decreased, the
electric load is large, the battery fluid temperature is excessively low or
the battery has deteriorated.
• When the brake booster vacuum is low.
• When the elapsed time since the engine was restarted is short.
• When the vehicle is stopped frequently, such as when in a traffic jam.
• When the engine coolant temperature or transmission fluid temperature
is extremely low or high.
• When the vehicle is stopped on a steep incline. (vehicles with automatic
transmission)
• When the steering wheel is being operated.
• When the vehicle is being driven in a high altitude area.
• When the battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and
reconnected.

3494-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
O When the engine is stopped by the Stop & Start system, the engine will be
restarted automatically if any of the following conditions are met:
(To enable the engine to be stopped by the Stop & Start system again, drive
the vehicle.)
• The air conditioning system is turned on. (vehicles without manual air
conditioning system)
• is turned on. (vehicles without manual air conditioning system)
• The shift lever is shifted from D or P. (vehicles with automatic transmis-
sion)
• The shift lever is shifted from P. (When the engine is stopped by the Stop
& Start system when the shift lever is in P.) (vehicles with automatic trans-
mission)
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• The driving mode is changed from normal or Eco drive mode to another
mode. (if equipped)
• The rear differential is locked. (if equipped)
• The Stop & Start cancel switch is pressed.
• The steering wheel is operated.
• The accelerator pedal is depressed. (vehicles with automatic transmis-
sion)
• The vehicle starts to roll on an incline.
O When the engine is stopped by the Stop & Start system, the engine may
restart automatically in the following situations:
(To enable the engine to be stopped by the Stop & Start system again, drive
the vehicle.)
• When the brake pedal is pumped or strongly depressed.
• When the air conditioning system is being used.
• When a switch of the air conditioning system is operated ( , etc.).
• If the battery charge becomes low.
Q When the hood is opened
O If the hood is opened while the engine is stopped by the Stop & Start sys-
tem, the engine will stall and will not be able to be restarted by the automatic
engine start function. In this case, restart the engine using the normal
engine starting procedure. ( P. 220, 223)
O If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch to the
“LOCK” position*1 or off*2, wait 30 seconds or more, and then start the
engine.
*1: Vehicles without smart entry & start system
*2: Vehicles with smart entry & start system

3634-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
WARNING
QTrailer Sway Control precaution
The Trailer Sway Control system is not able to reduce trailer sway in all situ-
ations. Depending on many factors such as the conditions of the vehicle,
trailer, road surface, and driving envi ronment, the Trailer Sway Control sys-
tem may not be effective. Refer to your trailer owner’s manual for informa-
tion on how to tow your trailer properly.
Q If trailer sway occurs (vehicles with Trailer Sway Control)
Observe the following precautions.
Failing to do so may cause death or serious injury.
O Firmly grip the steering wheel. Steer straight ahead.
Do not try to control trailer sway by turning the steering wheel.
O Begin releasing the accelerator pedal immediately but very gradually to
reduce speed.
Do not increase speed. Do not apply vehicle brakes.
If you make no extreme correction with the steering or brakes, your vehicle
and trailer should stabilize. ( P. 215)

3764-6. Driving tips
HILUX_OM_OM0K513E_(EE)
QTire chain installation
Observe the following precautions when installing and removing chains:
O Install and remove tire chains in a safe location.
O Install tire chains on the rear tires. Do not install tire chains on the front tires.
O Install tire chains on rear tires as tightly as possible. Retighten chains after
driving 0.5 - 1.0 km (1/4 - 1/2 mile).
O Install tire chains following the instructions provided with the tire chains.
WARNING
QDriving with snow tires
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
O Use tires of the specified size.
O Maintain the recommended level of air pressure.
O Do not drive at speeds in excess of the speed limit or the speed limit spec-
ified for the snow tires being used.
O Use snow tires on all, not just some wheels.
Q Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failing to do so may result in the vehicle being unable to be driven safely,
and may cause death or serious injury.
O Do not drive in excess of the speed limit specified for the tire chains being
used, or 50 km/h (30 mph), whichever is lower.
O Avoid driving on bumpy road surfaces or over potholes.
O Avoid sudden acceleration, abrupt steering, sudden braking and shifting
operations that cause sudden engine braking.
O Slow down sufficiently before entering a curve to ensure that vehicle con-
trol is maintained.
O Do not use LDA (Lane Departure Alert with Yaw Assist Function) system.
(if equipped)

377
5Audio system
HILUX_OM_OM0K513E_(EE)
5-1. Basic Operations
Audio system types ........... 378
Using the steering wheel
audio switches ................. 379
AUX port/USB port ............ 381
5-2. Using the audio system
Optimal use of the audio
system ............................. 382
5-3. Using the radio
Radio operation ................. 384
5-4. Playing an audio CD and
MP3/WMA/AAC discs
CD player operation........... 387
5-5. Using an external device
Listening to an iPod ........... 395
Listening USB memory
device .............................. 401
Using the AUX port ............ 407
5-6. Using Bluetooth® devices
Bluetooth® audio/phone..... 408
Using the steering
wheel switches ................ 413
Registering a Bluetooth®
device .............................. 414
5-7. “SETUP” menu
Using the “SETUP” menu
(“Bluetooth” menu)........... 415
Using the “SETUP” menu
(“TEL” menu) ................... 419
5-8. Bluetooth® Audio
Operating a Bluetooth®
enabled portable
player ............................... 424
5-9. Bluetooth® Phone
Making a phone call ........... 426
When receiving a phone
call ................................... 427
Speaking on the phone ...... 428
5-10. Bluetooth®
Bluetooth®......................... 430
