3714-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
OIf the DPF system warning message “DPF full See owner’s manual”
appears on the multi-information display, follow the procedure
below to regenerate.
When regenerating the filter during driving the vehicle
To regenerate the filter, the following driving methods are recom-
mended.*1
• By driving continuously (for example, at around 60 km/h [37 mph]
for 20 to 30 minutes).
• By avoiding short trips, or by driving continuously (leaving the
engine running for long periods of time).
Check the engine is warmed up before driving the vehicle to regenerate
the filter. If the engine is cold, warm up the engine by driving the vehicle
downshifting to increase the engine speed.*2
The warning message will disappear on the multi-information display when
regeneration is complete. However, depending on the driving condition
such as heavy traffic, the amount of accumulated deposit increases and
the warning message may not disappear on the multi-information display.
If the warning message does not disappear on the multi-information dis-
play after driving, press the DPF system switch to manually regenerate the
filter.
Regeneration during driving cannot be performed when the vehicle is
higher than 4000 m (13124 ft.) above sea level.
*1: When driving, pay sufficient attention to weather, road conditions, ter-
rain and traffic conditions, and drive according to traffic laws.
*2: Depending on the situation, it may be necessary to downshift until the
engine speed is increased to 3000 rpm. If the engine coolant tempera-
ture or exhaust gas temperature is low, it may take a long time to
regenerate, or regeneration may be impossible.
DPF system failure warning

3724-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
When regenerating the filter by pressing the DPF system switch
Stop the vehicle in a safe place.
Shift the shift lever to P (automatic transmission) or N (manual
transmission), and firmly set the parking brake.
Do not stop the engine.
Also, make sure that there are no flammable materials near the exhaust
pipe. ( P. 369)
Check the engine is warmed up. If the engine is cold, warm up the engine
by depressing the accelerator pedal.*1
Press the DPF system switch.
The DPF system warning message
shown in the illustration appears
on the multi-information display,
and the idling engine speed will
increase.
Regeneration will take around 15 -
40 minutes to complete.*2
When the DPF system warning message disappears on the multi-
information display, the idling engine speed will have finished return-
ing to normal.
The DPF system switch may not operate when the vehicle is higher
than 4000 m (13123 ft.) above sea level.
*1: Depending on the situation, it may be necessary to depress the acceler-
ator pedal until the engine speed is increased to 3000 rpm. If the engine
coolant temperature or exhaust gas temperature is low, it may take a
long time to regenerate, or regeneration may be impossible.
*2: Time required for regeneration differs in accordance with the outside
temperature. Also, if the engine speed is still approximately 2000 rpm
10 minutes after pressing the DPF system switch, the exhaust gas tem-
perature may be low. In this case, depress the accelerator pedal to run
the engine at approximately 3000 rpm for a while.
When depressing the accelerator pedal, regeneration will be stopped. In
this case, restart regeneration.
1
2
3

4807-2. Maintenance
HILUX_OM_OM0K513E_(EE)
QWhere to go for maintenance service?
In order to maintain your vehicle in the best possible condition, Toyota recom-
mends that maintenance service operations as well as other inspections and
repairs be carried out by authorized Toyota retailers or Toyota authorized
repairers, or any reliable repairers. For repairs and services covered by your
warranty, please visit an authorized Toyota retailer or repairer, who will use
genuine Toyota parts in repairing any difficulties you may encounter. There
can also be advantages in utilizing authorized Toyota retailers or repairers for
non-warranty repairs and services, as members of the Toyota network will be
able to expertly assist you with any difficulties you may encounter.
Your Toyota retailer or Toyota authoriz ed repairer, or any reliable repairer will
perform all of the scheduled maintenance on your vehicle reliably and eco-
nomically due to their experience with Toyota vehicles.
Q Does your vehicle need repairs?
Be on the alert for changes in performance and sounds, and visual tip-offs
that indicate service is needed. Some important clues are:
O Engine missing, stumbling or pinging
O Appreciable loss of power
O Strange engine noises
O A fluid leak under the vehicle (However, water dripping from the air condi-
tioning system after use is normal.)
O Change in exhaust sound (This may indicate a dangerous carbon monoxide
leak. Drive with the windows open and have the exhaust system checked
immediately.)
O Flat-looking tires, excessive tire squeal when cornering, uneven tire wear
O Vehicle pulls to one side when driven straight on a level road
O Strange noises related to suspension movement
O Loss of brake effectiveness, spongy feeling brake pedal or clutch pedal,
pedal almost touches the floor, vehicle pulls to one side when braking
O Engine coolant temperature continually higher than normal
If you notice any of these clues, take your vehicle to any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer as soon as pos-
sible. Your vehicle may need adjustment or repair.

4827-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
Do-it-yourself ser vice precautions
If you perform maintenance by yourself, be sure to follow the
correct procedure as given in these sections.
ItemsParts and tools
Battery condition
( P. 494)
•Warm water• Baking soda•Grease
• Conventional wrench (for terminal clamp bolts)
• Distilled water
Engine coolant/
intercooler
coolant
(if equipped) level
( P. 492)
• “Toyota Super Long Life Coolant” or a similar high
quality ethylene glycol-based non-silicate, non-
amine, non-nitrite and non-borate coolant with long-
life hybrid organic acid technology
“Toyota Super Long Life Coolant” is pre-mixed with
50% coolant and 50% deionized water.
• Funnel (used only for adding coolant)
Engine oil level
( P. 489)
• “Toyota Genuine Motor Oil” or equivalent
• Rag or paper towel
• Funnel (used only for adding engine oil)
Fuses (P. 5 2 0 )• Fuse with same amperage rating as original
Light bulbs
( P. 525)
• Bulb with same number and wattage rating as origi-
nal
• Phillips-head screwdriver
• Flathead screwdriver•Wrench
Radiator,
condenser and
intercooler
(if equipped)
( P. 493)

Tire inflation
pressure
( P. 510)
• Tire pressure gauge• Compressed air source
Washer fluid
( P. 498)
• Water or washer fluid containing antifreeze (for win-
ter use)
• Funnel (used only for adding water or washer fluid)

4867-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

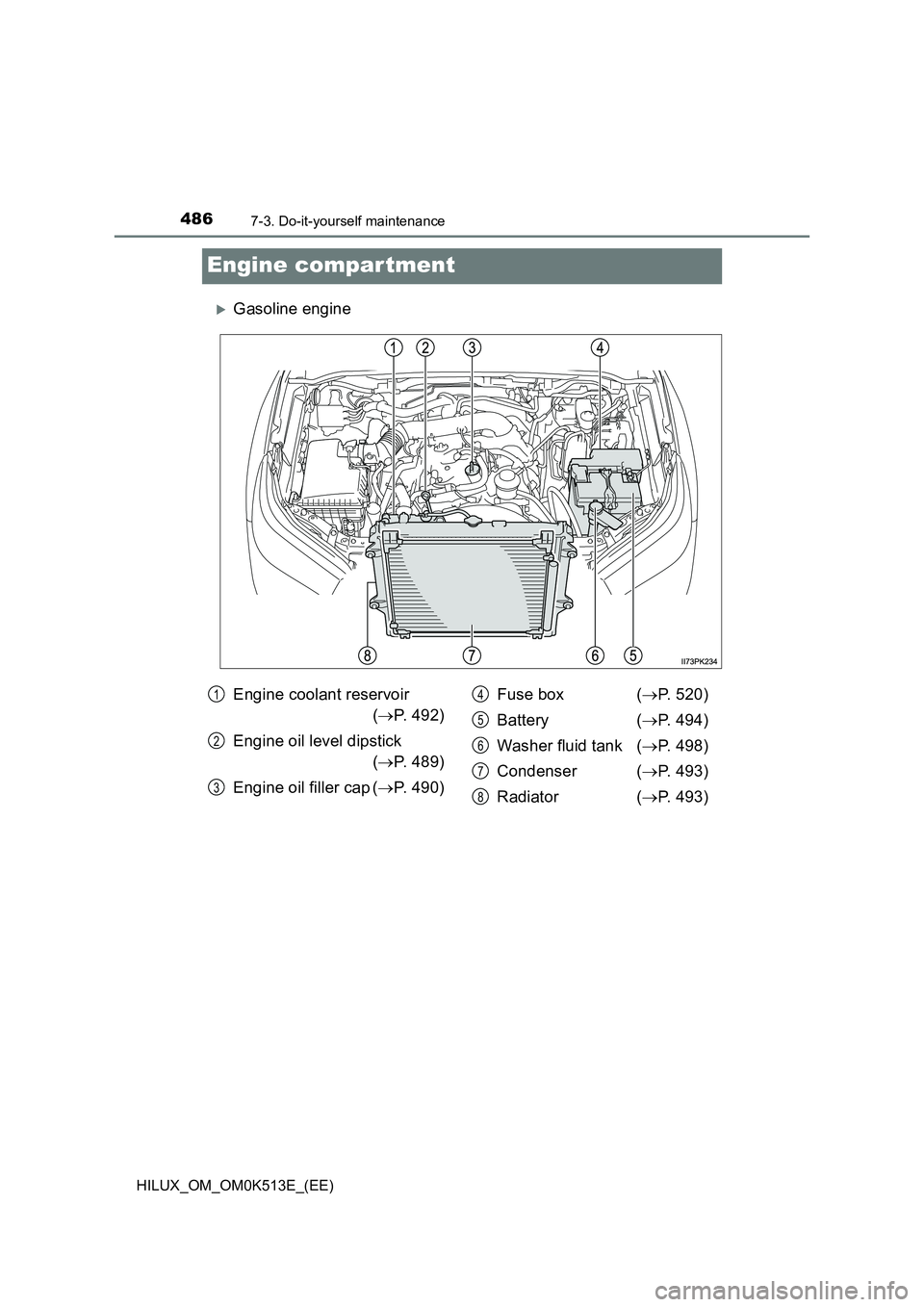

Engine compar tment
Gasoline engine
Engine coolant reservoir
( P. 492)
Engine oil level dipstick
( P. 489)
Engine oil filler cap ( P. 490)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Condenser ( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8

4877-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care

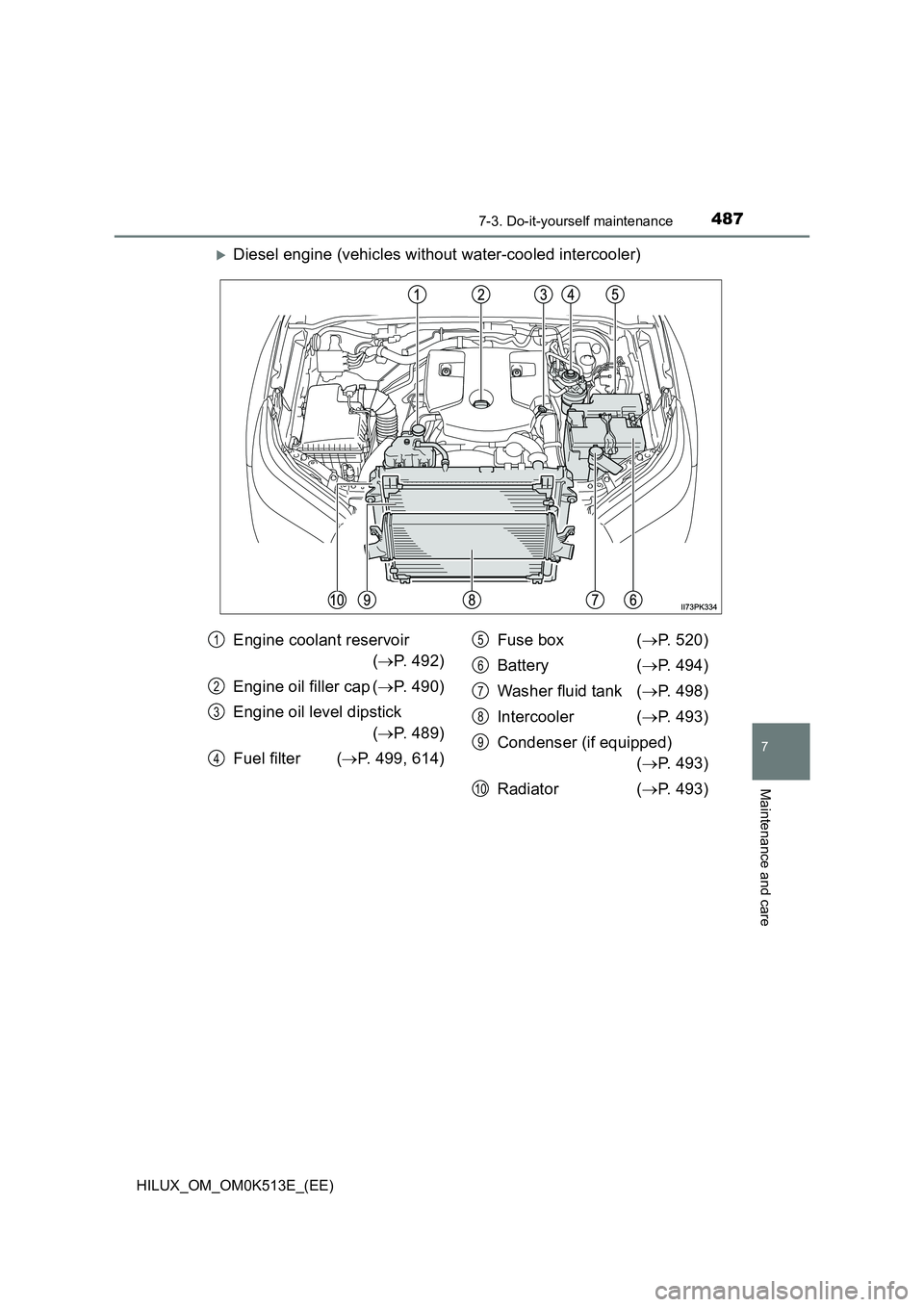

Diesel engine (vehicles without water-cooled intercooler)
Engine coolant reservoir
( P. 492)
Engine oil filler cap ( P. 490)
Engine oil level dipstick
( P. 489)
Fuel filter ( P. 499, 614)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Intercooler ( P. 493)
Condenser (if equipped)
( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8
9
10

4887-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

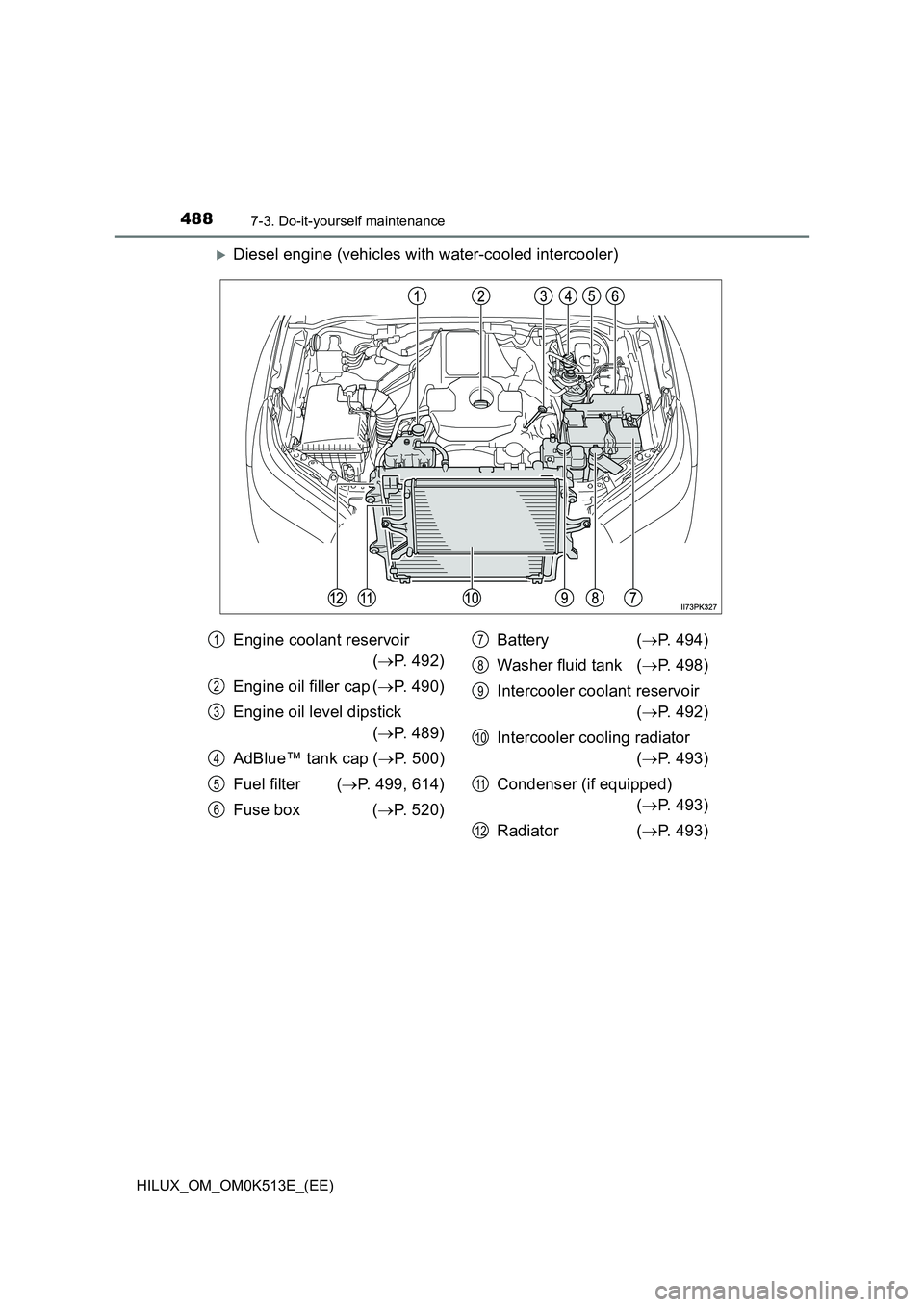

Diesel engine (vehicles with water-cooled intercooler)
Engine coolant reservoir
( P. 492)
Engine oil filler cap ( P. 490)
Engine oil level dipstick
( P. 489)
AdBlue™ tank cap ( P. 500)
Fuel filter ( P. 499, 614)
Fuse box ( P. 520)
Battery ( P. 494)
Washer fluid tank ( P. 498)
Intercooler coolant reservoir
( P. 492)
Intercooler cooling radiator
( P. 493)
Condenser (if equipped)
( P. 493)
Radiator ( P. 493)
1
2
3
4
5
6
7
8
9
10
11
12

4927-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)

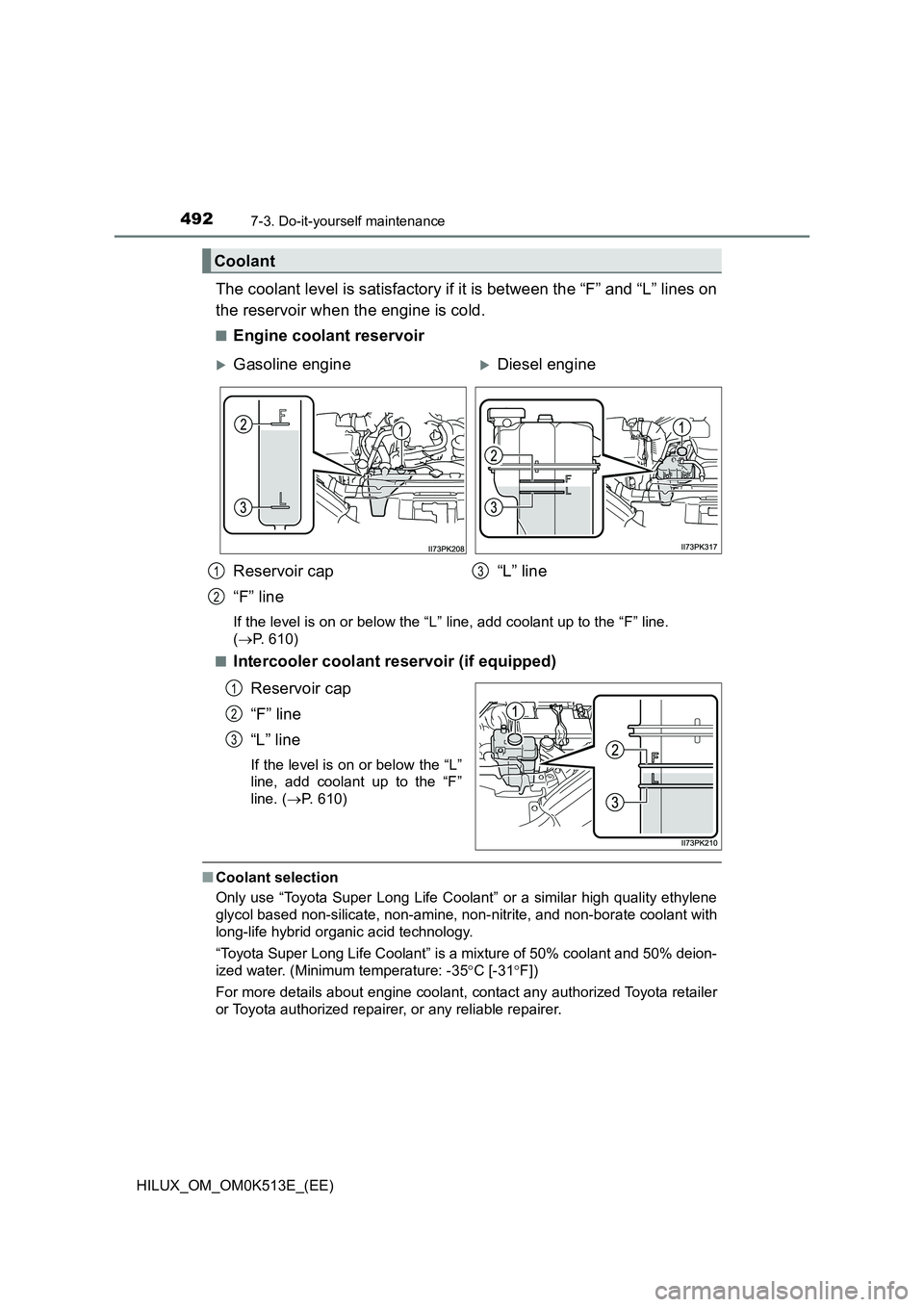

The coolant level is satisfactory if it is between the “F” and “L” lines on
the reservoir when the engine is cold.
QEngine coolant reservoir
If the level is on or below the “L” line, add coolant up to the “F” line.
( P. 610)
QIntercooler coolant reservoir (if equipped)
Reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F”
line. ( P. 610)
QCoolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene
glycol based non-silicate, non-amine, non- nitrite, and non-borate coolant with
long-life hybrid organic acid technology.
“Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deion-
ized water. (Minimum temperature: -35 C [-31F])
For more details about engine coolant, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
Coolant
Gasoline engineDiesel engine
Reservoir cap
“F” line
“L” line1
2
3
1
2
3
