17Pictorial index
HILUX_OM_OM0K513E_(EE)
Fuel filler door*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Refueling method . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
Fuel type/fuel tank capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 627
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 507
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 639
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
Checking/rotation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 508
Coping with flat tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 581
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 484
Engine oil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 628
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 610
Camera*1, 2
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Front position lights/daytime running lights*1. . . . . . . . . . P. 248
Front fog lights*1/rear fog light*1, 3. . . . . . . . . . . . . . . . . . . P. 255
Front turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Side turn signal lights (fender-mounted type or
mirror-mounted type) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Rear turn signal lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 246
Stop lights
Downhill assist control system*1. . . . . . . . . . . . . . . . . . . . . . . P. 364
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
License plate light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 248
Back-up lights*3
Shifting the shift lever to R. . . . . . . . . . . . . . . . . . . . . . . . P. 231, 239
5
6
7
8
Light bulbs of the exterior lights for driving
(Replacing method: P. 525, Watts: P. 642)
*1: If equipped
*2: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.
*3: They may be located on the opposite side depending on the target region.
9
10
11
12
13
14
15
16
17
18

6289-1. Specifications
HILUX_OM_OM0K513E_(EE)
Gasoline engine
*: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to satisfy
the following grade and viscosity.
Oil grade:
0W-20, 5W-20, 5W-30 and 10W-30:
API grade SL “Energy-Conserving”, SM “Energy-Conserving”, SN
“Resource-Conserving”, SN PLUS “Resource-Conserving” or SP
“Resource-Conserving”; or ILSAC GF-6A multigrade engine oil
Recommended viscosity (SAE):
SAE 0W-20 is filled into your
Toyota vehicle at manufactur-
ing, and the best choice for
good fuel economy and good
starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 0W-20, 5W-20
or 5W-30 engine oil is recom-
mended.
Lubrication system
Oil capacity
(Drain and refill  reference*)
With filter
Without filter
5.6 L (5.9 qt., 4.9 Imp.qt.)
5.3 L (5.6 qt., 4.7 Imp.qt.)
Temperature range anticipated before next oil change
Preferred

6309-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (except for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Use
Toyota approved “Toyota Genuine Motor Oil” or equivalent to sat-
isfy the following grade and viscosity.
Oil grade: API CF-4, CF or ACEA B3, B4, B5 or JASO DL-0
Recommended viscosity (SAE):
SAE 5W-30 is the best choice
for good fuel economy and
good starting in cold weather.
If you use SAE 10W-30 or a
higher viscosity engine oil in
extremely low temperatures,
the engine may become difficult
to start, so SAE 5W-30 engine
oil is recommended.
Oil capacity
(Drain and refill — reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
Temperature range anticipated
before next oil change
Preferred

6329-1. Specifications
HILUX_OM_OM0K513E_(EE)
Diesel engine (for EURO V and VI models*1)
*1: EURO V and VI are emission standards. If it is not clear that your vehicle
meets relevant standards, contact any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer.
*2: The engine oil capacity is a reference quantity to be used when changing
the engine oil. Warm up and turn off the engine, wait more than 5 minutes,
and check the oil level on the dipstick.
QEngine oil selection
“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota
recommends the use of approved “Toyota Genuine Motor Oil”.
Another motor oil of matching quality can also be used.
Oil grade:
0W-20: ACEA C5
0W-30 and 5W-30: ACEA C2
Oil capacity
(Drain and refill reference*2)
With filter
Without filter
7.5 L (7.9 qt., 6.6 Imp.qt.)
7.0 L (7.4 qt., 6.2 Imp.qt.)
NOTICE
Using engine oil other than ACEA C5 or C2 may damage the catalytic con-
verter.

6369-1. Specifications
HILUX_OM_OM0K513E_(EE)
*: The fluid capacity is the quantity of reference.
If replacement is necessary, contact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer.
Automatic transmission
Fluid
capacity*
Gasoline engine8.5 L (9.0 qt., 7.5 Imp.qt.)
Diesel engine9.5 L (10.0 qt., 8.4 Imp.qt.)
Fluid typeToyota Genuine ATF WS
NOTICE
Q Automatic transmission fluid type
Using transmission fluid other than the above type may cause abnormal
noise or vibration, or damage t he transmission of your vehicle.
Manual transmission
Oil capacity
5-speed models 2.2 L (2.3 qt., 1.9 Imp.qt.)
6-speed
models
4WD
models 2.5 L (2.6 qt., 2.2 Imp.qt.)
Pre
Runner 2.7 L (2.9 qt., 2.4 Imp.qt.)
Oil type
TOYOTA Genuine Manual
Transmission Gear Oil API
GL-3 (GL-4) or equivalent
Recommended oil viscosity SAE 75W-90
NOTICE
Q Manual transmission gear oil
Please be aware that depending on the particular characteristics of the gear
oil used or the operating conditions, idle sound, shift feeling and/or fuel effi-
ciency may be different or affected. Toyota recommends to use “TOYOTA
Genuine Manual Transmission Gear Oil” to achieve optimal performance.

663Alphabetical index
HILUX_OM_OM0K513E_(EE)
Driving
Break-in tips .......................... 196
Correct posture ....................... 38
Procedures............................ 192
Winter drive tips .................... 374
Dynamic radar cruise
control .................................... 301
Function ................................ 301
Warning message ................. 580
Eco Driving Indicator....... 126, 128
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 151
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 221
Compartment ........................ 486
Engine switch................ 220, 223
Hood ..................................... 484
How to start the
engine......................... 220, 223
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 220, 223
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Engine coolant
temperature gauge ................ 131
Engine immobilizer system .... 115
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 374
Engine oil maintenance
data ......................................... 491
E

665Alphabetical index
HILUX_OM_OM0K513E_(EE)
Gauges...................................... 130
Glove box ................................. 457
Grocery bag hooks .................. 468
Hands-free system
(for cellular phone)*.............. 408
Head restraints......................... 175
Headlights ................................ 248
Light switch ........................... 248
Replacing
light bulbs ... 528, 529, 531, 549
Wattage................................. 642
Heated steering wheel ............. 450
Heaters
Automatic air conditioning
system ................................ 441
Heated steering wheel .......... 450
Manual air conditioning
system ................................ 434
Seat heaters.......................... 450
Outside rear view mirrors ...... 444
High mounted stoplight
Replacing .............................. 549
Hill-start assist control ............ 355
Hood.......................................... 484
Hooks
Coat hooks ............................ 469
Grocery bag hooks................ 468
Retaining hooks (floor mat) ..... 36
Horn .......................................... 179
Identification
Engine................................... 625
Vehicle .................................. 624
Ignition switch (engine
switch) ............................ 220, 223
Auto power off function ......... 227
Changing the engine
switch modes...................... 226
Changing the engine
switch position .................... 221
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine........ 220, 223
Ignition switch light
(engine switch light) ............. 453
Illuminated entry system ........ 455
Immobilizer system ................. 115
Indicators ................................. 122
Initialization
Engine oil maintenance
data .................................... 491
Items to initialize ................... 654
Inside rear view mirror ............ 180
Instrument panel light
control .................................... 132
Intercooler ................................ 493
Intercooler coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Interior lights............................ 453
Switch ................................... 454
Wattage ................................ 642
G
H
I
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.

796
HILUX_OM_OM0K513E_(EE)
*: If equipped

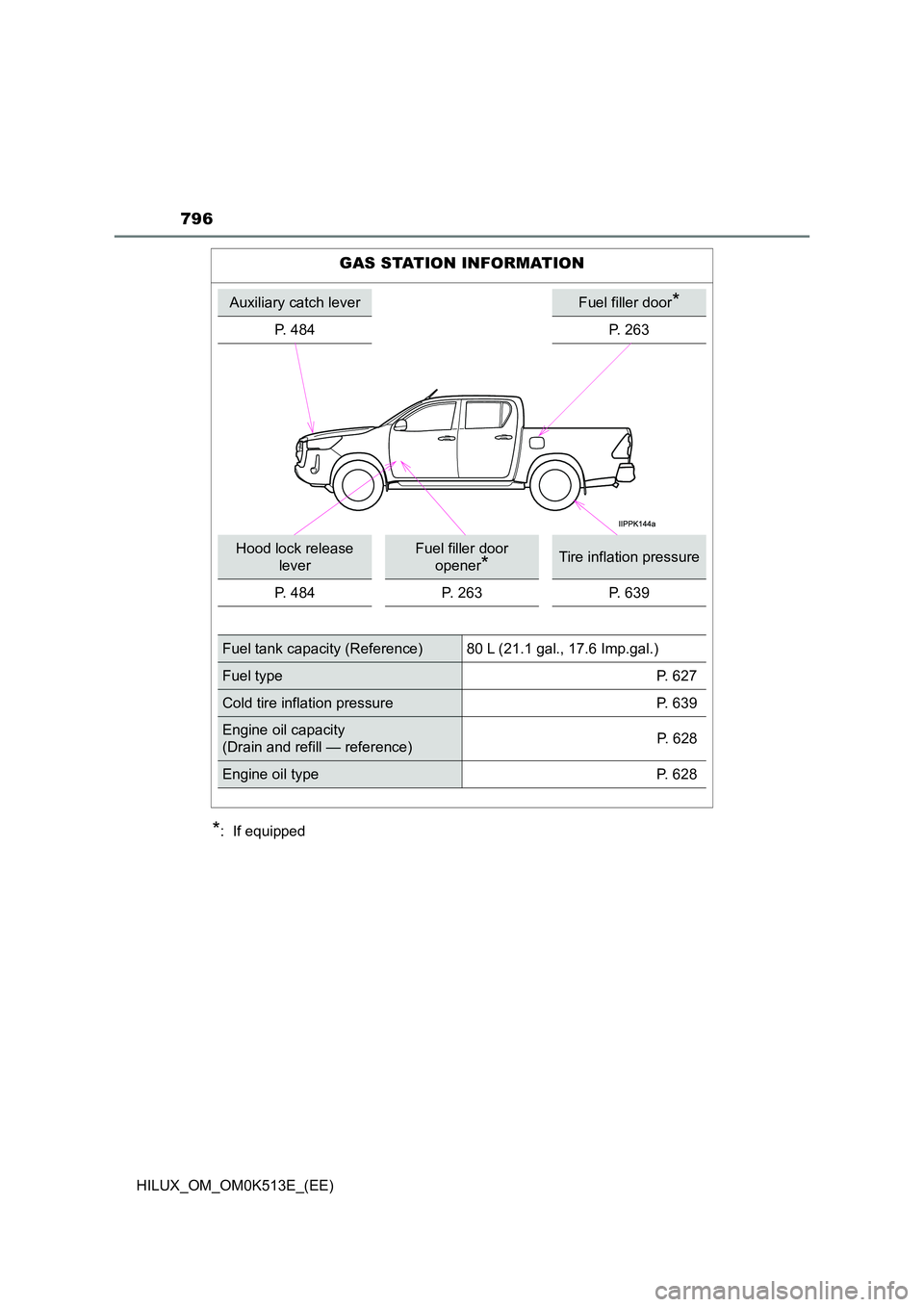

GAS STATION INFORMATION
Auxiliary catch leverFuel filler door*
P. 484P. 263
Hood lock release
lever
Fuel filler door
opener*Tire inflation pressure
P. 484 P. 263 P. 639
Fuel tank capacity (Reference) 80 L (21.1 gal., 17.6 Imp.gal.)
Fuel type P. 627
Cold tire inflation pressure P. 639
Engine oil capacity
(Drain and refill — reference) P. 628
Engine oil type P. 628
