2022 TOYOTA HILUX ignition

2304-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
NOTICE
QTo prevent battery discharge
O Do not leave the engine switch in ACCESSORY or IGNITION ON mode
for long periods of time without the engine running.
O If “ACCESSORY” or “IGNITION ON” is displayed on the multi-information
display while the engine is not running, the engine switch is not off. Exit the
vehicle after turning the engine switch off.
O On vehicles with automatic transmission, do not stop the engine when the
shift lever is in a position other than P. If the engine is stopped in another
shift lever position, the engine switch will not be turned off but instead be
turned to ACCESSORY mode. If the vehicle is left in ACCESSORY mode,
battery discharge may occur.
Q When starting the engine
O Do not race a cold engine.
O If the engine becomes difficult to start or stalls frequently, have your vehi-
cle checked by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
Q Symptoms indicating a malfunction with the engine switch
If the engine switch seems to be operating somewhat differently than usual,
such as the switch sticking slightly, there may be a malfunction. Contact any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.

231
4
4-2. Driving procedures
Driving
HILUX_OM_OM0K513E_(EE)
Automatic transmission
Vehicles without smart entry & start system
While the engine switch is in the “ON” position, move the shift
lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
Vehicles with smart entry & start system
While the engine switch is in IGNITION ON mode, move the
shift lever with the brake pedal depressed.
When shifting the shift lever between P and D, make sure that the
vehicle is completely stopped.
: If equipped
Select a shift position appropriate for the driving conditions.
Shifting the shift lever

2364-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
Q S mode
When the shift range is 4 or lower, holding the shift lever toward “+” sets the
shift range to 6.
Q Downshifting restrictions warning buzzer
To help ensure safety and driving per formance, downshifting operation may
sometimes be restricted. In some circumstances, downshifting may not be
possible even when the shift lever is operated. (A buzzer will sound twice.)
Q Operation of the air conditioning system in Eco drive mode (vehicles
with automatic air conditioning system)
Eco drive mode controls the heating/cooling operations and fan speed of the
air conditioning system to enhance fuel efficiency ( P. 446). To improve air
conditioning performance, adjust the fan speed or turn off Eco drive mode.
Q Deactivation of the driving mode
O Eco drive mode will not be canceled until the “ECO” switch is pressed, even
if the engine is turned off after driving in Eco drive mode.
O Power mode will be canceled if the engine is turned off after driving in power
mode.
O Driving mode will be canceled if the transfer mode is shifted to L4 while the
driving mode is in other than normal mode. (if equipped)
Q When driving with cruise control or dynamic radar cruise control acti-
vated (if equipped)
Even when performing the following actions with the intent of enabling engine
braking, engine braking will not activate because cruise control or dynamic
radar cruise control will not be canceled.
O While driving in S mode, downshifting to 5 or 4. (P. 235)
O When switching the driving mode to power mode while driving in D.
( P. 233)
Q Restraining sudden start (Drive-Start Control) (vehicles with VSC sys-
tem)
 P. 195
Q Shift lock system
The shift lock system is a system to prevent accidental operation of the shift
lever in starting.
The shift lever can be shifted from P only when the engine switch is in the
“ON” position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system) and the brake pedal is being
depressed.

2464-2. Driving procedures
HILUX_OM_OM0K513E_(EE)
Turn signal lever
Right turn
Left turn
Lane change to the right (move
the lever partway and release
it)
The right hand signals will flash 3
times.
Lane change to the left (move
the lever partway and release
it)
The left hand signals will flash 3
times.
Q Turn signals can be operated when
Vehicles without smart entry & start system
The engine switch is in the “ON” position.
Vehicles with smart entry & start system
The engine switch is in IGNITION ON mode.
Q If the indicator flashes faster than usual
Check that a light bulb in the front or rear turn signal lights has not burned
out.
Q If the turn signals stop flashing before a lane change has been per-
formed
Operate the lever again.
Q To discontinue flashing of the turn signals during a lane change
Operate the lever in the opposite direction.
Q Customization
The number of times the turn signals flash during a lane change can be
changed.
(Customizable features: P. 646)
Operating instructions
1
2
3
4

2534-3. Operating the lights and wipers
4
Driving
HILUX_OM_OM0K513E_(EE)
Q Automatic light off system (if equipped)
Models for model code destination Blank* (except for Kazakhstan)
The lights turn off after the engine switch is turned to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart entry
& start system) and the driver’s door is opened.
To turn the lights on again, turn the engine switch to the “ON” position (vehi-
cles without smart entry & start system) or to IGNITION ON mode (vehicles
with smart entry & start system), or turn the light switch to or once
and then back to or .
Models for model code destination W*, and Kazakhstan
When the light switch is in or :
The headlights and front fog lights turn off after the engine switch is turned to
the “LOCK” position (vehicles without smart entry & start system) or off (vehi-
cles with smart entry & start system).
When the light switch is in AUTO:
The lights turn off after the engine switch is turned to the “LOCK” position
(vehicles without smart entry & start system) or off (vehicles with smart entry
& start system).
To turn the lights on again, turn the engine switch to the “ON” position (vehi-
cles without smart entry & start system) or to IGNITION ON mode (vehicles
with smart entry & start system), or turn the light switch to or once
and then back to or .
*: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 12)
Q Light reminder buzzer (if equipped)
Vehicles without smart entry & start system
A buzzer sounds when the engine switch is turned to the “LOCK” position, the
key is removed and the driver’s door is opened while the lights are turned on.
Vehicles with smart entry & start system
A buzzer sounds when the engine switch is turned off and the driver’s door is
opened while the lights are turned on.

2604-3. Operating the lights and wipers
HILUX_OM_OM0K513E_(EE)
Washer/wiper dual
operation
Pulling the lever operates the
wipers and washer.
The wipers will automatically
operate a couple of times after
the washer squirts.
If the headlights are on, the
headlight cleaners will operate
once.
And then, the headlight cleaners
will operate every five times you
pull the lever. (if equipped)
Q The windshield wipers and washer can be operated when
The engine switch is in the “ON” position (vehicles without smart entry & start
system) or IGNITION ON mode (vehicles with smart entry & start system).
Q If no windshield washer fluid sprays
Check that the washer nozzles are not blocked if there is washer fluid in the
windshield washer fluid reservoir.
7
WARNING
Q Caution regarding the use of washer fluid
When it is cold, do not use the washer fluid until the windshield becomes
warm. The fluid may freeze on the windshield and cause low visibility. This
may lead to an accident, resulting in death or serious injury.
NOTICE
Q When the windshield is dry
Do not use the wipers, as they may damage the windshield.
Q When the washer fluid tank is empty
Do not operate the switch continually as the washer fluid pump may over-
heat.
Q When a nozzle becomes blocked
In this case, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Do not try to clear it with a pin or other object. The nozzle will be damaged.

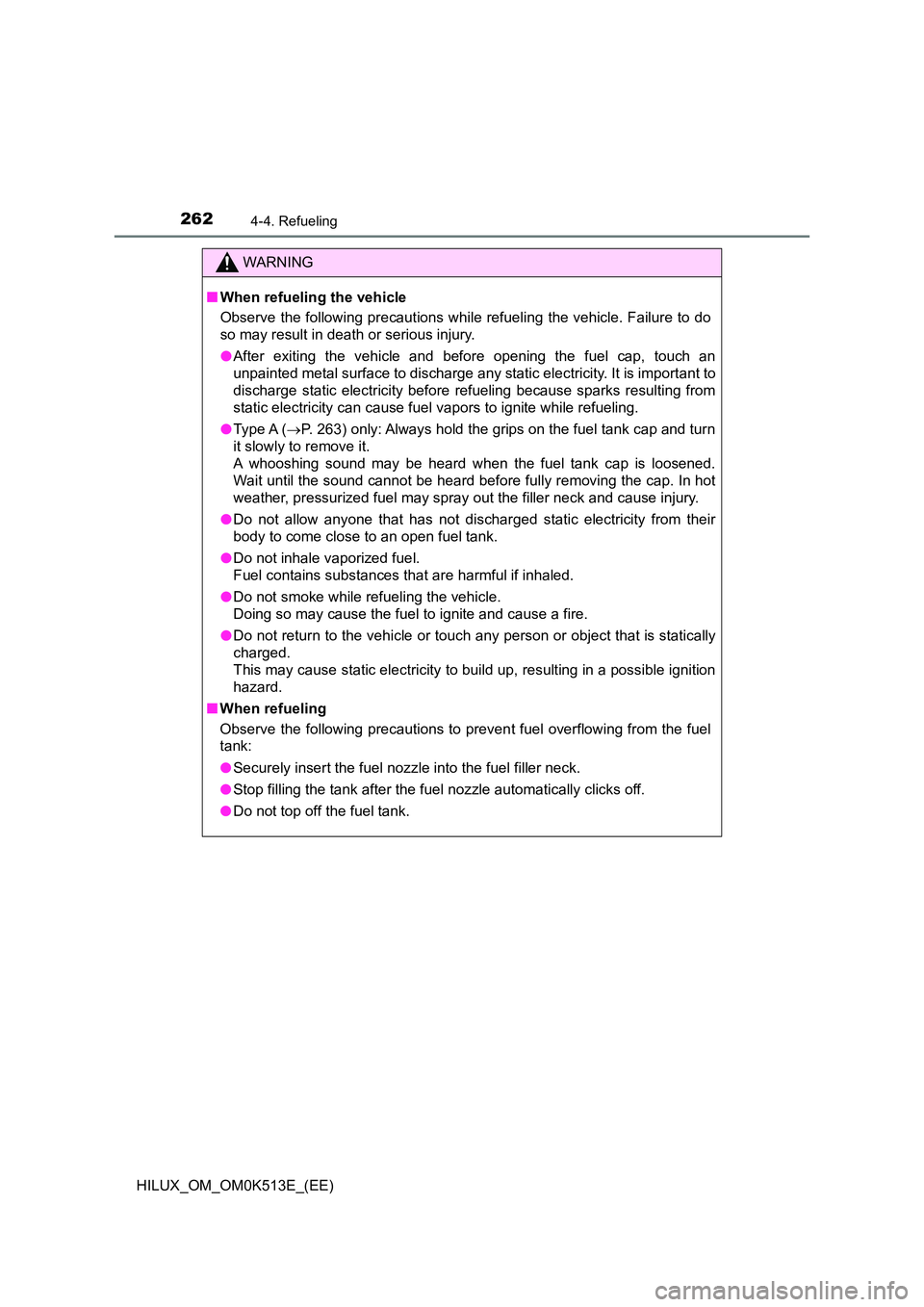

2624-4. Refueling
HILUX_OM_OM0K513E_(EE)
WARNING
QWhen refueling the vehicle
Observe the following precautions while refueling the vehicle. Failure to do
so may result in death or serious injury.
O After exiting the vehicle and before opening the fuel cap, touch an
unpainted metal surface to discharge any stat ic electricity. It is important to
discharge static electricity before re fueling because sparks resulting from
static electricity can cause fuel vapors to ignite while refueling.
O Type A (P. 263) only: Always hold the grips on the fuel tank cap and turn
it slowly to remove it.
A whooshing sound may be heard when the fuel tank cap is loosened.
Wait until the sound cannot be heard before fully removing the cap. In hot
weather, pressurized fuel may spray out the filler neck and cause injury.
O Do not allow anyone that has not discharged static electricity from their
body to come close to an open fuel tank.
O Do not inhale vaporized fuel.
Fuel contains substances that are harmful if inhaled.
O Do not smoke while refueling the vehicle.
Doing so may cause the fuel to ignite and cause a fire.
O Do not return to the vehicle or touch any person or object that is statically
charged.
This may cause static electricity to build up, resulting in a possible ignition
hazard.
Q When refueling
Observe the following precautions to pr event fuel overflowing from the fuel
tank:
O Securely insert the fuel nozzle into the fuel filler neck.
O Stop filling the tank after the fuel nozzle automatically clicks off.
O Do not top off the fuel tank.

2944-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Q Warning message
If the following warning message is displayed on the multi-information dis-
play, and the LDA indicator illuminates in yellow, follow the appropriate trou-
bleshooting procedure. Also, if a different warning message is displayed,
follow the instructions displayed on the screen.
O “LDA Malfunction Visit Your Dealer”
The system may not be operating properly. Have the vehicle inspected by
any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
O “Lane Departure Alert Unavailable”
• The system is temporarily canceled due to a malfunction in a sensor
other than the front camera. Turn the LDA system off, wait for a little
while, and then turn the LDA system back on.
• The system is temporarily unavaila ble as the vehicle repeatedly departs
from its lane or course* in a short period of time. Turn the engine switch
to the “LOCK” position (vehicles without smart entry & start system) or off
(vehicles with smart entry & start system), and then turn it to the “ON”
position (vehicles without smart entry & start system) or IGNITION ON
mode (vehicles with smart entry & start system) again.
*: Boundary between asphalt and the side of the road, such as grass, soil, or
a curb
O “LDA Unavailable at Current Speed”
The function cannot be used as the vehicle speed exceeds the LDA opera-
tion range. Drive slower.
Q Customization
Function settings can be changed. (Customizable features: P. 647)
