656What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
What to do if... (Troubleshooting)
OIf you lose your keys or mechanical keys, new genuine keys or mechanical
keys can be made by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. ( P. 151)
OVehicles with smart entry & start system:
If you lose your electronic keys, the risk of vehicle theft increases signifi-
cantly. Contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately. ( P. 152)
OIs the key battery weak or depleted? (P. 516)
OVehicles with smart entry & start system:
Is the engine switch in IGNITION ON mode?
When locking the doors, turn the engine switch off. ( P. 226)
OVehicles with smart entry & start system:
Is the electronic key left inside the vehicle?
When locking the doors, make sure that you have the electronic key on
your person.
OThe function may not operate properly due to the condition of the radio
wave. ( P. 158, 166)
OIs the rear door child-protector lock set?
The rear door cannot be opened from inside the vehicle when the lock is
set. Open the rear door from outside and then unlock the rear door child-
protector lock. ( P. 156)
If you have a problem, check the following before contacting any
authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer.
The doors cannot be locked, unlocked, opened or closed
You lose your keys
The doors cannot be locked or unlocked
The rear door cannot be opened
(vehicles with rear door child-protector lock)

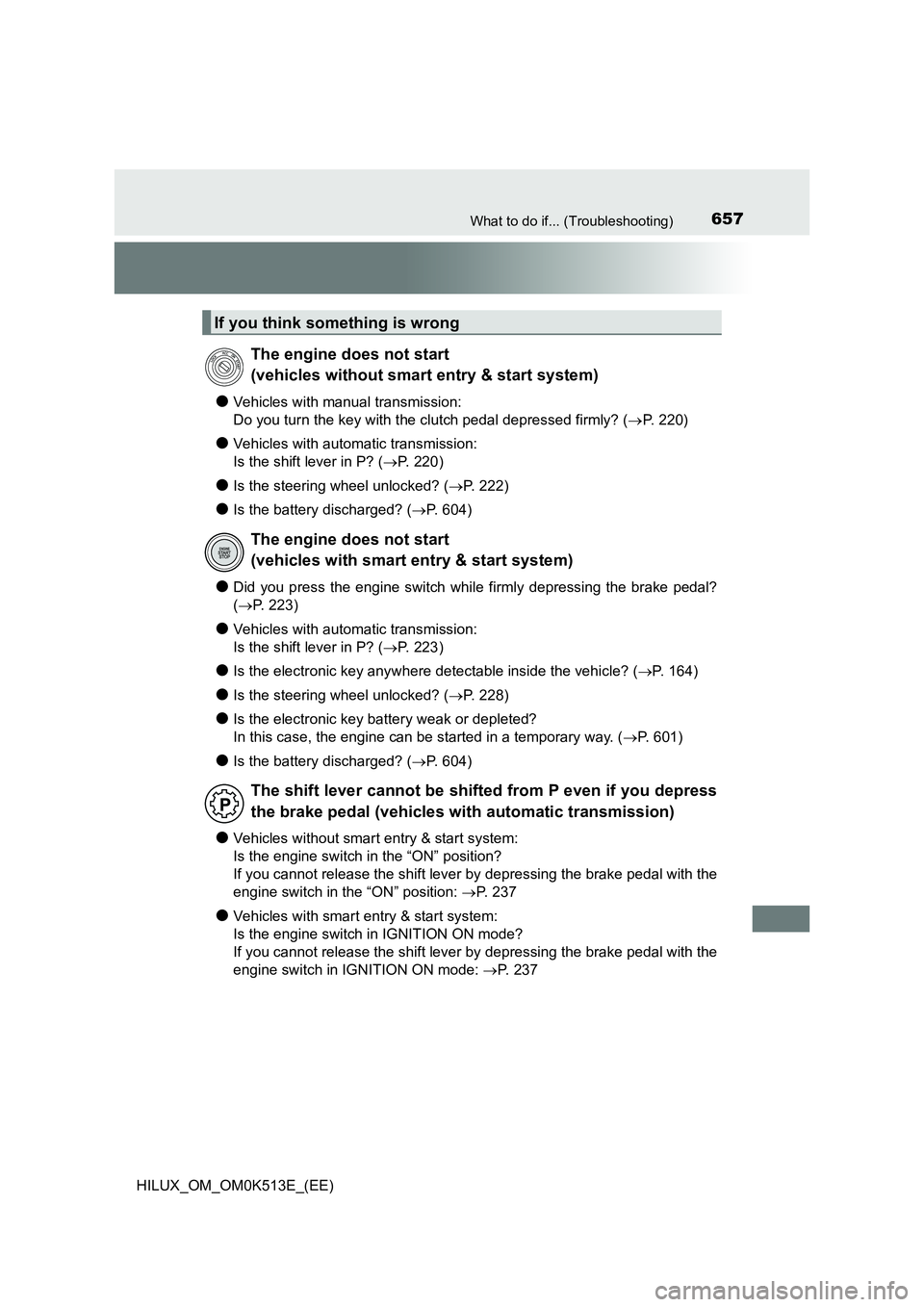

657What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OVehicles with manual transmission:
Do you turn the key with the clutch pedal depressed firmly? ( P. 220)
OVehicles with automatic transmission:
Is the shift lever in P? ( P. 2 2 0 )
OIs the steering wheel unlocked? (P. 222)
OIs the battery discharged? (P. 604)
ODid you press the engine switch while firmly depressing the brake pedal?
( P. 223)
OVehicles with automatic transmission:
Is the shift lever in P? ( P. 2 2 3 )
OIs the electronic key anywhere detectable inside the vehicle? (P. 164)
OIs the steering wheel unlocked? (P. 228)
OIs the electronic key battery weak or depleted?
In this case, the engine can be started in a temporary way. ( P. 601)
OIs the battery discharged? (P. 604)
OVehicles without smart entry & start system:
Is the engine switch in the “ON” position?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in the “ON” position: P. 237
OVehicles with smart entry & start system:
Is the engine switch in IGNITION ON mode?
If you cannot release the shift lever by depressing the brake pedal with the
engine switch in IGNITION ON mode: P. 237
If you think something is wrong
The engine does not start
(vehicles without smart entry & start system)
The engine does not start
(vehicles with smart entry & start system)
The shift lever cannot be shifted from P even if you depress
the brake pedal (vehicles with automatic transmission)

658What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OVehicles without smart entry & start system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 2 2 )
OVehicles with smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 228)
OIs the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 186)
OThe auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 227)
OThe seat belt reminder light is flashing
Are the driver and passengers wearing the seat belts? ( P. 570)
OThe parking brake indicator light is on
Is the parking brake released? ( P. 247)
Depending on the situation, other types of warning buzzer may also sound.
( P. 566, 575)
ODid anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 117)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system) or start the engine.
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches (if equipped)
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)

663Alphabetical index
HILUX_OM_OM0K513E_(EE)
Driving
Break-in tips .......................... 196
Correct posture ....................... 38
Procedures............................ 192
Winter drive tips .................... 374
Dynamic radar cruise
control .................................... 301
Function ................................ 301
Warning message ................. 580
Eco Driving Indicator....... 126, 128
Emergency flashers................. 554
Electronic key
If the electronic key does
not operate properly ........... 600
Replacing the battery ............ 516
Emergency, in case of
If a warning buzzer
sounds ................................ 566
If a warning light turns on ...... 566
If the electronic key does
not operate properly ........... 600
If the engine will not start ...... 598
If the vehicle battery is
discharged .......................... 604
If the vehicle is submerged or
water on the road is
rising ................................... 557
If you have a flat tire.............. 581
If you lose your keys ............. 151
If you run out of fuel and
the engine stalls.................. 614
If you think something is
wrong .................................. 564
If your vehicle becomes
stuck ................................... 615
If your vehicle has to be
stopped in an
emergency.......................... 555
If your vehicle needs to be
towed .................................. 559
If your vehicle overheats ....... 610
Engine
“ACC” position ...................... 221
Compartment ........................ 486
Engine switch................ 220, 223
Hood ..................................... 484
How to start the
engine......................... 220, 223
Identification number ............ 625
If the engine will not start ...... 598
If you run out of fuel and the
engine stalls ....................... 614
If your vehicle has to be
stopped in an
emergency.......................... 555
Ignition switch
(engine switch) ........... 220, 223
Overheating .......................... 610
Engine coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Engine coolant
temperature gauge ................ 131
Engine immobilizer system .... 115
Engine oil
Capacity ................................ 628
Checking ............................... 489
Oil level warning light ............ 570
Oil pressure warning light ..... 566
Preparing and checking
before winter....................... 374
Engine oil maintenance
data ......................................... 491
E

664Alphabetical index
HILUX_OM_OM0K513E_(EE)
Engine switch
(ignition switch) ............. 220, 223
Auto power off function ......... 227
Changing the engine
switch modes...................... 226
Changing the engine
switch position .................... 221
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine ........ 220, 223
Engine switch light
(ignition switch light) ............ 453
ERA-GLONASS ........................ 110
EVAK ......................................... 110
Flat tire ...................................... 581
Floor mat .................................... 36
Fluid
Automatic transmission ......... 636
Brake..................................... 638
Clutch .................................... 637
Steering................................. 639
Transfer................................. 637
Washer.................................. 498
Fog lights
Replacing light
bulbs ................... 539, 542, 549
Switch ................................... 255
Wattage................................. 642
Four-wheel drive system
Front-wheel drive control
switch.................................. 331
Warning light ......................... 568
Front fog lights
Replacing light bulbs ..... 539, 549
Switch ................................... 255
Wattage................................. 642
Front passenger occupant
classification system .............. 57
Front position lights
Light switch ........................... 248
Replacing light
bulbs................... 533, 534, 549
Wattage ................................ 642
Front seats
Adjustment ............................ 170
Cleaning................................ 476
Correct driving posture ........... 38
Head restraints ..................... 175
Seat heaters ......................... 450
Front turn signal lights
Replacing light
bulbs................... 536, 537, 549
Turn signal lever ................... 246
Wattage ................................ 642
Fuel
Capacity ................................ 627
Fuel filter ............................... 499
Fuel gauge ............................ 131
Fuel pump shut off system.... 565
If you run out of fuel
and the engine stalls .......... 614
Information ............................ 643
Refueling............................... 261
Type ...................................... 627
Warning light ......................... 569
Fuel consumption
information ............................ 144
Fuel filler door.......................... 261
Refueling............................... 261
Fuel filter .......................... 499, 569
Fuel pump shut off system ..... 565
Fuses ........................................ 520
F

665Alphabetical index
HILUX_OM_OM0K513E_(EE)
Gauges...................................... 130
Glove box ................................. 457
Grocery bag hooks .................. 468
Hands-free system
(for cellular phone)*.............. 408
Head restraints......................... 175
Headlights ................................ 248
Light switch ........................... 248
Replacing
light bulbs ... 528, 529, 531, 549
Wattage................................. 642
Heated steering wheel ............. 450
Heaters
Automatic air conditioning
system ................................ 441
Heated steering wheel .......... 450
Manual air conditioning
system ................................ 434
Seat heaters.......................... 450
Outside rear view mirrors ...... 444
High mounted stoplight
Replacing .............................. 549
Hill-start assist control ............ 355
Hood.......................................... 484
Hooks
Coat hooks ............................ 469
Grocery bag hooks................ 468
Retaining hooks (floor mat) ..... 36
Horn .......................................... 179
Identification
Engine................................... 625
Vehicle .................................. 624
Ignition switch (engine
switch) ............................ 220, 223
Auto power off function ......... 227
Changing the engine
switch modes...................... 226
Changing the engine
switch position .................... 221
If your vehicle has to be
stopped in an
emergency.......................... 555
Starting the engine........ 220, 223
Ignition switch light
(engine switch light) ............. 453
Illuminated entry system ........ 455
Immobilizer system ................. 115
Indicators ................................. 122
Initialization
Engine oil maintenance
data .................................... 491
Items to initialize ................... 654
Inside rear view mirror ............ 180
Instrument panel light
control .................................... 132
Intercooler ................................ 493
Intercooler coolant
Capacity ................................ 634
Checking ............................... 492
Preparing and checking
before winter....................... 374
Interior lights............................ 453
Switch ................................... 454
Wattage ................................ 642
G
H
I
*: Refer to “Navigation and multimedia system Owner’s manual” or
“Multimedia Owner’s Manual”.

670Alphabetical index
HILUX_OM_OM0K513E_(EE)
Switch
Audio remote control
switches*............................ 379
Cruise control switch ............. 317
Door lock switch .................... 155
Driving mode select
switches...................... 233, 240
Emergency flashers switch ... 554
Engine switch ................ 220, 223
Fog light switch ..................... 255
Front-wheel drive control
switch.................................. 331
Heated steering wheel
switch.................................. 450
Ignition switch ............... 220, 223
LDA (Lane Departure
Alert with Yaw Assist
Function)............................. 290
Light switches ....................... 248
Meter control switches .......... 136
Outside rear view mirror
switches.............................. 182
Power door lock switch ......... 155
Power heater switch...... 436, 444
Power window switch ............ 185
Rear differential lock
switch.................................. 341
Rear window and outside
rear view mirror
defoggers switch......... 435, 444
Seat heater switches............. 450
“SOS” button ................... 98, 110
Telephone switches*............ 413
Toyota parking
assist-sensor ...................... 322
VSC OFF switch ................... 357
Window lock switch ............... 186
Windshield wipers and
washer switch ..................... 258
Tachometer .............................. 131
Tailgate ..................................... 160
Tail lights
Light switch ........................... 248
Replacing light bulbs..... 542, 549
Wattage ................................ 642
Talk switch*
Telephone switches*.............. 413
Theft deterrent system
Alarm .................................... 117
Engine immobilizer system ... 115
Tire inflation pressure
Maintenance data ................. 639
Tires .......................................... 507
Chains................................... 375
Checking ............................... 507
If you have a flat tire ............. 581
Inflation pressure .......... 510, 639
Replacing .............................. 581
Rotating tires......................... 508
Size ....................................... 639
Snow tires ............................. 374
Spare tire .............................. 581
Tools ......................................... 584
Towing
Emergency towing ................ 559
Towing hook ......................... 561
Trailer towing ................ 206, 207
Toyota parking
assist-sensor ......................... 321
Toyota Safety Sense ............... 266
Traction control ....................... 355
Trailer towing ................... 206, 207
Transmission
Automatic transmission......... 231
If the shift lever cannot be
shifted from P ..................... 237
Manual transmission ............. 239
T
