641-2. Child safety
HILUX_OM_OM0K513E_(EE)
Riding with children
OIt is recommended that children sit in the rear seats (if equipped) to
avoid accidental contact with the shift lever, wiper switch etc.
O Use the rear door child-protector lock (double-cab models only) or
the window lock switch (vehicles with power windows) to avoid chil-
dren opening the door while driving or operating the power window
accidentally.
O Do not let small children operate equipment which may catch or
pinch body parts, such as the power window (if equipped), hood,
tailgate (if equipped), seats etc.
Observe the following precautions when children are in the vehi-
cle.
Use a child restraint system appropriate for the child, until the
child becomes large enough to properly wear the vehicle’s seat
belt.
WARNING
Never leave children unattended in the vehicle, and never allow children to
have or use the key.
Children may be able to start the vehicle or shift the vehicle into neutral.
There is also a danger that children may injure themselves by playing with
the windows or other features of the vehicle. In addition, heat build-up or
extremely cold temperatures inside the vehicle can be fatal to children.

651-2. Child safety
1
For safety and security
HILUX_OM_OM0K513E_(EE)
Child restraint systems
Points to remember................................................................. P. 66
When using a child restraint system ....................................... P. 68
Child restraint system compatibility for each seating position.... P. 72
Child restraint system installation method .............................. P. 89
• Fixed with a seat belt .......................................................... P. 90
• Fixed with an ISOFIX lower anchorage (if equipped).......... P. 92
• Using a top tether anchorage (if equipped) ......................... P. 95
Before installing a child restraint system in the vehicle, there are
precautions that need to be observed, different types of child
restraint systems, as well as installation methods, etc., written in
this manual.
O Use a child restraint system when riding with a small child that
cannot properly use a seat belt. For the child’s safety, install the
child restraint system to a rear seat. Be sure to follow the installa-
tion method that is in the operation manual enclosed with the
restraint system.
O The use of a Toyota genuine child restraint system is recom-
mended, as it is safer to use in this vehicle. Toyota genuine child
restraint systems are made specifically for Toyota vehicles. They
can be purchased at a Toyota dealer.
Table of contents

661-2. Child safety
HILUX_OM_OM0K513E_(EE)
OPrioritize and observe the warnings, as well as the laws and regula-
tions for child restraint systems.
O Use a child restraint system until the child becomes large enough to
properly wear the vehicle’s seat belt.
O Choose a child restraint system appropriate to the age and size of
the child.
O Note that not all child restraint systems can fit in all vehicles.
Before using or purchasing a child restraint system, check the com-
patibility of the child restraint system with seat positions. ( P. 7 2 )
Points to remember

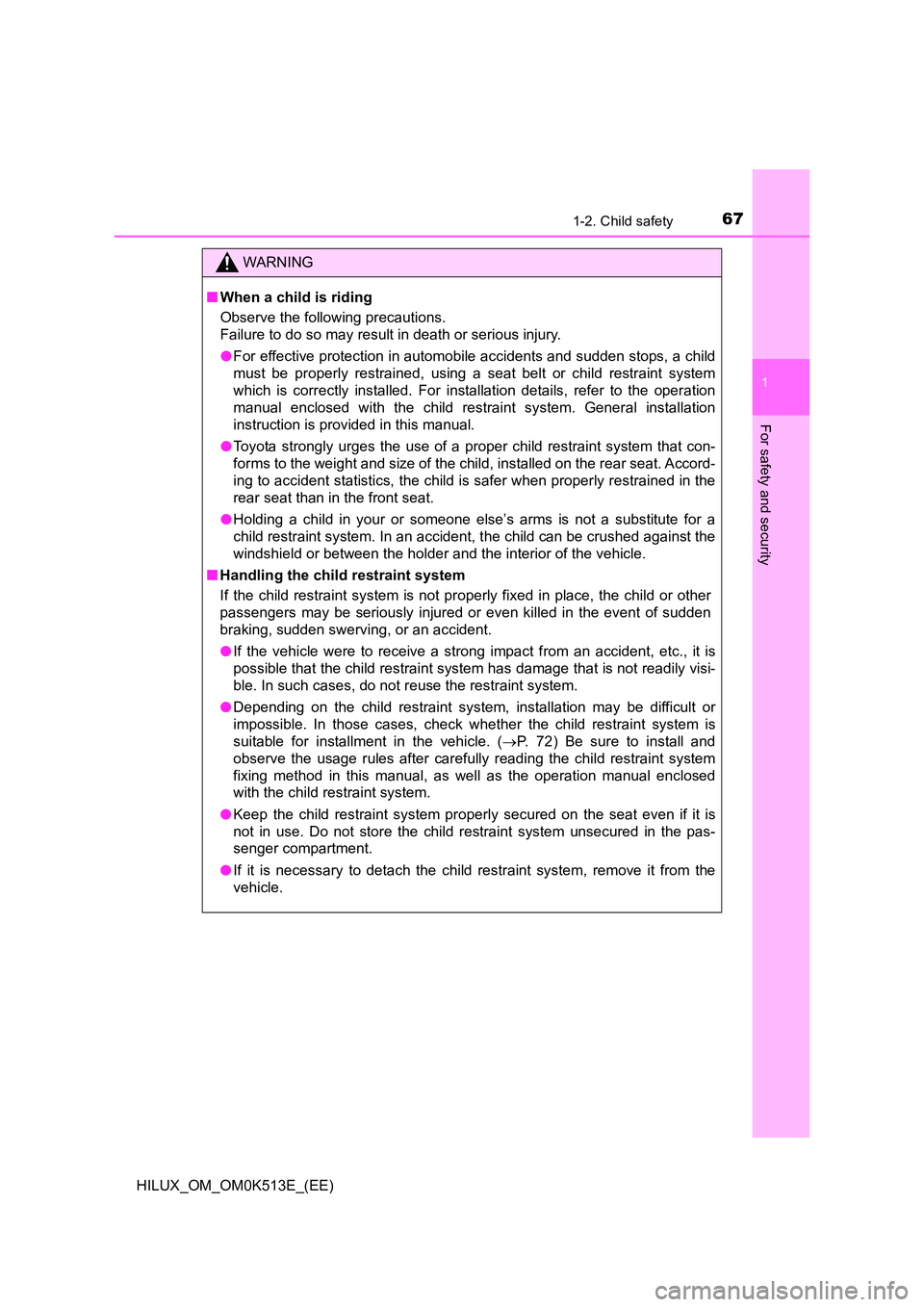

671-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QWhen a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
O For effective protection in automobile accidents and sudden stops, a child
must be properly restrained, using a seat belt or child restraint system
which is correctly installed. For inst allation details, refer to the operation
manual enclosed with the child restraint system. General installation
instruction is provided in this manual.
O Toyota strongly urges the use of a proper child restraint system that con-
forms to the weight and size of the child, installed on the rear seat. Accord-
ing to accident statistics, the child is safer when properly restrained in the
rear seat than in the front seat.
O Holding a child in your or someone else’s arms is not a substitute for a
child restraint system. In an accident, the child can be crushed against the
windshield or between the holder and the interior of the vehicle.
Q Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving, or an accident.
O If the vehicle were to receive a strong impact from an accident, etc., it is
possible that the child restraint system has damage that is not readily visi-
ble. In such cases, do not reuse the restraint system.
O Depending on the child restraint system, installation may be difficult or
impossible. In those cases, check whether the child restraint system is
suitable for installment in the vehicle. ( P. 72) Be sure to install and
observe the usage rules after carefully reading the child restraint system
fixing method in this manual, as well as the operation manual enclosed
with the child restraint system.
O Keep the child restraint system properly secured on the seat even if it is
not in use. Do not store the child restraint system unsecured in the pas-
senger compartment.
O If it is necessary to detach the child restraint system, remove it from the
vehicle.

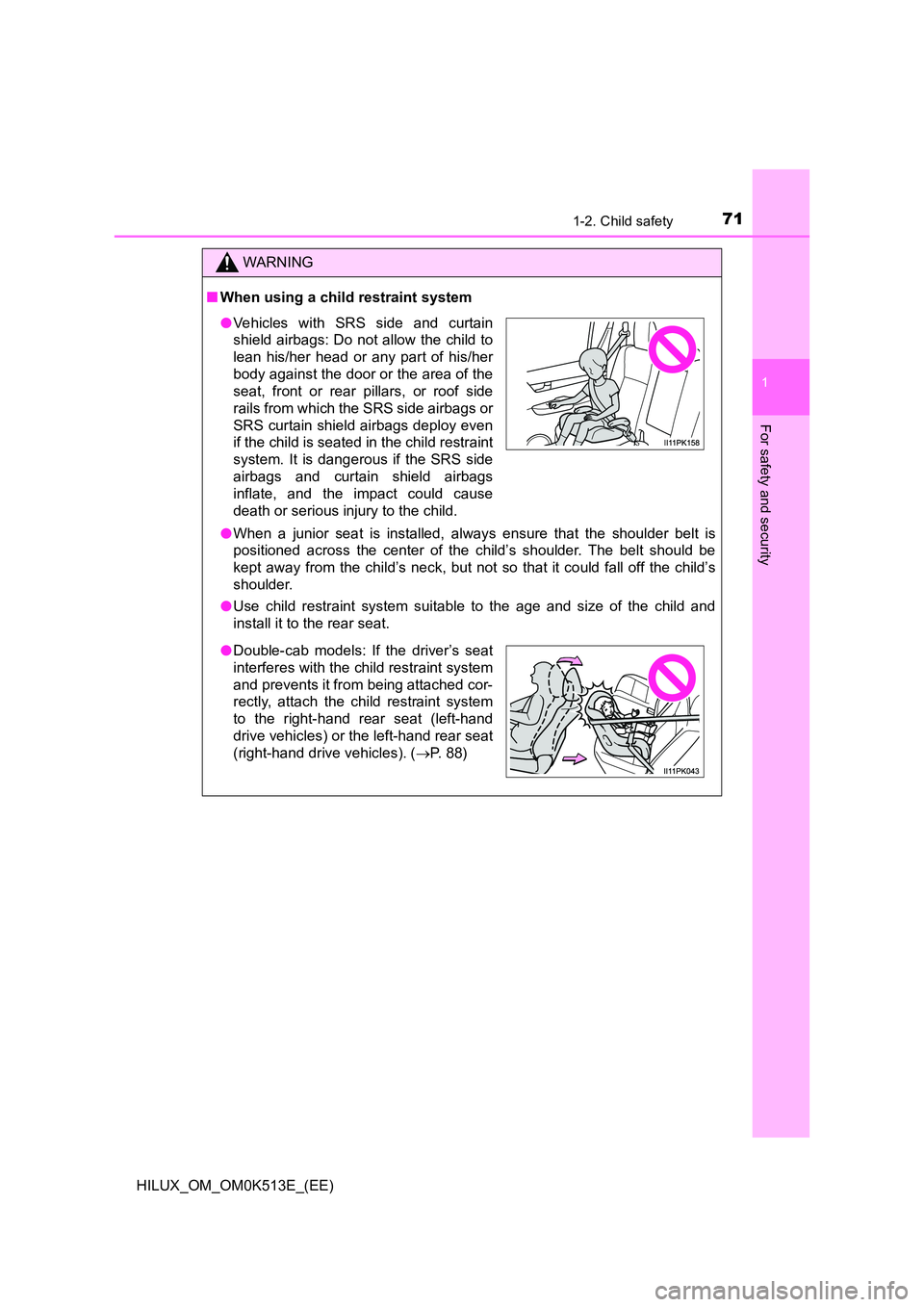

711-2. Child safety
1
HILUX_OM_OM0K513E_(EE)
For safety and security
WARNING
QWhen using a child restraint system
O When a junior seat is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder.
O Use child restraint system suitable to the age and size of the child and
install it to the rear seat.
O Vehicles with SRS side and curtain
shield airbags: Do not allow the child to
lean his/her head or any part of his/her
body against the door or the area of the
seat, front or rear pi llars, or roof side
rails from which the SRS side airbags or
SRS curtain shield airbags deploy even
if the child is seated in the child restraint
system. It is dangerous if the SRS side
airbags and curtain shield airbags
inflate, and the impact could cause
death or serious injury to the child.
O Double-cab models: If the driver’s seat
interferes with the child restraint system
and prevents it from being attached cor-
rectly, attach the child restraint system
to the right-hand rear seat (left-hand
drive vehicles) or the left-hand rear seat
(right-hand drive vehicles). ( P. 8 8 )

741-2. Child safety
HILUX_OM_OM0K513E_(EE)
QCompatibility of each seating position with child restraint sys-
tems
Single-cab and smart-cab models without rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

761-2. Child safety
HILUX_OM_OM0K513E_(EE)
Smart-cab models with rear seats
Left-hand drive vehicles: Right-hand drive vehicles:
*1, 2, 3

*4
Suitable for “universal” category child restraint system fixed with
the seat belt.
Suitable for child restraint systems given on recommended child
restraint systems and compatibility table ( P. 8 5 ) .
Not suitable for child restraint system.
Never use a rear-facing child restraint system on the front passen-
ger seat when “ON” of the “PASSENGER AIR BAG” indicator is
illuminated.

781-2. Child safety
HILUX_OM_OM0K513E_(EE)
Double-cab models
Left-hand drive vehicles with 3-
point type rear center seat belt:
Left-hand drive vehicles with 2-
point type rear center seat belt:
Right-hand drive vehicles:
*1, 2, 3

*3

*3

*3

*3

*4
