5678-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
(Flashes or illuminates)
Malfunction indicator lamp (warning buzzer)
Indicates the followings if the warning light comes on or
flashes:
• Malfunction in the emission control system. (if equipped)
• Malfunction in the electronic engine control system.
• Malfunction in the electronic automatic transmission
control system. (if equipped)
• The boost pressure in the turbocharger is abnormally
high.*3 (diesel engine)
• Malfunction in DPF system. (if equipped)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
SRS warning light
Indicates a malfunction in:
• The SRS airbag system;
• The seat belt pretensioner system; or
• The front passenger occupant classification system (if
equipped)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
ABS warning light
Indicates a malfunction in:
• The ABS; or
• The brake assist system (vehicles with VSC system)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Power steering system warning light (warning buzzer)
(if equipped)
Indicates a malfunction in the power steering system
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

5708-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
(Yellow)
LDA indicator (warning buzzer) (if equipped)
Indicates a malfunction in the LDA (Lane Departure Alert
with Yaw Assist Function)
 Follow the instructions displayed on the multi-infor-
mation display. ( P. 294)
Open door warning light (warning buzzer)*1, 7 (if
equipped)
Indicates that a door is not fully closed
 Check that all the doors are closed.
(Flashes or illuminates)
Driver’s and front passenger’s seat belt reminder light
(warning buzzer)*8
Warns the driver and front passenger to fasten his/her
seat belt
 Fasten the seat belt.
(Flashes or illuminates)
Rear passengers’ seat belt reminder lights (warning
buzzer)*9 (if equipped)
Warn the rear passengers to fasten their seat belts
 Fasten the seat belt.
Low fuel level warning light
Indicates remaining fuel is approximately 12.0 L (3.2 gal.,
2.6 Imp.gal.) or less
 Refuel the vehicle.
Low engine oil level warning light (if equipped)
Indicates that engine oil level is low (This warning light
may come on if the vehicle is stopped on a slope. Move
the vehicle to a level surface and check to see if the light
goes off.)
 Check the level of engine oil and add more oil if nec-
essary.
(Flashes or illuminates)
Master warning light (warning buzzer) (if equipped)
A buzzer sounds and the warning light comes on and
flashes to indicate that the master warning system has
detected a malfunction.
 P. 575
(Flashes)
Stop & Start cancel indicator (if equipped)
Indicates a malfunction in the Stop & Start system
(The Stop & Start cancel indicator will come on when the
system is canceled: P. 346)
 Have the vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable
repairer immediately.
Warning lightWarning light/Details/Actions

5728-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
*1: Vehicles with multi-information display: a indicator is displayed on the
multi-information display.
*2: The buzzer sounds if the vehicle reaches a speed of 5 km/h (3 mph).
*3: Slow down until the lamp goes off.
*4: The buzzer sounds when the differential oil temperature is too high and
turning the front-wheel drive control switch to H2 is required.
*5: The buzzer will sound at the same time the warning light flashes.
*6: The light turns to yellow.
*7: The open door warning buzzer sounds if the vehicle reaches or exceeds a
speed of 5 km/h (3 mph).
*8: The driver’s and front passenger’s seat belt warning buzzer sounds to alert
the driver and front passenger that his or her seat belt is not fastened. If
the seat belt is unfastened, the buzzer sounds intermittently for a certain
period of time after the vehicle reaches a certain speed.
*9: Models made in South Africa*10, and models made in Thailand*10 with
rear seat heaters:
The rear passengers’ seat belt warning buzzer sounds to alert the rear
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time after the
vehicle reaches a certain speed.
Models made in Thailand*10 without rear seat heaters:
The rear passengers’ seat belt warning buzzer sounds to alert the rear
passenger that his or her seat belt is not fastened. If the seat belt is unfas-
tened, the buzzer sounds intermittently for a certain period of time, after
the seat belt is fastened and unfastened and the vehicle reaches a certain
speed.
*10: See “Checking your vehicle’s model” if you are not sure of which model
your vehicle is. ( P. 1 2 )
*11: The parking brake engaged warning buzzer sounds if the vehicle reaches a
speed of approximately 5 km/h (3 mph) or more.

5738-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
QPassenger detection sensor, seat belt reminder and warning buzzer
O If luggage is placed on the passenger seat, the front passenger detection
sensor or the rear passenger detecti on sensor (if equipped) may cause the
warning light to flash and the warning buzzer to sound even if a passenger
is not sitting in the seat.
O If a cushion is placed on the seat, the sensor may not detect a passenger,
and the warning light may not operate properly.
Q If the malfunction indicator lamp comes on while driving
For some models, malfunction indicator lamp will come on if the fuel tank
becomes completely empty. If the fuel tank is empty, refuel the vehicle imme-
diately. The malfunction indicator lamp will go off after several trips.
If the malfunction indicator lamp does not go off, contact any authorized
Toyota retailer or Toyota authorized repai rer, or any reliable repairer as soon
as possible.
Q Warning buzzer
In some cases, the buzzer may not be heard due to being in a noisy location
or audio sound.

6098-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
WARNING
QWhen exchanging the battery
O When the vent plug and indicator are close to the hold down bracket, the
battery fluid (sulfuric acid) may leak.
O For information regarding battery replacement, contact any authorized
Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q To prevent damage to the vehicle (vehicles with manual transmission)
Do not pull- or push-start the vehicle as the three-way catalytic converter or
catalytic converter may overheat and become a fire hazard.
NOTICE
Q When handling jumper cables
When connecting the jumper cables, ensure that they do not become entan-
gled in the cooling fan or belt.

6138-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
8
When trouble arises
Start the engine to check that the radiator cooling fan operates and
to check for coolant leaks from the radiator or hoses.
If the fan is not operating:
Stop the engine immediately and contact any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
If the fan is operating:
Have the vehicle inspected at the nearest authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
WARNING
Q When inspecting under the hood of your vehicle
Observe the following precautions.
Failure to do so may result in serious injury such as burns.
O If steam is seen coming from under the hood, do not open the hood until
the steam has subsided. The engine compartment may be very hot.
O Keep hands and clothing (especially a tie, a scarf or a muffler) away from
the fans and belts. Failure to do so may cause the hands or clothing to be
caught, resulting in serious injury.
O Do not loosen the radiator cap (if equipped), the engine coolant reservoir
cap or intercooler coolant reservoir cap (if equipped) while the engine and
radiator are hot. High temperature steam or coolant could spray out.
NOTICE
Q When adding engine coolant
Add coolant slowly after the engine has cooled down sufficiently. Adding
cool coolant to a hot engine too quickly can cause damage to the engine.
Q To prevent damage to the cooling system
Observe the following precautions:
O Avoid contaminating the coolant with foreign matter (such as sand or dust
etc.).
O Do not use any coolant additive.
6
7

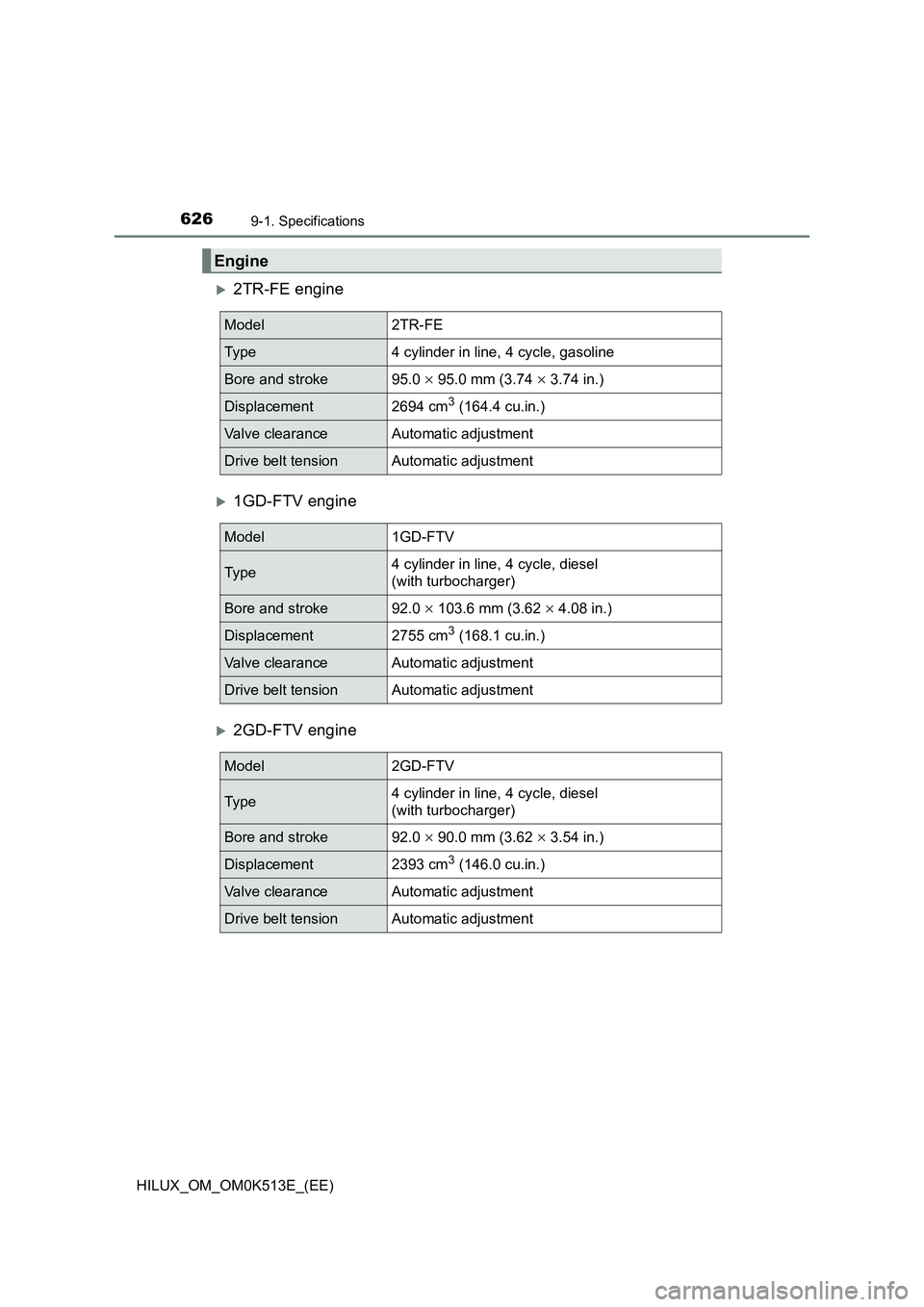

6269-1. Specifications
HILUX_OM_OM0K513E_(EE)
2TR-FE engine
1GD-FTV engine
2GD-FTV engine
Engine
Model2TR-FE
Ty p e4 cylinder in line, 4 cycle, gasoline
Bore and stroke95.0  95.0 mm (3.74  3.74 in.)
Displacement2694 cm3 (164.4 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model1GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  103.6 mm (3.62  4.08 in.)
Displacement2755 cm3 (168.1 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment
Model2GD-FTV
Ty p e4 cylinder in line, 4 cycle, diesel
(with turbocharger)
Bore and stroke92.0  90.0 mm (3.62  3.54 in.)
Displacement2393 cm3 (146.0 cu.in.)
Valve clearanceAutomatic adjustment
Drive belt tensionAutomatic adjustment

658What to do if... (Troubleshooting)
HILUX_OM_OM0K513E_(EE)
OVehicles without smart entry & start system:
It is locked to prevent theft of the vehicle if the key is removed from the
engine switch. ( P. 2 2 2 )
OVehicles with smart entry & start system:
It is locked automatically to prevent theft of the vehicle. ( P. 228)
OIs the window lock switch pressed?
The power window except for the one at the driver’s seat cannot be oper-
ated if the window lock switch is pressed. ( P. 186)
OThe auto power off function will be operated if the vehicle is left in ACCES-
SORY or IGNITION ON mode (the engine is not operating) for a period of
time. ( P. 227)
OThe seat belt reminder light is flashing
Are the driver and passengers wearing the seat belts? ( P. 570)
OThe parking brake indicator light is on
Is the parking brake released? ( P. 247)
Depending on the situation, other types of warning buzzer may also sound.
( P. 566, 575)
ODid anyone inside the vehicle open a door during setting the alarm?
The sensor detects it and the alarm sounds. ( P. 117)
To stop the alarm, turn the engine switch to the “ON” position (vehicles with-
out smart entry & start system) or IGNITION ON mode (vehicles with smart
entry & start system) or start the engine.
The steering wheel cannot be turned after the engine is
stopped
The windows do not open or close by operating the power
window switches (if equipped)
The engine switch is turned off automatically
(vehicles with smart entry & start system)
A warning buzzer sounds during driving
An alarm is activated and the horn sounds (if equipped)
