2022 TOYOTA HILUX belt

205
4
4-1. Before driving
Driving
HILUX_OM_OM0K513E_(EE)
Cargo and luggage
Take notice of the following information about storage precau-
tions, cargo capacity and load.
WARNING
Q Things that must not be carried in the rear deck
The following things may cause a fire if loaded in the rear deck:
O Receptacles containing gasoline
O Aerosol cans
Q Storage precautions
Observe the following precautions.
Failure to do so may prevent t he pedals from being depressed properly,
may block the driver’s vision, or may re sult in items hitting the driver or pas-
sengers, possibly causing an accident.
O Stow cargo and luggage in the rear deck whenever possible.
O Except for single-cab models: Do not stack anything behind the front seats
higher than the seatbacks.
O Do not place cargo or luggage in or on the following locations.
• At the feet of the driver
• On the front passenger or rear seats (if equipped) (when stacking
items)
• On the instrument panel
• On the dashboard
O Secure all items in the occupant compartment.
O Never allow anyone to ride in the rear deck. It is not designed for passen-
gers. They should ride in their seats with their seat belts properly fastened.
Otherwise, they are much more likely to suffer death or serious bodily
injury, in the event of sudden braking, sudden swerving or an accident.
Q Load and distribution
O Do not overload your vehicle.
O Do not apply loads unevenly.
Improper loading may cause deterioration of steering or braking control
which may cause death or serious injury.

3484-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
Q Operating conditions
O The Stop & Start system is operational when all of the following conditions
are met:
• The vehicle has been driven a certain amount of time.
• The brake pedal is being depressed firmly. (vehicles with automatic trans-
mission)
• The clutch pedal is not depressed. (vehicles with manual transmission)
• The D shift position is selected. (v ehicles with automatic transmission)
• The shift lever is in N. (vehicles with manual transmission)
• The driver’s seat belt is fastened.
• The driver’s door is closed.
• The selected driving mode is normal or Eco drive mode. (if equipped)
• The rear differential is not locked. (if equipped)
• is off. (vehicles without manual air conditioning system)
• The accelerator pedal is not being depressed. (vehicles with automatic
transmission)
• The engine is adequately warmed up.
• The outside temperature is -5°C (23°F) or higher.
• The hood is closed. ( P. 349)
O In the following situations, the engine may not be stopped by the Stop &
Start system. This is not a malfunction of the Stop & Start system.
• When the air conditioning system is being used.
• When the battery is undergoing a periodic recharge.
• When the battery is not sufficiently charged, such as if the vehicle has
been parked for a long time and the battery charge has decreased, the
electric load is large, the battery fluid temperature is excessively low or
the battery has deteriorated.
• When the brake booster vacuum is low.
• When the elapsed time since the engine was restarted is short.
• When the vehicle is stopped frequently, such as when in a traffic jam.
• When the engine coolant temperature or transmission fluid temperature
is extremely low or high.
• When the vehicle is stopped on a steep incline. (vehicles with automatic
transmission)
• When the steering wheel is being operated.
• When the vehicle is being driven in a high altitude area.
• When the battery fluid temperature is extremely low or high.
• For a while after the battery terminals have been disconnected and
reconnected.

3494-5. Using the driving support systems
4
Driving
HILUX_OM_OM0K513E_(EE)
O When the engine is stopped by the Stop & Start system, the engine will be
restarted automatically if any of the following conditions are met:
(To enable the engine to be stopped by the Stop & Start system again, drive
the vehicle.)
• The air conditioning system is turned on. (vehicles without manual air
conditioning system)
• is turned on. (vehicles without manual air conditioning system)
• The shift lever is shifted from D or P. (vehicles with automatic transmis-
sion)
• The shift lever is shifted from P. (When the engine is stopped by the Stop
& Start system when the shift lever is in P.) (vehicles with automatic trans-
mission)
• The driver’s seat belt is unfastened.
• The driver’s door is opened.
• The driving mode is changed from normal or Eco drive mode to another
mode. (if equipped)
• The rear differential is locked. (if equipped)
• The Stop & Start cancel switch is pressed.
• The steering wheel is operated.
• The accelerator pedal is depressed. (vehicles with automatic transmis-
sion)
• The vehicle starts to roll on an incline.
O When the engine is stopped by the Stop & Start system, the engine may
restart automatically in the following situations:
(To enable the engine to be stopped by the Stop & Start system again, drive
the vehicle.)
• When the brake pedal is pumped or strongly depressed.
• When the air conditioning system is being used.
• When a switch of the air conditioning system is operated ( , etc.).
• If the battery charge becomes low.
Q When the hood is opened
O If the hood is opened while the engine is stopped by the Stop & Start sys-
tem, the engine will stall and will not be able to be restarted by the automatic
engine start function. In this case, restart the engine using the normal
engine starting procedure. ( P. 220, 223)
O If the hood is closed after the engine is started with the hood open, the Stop
& Start system will not operate. Close the hood, turn the engine switch to the
“LOCK” position*1 or off*2, wait 30 seconds or more, and then start the
engine.
*1: Vehicles without smart entry & start system
*2: Vehicles with smart entry & start system

3544-5. Using the driving support systems
HILUX_OM_OM0K513E_(EE)
WARNING
QWhen the Stop & Start system is operating
Make sure to disable the Stop & Start system while the vehicle is in a poorly
ventilated area.
If not disabled, the engine may be automatically restarted unexpectedly,
causing exhaust gases to collect and enter the vehicle, possibly resulting in
death or a serious health hazard.
O Do not leave the vehicle while the engine is stopped by the Stop & Start
system (while the Stop & Start indicator is on).
An accident may occur due to the automatic engine start function.
O Depress the brake pedal and apply the parking brake when necessary,
while the engine is stopped by the Stop & Start system (while the Stop &
Start indicator is on).
Q Off-road driving precaution
When driving off-road, such as driving through water, press the Stop & Start
cancel switch to disable the Stop & Start system. Failure to do so may
cause the engine to be unable to restart.
NOTICE
Q To ensure the system operates correctly
If any of the following situations occur, the Stop & Start system may not
operate correctly. Have your vehicle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
O While the driver’s seat belt is fastened, the driver’s and front passenger’s
seat belt reminder light flashes.
O Even though the driver’s seat belt is not fastened, the driver’s and front
passenger’s seat belt reminder light does not illuminate.
O Even though the driver’s door is closed, the open door warning light is illu-
minated or the interior light is illuminated when the interior light switch is in
the door position.
O Even though the driver’s door is open, the open door warning light does
not illuminate or the interior light does not illuminate when the interior light
switch is in the door position.
Q If the engine stalls (vehicles with manual transmission)
If the Stop & Start system is enabled and the clutch pedal is depressed
quickly, the engine may restart.

4777-1. Maintenance and care
7
Maintenance and care
HILUX_OM_OM0K513E_(EE)
QCaring for leather areas
Toyota recommends cleaning the interior of the vehicle at least twice a year to
maintain the quality of the vehicle’s interior.
Q Shampooing the carpets
There are several commercial foaming-type cleaners available. Use a sponge
or brush to apply the foam. Rub in overlapping circles. Do not use water.
Wipe dirty surfaces and let them dry. Excellent results are obtained by keep-
ing the carpet as dry as possible.
Q Seat belts
Clean with mild soap and lukewarm water using a cloth or sponge. Also
check the belts periodically for excessive wear, fraying or cuts.
WARNING
Q Water in the vehicle
O Do not splash or spill liquid in the vehicle.
Doing so may cause electrical components etc. to malfunction or catch
fire.
O Do not get any of the SRS components or wiring in the vehicle interior wet.
( P. 46)
An electrical malfunction may cause the airbags to deploy or not function
properly, resulting in death or serious injury.
Q Cleaning the interior (especially instrument panel)
Do not use polish wax or polish cleaner. The instrument panel may reflect
off the windshield, obstructing the driver’s view and leading to an accident,
resulting in death or serious injury.

4837-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
WARNING
The engine compartment contains many mechanisms and fluids that may
move suddenly, become hot, or become el ectrically energized. To avoid death
or serious injury, observe the following precautions.
Q When working on the engine compartment
O Keep hands, clothing and tools away from the moving fan and engine
drive belt.
O Be careful not to touch the engine, radiator, exhaust manifold, etc. right
after driving as they may be hot. Oil and other fluids may also be hot.
O Do not leave anything that may burn easily, such as paper and rags, in the
engine compartment.
O Do not smoke, cause sparks or expose an open flame to fuel or the bat-
tery. Fuel and battery fumes are flammable.
O Be extremely cautious when working on the battery. It contains poisonous
and corrosive sulfuric acid.
O Take care because brake fluid can harm your hands or eyes and damage
painted surfaces. If fluid gets on your hands or in your eyes, flush the
affected area with clean water immediately.
If you still experience discomfort, consult a doctor.
Q Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc.
from getting in your eyes.
NOTICE
Q If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear
due to dirt in the air.
Q If the fluid level is low or high
It is normal for the brake fluid level to go down slightly as the brake pads
wear or when the fluid level in the accumulator is high.
If the reservoir needs frequent refilling, it may indicate a serious problem.

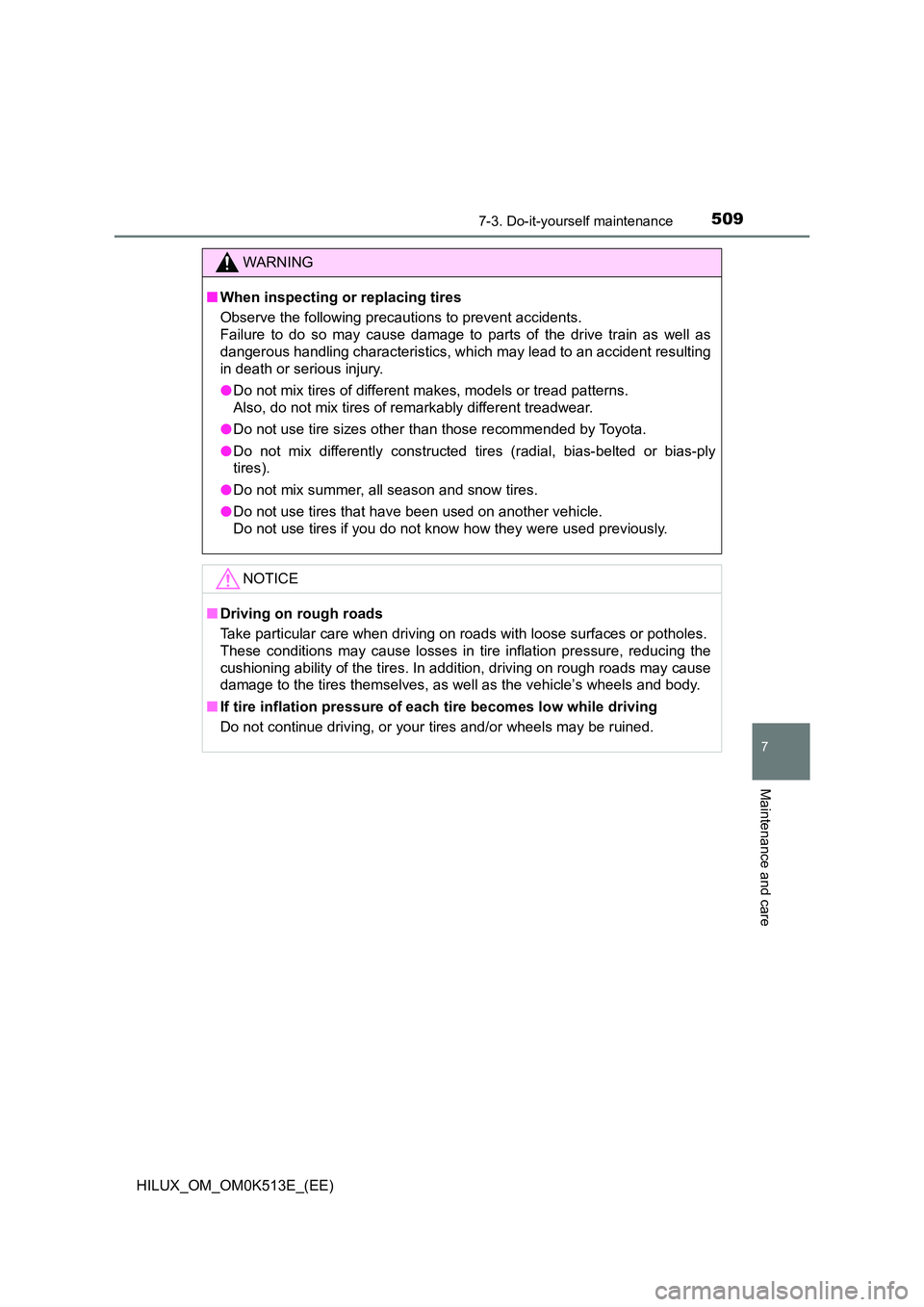

5097-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
WARNING
QWhen inspecting or replacing tires
Observe the following precautions to prevent accidents.
Failure to do so may cause damage to parts of the drive train as well as
dangerous handling characteristics, which may lead to an accident resulting
in death or serious injury.
O Do not mix tires of different makes, models or tread patterns.
Also, do not mix tires of remarkably different treadwear.
O Do not use tire sizes other than those recommended by Toyota.
O Do not mix differently constructed tires (radial, bias-belted or bias-ply
tires).
O Do not mix summer, all season and snow tires.
O Do not use tires that have been used on another vehicle.
Do not use tires if you do not know how they were used previously.
NOTICE
Q Driving on rough roads
Take particular care when driving on roads with loose surfaces or potholes.
These conditions may cause losses in tire inflation pressure, reducing the
cushioning ability of the tires. In addition, driving on rough roads may cause
damage to the tires themselves, as well as the vehicle’s wheels and body.
Q If tire inflation pressure of each tire becomes low while driving
Do not continue driving, or your tires and/or wheels may be ruined.

5608-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
When using a flatbed truck to transport the vehicle, use tire strapping
belts. Refer to the owner’s manual of the flatbed truck for the tire
strapping method.
In order to suppress vehicle movement during transportation, set the
parking brake and turn the engine switch to the “LOCK” position (vehi-
cles without smart entry & start system) or off (vehicles with smart
entry & start system).
Towing with a wheel-lift type truck
From the frontFrom the rear
Use a towing dolly under the rear
wheels.
Use a towing dolly under the
front wheels.
Using a flatbed truck
