2022 TOYOTA HILUX warning

5187-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QUse a lithium battery
Vehicles without smart entry & start system: CR1620
Vehicles with smart entry & start system: CR2032
O Batteries can be purchased at any authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance shops
or camera stores.
O Replace only with the same or equivalent type recommended by the manu-
facturer.
O Dispose of used batteries according to local laws.
Q If the key battery is depleted
The following symptoms may occur:
O The smart entry & start system (if equipped) and wireless remote control will
not function properly.
O The operational range will be reduced.
WARNING
QBattery precautions
Observe the following precautions.
Failure to do so may result in death or serious injury.
O Do not swallow the battery. Doing so may cause chemical burns.
O A coin battery or button battery is used in the electronic key. If a battery
is swallowed, it may cause severe chemical burns in as little as 2 hours
and may result in death or serious injury.
O Keep away new and removed batteries from children.
O If the cover cannot be firmly closed, stop using the electronic key and
stow the key in the place where children cannot reach, and then contact
any authorized Toyota retailer or Toyota authorized repairer, or any reli-
able repairer.
O If you accidentally swallow a battery or put a battery into a part of your
body, get emergency medical attention immediately.
Q To prevent battery explosion or leakage of flammable liquid or gas
O Replace the battery with a new battery of the same type. If a wrong type
of battery is used, it may explode.
O Do not expose batteries to extremely low pressure due to high altitude or
extremely high temperatures.
O Do not burn, break or cut a battery.

5247-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
QAfter a fuse is replaced
O If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 525)
O If the replaced fuse blows again, have the vehicle inspected by any autho-
rized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
Q If there is an overload in a circuit
The fuses are designed to blow, protecting the wiring harness from damage.
WARNING
Q To prevent system breakdowns and vehicle fire
Observe the following precautions.
Failure to do so may cause damage to the vehicle, and possibly a fire or
injury.
O Never use a fuse of a higher amperage rating than that indicated, or use
any other object in place of a fuse.
O Always use a genuine Toyota fuse or equivalent.
Never replace a fuse with a wire, even as a temporary fix.
O Do not modify the fuses or fuse boxes.
NOTICE
QBefore replacing fuses
Have the cause of electrical overload determined and repaired by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer as soon as possible.

5517-3. Do-it-yourself maintenance
HILUX_OM_OM0K513E_(EE)
7
Maintenance and care
WARNING
QReplacing light bulbs
O Turn off the lights. Do not attempt to replace the bulb immediately after
turning off the lights.
The bulbs become very hot and may cause burns.
O Do not touch the glass portion of the light bulb with bare hands. When it is
unavoidable to hold the glass portion, use and hold with a clean dry cloth
to avoid getting moisture and oils on the bulb.
Also, if the bulb is scratched or dropped, it may blow out or crack.
O Fully install light bulbs and any parts used to secure them. Failure to do so
may result in heat damage, fire, or water entering the headlight unit. This
may damage the headlights or cause condensation to build up on the lens.
O Do not attempt to repair or disassemble light bulbs, connectors, electric
circuits or component parts.
Doing so may result in death or serious injury due to electric shock.
Q To prevent damage or fire
O Make sure bulbs are fully seated and locked.
O Check the wattage of the bulb before installing to prevent heat damage.
NOTICE
QWhen replacing the outer foot lights
If the front window is stopping you from conducting the replace operation
properly, open the window on the side you are working on to allow you
enough space to work. Continuing the operation without giving yourself
enough space to work could lead you to scratch the vehicle.

553
8When trouble arises
HILUX_OM_OM0K513E_(EE)
8-1. Essential information
Emergency flashers ........... 554
If your vehicle has to
be stopped in an
emergency ....................... 555
If the vehicle is
submerged or water on
the road is rising .............. 557
8-2. Steps to take in an
emergency
If your vehicle needs
to be towed ...................... 559
If you think something is
wrong ............................... 564
Fuel pump shut off
system (gasoline engine
only) ................................. 565
If a warning light turns on
or a warning buzzer
sounds ............................. 566
If a warning message is
displayed ......................... 575
If you have a flat tire .......... 581
If the engine will not
start.................................. 598
If the electronic key does
not operate properly
(vehicles with smart
entry & start system)........ 600
If the vehicle battery is
discharged ....................... 604
If your vehicle
overheats ......................... 610
If you run out of fuel
and the engine stalls
(diesel engine only) ......... 614
If the vehicle becomes
stuck ................................ 615

5568-1. Essential information
HILUX_OM_OM0K513E_(EE)
WARNING
QIf the engine has to be turned off while driving
O Power assist for the brakes and steering wheel will be lost, making the
brake pedal harder to depress and the steering wheel heavier to turn.
Decelerate as much as possible before turning off the engine.
O Vehicles without smart entry & start system: Never attempt to remove the
key, as doing so will lock the steering wheel.

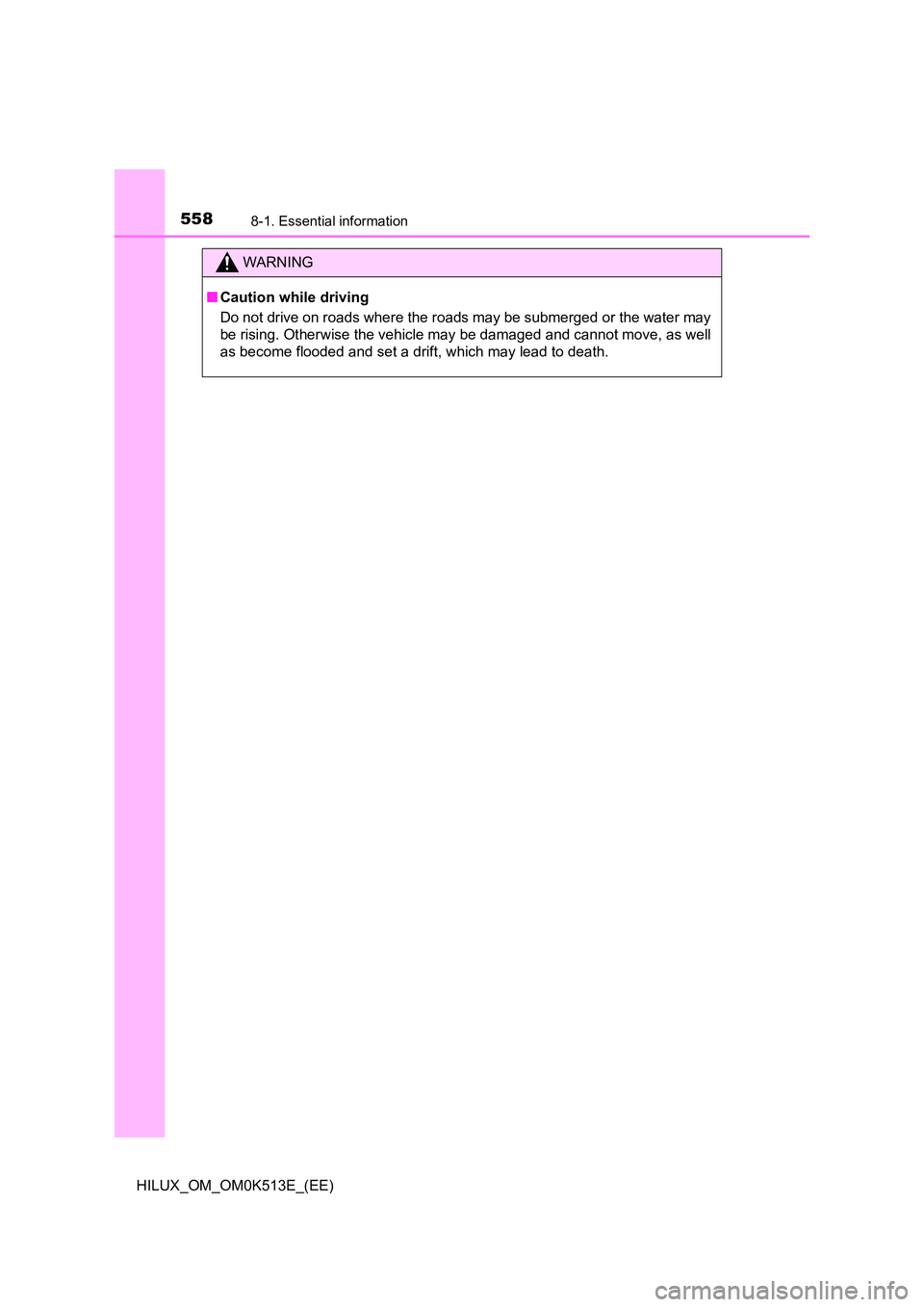

5588-1. Essential information
HILUX_OM_OM0K513E_(EE)
WARNING
QCaution while driving
Do not drive on roads where the roads may be submerged or the water may
be rising. Otherwise the vehicle may be damaged and cannot move, as well
as become flooded and set a drift, which may lead to death.

5628-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
QWhile towing
If the engine is not running, the power assist for the brakes and steering will
not function, making steering and braking more difficult.
WARNING
Observe the following precautions.
Failure to do so may result in death or serious injury.
Q When towing the vehicle
Q While towing
O When towing using cables or chains, avoid sudden starts, etc. which place
excessive stress on the towing hooks, cables or chains. The towing hooks,
cables or chains may become damaged, broken debris may hit people,
and cause serious damage.
O Do not turn the engine switch to the “LOCK” position (vehicles without
smart entry & start system) or off (vehicles with smart entry & start sys-
tem).
There is a possibility that the steering wheel is locked and cannot be oper-
ated.
Pre Runner (2WD models): Be sure to
transport the vehicle with all four wheels
raised off the ground. If the vehicle is
towed with the tires contacting the
ground, the drivetrain and related parts
may be damaged or an accident may
occur due to a change in direction of the
vehicle.
4WD models: Be sure to transport the
vehicle with all four wheels raised off the
ground. If the vehicle is towed with the
tires contacting the ground, the drivetrain
and related parts may be damaged, and
the vehicle may fly off the truck.

5668-2. Steps to take in an emergency
HILUX_OM_OM0K513E_(EE)
If a war ning light tur ns on or a warning
buzzer sounds
Calmly perform the following actions if any of the warning lights
comes on or flashes. If a light comes on or flashes, but then
goes off, this does not necessarily indicate a malfunction in the
system. However, if this continues to occur, have the vehicle
inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
Warning light and warning buzzer list
Warning lightWarning light/Details/Actions
Brake system warning light (warning buzzer)
Indicates:
• Low brake fluid
• Malfunction in the brake system
• Low negative pressure in the vacuum tank (diesel
engine)
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer. Continuing to
drive the vehicle may be dangerous.
Charging system warning light*1 (if equipped)
Indicates a malfunction in the vehicle’s charging system
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
Low engine oil pressure warning light (warning
buzzer)*1, 2 (if equipped)
Indicates that the engine oil pressure is too low (This
warning light may come on if the vehicle is stopped on a
slope. Move to a level surface and check to see if the light
goes off.)
 Immediately stop the vehicle in a safe place and con-
tact any authorized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer.
